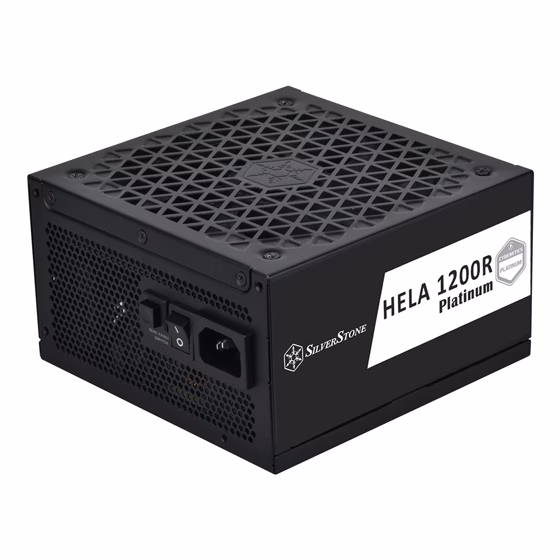

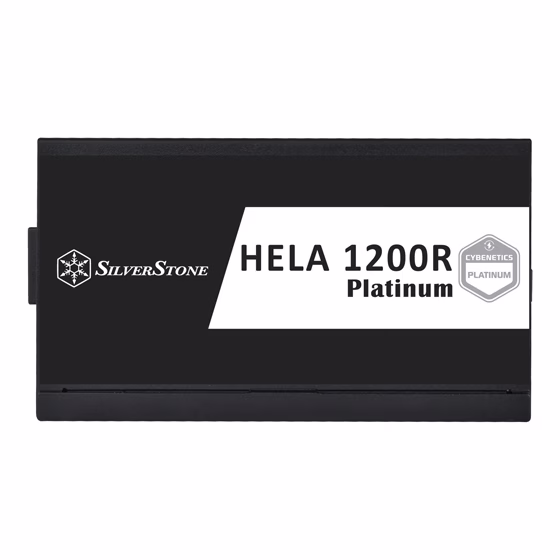

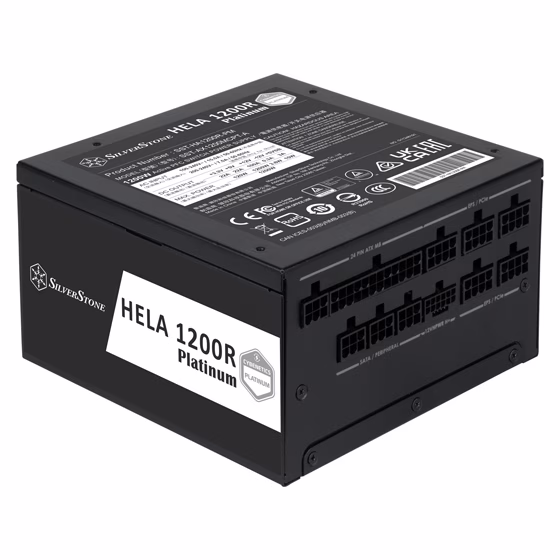

Silverstone Hela 1200R Fully Modular ATX Power Supply, Cybenetics Platinum, 1200W Max Output Power, Gen5 12VHPWR PCIe Connector, 135mm Silent FDB Fan, Active PFC, Black | SST-HA1200R-PM

Model :

SKU : PS-SILVERSTONE HELA 1200R

About this item

HELA 1200R Platinum
Cybenetics Platinum 1200W ATX 3.0/3.1 & PCIe 5.0 Fully Modular ATX Power Supply
Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0/3.1 specification standard
Cybenetics Platinum efficiency certification
24/7 continuous power output with 50℃operating temperature
Fully Modular design
All Japanese electrolytic capacitors

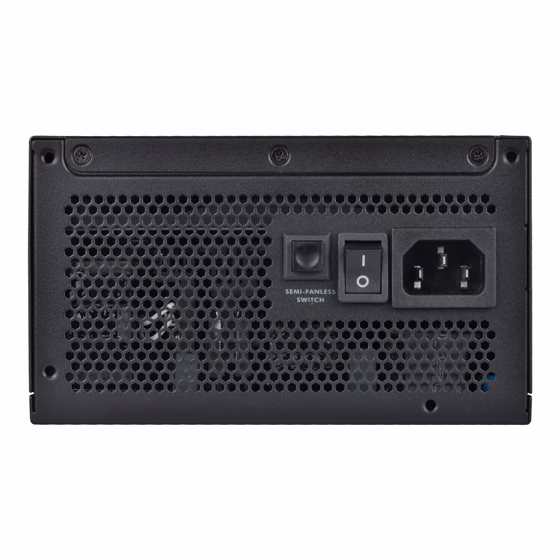

Ultra silent 135mm FDB fan with semi-fanless function

About this item

Description



Power Your High-Performance PC with the Silverstone Hela 1200R Platinum PSU
The Silverstone Hela 1200R Platinum is a top-of-the-line fully-modular ATX power supply unit (PSU) designed for demanding PC builds. Here's a breakdown of its key features:

Exceptional Power and Efficiency:

1200W Maximum Output: Delivers ample power to support even the most power-hungry gaming PCs and workstations.
Cybenetics Platinum Certified: Guarantees excellent efficiency, translating to lower energy consumption and operating costs.
Active PFC (Power Factor Correction): Optimizes power delivery for cleaner and more stable operation.
Advanced Features for Demanding Systems:

Gen5 12VHPWR PCIe Connector: Supports the latest generation of high-powered graphics cards.
Fully Modular Design: Provides greater flexibility for cable management and improved airflow within your case.
Silent 135mm FDB Fan: Ensures quiet operation even under heavy loads.
Comprehensive Safety Protections: Protects your valuable PC components from overcurrent, overpower, overvoltage, short circuits, undervoltage, and overheating.
Detailed Specifications:

Model: SST-HA1200R-PM
Color: Black
Load Range: +3.3V, +5V, +12V: ??3%, ??3%, +5/-7% (typical)
Input Voltage: 90 ~ 264 Vrms
Efficiency: ???87% & <89% overall efficiency
Connectors: Extensive variety of connectors to power your motherboard, CPU, graphics card, storage drives, and other peripherals (refer to product listing for specifics)
Dimensions: 150mm (W) x 86mm (H) x 150mm (D) (5.91" x 3.39" x 5.91")
Warranty: Check product listing for warranty information
The Silverstone Hela 1200R Platinum PSU is ideal for gamers, content creators, and PC enthusiasts who require a reliable, high-performance power supply for their demanding systems.

#1200WPSU #ATXPSU #FullyModularPSU #CybeneticsPlatinum #80PlusPlatinum #12VHPWRConnector #SilentPSU #HighPerformancePC #GamingPC  #WorkstationPC #SilverstoneTechnology #PCBuilding (if applicable)





Specification

Silverstone Hela 1200R Fully Modular ATX Power Supply, Cybenetics Platinum, 1200W Max Output Power, Gen5 12VHPWR PCIe Connector, 135mm Silent FDB Fan, Active PFC,Specification

Product No.SST-HA1200R-PM
Model (safety certification)SST-AX1200MCPT-A
ColorBlack (lead-free paint)
Max. DC Output1200W
Power density620W per liter
Load Range
Output+3.3V, +5V, +12V, +5VSB, -12V
Max. (Amps)22A, 22A, 100A, 2.5A, 0.3A
Min. (Amps)0A, 0A, 0A, 0A, 0A
Range (%)??3%, ??3%, +5/-7%, ??5%, ??5%
Line Reg. (%)??1%, ??1%, ??1%, ??1%, ??1%
Ripple (mVp-p)30mV, 30mV, 70mV, 40mV, 40mV
Combined +3.3V & +5V120W
Combined +12V1200W
Input Voltage90 ~ 264 Vrms
Input Frequency Range47Hz ~ 63Hz
PFCActive PFC (PF>0.9 at full load)
Efficiency???87% & <89% overall efficiency
MTBF100,000 hours
Operating temperature0??C ~ 50??C
Protection
TypesOver Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection, No load operation

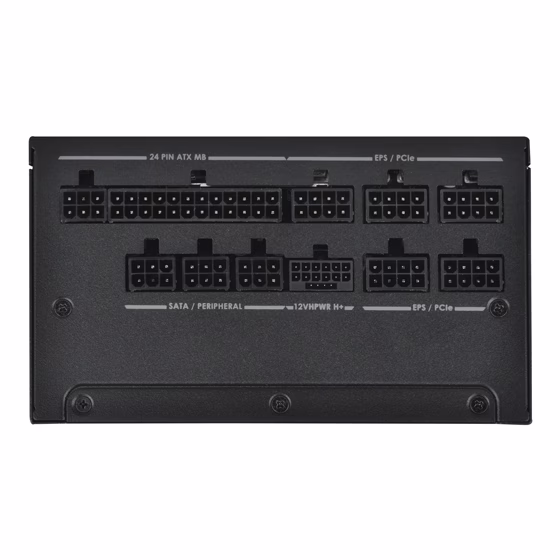

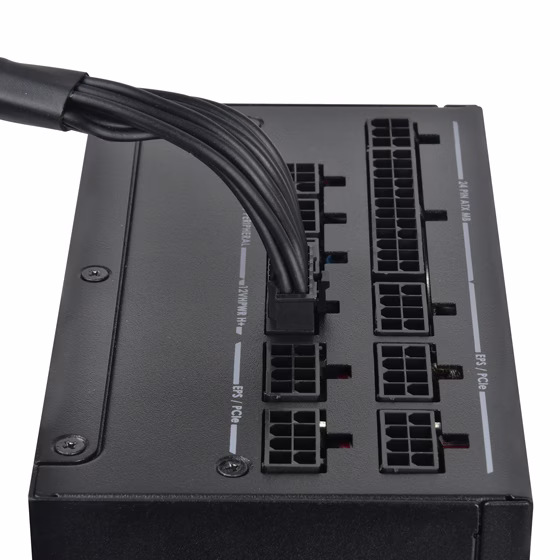

Connectors
Main Connectors1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 6 x 8 / 6-Pin PCIe connectors, 1 x 12+4-Pin 12VHPWR connector, 12 x SATA connectors, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy connector

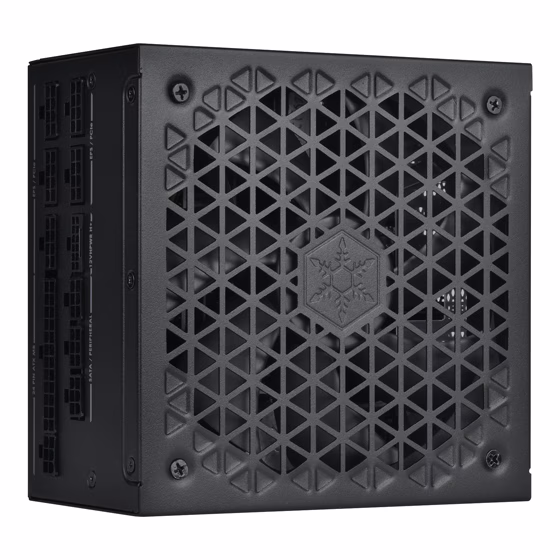

Cooling System
FanSilent 135mm FDB fan
Noise Level0 dBA minimum
Certification
CertifiedCybenetics Platinum
Form factor
TypeATX (PS2)
Dimension
Size150mm (W) ?? 86mm (H) ?? 150mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D)
Weight
Weight2.9 kg
Other
Additional InformationGPU Support list
