SilverStone HELA 2050R Platinum Fully Modular Power Supply, 2050W Power, Cybenetics Platinum Certified, Active PFC, All Japanese Electrolytic Capacitors, Black | SST-HA2050R-PM
Model :
SKU : PS-SILVERSTO HELA 2050W B
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Product Specifications
| Product No. | SST-HA2050R-PM | ||||||||||||||||||||||||||||||||||||
| Model (safety certification) | SST-AX2050MCPT-C | ||||||||||||||||||||||||||||||||||||
| Color | Black (lead-free paint) | ||||||||||||||||||||||||||||||||||||
| Max. DC Output | 2050W | ||||||||||||||||||||||||||||||||||||
| Power Density | 882W/L | ||||||||||||||||||||||||||||||||||||
| Load Range |
| ||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V | 120W | ||||||||||||||||||||||||||||||||||||
| Combined +12V | 2040W | ||||||||||||||||||||||||||||||||||||
| Input Voltage | 2050W: 200~240 Vrms 1650W: 103~264 Vrms 1350W: 90~264 Vrms | ||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||
| PFC | Active PFC (PF > 0.95 at full load) | ||||||||||||||||||||||||||||||||||||
| Efficiency | 89% ~ 91% overall efficiency | ||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||
| Operating Temperature | 0??C ~ 50??C | ||||||||||||||||||||||||||||||||||||
| Protection | Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection | ||||||||||||||||||||||||||||||||||||

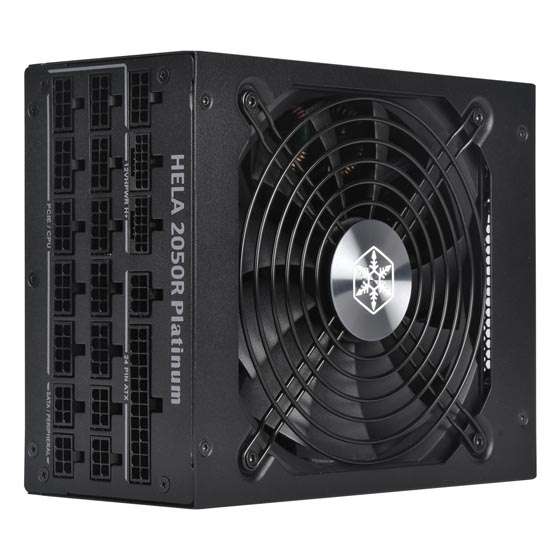

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 14 x 8 / 6-Pin PCIe connectors 3 x 12+4-Pin 12VHPWR connector 12 x SATA connector 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector | ||||||||||||||||||||||||||||||||||||

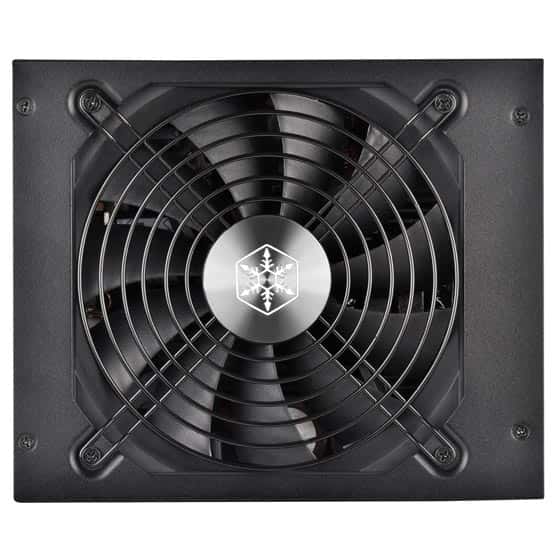

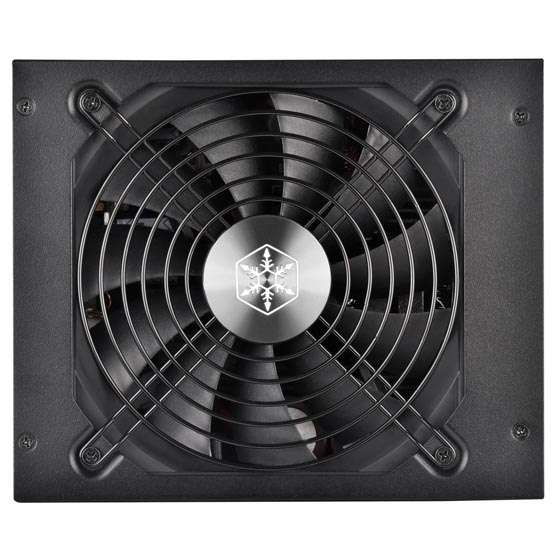

| Cooling System | 135mm dual-ball bearing fan | ||||||||||||||||||||||||||||||||||||
| Noise Level | 0 dBA minimum | ||||||||||||||||||||||||||||||||||||
| Certification | Cybenetics Platinum | ||||||||||||||||||||||||||||||||||||
| Form Factor | ATX (PS2) | ||||||||||||||||||||||||||||||||||||
| Dimension | 150mm (W) x 86mm (H) x 180mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D) | ||||||||||||||||||||||||||||||||||||
| Weight | 4.34 kg | ||||||||||||||||||||||||||||||||||||

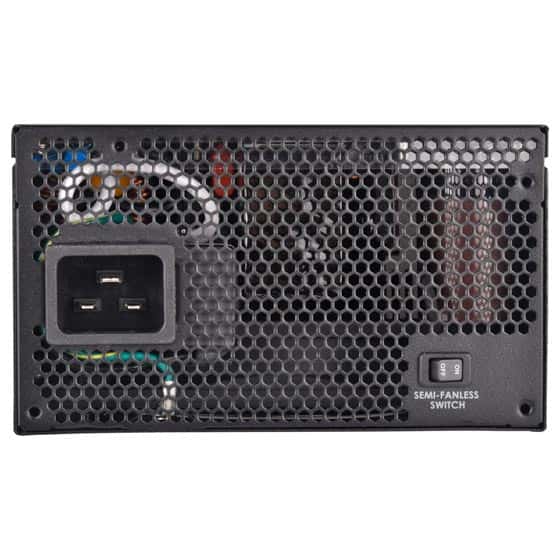

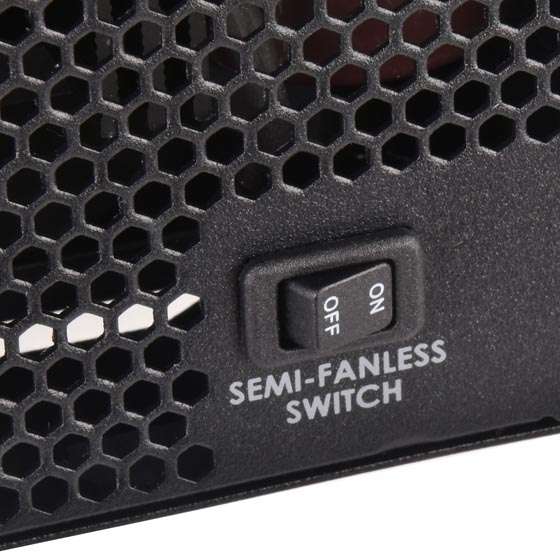

| Other | Switch on rear side to activate / de-activate semi-fanless mode |
*Specifications presented on this page contain the most recent revisions and may differ from those printed on retail boxes or manuals.
Specification
Product Specifications
| Product No. | SST-HA2050R-PM | ||||||||||||||||||||||||||||||||||||
| Model (safety certification) | SST-AX2050MCPT-C | ||||||||||||||||||||||||||||||||||||
| Color | Black (lead-free paint) | ||||||||||||||||||||||||||||||||||||
| Max. DC Output | 2050W | ||||||||||||||||||||||||||||||||||||
| Power Density | 882W/L | ||||||||||||||||||||||||||||||||||||
| Load Range |
| ||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V | 120W | ||||||||||||||||||||||||||||||||||||
| Combined +12V | 2040W | ||||||||||||||||||||||||||||||||||||
| Input Voltage | 2050W: 200~240 Vrms 1650W: 103~264 Vrms 1350W: 90~264 Vrms | ||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||
| PFC | Active PFC (PF > 0.95 at full load) | ||||||||||||||||||||||||||||||||||||
| Efficiency | 89% ~ 91% overall efficiency | ||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||
| Operating Temperature | 0??C ~ 50??C | ||||||||||||||||||||||||||||||||||||
| Protection | Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection | ||||||||||||||||||||||||||||||||||||
| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 14 x 8 / 6-Pin PCIe connectors 3 x 12+4-Pin 12VHPWR connector 12 x SATA connector 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector | ||||||||||||||||||||||||||||||||||||
| Cooling System | 135mm dual-ball bearing fan | ||||||||||||||||||||||||||||||||||||
| Noise Level | 0 dBA minimum | ||||||||||||||||||||||||||||||||||||
| Certification | Cybenetics Platinum | ||||||||||||||||||||||||||||||||||||
| Form Factor | ATX (PS2) | ||||||||||||||||||||||||||||||||||||
| Dimension | 150mm (W) x 86mm (H) x 180mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D) | ||||||||||||||||||||||||||||||||||||
| Weight | 4.34 kg | ||||||||||||||||||||||||||||||||||||
| Other | Switch on rear side to activate / de-activate semi-fanless mode |
*Specifications presented on this page contain the most recent revisions and may differ from those printed on retail boxes or manuals.
