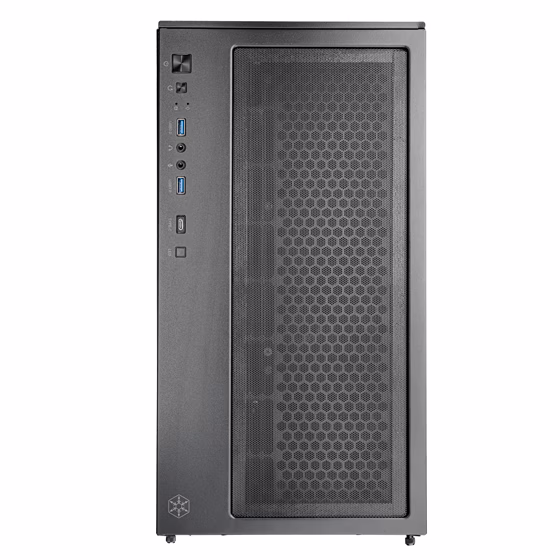

Silverstone Lucid 05 ATX Case, Bold 270° Panoramic View, upto 360mm Radiators, GPU up to 410mm, Type-C | SST-LD05-B-ARGB
Model :
SKU : ATX-SILVERSTON LUCID 05 B
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Bold from Every Perspective

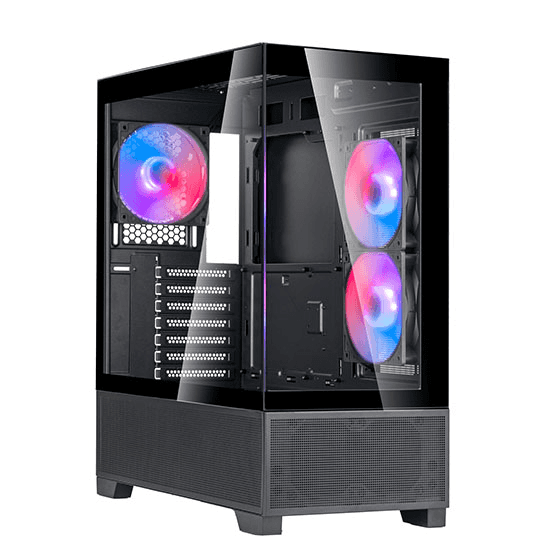

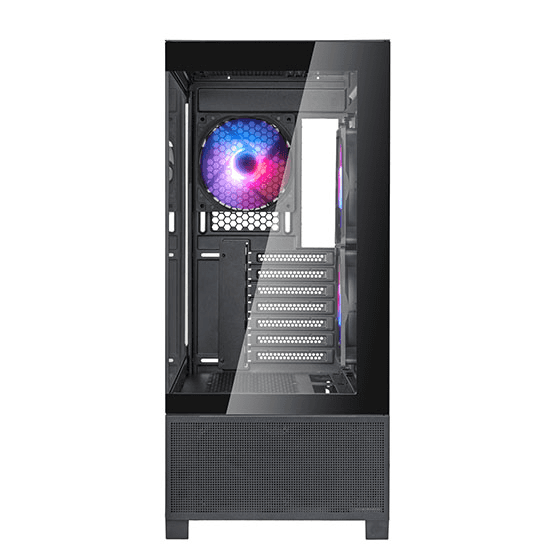

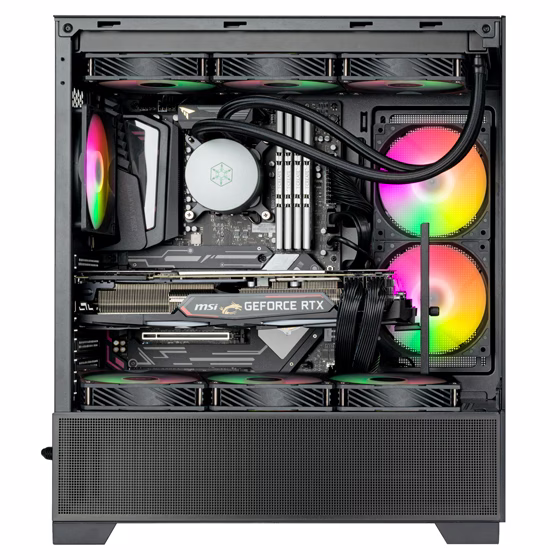

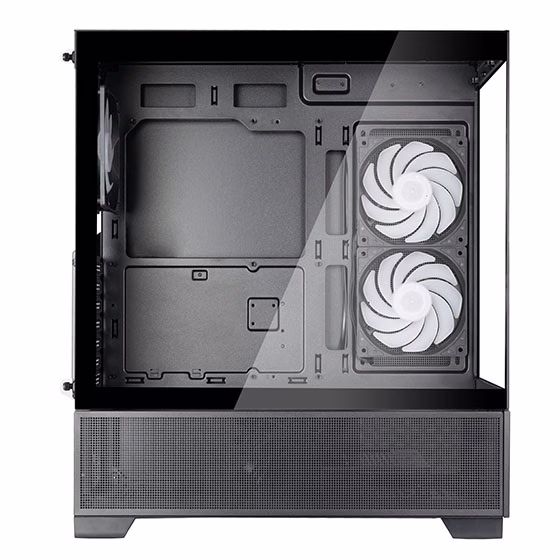

With a 270° panoramic view through seamless tempered glass panels on the front and side, the Lucid 05 puts your components on full display, offering an immersive showcase from nearly every angle.
Specification
| Category | Details |
|---|---|
| Model No. | SST-LD05-B-ARGB (Black) SST-LD05-W-ARGB (White) |
| Material | Steel, plastic, tempered glass |
| Motherboard Compatibility | ATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Drive Bays | Internal: 3.5" x 1 / 2.5" x 1 / 2.5" x 2 [1] 3.5" x 1 2.5" x 1 |

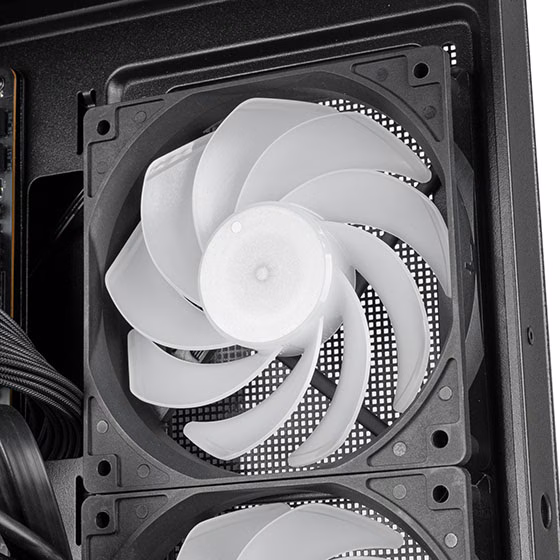

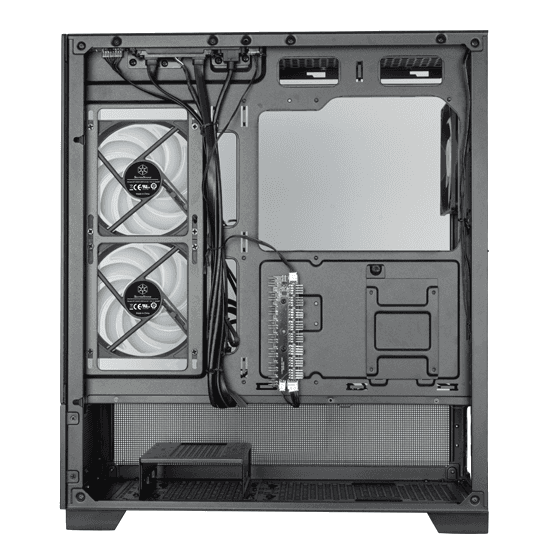

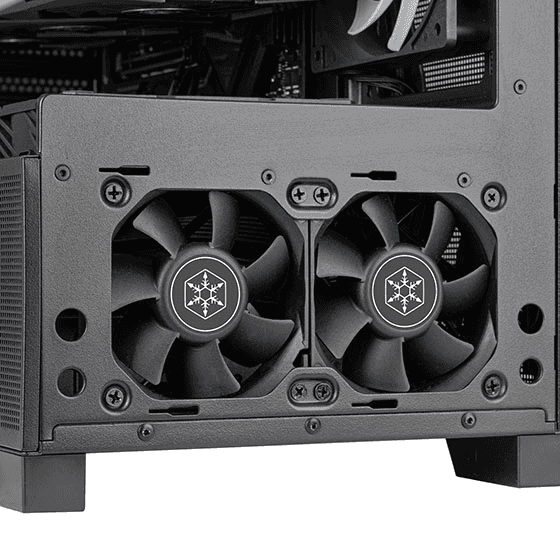

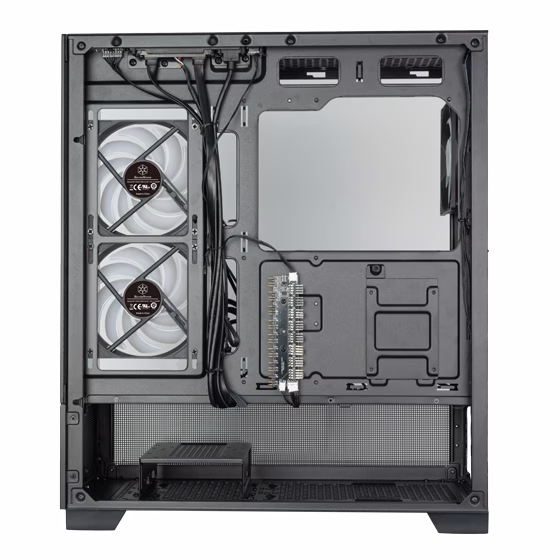

| Cooling System | Rear: 120mm x 1 (120mm x 1 ARGB fan included) Top: 120mm x 3 / 140mm x 2 Internal: Motherboard Tray: 120mm x 2 (120mm x 2 ARGB fans included) PSU Shroud: Top: 120mm x 3 Front: 80mm x 2 |
| Radiator Support | Rear: 120mm Top: 120mm / 140mm / 240mm / 280mm / 360mm [2] Internal: Motherboard Tray: 240mm [3] |
| Limitation of CPU Cooler | 173mm |
| Expansion Slots | 7 |
| Limitation of Expansion Card | Length: 410mm Width: 179mm |
| Power Supply | Standard PS2 (ATX) |
| Limitation of PSU | 200mm |
| Front I/O Ports | USB Type-C x 1 USB 3.0 x 2 Audio x 1 Mic x 1 |
| Dimensions | 220mm (W) x 491.5mm (H) x 427.6mm (D), 46.24 liters 8.66" (W) x 19.35" (H) x 16.83" (D), 46.24 liters |
| Remarks | [1] When installing two 2.5" SSDs in this position, ensure the connectors face the rear to prevent interference. [2] When mounting a 360mm radiator in this position, ensure the inlet and outlet tubes are orientated toward the front to prevent interference. [3] When mounting a 240mm radiator in this position, graphics card clearance is limited to 281mm (including power connectors). Ensure the fans are installed between the radiator and motherboard tray to accommodate this restriction. |
