Feature	Specification

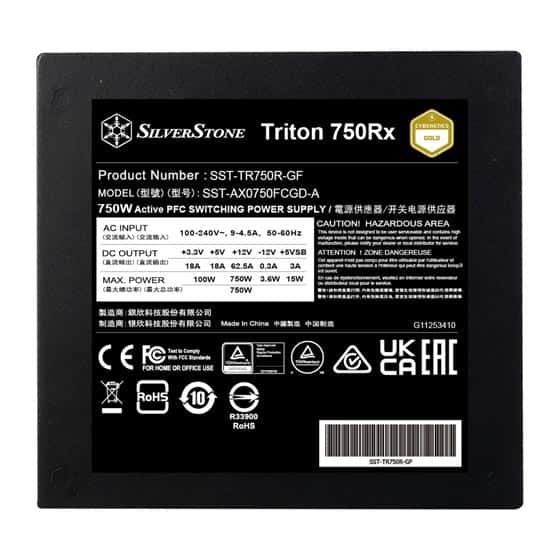

Product No.	SST-TR750R-GF
Model (Safety Certification)	SST-AX0750FCGD-A
Color	Black (lead-free paint)
Max. DC Output	750W
Power Density	415.3W/L
+3.3V / +5V / +12V1 / +5VSB / -12V	18A / 18A / 62.5A / 3.0A / 0.3A
Voltage Regulation	±5% (±10% for -12V)
Line Regulation	±1%
Ripple & Noise	50mV / 50mV / 120mV / 50mV / 120mV
Combined +3.3V & +5V	100W
Combined +12V	750W
Input Voltage	90 ~ 264 Vrms
Input Frequency	47Hz ~ 63Hz
PFC	Active PFC (PF > 0.9 at full load)
Efficiency	87% – 89% overall efficiency
MTBF	100,000 hours
Operating Temperature	0°C ~ 40°C
Protection Features	Over Power Protection Over Current Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection
Connectors	1 × 24/20-Pin Motherboard 2 × 8/4-Pin EPS / ATX 12V 1 × 12+4-Pin 12V-2×6 3 × 8/6-Pin PCIe 6 × SATA 2 × 4-Pin Peripheral
Cooling System	Single 120mm ICB Bearing Fan
Noise Level	18 dBA (minimum)
Certification	Cybenetics Gold
Form Factor	ATX (PS2)
Dimensions	150 × 86 × 140 mm (W × H × D)
Weight	1.56 kg

Feature

Specification

Output Specifications

Input & Efficiency

Reliability & Protection

Connectivity

Cooling & Build

Product No.

SST-TR750R-GF

Model (Safety Certification)

SST-AX0750FCGD-A

Color

Black (lead-free paint)

Max. DC Output

750W

Power Density

415.3W/L

+3.3V / +5V / +12V1 / +5VSB / -12V

18A / 18A / 62.5A / 3.0A / 0.3A

Voltage Regulation

±5% (±10% for -12V)

Line Regulation

±1%

Ripple & Noise

50mV / 50mV / 120mV / 50mV / 120mV

Combined +3.3V & +5V

100W

Combined +12V

750W

Input Voltage

90 ~ 264 Vrms

Input Frequency

47Hz ~ 63Hz

PFC

Active PFC (PF > 0.9 at full load)

Efficiency

87% – 89% overall efficiency

MTBF

100,000 hours

Operating Temperature

0°C ~ 40°C

Protection Features

Over Power Protection
Over Current Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection

Connectors

1 × 24/20-Pin Motherboard
2 × 8/4-Pin EPS / ATX 12V
1 × 12+4-Pin 12V-2×6
3 × 8/6-Pin PCIe
6 × SATA
2 × 4-Pin Peripheral

Cooling System

Single 120mm ICB Bearing Fan

Noise Level

18 dBA (minimum)

Certification

Cybenetics Gold

Form Factor

ATX (PS2)

Dimensions

150 × 86 × 140 mm (W × H × D)

Weight

1.56 kg

Description

Triton 750RxCybenetics Gold 750W PCIe 5 Fixed Cable ATX Power Supply

Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
Latest PCIe Gen 5 standard to support up to 2X power excursion

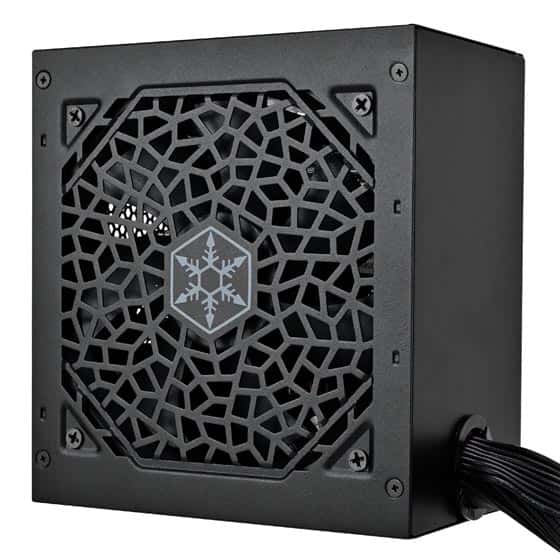

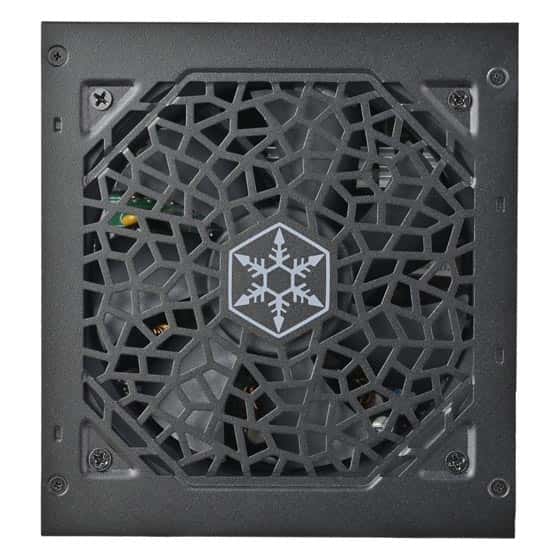

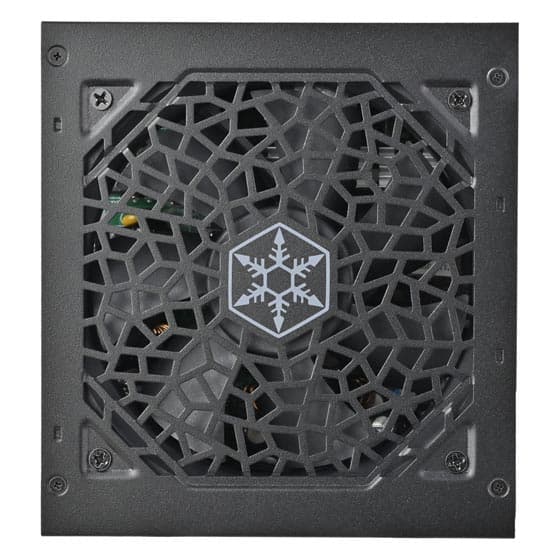

Silent running 120mm ICB (Inside Cavity Bearing) cooling fan
Black embossed cable design
Main Japanese electrolytic capacitors
High efficiency with Cybenetics Gold certification
24/7 continuous power output with 40℃ operating temperature
Compact design with a 140mm depth for easy integration

Specification

Feature	Specification
Output Specifications
Input & Efficiency
Reliability & Protection
Connectivity
Cooling & Build
Product No.	SST-TR750R-GF
Model (Safety Certification)	SST-AX0750FCGD-A
Color	Black (lead-free paint)
Max. DC Output	750W
Power Density	415.3W/L
+3.3V / +5V / +12V1 / +5VSB / -12V	18A / 18A / 62.5A / 3.0A / 0.3A
Voltage Regulation	±5% (±10% for -12V)
Line Regulation	±1%
Ripple & Noise	50mV / 50mV / 120mV / 50mV / 120mV
Combined +3.3V & +5V	100W
Combined +12V	750W
Input Voltage	90 ~ 264 Vrms
Input Frequency	47Hz ~ 63Hz
PFC	Active PFC (PF > 0.9 at full load)
Efficiency	87% – 89% overall efficiency
MTBF	100,000 hours
Operating Temperature	0°C ~ 40°C
Protection Features	Over Power Protection Over Current Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection
Connectors	1 × 24/20-Pin Motherboard 2 × 8/4-Pin EPS / ATX 12V 1 × 12+4-Pin 12V-2×6 3 × 8/6-Pin PCIe 6 × SATA 2 × 4-Pin Peripheral
Cooling System	Single 120mm ICB Bearing Fan
Noise Level	18 dBA (minimum)
Certification	Cybenetics Gold
Form Factor	ATX (PS2)
Dimensions	150 × 86 × 140 mm (W × H × D)
Weight	1.56 kg
