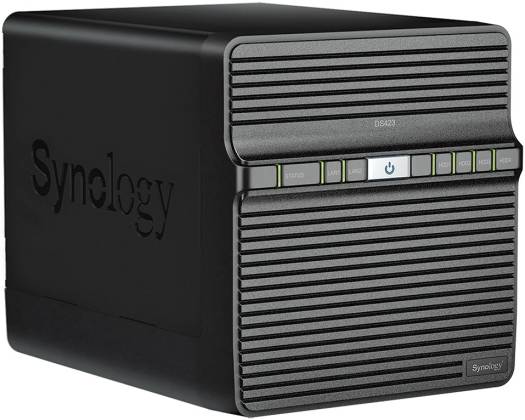

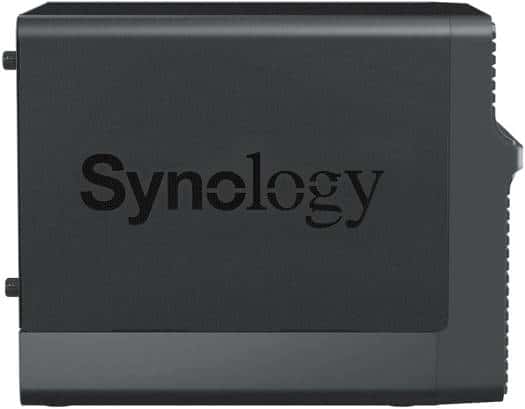

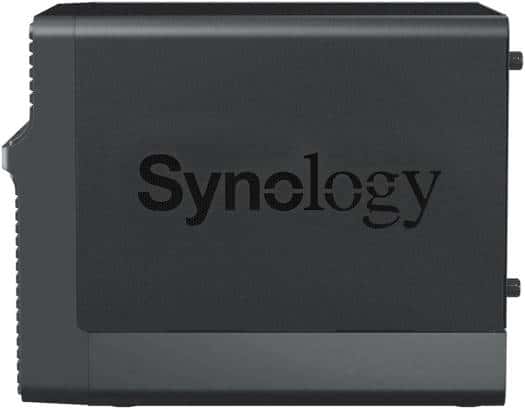

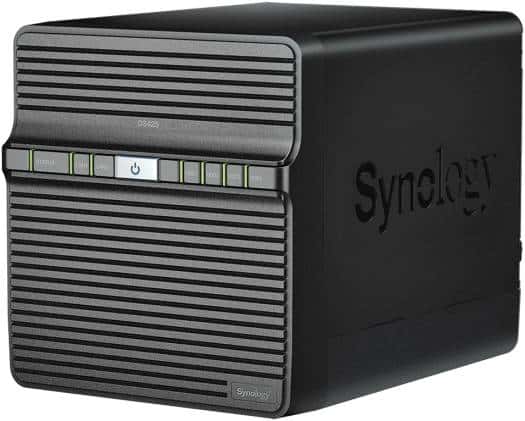

Synology DiskStation DS423 4-Bay NAS Enclosure, Realtek RTD1619B 1.7 GHz, 4x 3.5"/2.5" Drive Bays, 2x RJ45 LAN Ports, 2x USB 3.2 Ports, Black | DS423

Model :

SKU : SYNOLOGY DS423 4-BAY

About this item



About this item

Description

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }

Synology NAS Specifications

CPU
  • CPU Model: Realtek RTD1619B
  • CPU Quantity: 1
  • CPU Architecture: 64-bit
  • CPU Frequency: 4-core 1.7 GHz
  • Hardware Encryption Engine: Not specified
Memory
  • System Memory: 2 GB DDR4 non-ECC
  • Notes: Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
  • Drive Bays: 4
  • Compatible Drive Type:
    • 3.5" SATA HDD
    • 2.5" SATA SSD
  • Hot Swappable Drive
  • Notes: "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

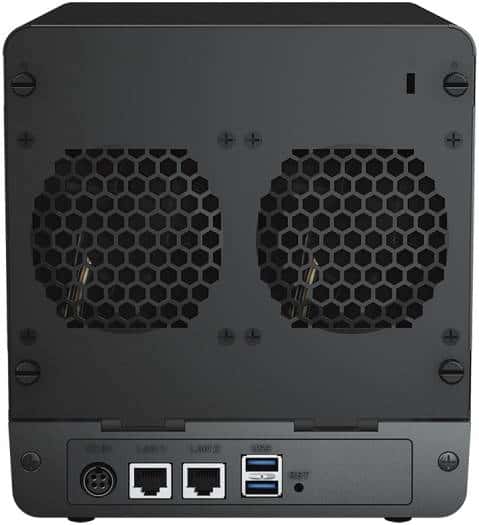

External Ports
  • RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
  • USB 3.2 Gen 1 Port: 2
  • Notes:
    • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
    • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
  • Internal Drives: Btrfs, ext4
  • External Drives: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
Appearance
  • Size (Height x Width x Depth): 184 mm x 168 mm x 230 mm
  • Weight: 2.21 kg
Others
  • System Fan: 80 mm x 80 mm x 2 pcs
  • Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode

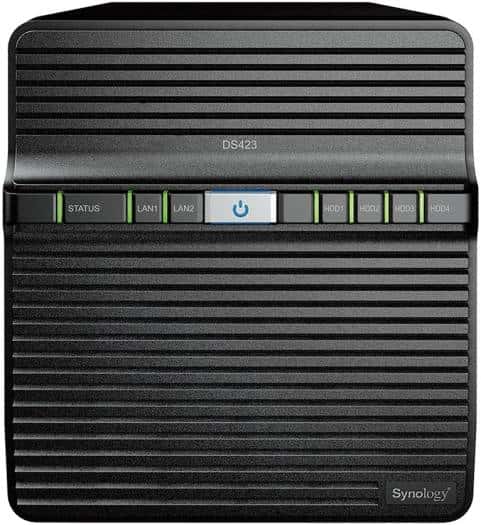

  • Brightness Adjustable Front LED Indicators
  • Power Recovery
  • Noise Level: 20.6 dB(A)
  • Scheduled Power On / Off
  • Wake on LAN / WAN
Power
  • Power Supply Unit / Adapter: 90 W
  • AC Input Power Voltage: 100V to 240V AC
  • Power Frequency: 50/60 Hz, Single Phase
  • Power Consumption:
    • 32.41 W (Access)
    • 4.97 W (HDD Hibernation)
  • British Thermal Unit:
    • 110.52 BTU/hr (Access)
    • 16.95 BTU/hr (HDD Hibernation)
  • Notes:
    • For more information on how power consumption is measured, refer to this article.
    • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75??C; Humidity: 58.2-61.8%
Temperature
  • Operating Temperature: 0??C to 40??C (32??F to 104??F)
  • Storage Temperature: -20??C to 60??C (-5??F to 140??F)
  • Relative Humidity: 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
Warranty
  • 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
  • Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
  • RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • 3.5" SATA HDD: HAT5300/HAT3300
  • 2.5" SATA SSD: SAT5210
  • Surveillance Device License Pack

Specification

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }

Synology NAS Specifications

CPU
  • CPU Model: Realtek RTD1619B
  • CPU Quantity: 1
  • CPU Architecture: 64-bit
  • CPU Frequency: 4-core 1.7 GHz
  • Hardware Encryption Engine: Not specified
Memory
  • System Memory: 2 GB DDR4 non-ECC
  • Notes: Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
  • Drive Bays: 4
  • Compatible Drive Type:
    • 3.5" SATA HDD
    • 2.5" SATA SSD
  • Hot Swappable Drive
  • Notes: "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
  • RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
  • USB 3.2 Gen 1 Port: 2
  • Notes:
    • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
    • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
  • Internal Drives: Btrfs, ext4
  • External Drives: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
Appearance
  • Size (Height x Width x Depth): 184 mm x 168 mm x 230 mm
  • Weight: 2.21 kg
Others
  • System Fan: 80 mm x 80 mm x 2 pcs
  • Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
  • Brightness Adjustable Front LED Indicators
  • Power Recovery
  • Noise Level: 20.6 dB(A)
  • Scheduled Power On / Off
  • Wake on LAN / WAN
Power
  • Power Supply Unit / Adapter: 90 W
  • AC Input Power Voltage: 100V to 240V AC
  • Power Frequency: 50/60 Hz, Single Phase
  • Power Consumption:
    • 32.41 W (Access)
    • 4.97 W (HDD Hibernation)
  • British Thermal Unit:
    • 110.52 BTU/hr (Access)
    • 16.95 BTU/hr (HDD Hibernation)
  • Notes:
    • For more information on how power consumption is measured, refer to this article.
    • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75??C; Humidity: 58.2-61.8%
Temperature
  • Operating Temperature: 0??C to 40??C (32??F to 104??F)
  • Storage Temperature: -20??C to 60??C (-5??F to 140??F)
  • Relative Humidity: 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
Warranty
  • 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
  • Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
  • RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • 3.5" SATA HDD: HAT5300/HAT3300
  • 2.5" SATA SSD: SAT5210
  • Surveillance Device License Pack
