SYNOLOGY DISKSTATION DS423+ 4-BAY TOWER ,305 HDD/SSD,2*M.2 2280 SSD,CPU INTEL CELERON J4125 4-CORE

Model :

SKU : SYNOLOGY DS423+ 4-BAY

About this item

Description

Synology NAS Specifications

CPU
  • CPU Model: Intel Celeron J4125
  • CPU Quantity: 1
  • CPU Architecture: 64-bit
  • CPU Frequency: 4-core 2.0 (base) / 2.7 (burst) GHz
  • Hardware Encryption Engine (AES-NI)
Memory
  • System Memory: 2 GB DDR4 non-ECC
  • Total Memory Slots: 1
  • Maximum Memory Capacity: 6 GB (2 GB + 4 GB)
  • Notes:
    • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status.
    • Compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
    • Select Synology memory modules for optimum compatibility and reliability.
    • Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
    • For more information about the recommended memory configurations, check the Hardware Installation Guide of your Synology product.
Storage
  • Drive Bays: 4
  • M.2 Drive Slots: 2 (NVMe)
  • Compatible Drive Type:
    • 3.5" SATA HDD
    • 2.5" SATA SSD
    • M.2 2280 NVMe SSD
  • Hot Swappable Drive
  • Notes:
    • The hot swappable drive feature is not supported by M.2 SSD slots.
    • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

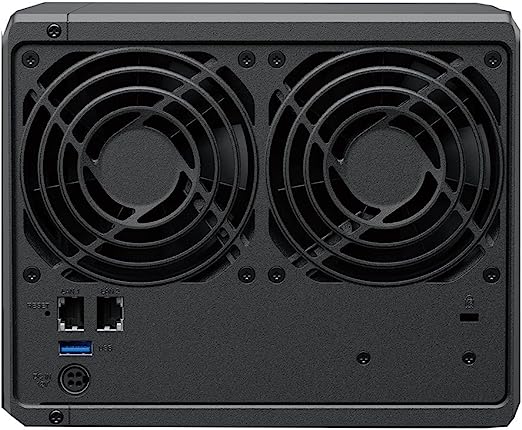

External Ports
  • RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
  • USB 3.2 Gen 1 Port: 2
  • Notes:
    • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
    • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
  • Internal Drives: Btrfs, ext4
  • External Drives: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
  • Notes: exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
  • Size (Height x Width x Depth): 166 mm x 199 mm x 223 mm
  • Weight: 2.18 kg
Others
  • System Fan: 92 mm x 92 mm x 2 pcs
  • Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
  • Brightness Adjustable Front LED Indicators
  • Power Recovery
  • Noise Level: 19.8 dB(A)
  • Scheduled Power On / Off
  • Wake on LAN / WAN
Power
  • Power Supply Unit / Adapter: 90 W
  • AC Input Power Voltage: 100V to 240V AC
  • Power Frequency: 50/60 Hz, Single Phase
  • Power Consumption:
    • 28.3 W (Access)
    • 8.45 W (HDD Hibernation)
  • British Thermal Unit:
    • 96.5 BTU/hr (Access)
    • 28.81 BTU/hr (HDD Hibernation)
  • Notes:
    • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s).
    • Noise Level Testing Environment: Fully loaded with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75??C; Humidity: 58.2-61.8%.
Temperature
  • Operating Temperature: 0??C to 40??C (32??F to 104??F)
  • Storage Temperature: -20??C to 60??C (-5??F to 140??F)
  • Relative Humidity: 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
Warranty
  • 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
  • Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
  • RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 non-ECC SODIMM: D4NESO-2666-4G
  • 3.5" SATA HDD: HAT5300/HAT3300
  • 2.5" SATA SSD: SAT5210
  • M.2 2280 NVMe SSD: SNV3410
  • Surveillance Device License Pack

Specification

Synology NAS Specifications

CPU
  • CPU Model: Intel Celeron J4125
  • CPU Quantity: 1
  • CPU Architecture: 64-bit
  • CPU Frequency: 4-core 2.0 (base) / 2.7 (burst) GHz
  • Hardware Encryption Engine (AES-NI)
Memory
  • System Memory: 2 GB DDR4 non-ECC
  • Total Memory Slots: 1
  • Maximum Memory Capacity: 6 GB (2 GB + 4 GB)
  • Notes:
    • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status.
    • Compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
    • Select Synology memory modules for optimum compatibility and reliability.
    • Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
    • For more information about the recommended memory configurations, check the Hardware Installation Guide of your Synology product.
Storage
  • Drive Bays: 4
  • M.2 Drive Slots: 2 (NVMe)
  • Compatible Drive Type:
    • 3.5" SATA HDD
    • 2.5" SATA SSD
    • M.2 2280 NVMe SSD
  • Hot Swappable Drive
  • Notes:
    • The hot swappable drive feature is not supported by M.2 SSD slots.
    • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
  • RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
  • USB 3.2 Gen 1 Port: 2
  • Notes:
    • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
    • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
  • Internal Drives: Btrfs, ext4
  • External Drives: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
  • Notes: exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
  • Size (Height x Width x Depth): 166 mm x 199 mm x 223 mm
  • Weight: 2.18 kg
Others
  • System Fan: 92 mm x 92 mm x 2 pcs
  • Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
  • Brightness Adjustable Front LED Indicators
  • Power Recovery
  • Noise Level: 19.8 dB(A)
  • Scheduled Power On / Off
  • Wake on LAN / WAN
Power
  • Power Supply Unit / Adapter: 90 W
  • AC Input Power Voltage: 100V to 240V AC
  • Power Frequency: 50/60 Hz, Single Phase
  • Power Consumption:
    • 28.3 W (Access)
    • 8.45 W (HDD Hibernation)
  • British Thermal Unit:
    • 96.5 BTU/hr (Access)
    • 28.81 BTU/hr (HDD Hibernation)
  • Notes:
    • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s).
    • Noise Level Testing Environment: Fully loaded with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75??C; Humidity: 58.2-61.8%.
Temperature
  • Operating Temperature: 0??C to 40??C (32??F to 104??F)
  • Storage Temperature: -20??C to 60??C (-5??F to 140??F)
  • Relative Humidity: 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
Warranty
  • 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
  • Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
  • RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 non-ECC SODIMM: D4NESO-2666-4G
  • 3.5" SATA HDD: HAT5300/HAT3300
  • 2.5" SATA SSD: SAT5210
  • M.2 2280 NVMe SSD: SNV3410
  • Surveillance Device License Pack
