| CPU |
- CPU Model: Intel Celeron J3355
- CPU Quantity: 1
- CPU Architecture: 64-bit
- CPU Frequency: 2-core 2.0 (base) / 2.5 (burst) GHz
- Hardware Encryption Engine (AES-NI)
|
| Memory |
- System Memory: 2 GB DDR3L non-ECC SODIMM
- Memory Module Pre-installed: 2 GB (2 GB x 1)
- Total Memory Slots: 2
- Maximum Memory Capacity: 6 GB (2 GB + 4 GB)
- Notes:
- Synology reserves the right to replace memory modules with the same or higher frequency based
on supplier's product life cycle status.
- Compatibility and stability have been strictly verified with the same benchmark to ensure
identical performance.
- Select Synology memory modules for optimum compatibility and reliability.
- Synology will not provide complete product warranty or technical support if non-Synology memory
modules are used for memory expansion.
- For more information about the recommended memory configurations, check the Hardware Installation
Guide of your Synology product.
|
| Storage |
- Drive Bays: 6
- Compatible Drive Type:
- 2.5" SATA HDD
- 2.5" SATA SSD
- Hot Swappable Drive
- Notes: "Compatible drive type" indicates drives that have been tested to be compatible with Synology products.
This term does not indicate the maximum connection speed of each drive bay.
|

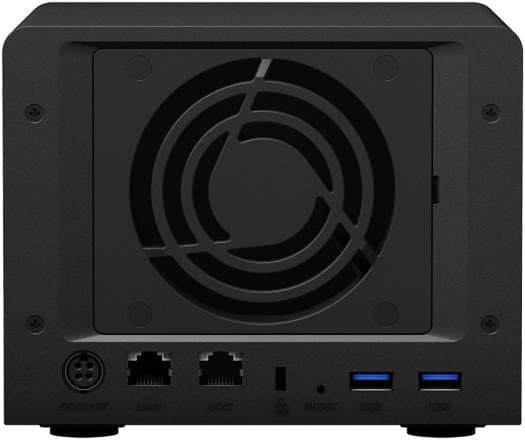

| External Ports |
- RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
- USB 3.2 Gen 1 Port: 2
- Notes: The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
|
| File System |
- Internal Drives: Btrfs, ext4
- External Drives: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
- Notes: exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions,
exFAT Access needs to be purchased in Package Center.
|
| Appearance |
- Size (Height x Width x Depth): 121 mm x 151 mm x 175 mm
- Weight: 1.4 kg
|
| Others |
- System Fan: 80 mm x 80 mm x 1 pcs
- Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
- Easy Replacement System Fan
- Brightness Adjustable Front LED Indicators
- Power Recovery
- Noise Level: 20.5 dB(A)
- Scheduled Power On / Off
- Wake on LAN / WAN
|
| Power |
- Power Supply Unit / Adapter: 65 W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption:
- 34.88 W (Access)
- 7.59 W (HDD Hibernation)
- British Thermal Unit:
- 119.1 BTU/hr (Access)
- 25.92 BTU/hr (HDD Hibernation)
- Notes:
- Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard
drive(s).
- Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in the idle
state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the
front and rear. Background noise: 17.2 dB(A); Temperature: 23.6??C; Humidity: 58.2%.
|
| Temperature |
- Operating Temperature: 5??C to 40??C (40??F to 104??F)
- Storage Temperature: -20??C to 60??C (-5??F to 140??F)
- Relative Humidity: 5% to 95% RH
|
| Certification |
|
| Warranty |
- 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
- Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn
more)
|
| Environment |
|
| Packaging Content |
- Main Unit X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
- Quick Installation Guide X 1
|
| Optional Accessories |
- DDR3 non-ECC SODIMM: D3NS1866L-4G
- 2.5" SATA SSD: SAT5210
- Surveillance Device License Pack
|
