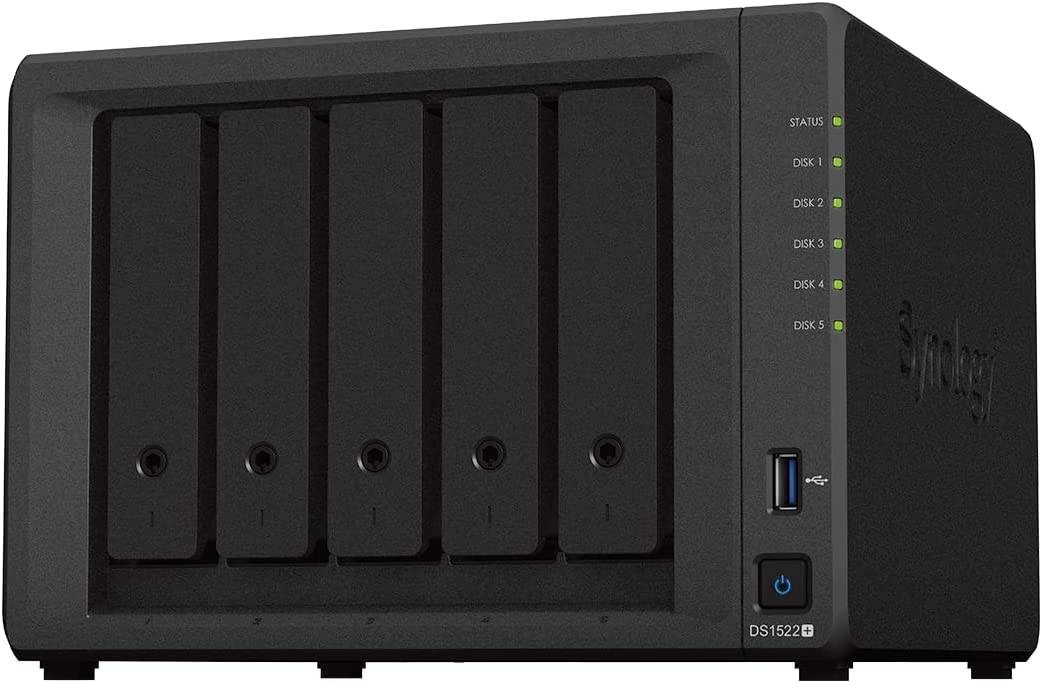

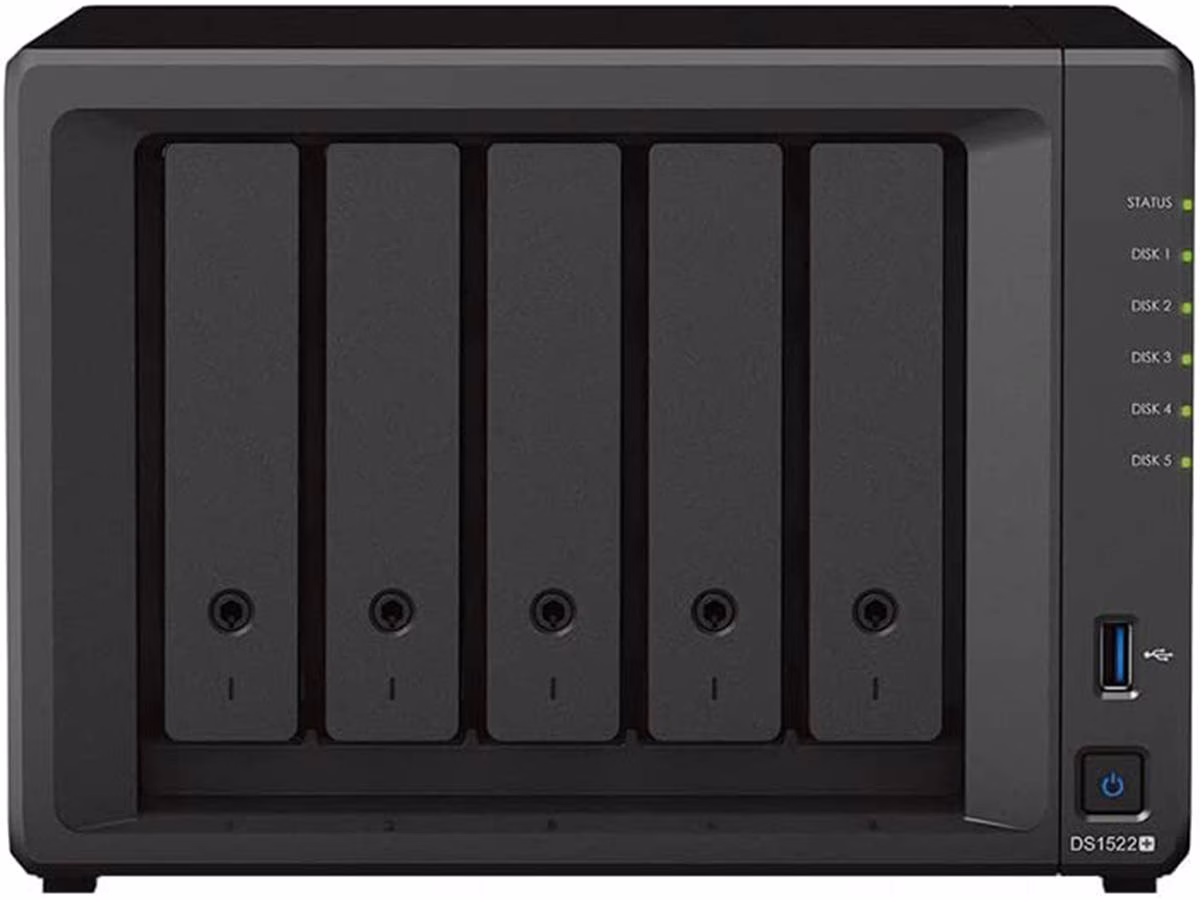

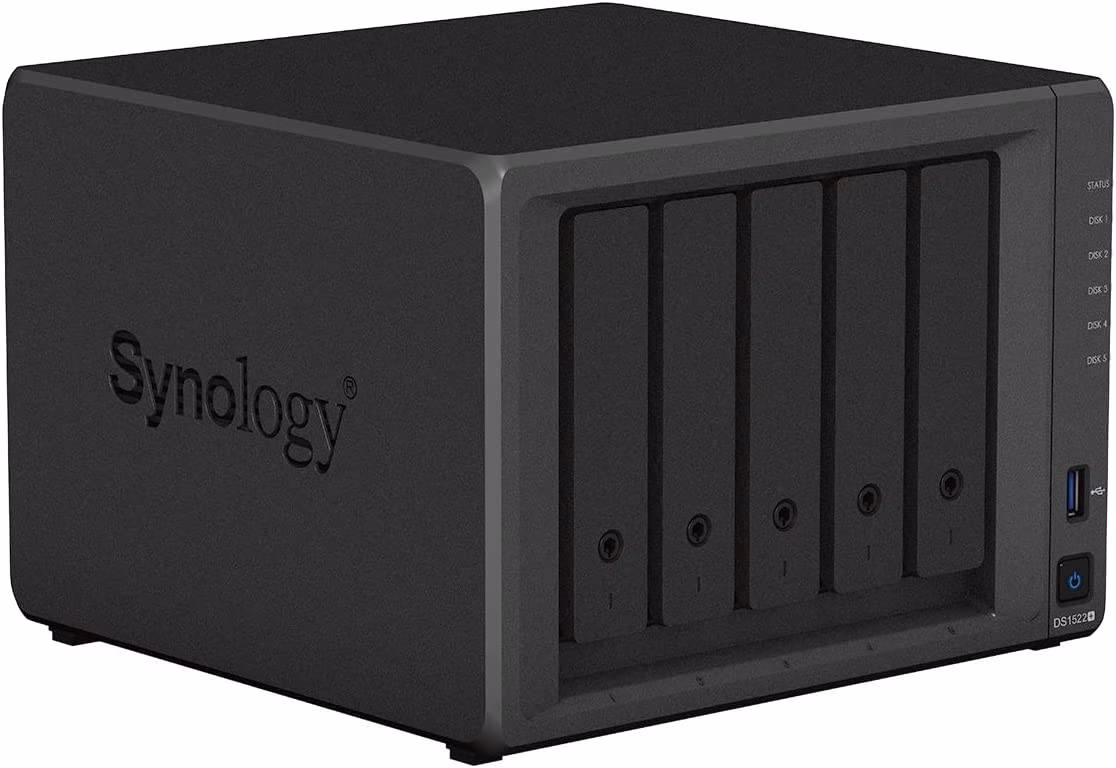

SYNOLOGY DS1522 PLUS DiskStation 5-Bay NAS Enclosure, 8GB DDR4 RAM, Up to 736 MB/s Read & 796 MB/s Write, Dual M.2 2280 NVMe SSD Slots, 4x Gigabit Ethernet Ports, 120W PSU, Black | 846504004461
Model :
SKU : SYNOLOGY DS1522 PLUS
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
| Hardware Specifications | |
| CPU | AMD Ryzen??? R1600 dual-core (4-thread) 2.6 GHz, max. boost clock up to 3.1 GHz |
| Hardware Encryption Engine | AES-NI |
| Memory | 8 GB DDR4 ECC SODIMM (expandable up to 32 GB) |
| Compatible Drive Types |
??? 5 x 3.5" or 2.5" SATA HDD/SSD (drives not included) ??? 2 x M.2 2280 NVMe SSD (drives not included) ??? Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list6 |
| Hot Swappable Drives | Yes |
| External Ports | 2 x USB 3.2 Gen 1 ports |
| Form Factor | Desktop |
| Size (HxWxD) | 166 x 230 x 223 mm |
| Weight | 2.7 kg |
| LAN Ports | 4 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| Network Expansion | Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module2 |
| Scheduled Power On/Off | Yes |
| System Fans | 2 x (92 x 92 x 25 mm) |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, single phase |
| Operating Environment | Temperature: 0??C to 40??C (32??F to 104??F) Relative Humidity: 5% to 95% RH |
| Storage Environment | Temperature: -20??C to 60??C (-5??F to 140??F) Relative Humidity: 5% to 95% RH |
| Maximum Operating Altitude | 5,000 m (16,400 ft) |
| General DSM Specifications | |
| Networking Protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN???, L2TP) |
| File Systems |
??? Internal: Btrfs, ext4 ??? External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Supported RAID Types | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 |
| Storage Management |
??? Max. single volume size: 108 TB ??? Max. number of system snapshots: 65,53611 ??? Max. number of internal volumes: 64 |
| SSD Cache |
??? Read/write cache support ??? M.2 NVMe and 2.5" SATA SSD support |
| File Sharing Capabilities |
??? Maximum local user accounts: 2,048 ??? Maximum local groups: 256 ??? Maximum shared folders: 512 ??? Maximum concurrent SMB/NFS/AFP/FTP connections: 2,000 |
| Privileges | Windows?? Access Control List (ACL) and application privileges |
| Directory Services | Connects with Windows?? AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials |
| Virtualization | VMware vSphere??, Microsoft Hyper-V??, Citrix??, OpenStack, and Kubernetes |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite) |
| Supported Browsers | Google Chrome??, Firefox??, Microsoft Edge??, Safari?? 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android??? 11.0 and later) on tablets |
Specification
| Hardware Specifications | |
| CPU | AMD Ryzen??? R1600 dual-core (4-thread) 2.6 GHz, max. boost clock up to 3.1 GHz |
| Hardware Encryption Engine | AES-NI |
| Memory | 8 GB DDR4 ECC SODIMM (expandable up to 32 GB) |
| Compatible Drive Types |
??? 5 x 3.5" or 2.5" SATA HDD/SSD (drives not included) ??? 2 x M.2 2280 NVMe SSD (drives not included) ??? Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list6 |
| Hot Swappable Drives | Yes |
| External Ports | 2 x USB 3.2 Gen 1 ports |
| Form Factor | Desktop |
| Size (HxWxD) | 166 x 230 x 223 mm |
| Weight | 2.7 kg |
| LAN Ports | 4 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| Network Expansion | Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module2 |
| Scheduled Power On/Off | Yes |
| System Fans | 2 x (92 x 92 x 25 mm) |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, single phase |
| Operating Environment | Temperature: 0??C to 40??C (32??F to 104??F) Relative Humidity: 5% to 95% RH |
| Storage Environment | Temperature: -20??C to 60??C (-5??F to 140??F) Relative Humidity: 5% to 95% RH |
| Maximum Operating Altitude | 5,000 m (16,400 ft) |
| General DSM Specifications | |
| Networking Protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN???, L2TP) |
| File Systems |
??? Internal: Btrfs, ext4 ??? External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Supported RAID Types | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 |
| Storage Management |
??? Max. single volume size: 108 TB ??? Max. number of system snapshots: 65,53611 ??? Max. number of internal volumes: 64 |
| SSD Cache |
??? Read/write cache support ??? M.2 NVMe and 2.5" SATA SSD support |
| File Sharing Capabilities |
??? Maximum local user accounts: 2,048 ??? Maximum local groups: 256 ??? Maximum shared folders: 512 ??? Maximum concurrent SMB/NFS/AFP/FTP connections: 2,000 |
| Privileges | Windows?? Access Control List (ACL) and application privileges |
| Directory Services | Connects with Windows?? AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials |
| Virtualization | VMware vSphere??, Microsoft Hyper-V??, Citrix??, OpenStack, and Kubernetes |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite) |
| Supported Browsers | Google Chrome??, Firefox??, Microsoft Edge??, Safari?? 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android??? 11.0 and later) on tablets |
