| CPU |
- CPU Model: AMD Ryzen R1600
- CPU Quantity: 1
- CPU Architecture: 64-bit
- CPU Frequency: 2-core 2.6 (base) / 3.1 (turbo) GHz
- Hardware Encryption Engine (AES-NI)
|
| Memory |
- System Memory: 4 GB DDR4 ECC SODIMM
- Memory Module Pre-installed: 4 GB (4 GB x 1)
- Total Memory Slots: 2
- Maximum Memory Capacity: 32 GB (16 GB x 2)
- Notes:
- Synology reserves the right to replace memory modules with the same or higher frequency based
on supplier's product life cycle status.
- Compatibility and stability have been strictly verified with the same benchmark to ensure
identical performance.
- Select Synology memory modules for optimum compatibility and reliability.
- Synology will not provide complete product warranty or technical support if non-Synology memory
modules are used for memory expansion.
- For more information about the recommended memory configurations, check the Hardware Installation
Guide of your Synology product.
|
| Storage |
- Drive Bays: 4
- Maximum Drive Bays with Expansion Unit: 9 (DX517 x 1)
- M.2 Drive Slots: 2 (NVMe)
- Compatible Drive Type:
- 3.5" SATA HDD
- 2.5" SATA SSD
- M.2 2280 NVMe SSD
- Hot Swappable Drive
- Notes:
- The hot swappable drive feature is not supported by M.2 SSD slots.
- "Compatible drive type" indicates drives that have been tested to be compatible with Synology products.
This term does not indicate the maximum connection speed of each drive bay.
|

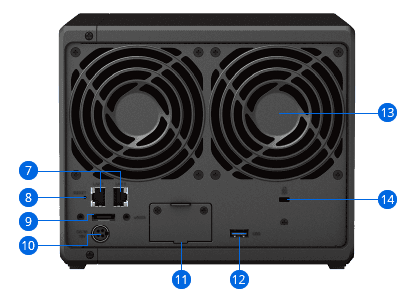

| External Ports |
- RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
- USB 3.2 Gen 1 Port: 2
- eSATA Port: 1
- Notes:
- This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
- The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
|
| PCIe |
PCIe Expansion: 1 x Gen3 x2 network upgrade slot |
| File System |
- Internal Drives: Btrfs, ext4
- External Drives: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
|
| Appearance |
- Size (Height x Width x Depth): 166 mm x 199 mm x 223 mm
- Weight: 2.24 kg
|
| Others |
- System Fan: 92 mm x 92 mm x 2 pcs
- Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
- Brightness Adjustable Front LED Indicators
- Power Recovery
- Noise Level: 22.9 dB(A)
- Scheduled Power On / Off
- Wake on LAN / WAN
- Power Supply Unit / Adapter: 100 W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption:
- 35.51 W (Access)
- 11.52 W (HDD Hibernation)
- British Thermal Unit:
- 121.09 BTU/hr (Access)
- 39.28 BTU/hr (HDD Hibernation)
- Notes:
- For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and
in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of
the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75??C; Humidity: 58.2-61.8%
|
| Temperature |
- Operating Temperature: 0??C to 40??C (32??F to 104??F)
- Storage Temperature: -20??C to 60??C (-5??F to 140??F)
- Relative Humidity: 5% to 95% RH
|
| Certification |
- FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- CCC
- KC
|
| Warranty |
- 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
- Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
|
| Environment |
|
| Packaging Content |
- Main Unit X 1
- Accessory Pack X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
- Quick Installation Guide X 1
|
| Optional Accessories |
- DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
- Expansion Units: DX517
- 3.5" SATA HDD: HAT5300/HAT3300
- 2.5" SATA SSD: SAT5210
- M.2 2280 NVMe SSD: SNV3410
- 10GbE Network Upgrade Module: E10G22-T1-Mini
- Surveillance Device License Pack
|
