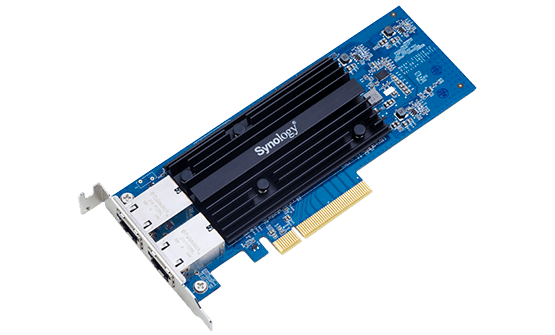

Synology E10G18-T2 10GB NW CARD W 10GBASE T-PORTS :: (Enterprise Computing > Network Cards & Adapters)
Model :
SKU : SYNOLOGY E10G18-T2
Description
Synology E10G18-T2: Unlock 10GbE Speeds for Your Synology NAS
| General | |
| Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low Profile and Full Height |
| Size (Height x Width x Depth) | 68.9 mm x 170.6 mm x 13.6 mm |
| Operating Temperature | 0??C to 40??C (32??F to 104??F) |
| Storage Temperature | -20??C to 60??C (-5??F to 140??F) |
| Relative Humidity | 5% to 95% RH |
| Warranty | 5 Years |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
| Network | |
| IEEE Specification Compliance |
IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation IEEE 802.3ab Gigabit Ethernet IEEE 802.3an 10Gbps Ethernet |
| Data Transfer Rates | 10 Gbps |
| Network Operation Mode | Full Duplex |
| Supported Features |
9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading TCP Segmentation Offload (TSO) |
| Compatibility | |
| Applied Models |
FS series: FS6400, FS3600, FS3410, FS3400, FS3017, FS2500, FS2017, FS1018 HD series: HD6500 SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D UC series: UC3400, UC3200 23 series: RS2423RP+, RS2423+, DS1823xs+ 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+ 20 series: RS820RP+, RS820+ 19 series: RS1619xs+, RS1219+, DS2419+II, DS2419+, DS1819+ 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+ 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xsII, DS3617xs, DS1817+, DS1517+ 16 series: RS18016xs+ 15 series: RC18015xs+, DS3615xs 14 series: RS3614xs+, RS3614RPxs, RS3614xs 13 series: RS10613xs+, RS3413xs+ 12 series: RS3412RPxs, RS3412xs, DS3612xs 11 series: RS3411RPxs, RS3411xs, DS3611xs |
| Notes | DSM version requirement: 6.2.1-23824 or later version |
Specification
Synology E10G18-T2: Unlock 10GbE Speeds for Your Synology NAS
| General | |
| Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low Profile and Full Height |
| Size (Height x Width x Depth) | 68.9 mm x 170.6 mm x 13.6 mm |
| Operating Temperature | 0??C to 40??C (32??F to 104??F) |
| Storage Temperature | -20??C to 60??C (-5??F to 140??F) |
| Relative Humidity | 5% to 95% RH |
| Warranty | 5 Years |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
| Network | |
| IEEE Specification Compliance |
IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation IEEE 802.3ab Gigabit Ethernet IEEE 802.3an 10Gbps Ethernet |
| Data Transfer Rates | 10 Gbps |
| Network Operation Mode | Full Duplex |
| Supported Features |
9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading TCP Segmentation Offload (TSO) |
| Compatibility | |
| Applied Models |
FS series: FS6400, FS3600, FS3410, FS3400, FS3017, FS2500, FS2017, FS1018 HD series: HD6500 SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D UC series: UC3400, UC3200 23 series: RS2423RP+, RS2423+, DS1823xs+ 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+ 20 series: RS820RP+, RS820+ 19 series: RS1619xs+, RS1219+, DS2419+II, DS2419+, DS1819+ 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+ 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xsII, DS3617xs, DS1817+, DS1517+ 16 series: RS18016xs+ 15 series: RC18015xs+, DS3615xs 14 series: RS3614xs+, RS3614RPxs, RS3614xs 13 series: RS10613xs+, RS3413xs+ 12 series: RS3412RPxs, RS3412xs, DS3612xs 11 series: RS3411RPxs, RS3411xs, DS3611xs |
| Notes | DSM version requirement: 6.2.1-23824 or later version |
