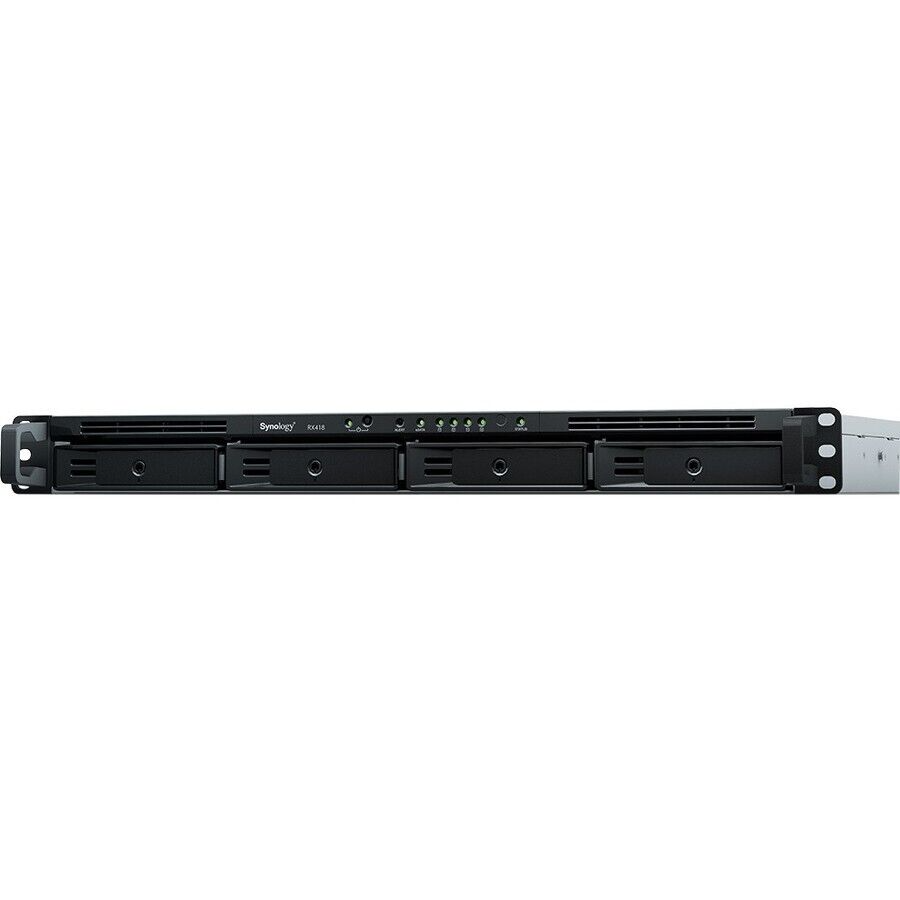

Synology Expansion Unit RX418, 4-bay 1U rackmount expansion unit for 1U RackStation
Model :
SKU : SYNOLOGY RX418 EXPANSION
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Maximize Your Synology NAS: Boost Storage with the RX418 Expansion Unit
| Applied Models | Supports creating volumes across different units 22 series: RS822RP+, RS822+ 21 series: RS1221RP+, RS1221+ 20 series: RS820RP+, RS820+ 19 series: RS1219+, RS819 18 series: RS818RP+, RS818+ 16 series: RS816 15 series: RS815RP+, RS815+, RS815 Supports creating volumes on a single unit only: RS217 Notes: For more information on the compatibility of each expansion unit, To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. DSM version requirement: 6.1.4-15217-3 or later version |
| Storage |
|
| eSATA Port | 1 |
| Size (Height x Width x Depth) | 44 mm x 430.5 mm x 290 mm |
| Size (Height x Width x Depth) (with server ears) | 44 mm x 480 mm x 325 mm |
| Weight | 4.28 kg |
| Rack Installation Support |
|
| Power Recovery | Synchronized with the Synology RackStation |
| Power Supply Unit / Adapter | 100 W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 23.26 W (Access) 6.39 W (HDD Hibernation) British Thermal Unit: 79.42 BTU/hr (Access) 21.82 BTU/hr (HDD Hibernation) Notes: Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). |
| Operating Temperature | 5??C to 35??C (40??F to 95??F) |
| Storage Temperature | -20??C to 60??C (-5??F to 140??F) |
| Relative Humidity | 5% to 95% RH |
| System Fan | 40 mm x 40 mm x 3 pcs |
| Noise Level | 25.1 dB(A) Notes: Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75??C; Humidity: 58.2-61.8% |
| Certification | FCC, CE, BSMI, EAC, VCCI, RCM, KC |
| Warranty | 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus Notes: Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. |
| Environment | RoHS Compliant |
| Packaging Content | Main Unit X 1 User's Guide X 1 Accessory Pack X 1 AC Power Cord X 1 Expansion Cable: eSATA X 1 |
| Optional Accessories | 3.5" SATA HDD: HAT5300/HAT3300 2.5" SATA SSD: SAT5210 Rail Kit Sliding: RKS-02 Rail Kit Mounted: RKM114* |
Specification
Maximize Your Synology NAS: Boost Storage with the RX418 Expansion Unit
| Applied Models | Supports creating volumes across different units 22 series: RS822RP+, RS822+ 21 series: RS1221RP+, RS1221+ 20 series: RS820RP+, RS820+ 19 series: RS1219+, RS819 18 series: RS818RP+, RS818+ 16 series: RS816 15 series: RS815RP+, RS815+, RS815 Supports creating volumes on a single unit only: RS217 Notes: For more information on the compatibility of each expansion unit, To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. DSM version requirement: 6.1.4-15217-3 or later version |
| Storage |
|
| eSATA Port | 1 |
| Size (Height x Width x Depth) | 44 mm x 430.5 mm x 290 mm |
| Size (Height x Width x Depth) (with server ears) | 44 mm x 480 mm x 325 mm |
| Weight | 4.28 kg |
| Rack Installation Support |
|
| Power Recovery | Synchronized with the Synology RackStation |
| Power Supply Unit / Adapter | 100 W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 23.26 W (Access) 6.39 W (HDD Hibernation) British Thermal Unit: 79.42 BTU/hr (Access) 21.82 BTU/hr (HDD Hibernation) Notes: Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). |
| Operating Temperature | 5??C to 35??C (40??F to 95??F) |
| Storage Temperature | -20??C to 60??C (-5??F to 140??F) |
| Relative Humidity | 5% to 95% RH |
| System Fan | 40 mm x 40 mm x 3 pcs |
| Noise Level | 25.1 dB(A) Notes: Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75??C; Humidity: 58.2-61.8% |
| Certification | FCC, CE, BSMI, EAC, VCCI, RCM, KC |
| Warranty | 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus Notes: Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. |
| Environment | RoHS Compliant |
| Packaging Content | Main Unit X 1 User's Guide X 1 Accessory Pack X 1 AC Power Cord X 1 Expansion Cable: eSATA X 1 |
| Optional Accessories | 3.5" SATA HDD: HAT5300/HAT3300 2.5" SATA SSD: SAT5210 Rail Kit Sliding: RKS-02 Rail Kit Mounted: RKM114* |
