Model :
SKU : ATX-THERMAL TAKE AX500 BK
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

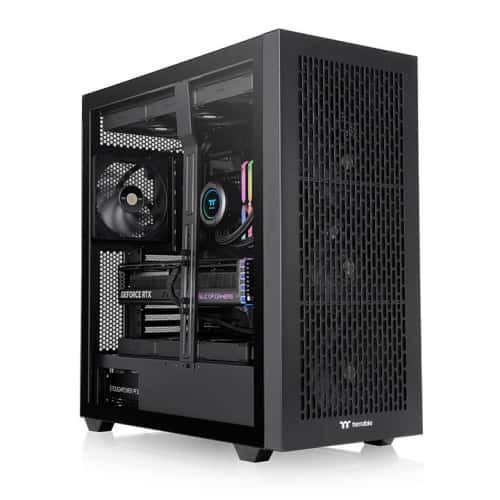

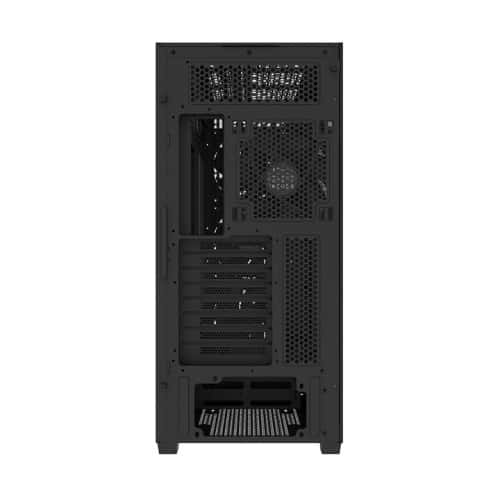

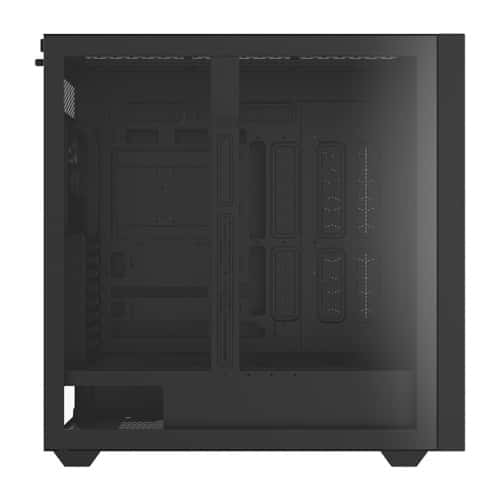

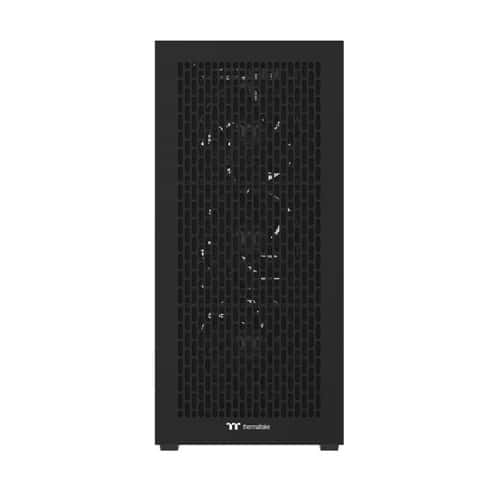

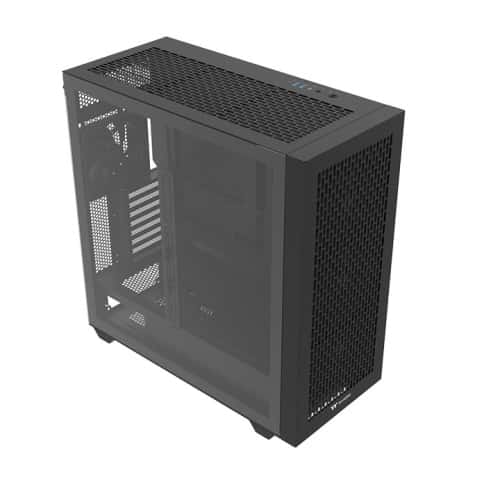

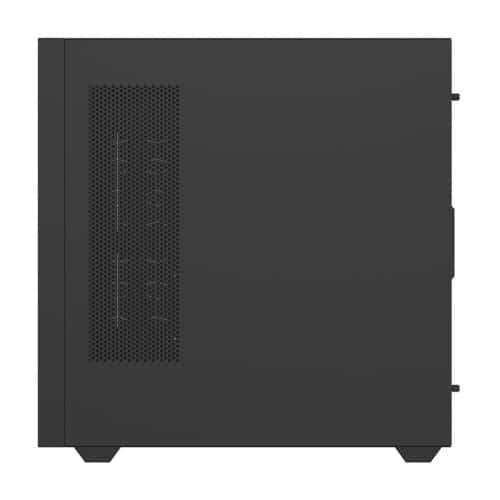

The AX500 Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations or gaming setups.
| P/N | CA-11D-00F1WN-00 |
| Series | AX Series |
| Model | AX500 |
| Case Type | Full Tower |
| Dimension (H x W x D) | 550 x 248 x 548 mm (21.7 x 9.8 x 21.6 inch) |
| Panel | Steel + Tempered Glass |
| Color | Black |
| Material | SPCC |
| Cooling System | 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4 |
| Drive Bays | 5 x 3.5???, 1 x 2.5??? or 6 x 2.5??? |
| Expansion Slots | 8 |
| Motherboard Support | Mini ITX (6.7??? x 6.7???) Micro ATX (9.6??? x 9.6???) ATX (12??? x 9.6???) E-ATX (12??? x 13???) SSI-CEB, SSI-EEB Hidden-Connector Motherboard: Micro ATX (9.6??? x 9.6???), ATX (12??? x 9.6???) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU Support | Standard PS2 PSU (optional) |
| Fan Support | Front: 4 x 120mm, 3 x 120mm, 2 x 120mm, 1 x 120mm / 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm / 3 x 140mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm / 2 x 140mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Front (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 420mm, 1 x 280mm, 1 x 140mm Top (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 420mm, 1 x 280mm, 1 x 140mm Rear (AIO): 1 x 120mm, 1 x 140mm |
| Clearance | CPU Cooler Max Height: 185mm VGA Max Length: 460mm PSU Max Length: 200mm |
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
The AX500 Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations or gaming setups.
| P/N | CA-11D-00F1WN-00 |
| Series | AX Series |
| Model | AX500 |
| Case Type | Full Tower |
| Dimension (H x W x D) | 550 x 248 x 548 mm (21.7 x 9.8 x 21.6 inch) |
| Panel | Steel + Tempered Glass |
| Color | Black |
| Material | SPCC |
| Cooling System | 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4 |
| Drive Bays | 5 x 3.5???, 1 x 2.5??? or 6 x 2.5??? |
| Expansion Slots | 8 |
| Motherboard Support | Mini ITX (6.7??? x 6.7???) Micro ATX (9.6??? x 9.6???) ATX (12??? x 9.6???) E-ATX (12??? x 13???) SSI-CEB, SSI-EEB Hidden-Connector Motherboard: Micro ATX (9.6??? x 9.6???), ATX (12??? x 9.6???) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU Support | Standard PS2 PSU (optional) |
| Fan Support | Front: 4 x 120mm, 3 x 120mm, 2 x 120mm, 1 x 120mm / 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm / 3 x 140mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm / 2 x 140mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Front (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 420mm, 1 x 280mm, 1 x 140mm Top (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 420mm, 1 x 280mm, 1 x 140mm Rear (AIO): 1 x 120mm, 1 x 140mm |
| Clearance | CPU Cooler Max Height: 185mm VGA Max Length: 460mm PSU Max Length: 200mm |
