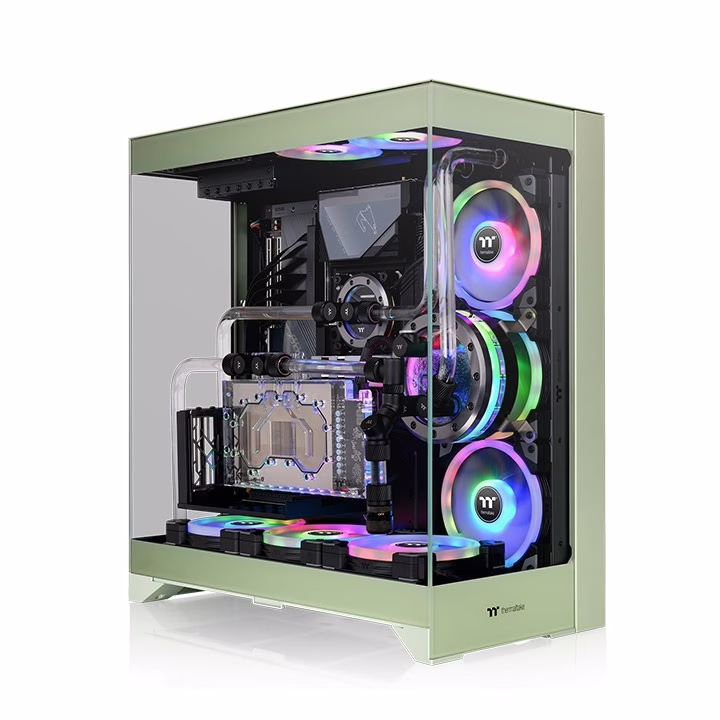

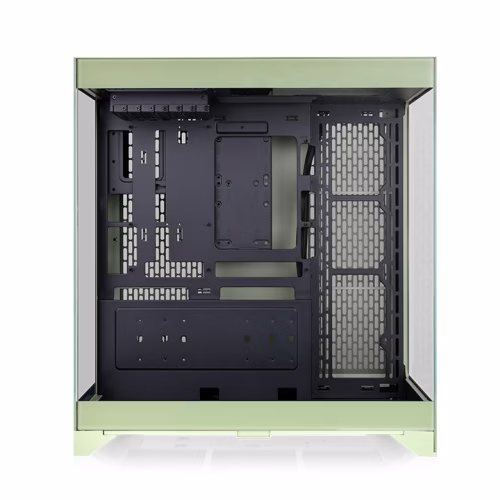

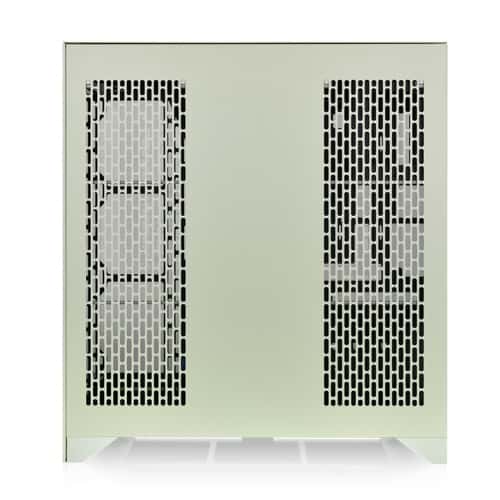

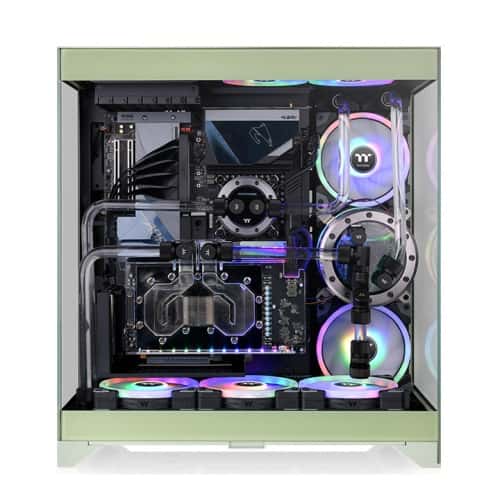

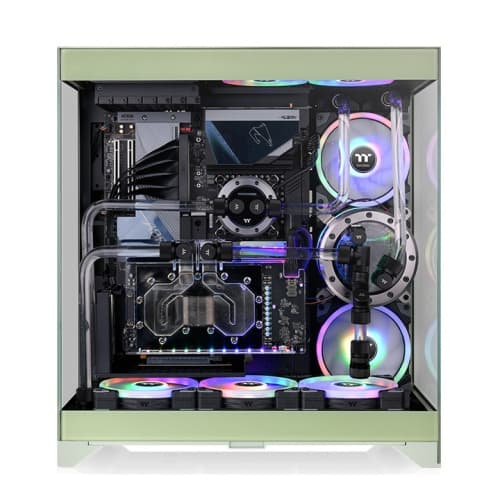

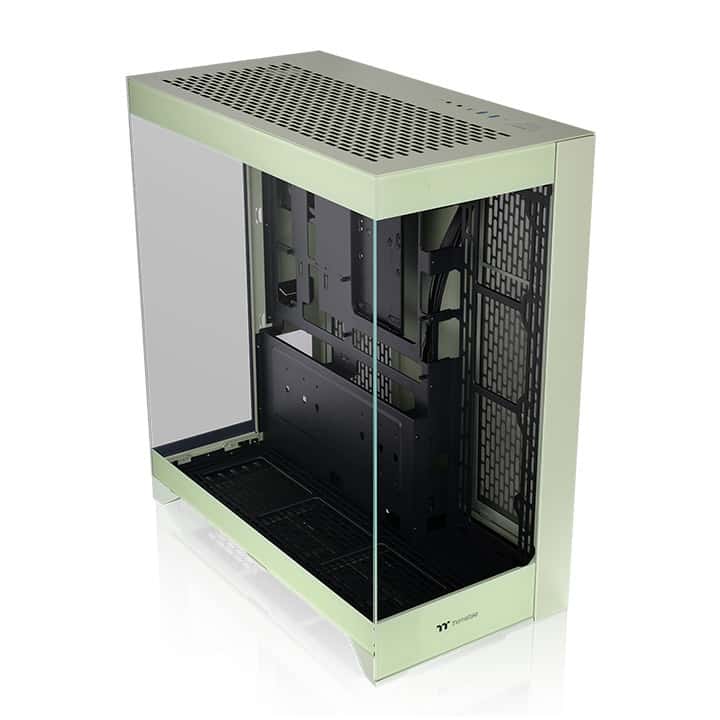

Thermaltake CTE E550 TG Matcha Green Mid Tower ATX Case, 3 Tempered Glass Panels, Three-Way VGA Installations Dual Chamber Design, Hidden-Connector Motherboard Support | CA-1Z8-00MEWN-00
Model :
SKU : ATX-Thermaltake CTE E550 TG Green
About this item
About this item
Description
Triple tempered glass panels and a dual chamber design provide an ultra-wide viewing angle and enhanced airflow and cable management.
Supports ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH motherboards with hidden connectors.
Provides versatile three-way VGA installation options with rotational PCIe slots and a floating VGA bracket.
Supports up to six 140mm fans and three 120mm fans, as well as radiators up to 420mm for optimal thermal management.
There are two USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, and one HD Audio port on the device.
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
CTE E550 TG Matcha Green Mid Tower Chassis Case Specifications
| Part Number (P/N) | CA-1Z8-00M1WN-00 |
| Series | CTE |
| Case Type | Mid Tower |
| Dimensions (H x W x D) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inches) |
| Net Weight | 14.5 kg / 31.97 lbs. |
| Panel | 4mm Tempered Glass x 3 |
| Color | Black |
| Material | SPCC |
| Cooling System | 3 x 3.5", 1 x 2.5" or 2 x 3.5", 2 x 2.5" |
| Expansion Slots | 7 |
| Motherboards | Mini ITX (6.7" x 6.7"), Micro ATX (9.6" x 9.6"), ATX (12" x 9.6"), E-ATX (12" x 10.5") |
| I/O Port | USB 3.0 x 2, Type-C x 1, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm or 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm or 3 x 140mm, 2 x 140mm, 1 x 140mm |
| Radiator Support | Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm or 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm or 1 x 420mm, 1 x 280mm, 1 x 140mm |
| Clearance | CPU Cooler Max Height: 166mm VGA Max Length: 415mm (with radiator), 443.8mm (without radiator) PSU Max Length: 220mm |
Specification
Triple tempered glass panels and a dual chamber design provide an ultra-wide viewing angle and enhanced airflow and cable management.
Supports ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH motherboards with hidden connectors.
Provides versatile three-way VGA installation options with rotational PCIe slots and a floating VGA bracket.
Supports up to six 140mm fans and three 120mm fans, as well as radiators up to 420mm for optimal thermal management.
There are two USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, and one HD Audio port on the device.
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
CTE E550 TG Matcha Green Mid Tower Chassis Case Specifications
| Part Number (P/N) | CA-1Z8-00M1WN-00 |
| Series | CTE |
| Case Type | Mid Tower |
| Dimensions (H x W x D) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inches) |
| Net Weight | 14.5 kg / 31.97 lbs. |
| Panel | 4mm Tempered Glass x 3 |
| Color | Black |
| Material | SPCC |
| Cooling System | 3 x 3.5", 1 x 2.5" or 2 x 3.5", 2 x 2.5" |
| Expansion Slots | 7 |
| Motherboards | Mini ITX (6.7" x 6.7"), Micro ATX (9.6" x 9.6"), ATX (12" x 9.6"), E-ATX (12" x 10.5") |
| I/O Port | USB 3.0 x 2, Type-C x 1, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm or 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm or 3 x 140mm, 2 x 140mm, 1 x 140mm |
| Radiator Support | Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm or 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm or 1 x 420mm, 1 x 280mm, 1 x 140mm |
| Clearance | CPU Cooler Max Height: 166mm VGA Max Length: 415mm (with radiator), 443.8mm (without radiator) PSU Max Length: 220mm |
