Model :
SKU : CF-COOLER THERMAL EX12

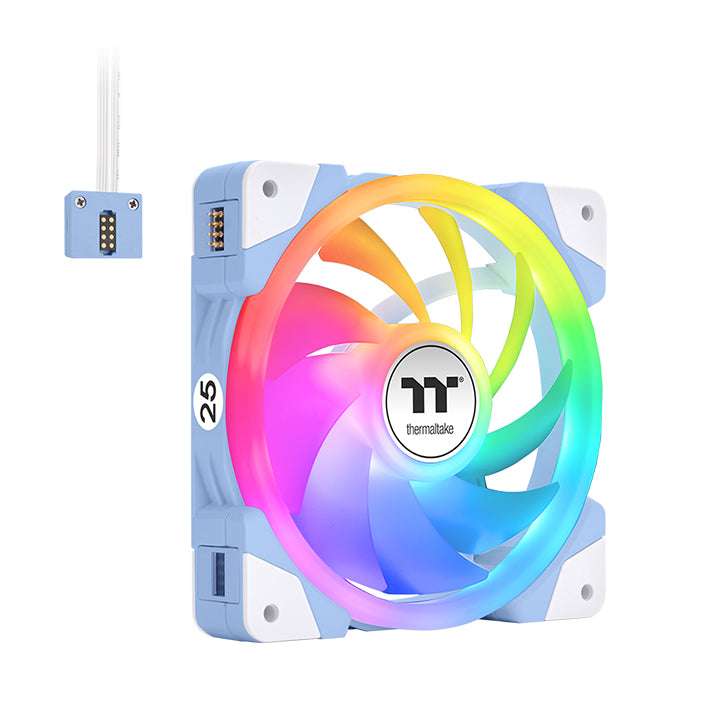

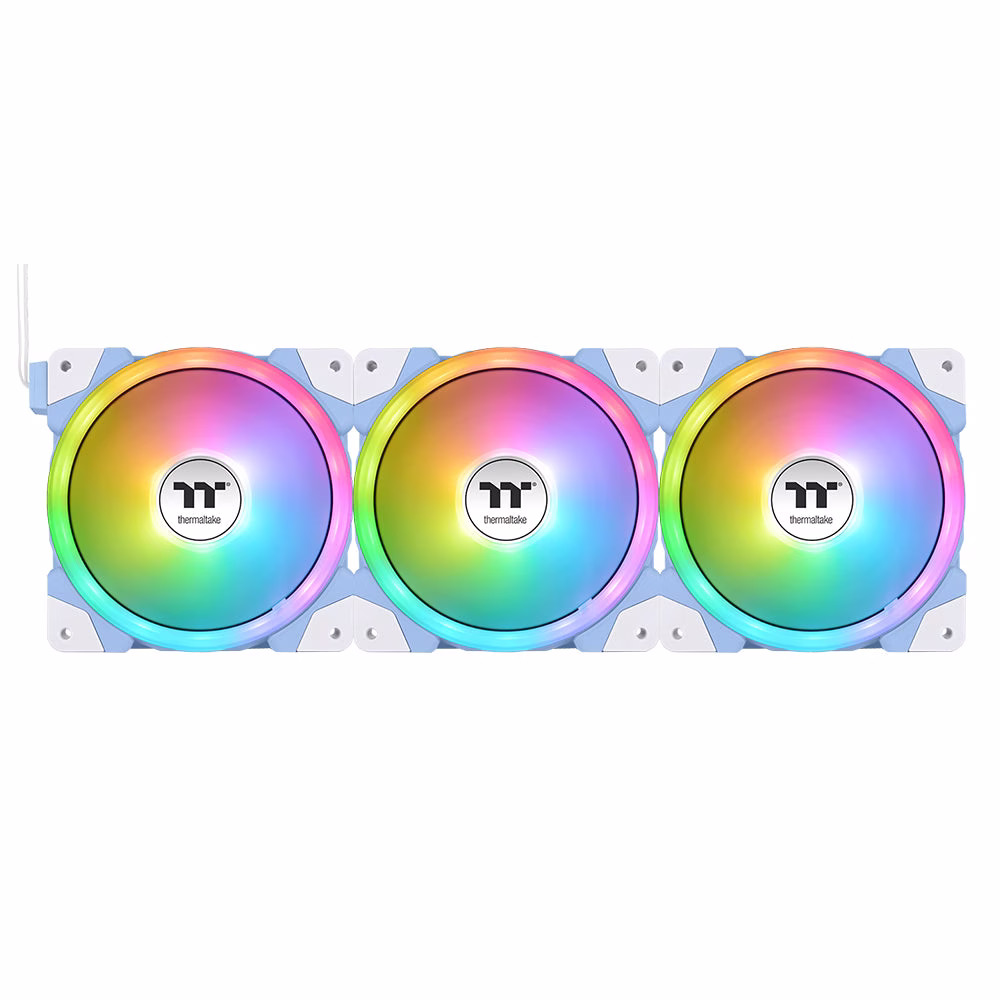

The SWAFAN EX12 ARGB series redefines how you approach cable management. Traditional fan setups require individual wires for power and lighting for every fan, resulting in a "cable forest" behind your motherboard tray. The EX12 uses magnetic force to snap fan frames together, allowing power and ARGB data to pass through a single, clean cable. This provides a profound functional advantage: it minimizes the time spent on cable routing while ensuring that your chassis interior looks as clean as possible, leaving the focus on the vibrant Hydrangea Blue finish and your internal components.

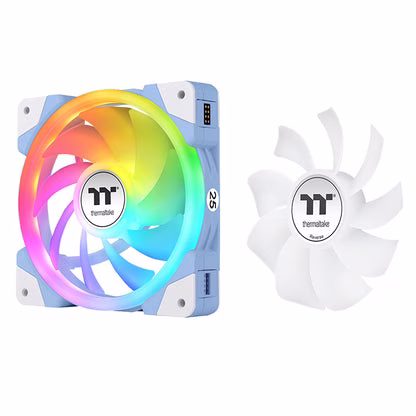

Swappable Fan Blade Design
At the interactive core of their mechanical layout is the swappable fan blade system. This is a game-changer for airflow-critical builds. If you need to change a fan from an "intake" to an "exhaust" configuration, you no longer need to see the "ugly" side of the fan frame (with the structural arms) facing outward. You simply pop out the fan blades and swap them for the included reverse-airflow set. This allows you to maintain a consistent, aesthetic appearance on the intake and exhaust sides of your radiator or chassis, ensuring that your build looks perfectly balanced from every viewing angle.
Synchronized ARGB Performance
Meticulously optimized for enthusiast-grade compatibility, the fans feature addressable RGB LEDs integrated into the frame. When paired with your motherboard’s 5V ARGB header and controller software, this allows for perfect color synchronization with the rest of your system. Whether you are aiming for a soft, ambient glow that matches your Hydrangea Blue theme or a dynamic, high-speed effect, these fans serve as the vibrant visual focal points that elevate the overall build profile of your custom workstation.
| P/N | CL-F183-PL12BU-A |
| Fan Dimension | 120 x 120 x 25 mm |
| Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | 12 V - 0.27 A, 5 V 0.72 A (one fan) |
| Power Input | 12 V 3.24 W, 5 V 3.6 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Max. Air Pressure | Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) |
| Max Air Flow | Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) |
| Noise Level | Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25 |
| Included Items | Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
