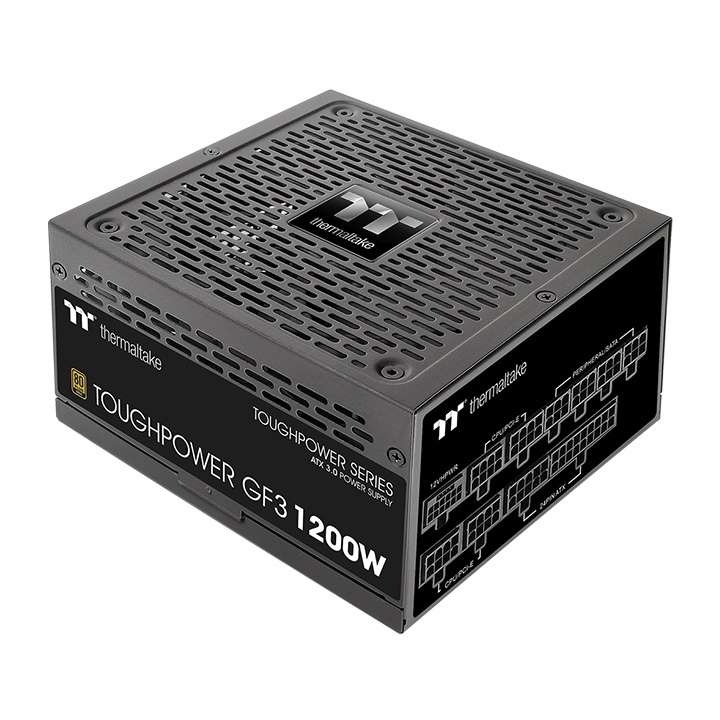

Model :
SKU : PS-THERMALTAKE 1200 GF A3

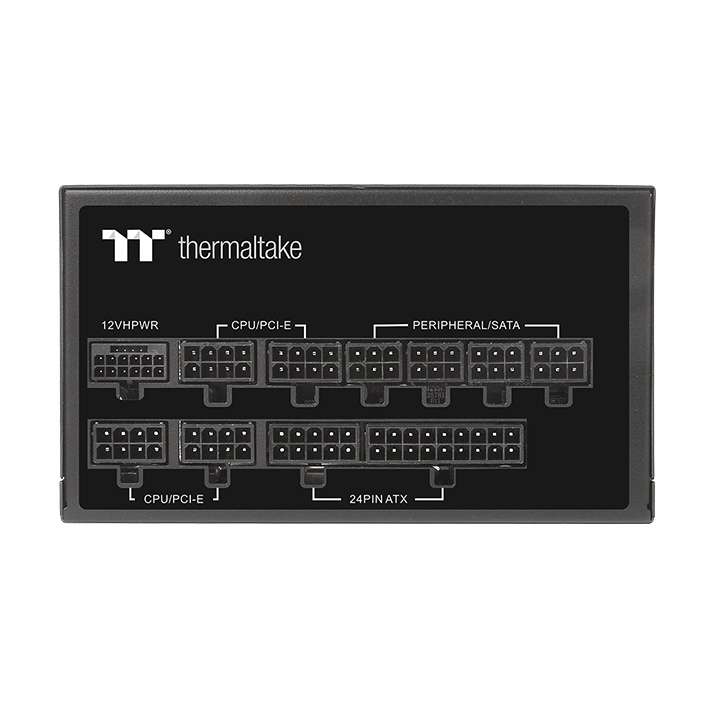

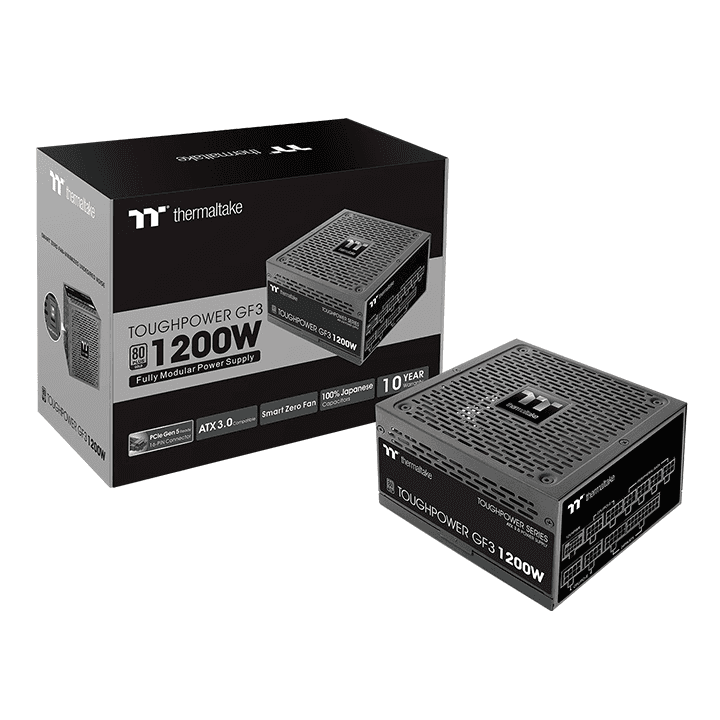

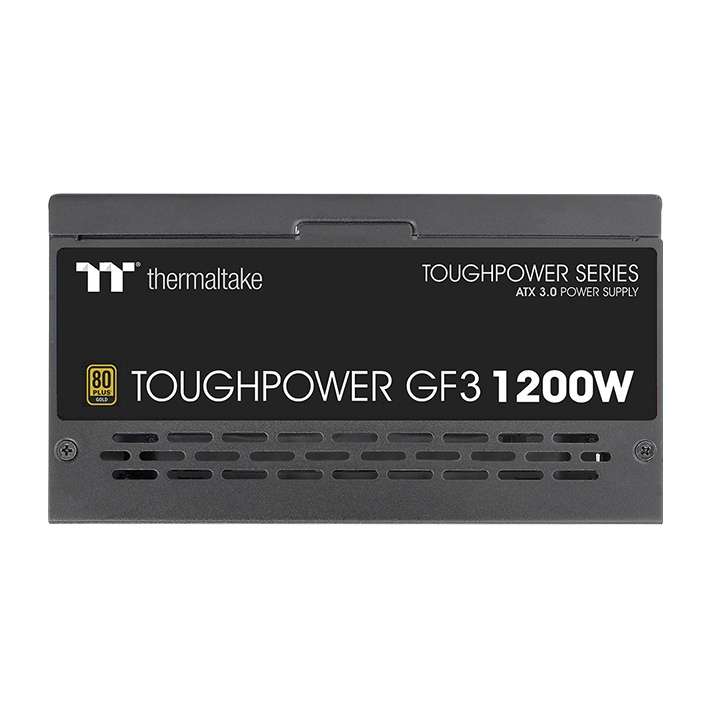

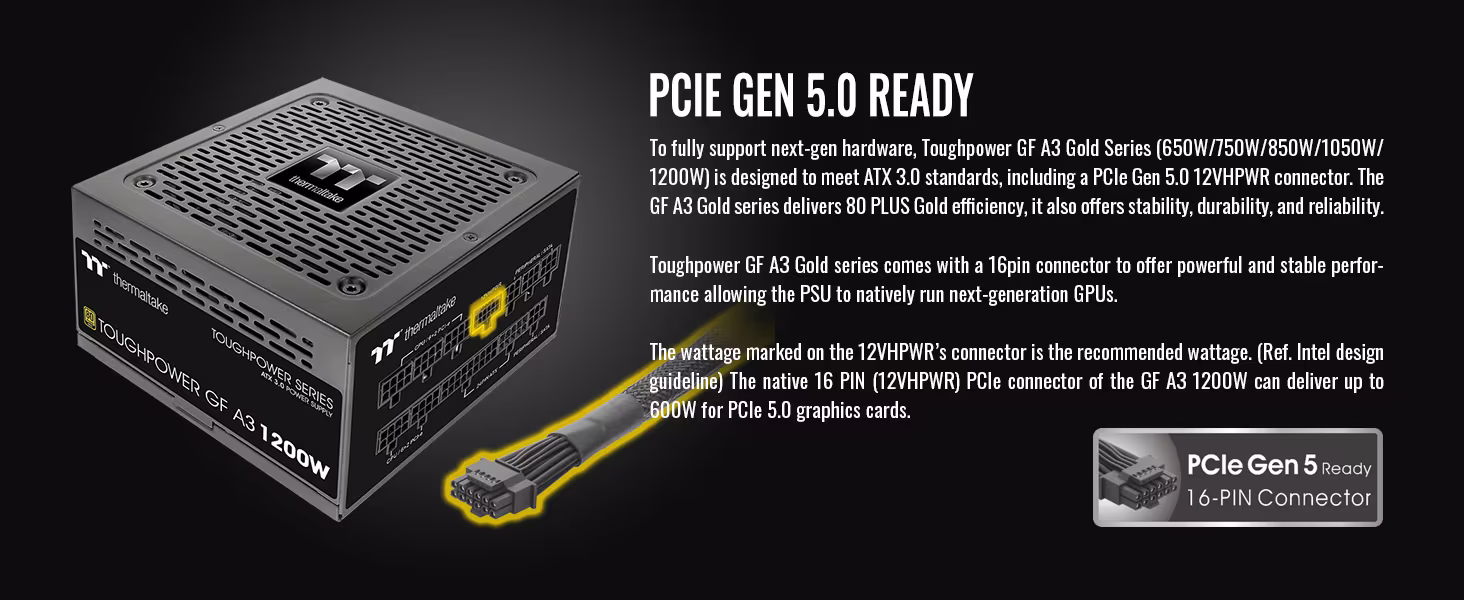

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ???s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.
The wattage marked on 12VHPWR???s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.
Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.

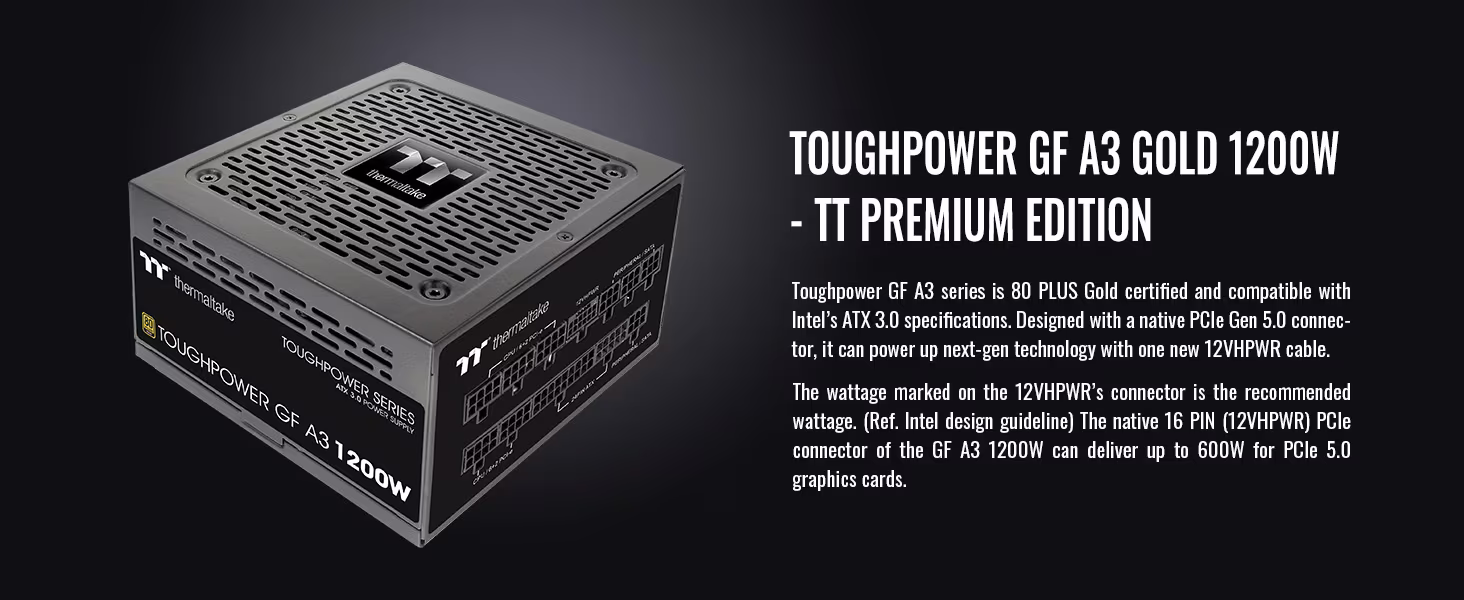

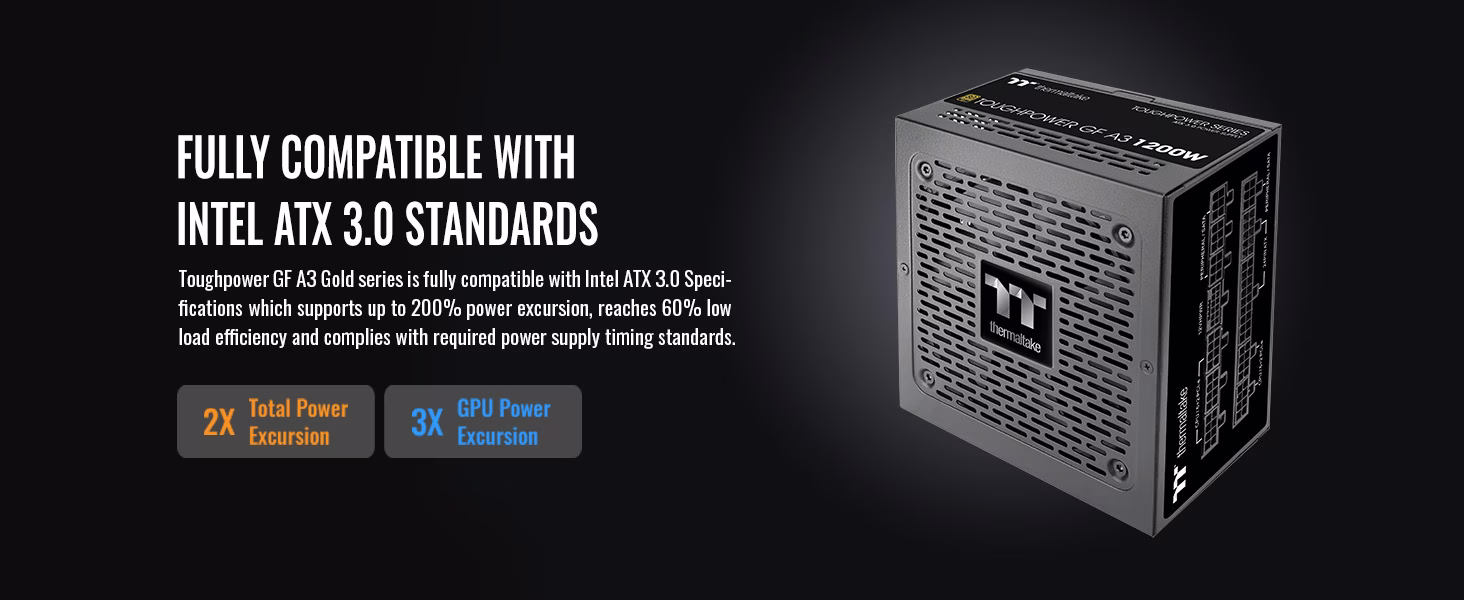

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable. The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.
Capacity: 1200W
PFC: Active

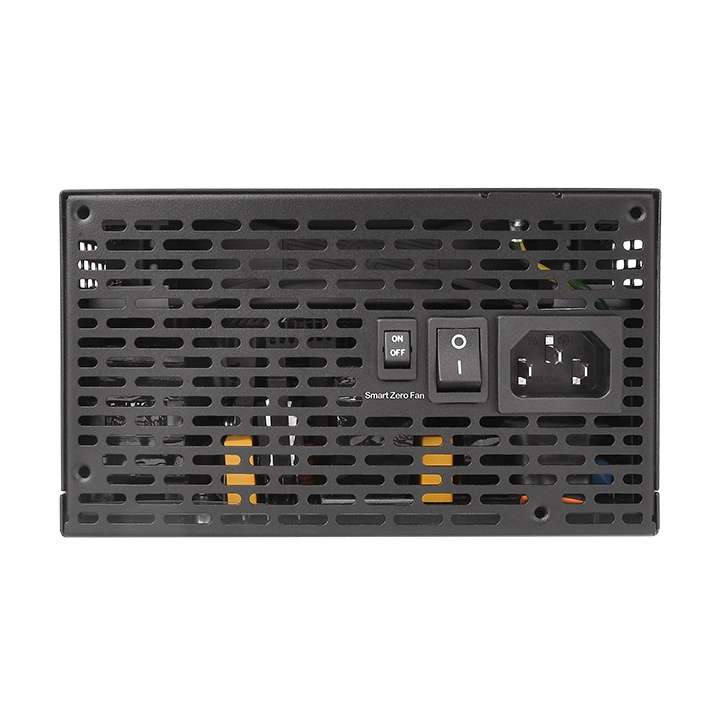

Input: 100 - 240Vac
Temperature: 0°C to +45°C

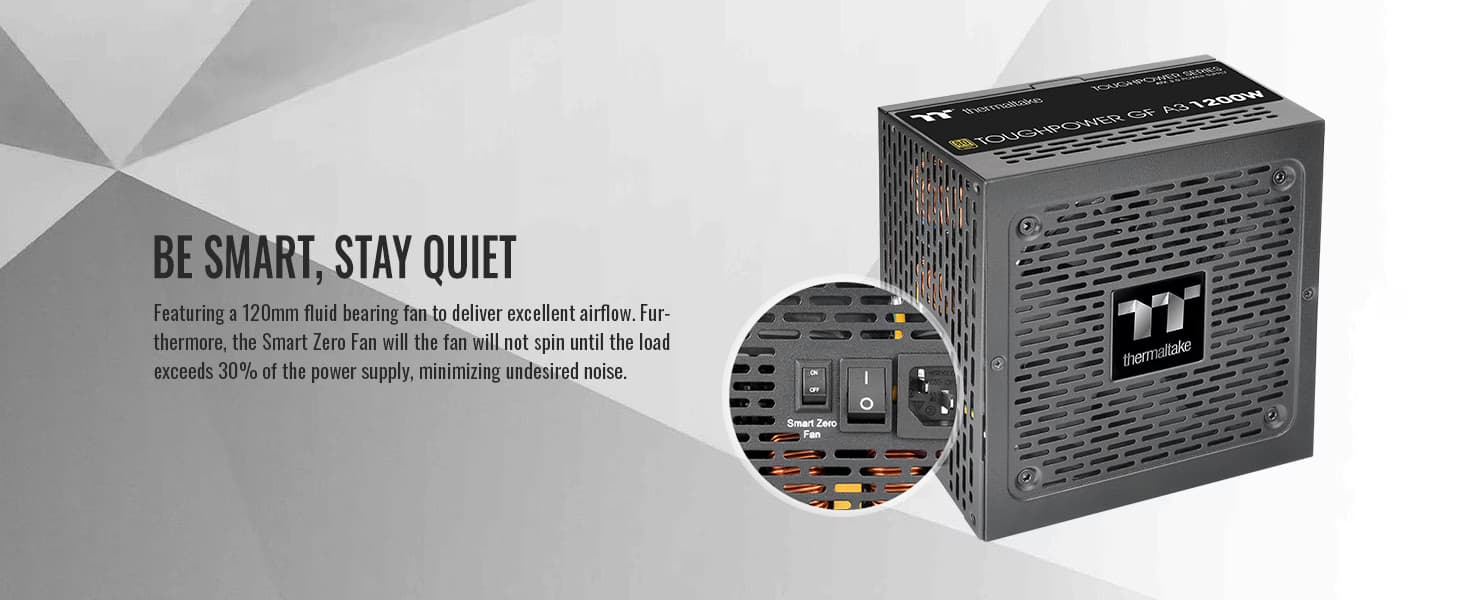

Cooling: 12cm FDB Fan
Efficiency: 80 PLUS® Gold
MTBF: 100,000 hrs
Safety: CE/FCC/UKCA/TUV/cTUVus/CB/CCC/BSMI

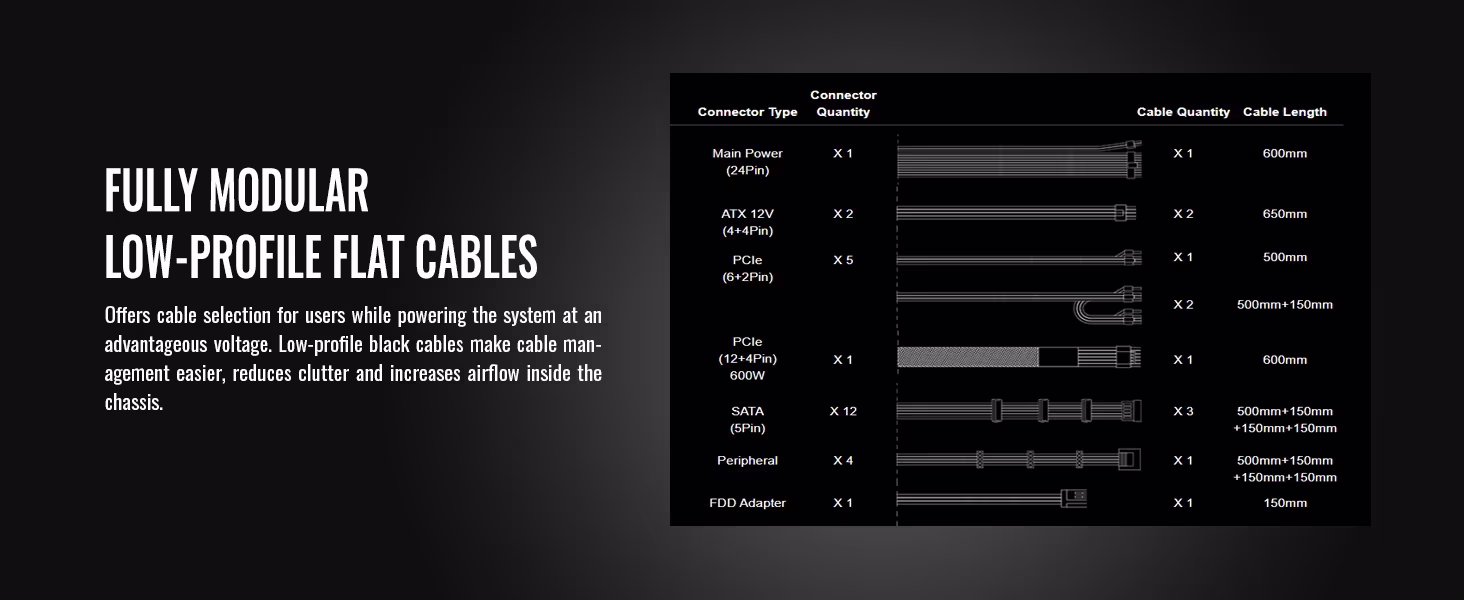

PCI-E 6+2PIN: 5
PCIE 12+4PIN: 1 (600W)
| P/N | PS-TPD-1200FNFAGx-4 |
|---|---|
| WATTS | 1200W |
| MODEL | TPD-1200AH3FCG |
| MAX. OUTPUT CAPACITY | 1200W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| WEIGHT | 1.88 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-150 msec |
| HOLD UP TIME | > 17msec at 100% of full load |
| INPUT CURRENT | 15.0A / 7.0A |
| INPUT FREQUENCY RANGE | 50/60Hz |
| INPUT VOLTAGE | 100V ??? 240V~ |
| OPERATING TEMPERATURE | 0??C to + 40??C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20??C to + 70??C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |

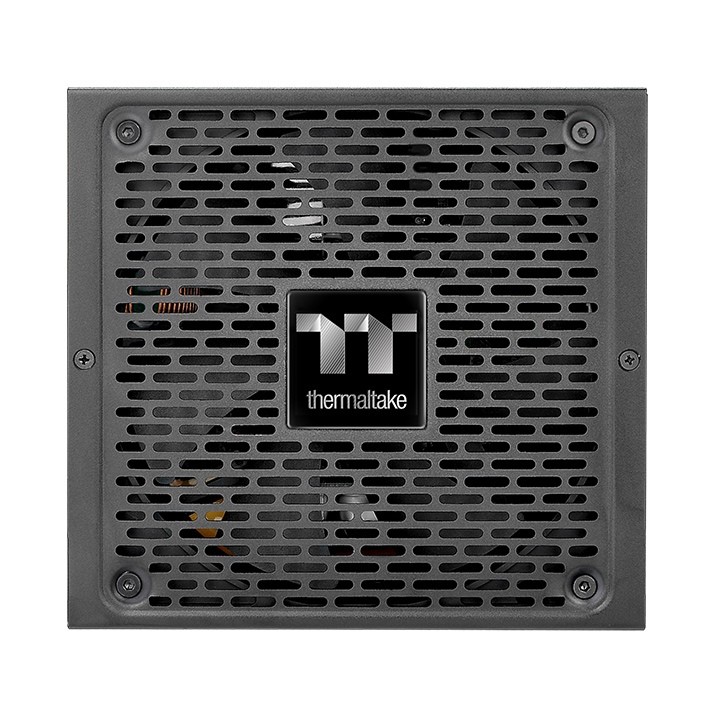

| COOLING SYSTEM | 13.5cm fluid bearing fan |
| EFFICIENCY | Meet 80 PLUS??Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/cTUVus/T??V/FCC/IC/BSMI/EAC/CB/CCC |
| PCI-E 6+2PIN | PCIe 6+2pin X 4 PCIe 12+4pin X 1 |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
