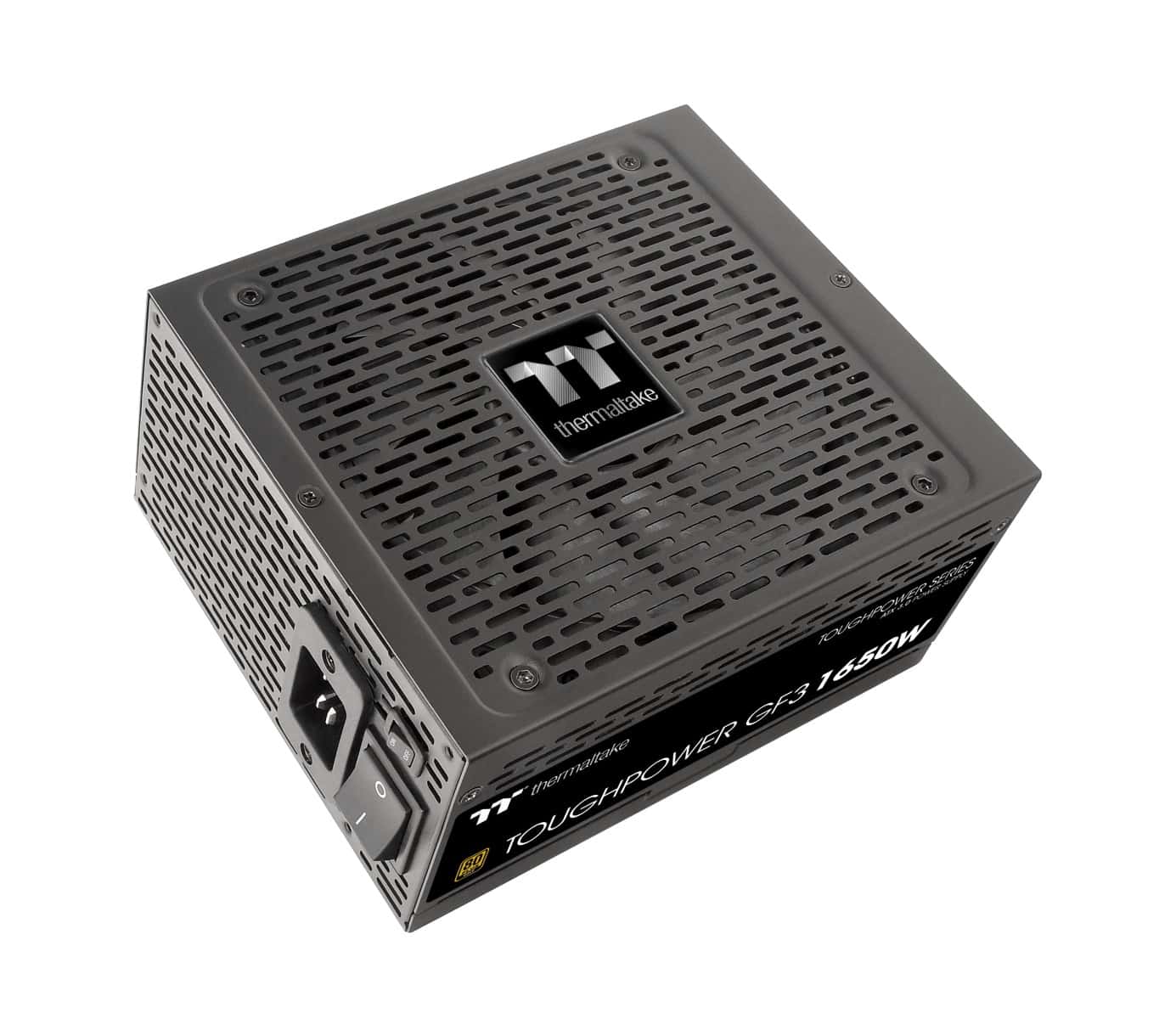

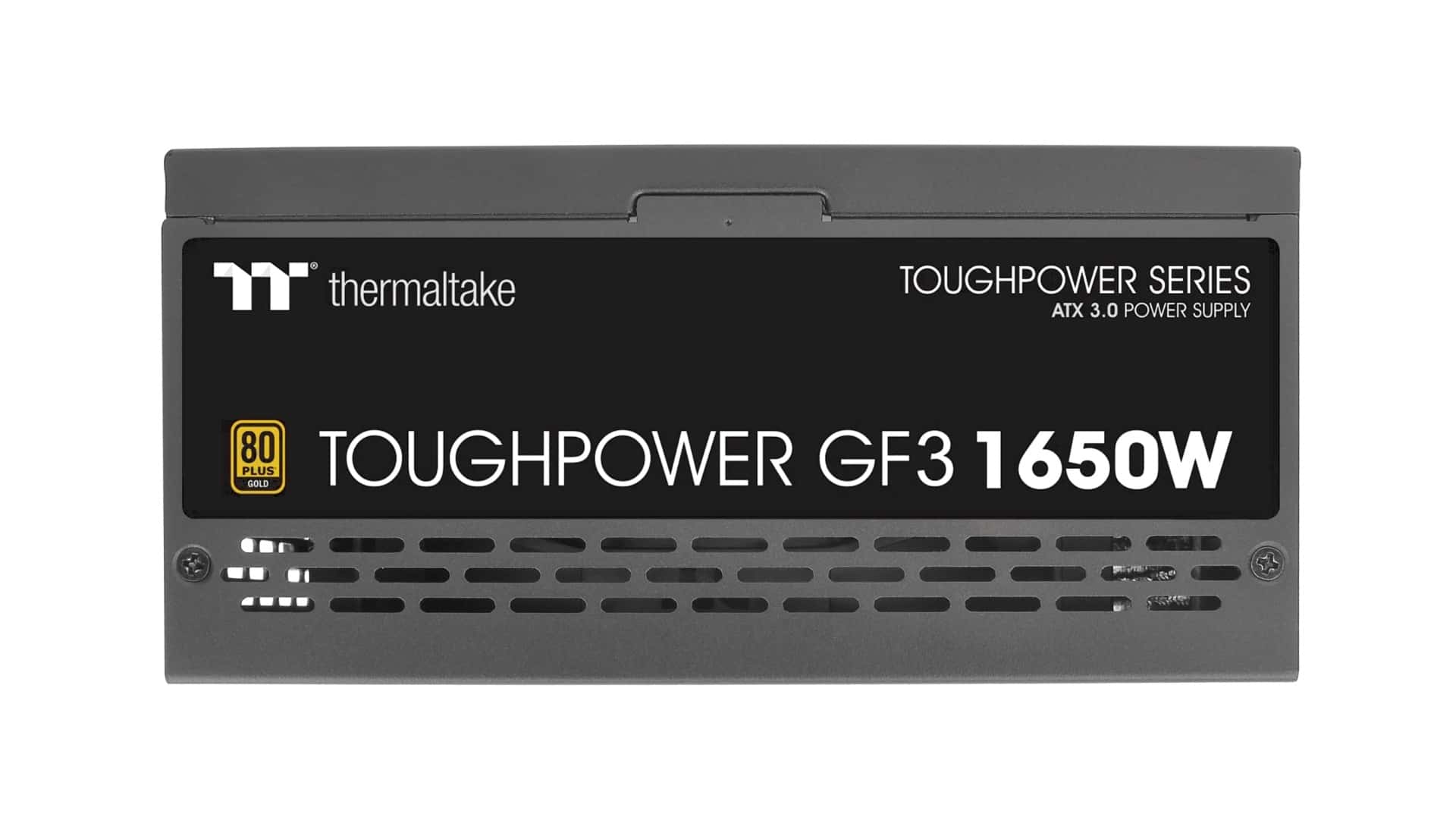

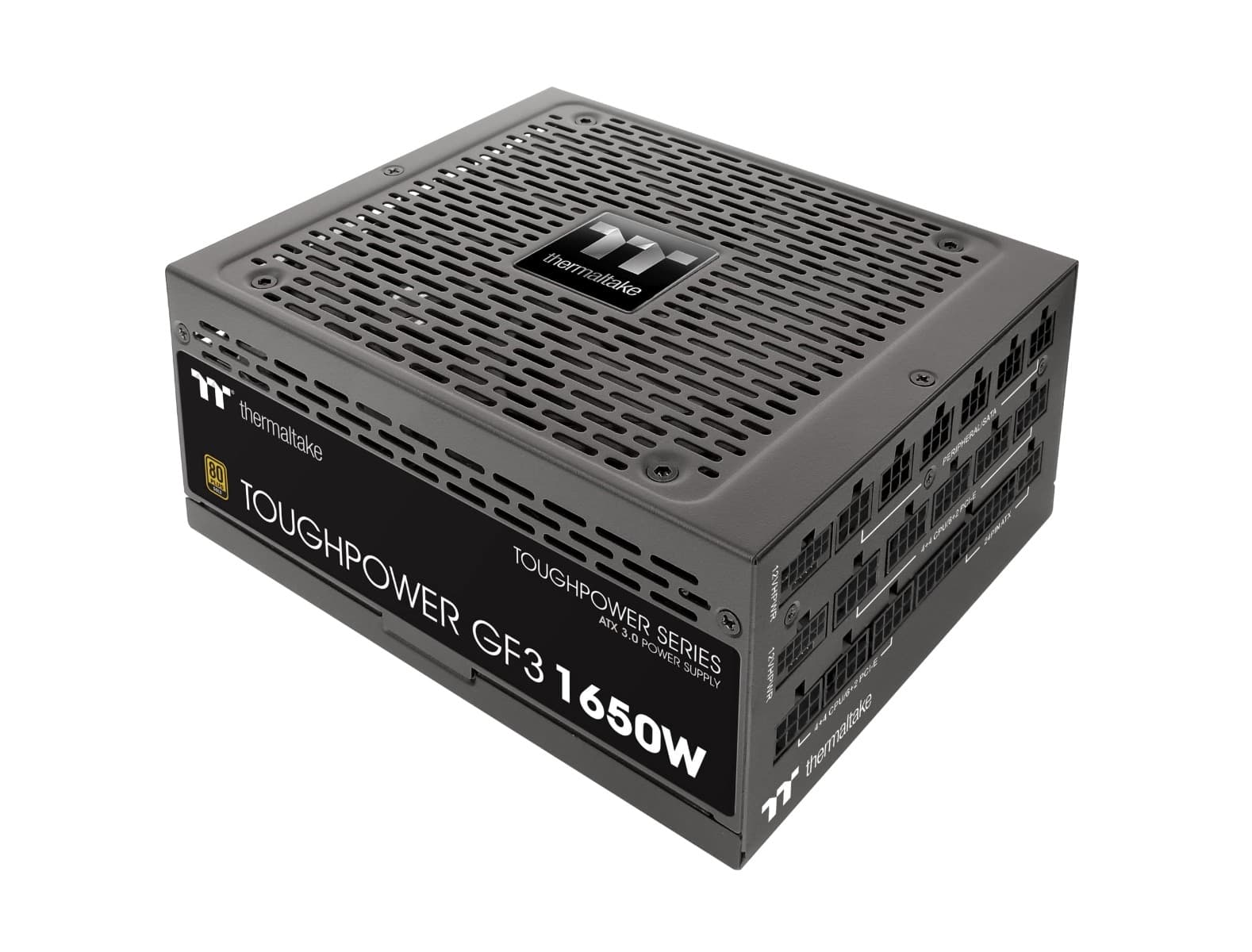

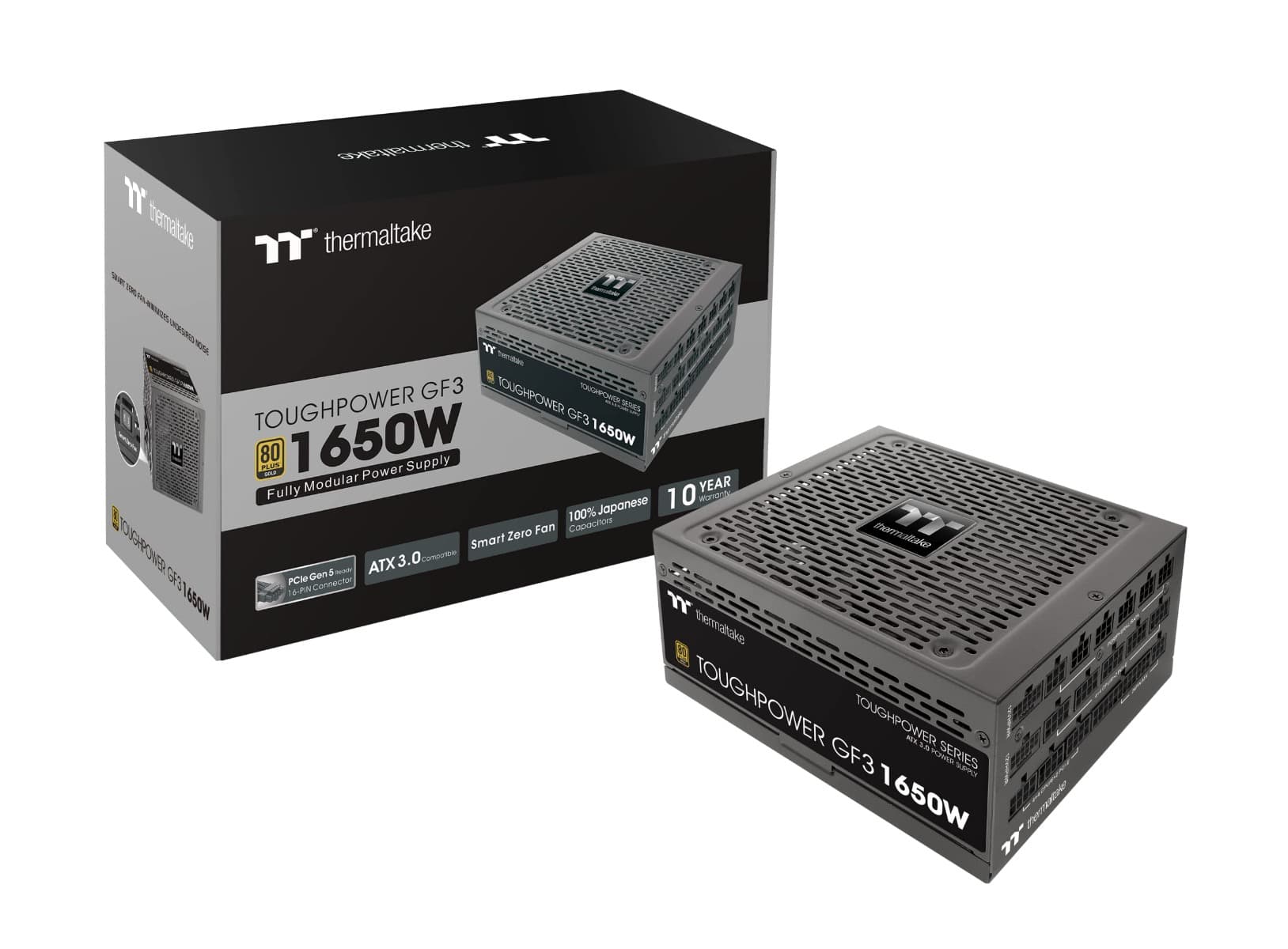

Thermaltake Toughpower GF3 Gold Full Modular Power Supply, TT Premium Edition, 1650W Capacity, 80 PLUS Gold, 140mm Ultra Quiet Smart Zero Fan, PCIe Gen 5.0 & ATX 3 .0, Black | PS-TPD-1650FNFAGK-4
Model :
SKU : PS-THERMALTAKE 1650W GF3
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Power Up Like a Beast: Thermaltake Toughpower GF3 Gold 1650W PSU, 80+ Gold Efficiency, PCIe Gen 5.0 Ready (PS-TPD-1650FNFAGK-4)
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| Power Supply Information | |
| P/N | PS-TPD-1650FNFAGx-4 |
| Watts | 1650W |
| Model | TPD-1650AH3FSG |
| Max. Output Capacity | 1650W |
| Color | Black |
| Dimension (W / H / D) | 150mm(W) x 86mm(H) x 180mm(D) |
| Weight | 2.14 KG |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Input Current | 20 ??? 16A |
| Input Frequency Range | 50-60Hz |
| Input Voltage | 100 ??? 240V~ |
| Operating Temperature | 0??C to + 50??C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -40??C to + 70??C |
| Storage Humidity | 20% to 95%, non-condensing |

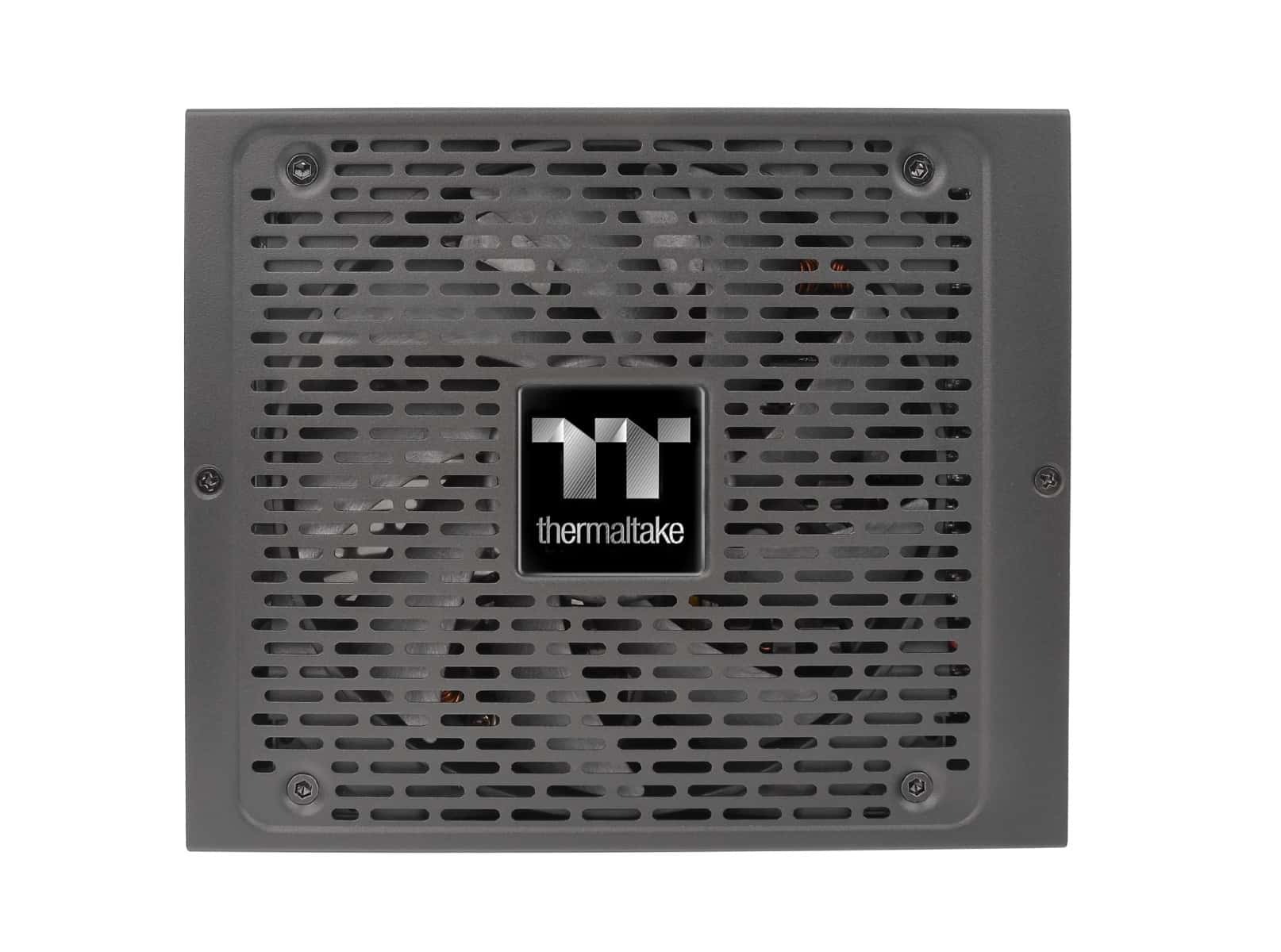

| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS??Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/cTUVus/T??V/FCC/IC/BSMI/EAC/CB/BIS/KCC |
| PCI-E 6+2PIN | 9 |
| PCIE 12+4PIN | 2 |
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| Additional Information | |
| Form Factor | ATX 3.0 |
| Edition | GF3 1650W |
| Wattage | 1650W |
| 80 PLUS Certification | 80 PLUS Gold |
| Max. Efficiency (at 230Vac) | |
| Cooling | Fan |
| Fans | 1 x 140mm |
| Internal +12V Rails | Single Rail |

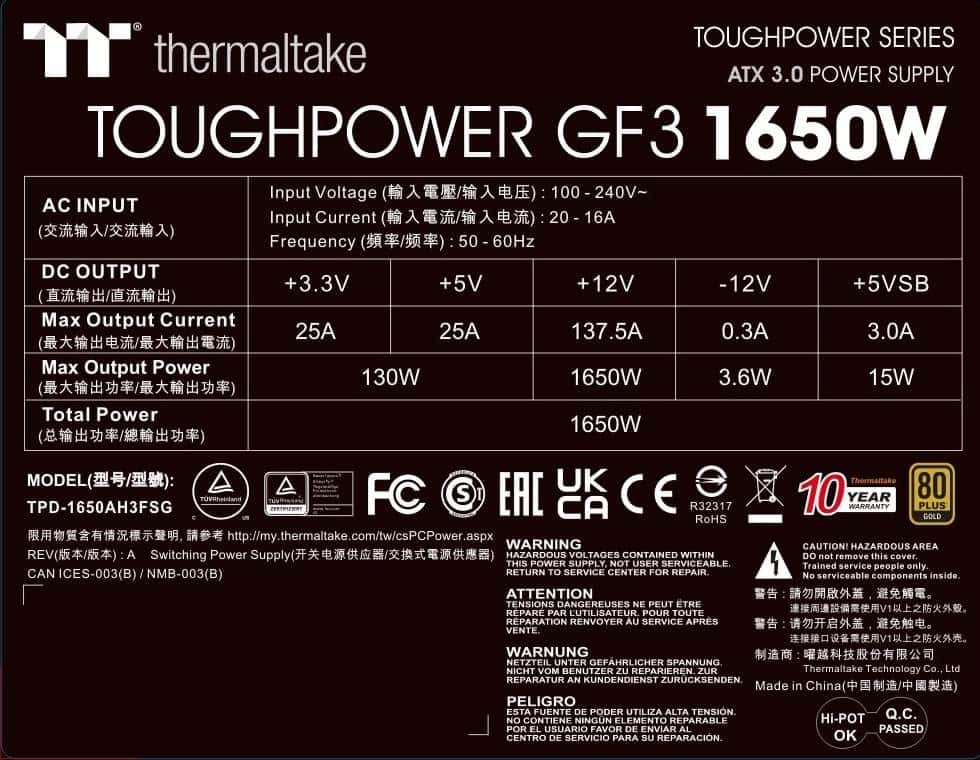

| Rail 1 +12V | 137.5 A |
| Rail 2 +12V | N/A |
| Rail 3 +12V | N/A |
| Rail 4 +12V | N/A |
| Rail 5 +12V | N/A |
| Rail 6 +12V | N/A |
| Max. Combined Output +12V | 137.5 A |
| Modular | Yes |
| Modularity | Full Modular |
| SLI/CrossFire | No |
| EPS 12V | No |
| Motherboard Connector | 24-pin |

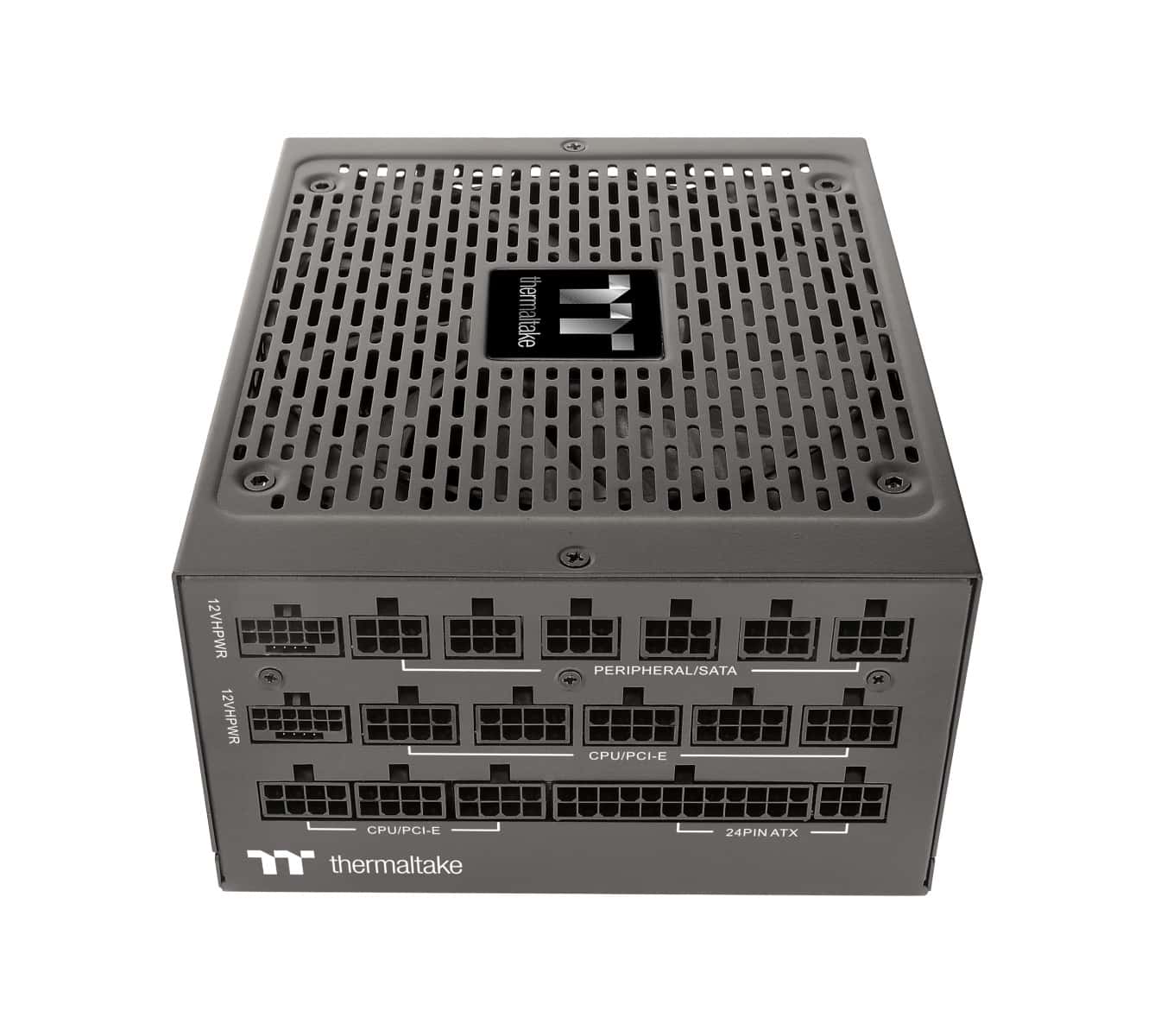

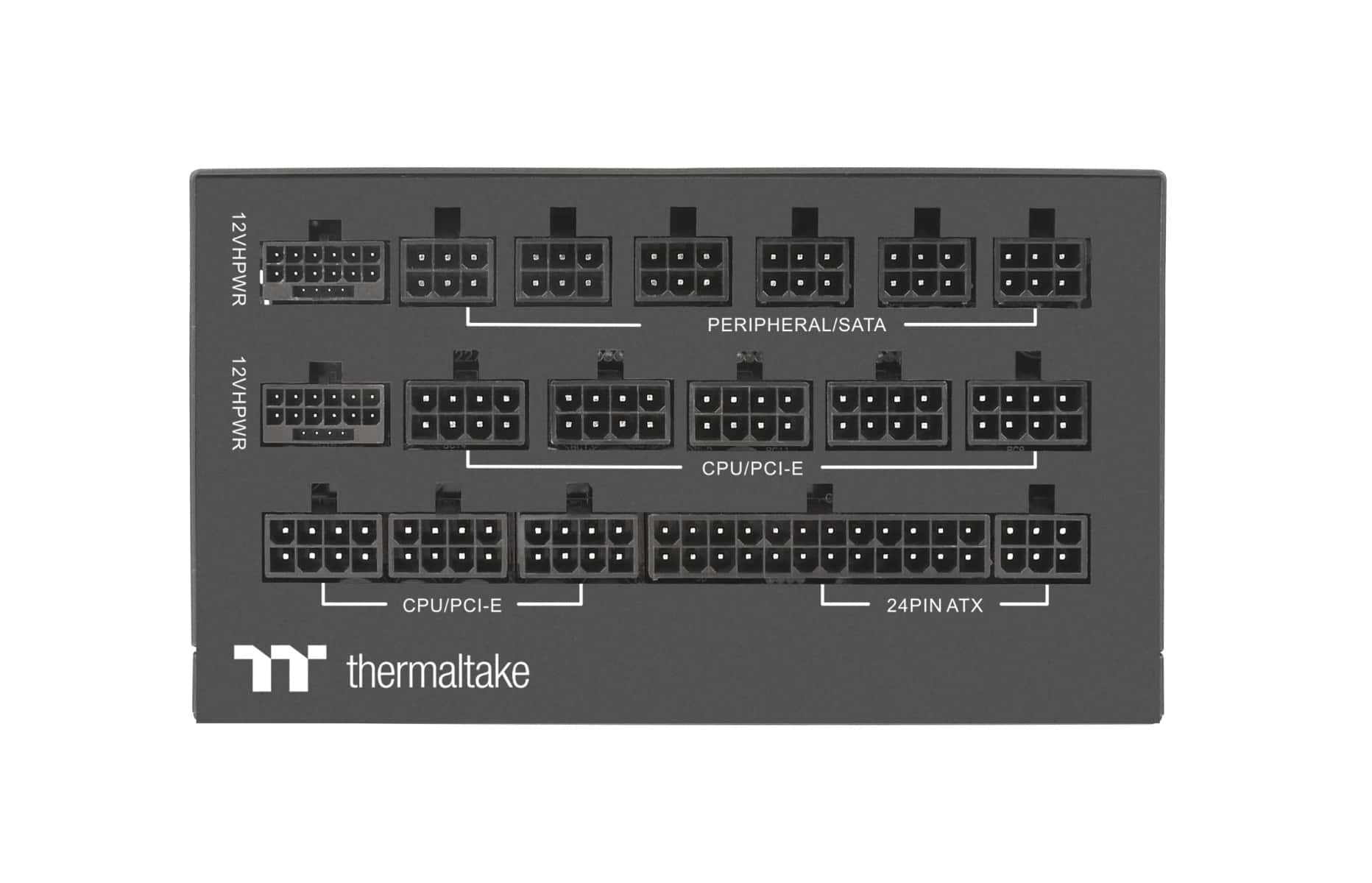

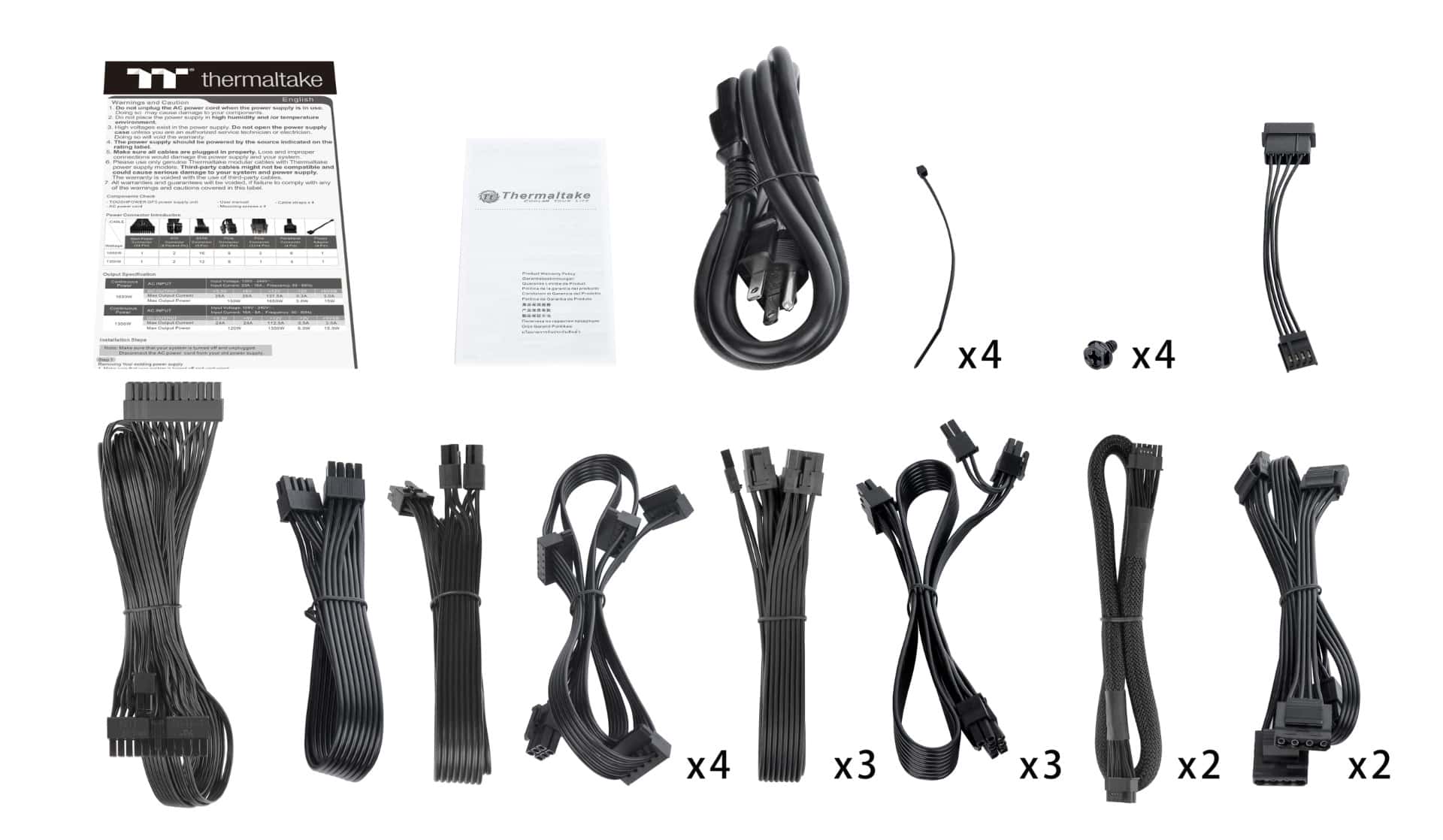

| Connectors | 1 x 4+4-pin ATX 12V 1 x 4-pin FDD Power 8 x 4-pin Molex 9 x 6+2-pin PCIe 1 x 8-pin PCIe 12 x SATA |
Specification
Power Up Like a Beast: Thermaltake Toughpower GF3 Gold 1650W PSU, 80+ Gold Efficiency, PCIe Gen 5.0 Ready (PS-TPD-1650FNFAGK-4)
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| Power Supply Information | |
| P/N | PS-TPD-1650FNFAGx-4 |
| Watts | 1650W |
| Model | TPD-1650AH3FSG |
| Max. Output Capacity | 1650W |
| Color | Black |
| Dimension (W / H / D) | 150mm(W) x 86mm(H) x 180mm(D) |
| Weight | 2.14 KG |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Input Current | 20 ??? 16A |
| Input Frequency Range | 50-60Hz |
| Input Voltage | 100 ??? 240V~ |
| Operating Temperature | 0??C to + 50??C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -40??C to + 70??C |
| Storage Humidity | 20% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS??Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/cTUVus/T??V/FCC/IC/BSMI/EAC/CB/BIS/KCC |
| PCI-E 6+2PIN | 9 |
| PCIE 12+4PIN | 2 |
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| Additional Information | |
| Form Factor | ATX 3.0 |
| Edition | GF3 1650W |
| Wattage | 1650W |
| 80 PLUS Certification | 80 PLUS Gold |
| Max. Efficiency (at 230Vac) | |
| Cooling | Fan |
| Fans | 1 x 140mm |
| Internal +12V Rails | Single Rail |
| Rail 1 +12V | 137.5 A |
| Rail 2 +12V | N/A |
| Rail 3 +12V | N/A |
| Rail 4 +12V | N/A |
| Rail 5 +12V | N/A |
| Rail 6 +12V | N/A |
| Max. Combined Output +12V | 137.5 A |
| Modular | Yes |
| Modularity | Full Modular |
| SLI/CrossFire | No |
| EPS 12V | No |
| Motherboard Connector | 24-pin |
| Connectors | 1 x 4+4-pin ATX 12V 1 x 4-pin FDD Power 8 x 4-pin Molex 9 x 6+2-pin PCIe 1 x 8-pin PCIe 12 x SATA |
