Thermaltake TOUGHPOWER GT 850W Fully Modular Power Supply (PSU), ATX 3.1, 12V-2x6 connector, 80 PLUS Gold, Black | PS-TPT-0850FNFAGK-3
Model : PS-TPT-0850FNFAGK
SKU : PS-THERMALTAKE GT 850W BK
Color :
BLACK
About this item
About this item
Description
Toughpower GT Series
The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.
ATX 3.1 Ready
Toughpower GT series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
PCIe Gen 5.1 Ready
Toughpower GT series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

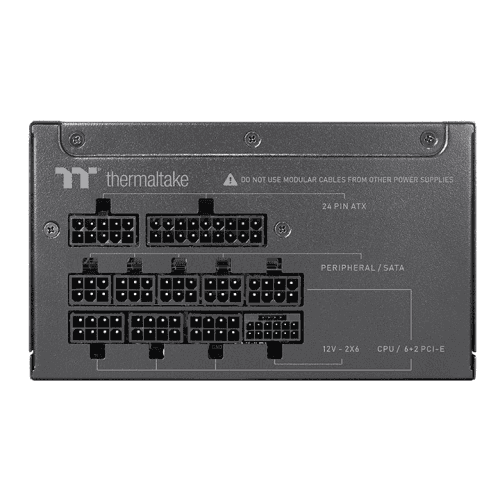

Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.
Built-in Industrial Grade Protection
To protect the hardware, Toughpower GT series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
80 PLUS Gold Certified
Toughpower GT series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
Specification
| Watts | 850W |
| Model | TPD-850AH2FXG-3 |
| Max. Output Capacity | 850W |
| Color | Black |
| Dimension (W x H x D) | 150mm x 86mm x 140mm |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100???250 msec |
| Hold Up Time | > 17 msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz???60Hz |
| Input Voltage | 100???240V??? |
| Operating Temperature | 0??C to +40??C |
| Operating Humidity | 5% to 85%, non-condensing |
| Storage Temperature | -40??C to +70??C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meets 80 PLUS?? Gold at 115Vac input |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE, UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S-MARK |
| PCI-E 6+2 pin | 4 |
| PCI-E 12+4 pin | 1 |
| Protection | OVP, UVP, OCP, OPP, OTP, SCP |
