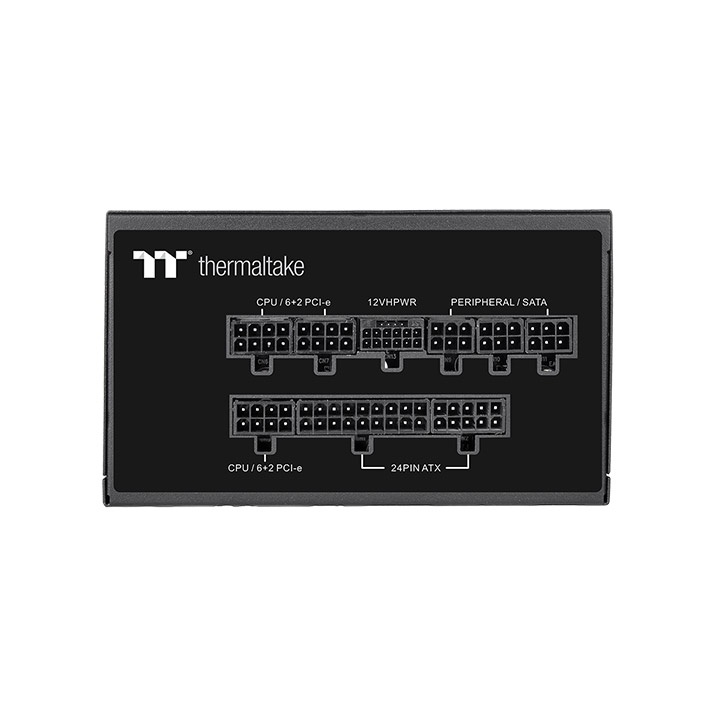

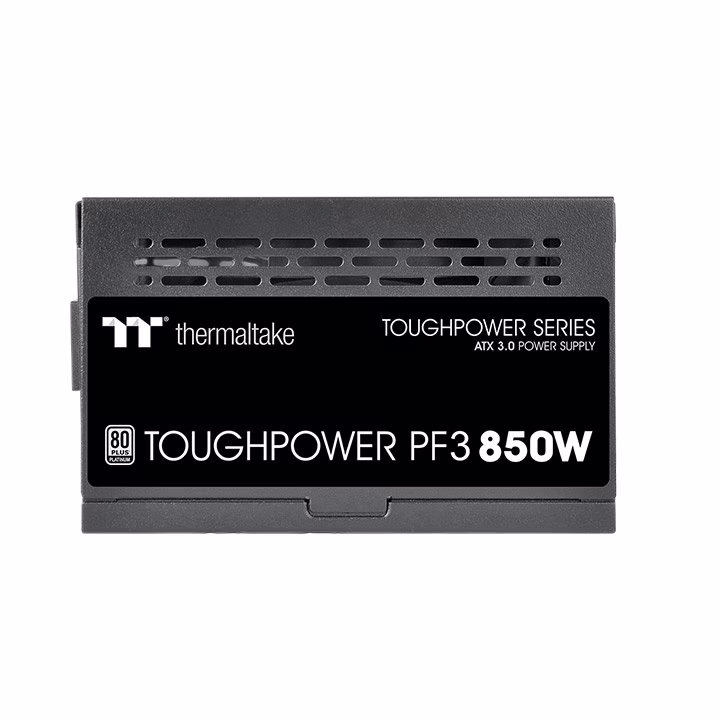

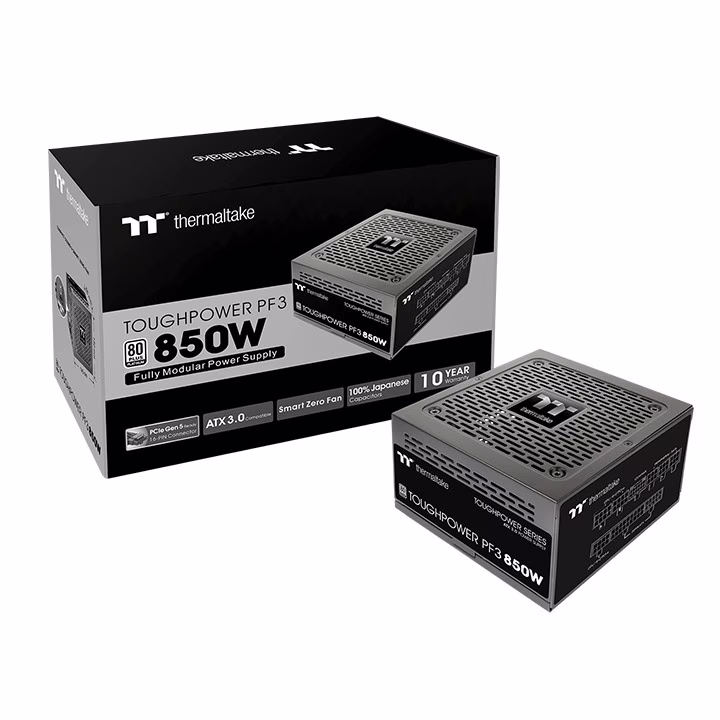

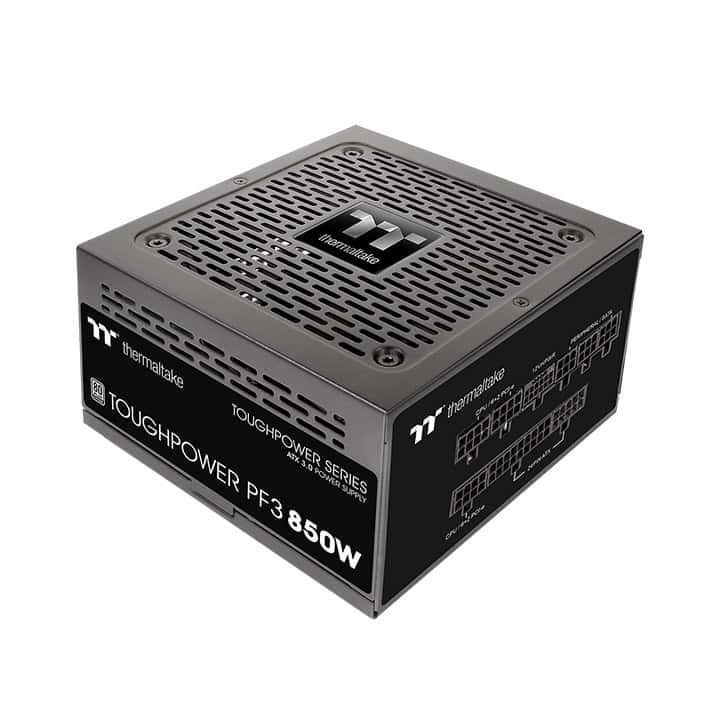

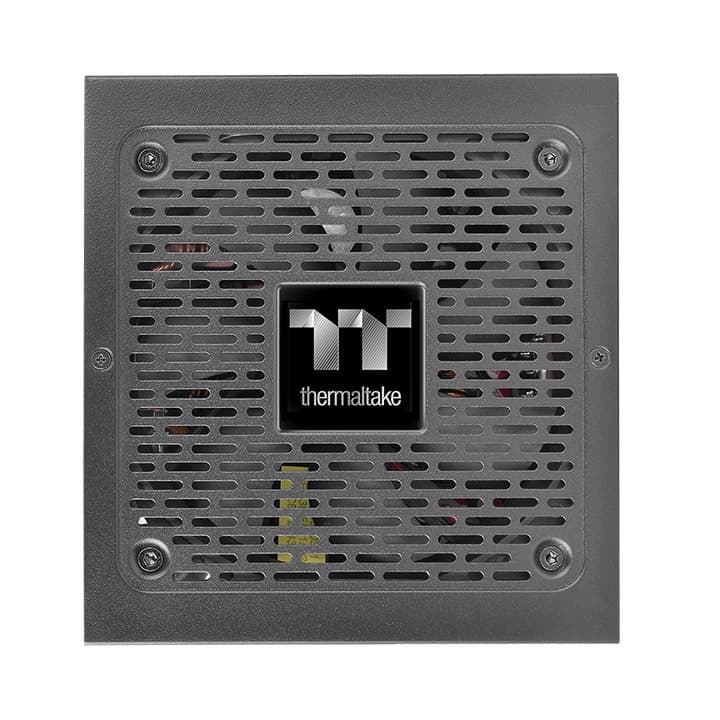

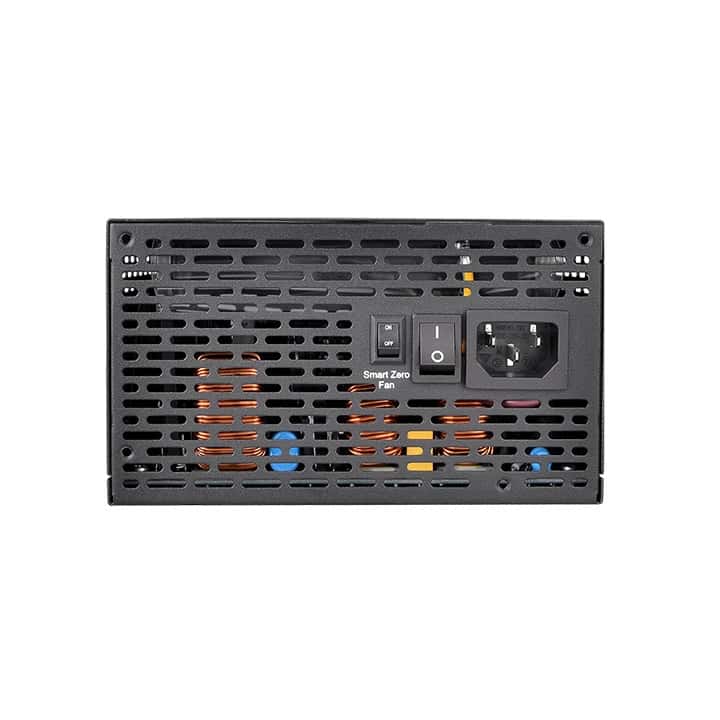

Thermaltake Toughpower PF3 Platinum Full Modular Power Supply, 850W Output Capacity, Compact Design, PCIe Gen 5.0 Ready, Active PFC, Black | PS-TPD-0850FNFAPK-3
Model :
SKU : PS-THERMALTAKE PF3 850W
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
| Watts | 850W |
| Model | TPD-850AH2FKP |
| Max. Output Capacity | 850W |
| Color | Black |
| Dimension (W / H / D) | 140mm(W)x86mm(H)x150mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec |
| Input Current | 15A-8A |
| Input Frequency Range | 50/60Hz |
| Input Voltage | 100-240V??? |
| Operating Temperature | +5??C to +40??C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperature | -40??C to + 55??C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS?? Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | FCC/ICES/CB/cTUVus |
| PCI-E 6+2PIN | 4 |
| PCIE 12+4PIN | 1 |
Specification
| Watts | 850W |
| Model | TPD-850AH2FKP |
| Max. Output Capacity | 850W |
| Color | Black |
| Dimension (W / H / D) | 140mm(W)x86mm(H)x150mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec |
| Input Current | 15A-8A |
| Input Frequency Range | 50/60Hz |
| Input Voltage | 100-240V??? |
| Operating Temperature | +5??C to +40??C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperature | -40??C to + 55??C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS?? Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | FCC/ICES/CB/cTUVus |
| PCI-E 6+2PIN | 4 |
| PCIE 12+4PIN | 1 |
