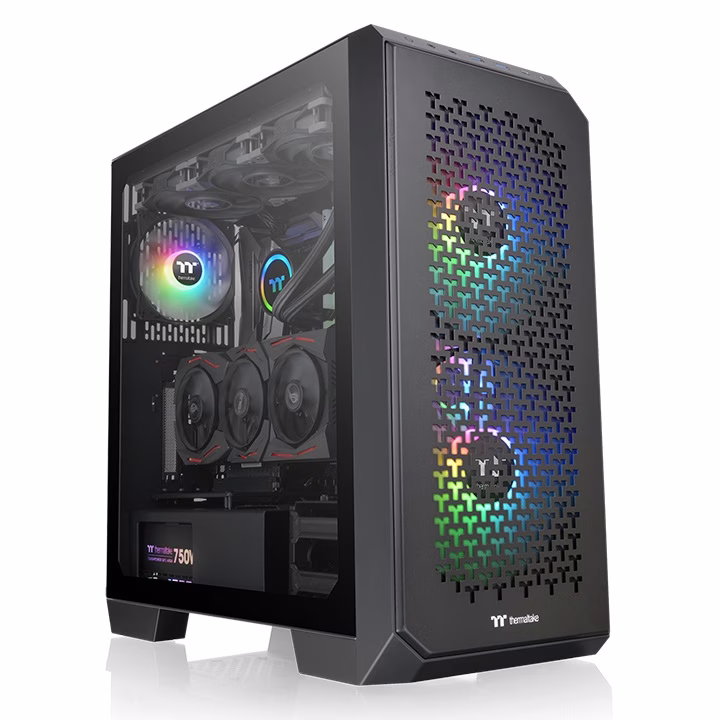

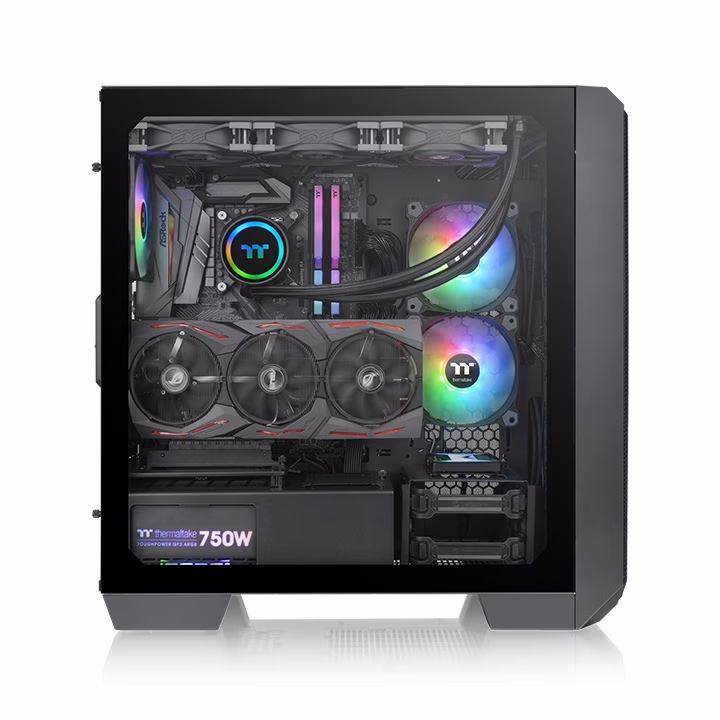

Thermaltake View 300 MX Mid Tower Chassis, Dual front panels 2x Pre-installed 200mm ARGB PWM fans, USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1, 7 Rotatable Expansion Slots | CA-1P6-00M1WN-00
Model :
SKU : ATX-THERMALTAK VIEW 300MX
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Thermaltake View 300 MX Mid Tower Chassis, Dual front panels 2x Pre-installed 200mm ARGB PWM fans, USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1, 7 Rotatable Expansion Slots | CA-1P6-00M1WN-00
| P/N | CA-1P6-00M1WN-00 |
| SERIES | View |
| MODEL | View 300 MX |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 505 x 230 x 506 mm (19.9 x 9.1 x 19.9 inch) |
| NET WEIGHT | 10.4 kg / 22.9 lbs. |
| PANEL | 4mm Tempered Glass x 1 |
| COLOR | Black |
| MATERIAL | SPCC + ABS |
| COOLING SYSTEM | |
| Front(intake) | 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 |
| Rear(exhaust) | 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1 |
| DRIVE BAYS | 2 x 3.5???, 4 x 2.5??? or 6 x 2.5??? |
| EXPANSION SLOTS | 7 (Rotatable Patented Design) |
| MOTHERBOARDS | 6.7??? x 6.7??? (Mini ITX), 9.6??? x 9.6??? (Micro ATX), 12??? x 9.6??? (ATX), 12??? x 13??? (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | |
| Front | 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm |
| Top | 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm |
| Right(M/B Side) | 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) |
| Rear | 1 x 120mm |
| RADIATOR SUPPORT | |
| Front | 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Top | 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Right(M/B Side) | 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) |
| Rear | 1 x 120mm |
| CLEARANCE | |
| CPU cooler height limitation | 175mm |
| VGA length limitation | 280mm(With reservoir) 400mm(Without reservoir) |
| PSU length limitation | 200mm |
Specification
Thermaltake View 300 MX Mid Tower Chassis, Dual front panels 2x Pre-installed 200mm ARGB PWM fans, USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1, 7 Rotatable Expansion Slots | CA-1P6-00M1WN-00
| P/N | CA-1P6-00M1WN-00 |
| SERIES | View |
| MODEL | View 300 MX |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 505 x 230 x 506 mm (19.9 x 9.1 x 19.9 inch) |
| NET WEIGHT | 10.4 kg / 22.9 lbs. |
| PANEL | 4mm Tempered Glass x 1 |
| COLOR | Black |
| MATERIAL | SPCC + ABS |
| COOLING SYSTEM | |
| Front(intake) | 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 |
| Rear(exhaust) | 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1 |
| DRIVE BAYS | 2 x 3.5???, 4 x 2.5??? or 6 x 2.5??? |
| EXPANSION SLOTS | 7 (Rotatable Patented Design) |
| MOTHERBOARDS | 6.7??? x 6.7??? (Mini ITX), 9.6??? x 9.6??? (Micro ATX), 12??? x 9.6??? (ATX), 12??? x 13??? (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | |
| Front | 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm |
| Top | 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm |
| Right(M/B Side) | 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) |
| Rear | 1 x 120mm |
| RADIATOR SUPPORT | |
| Front | 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Top | 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Right(M/B Side) | 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) |
| Rear | 1 x 120mm |
| CLEARANCE | |
| CPU cooler height limitation | 175mm |
| VGA length limitation | 280mm(With reservoir) 400mm(Without reservoir) |
| PSU length limitation | 200mm |
