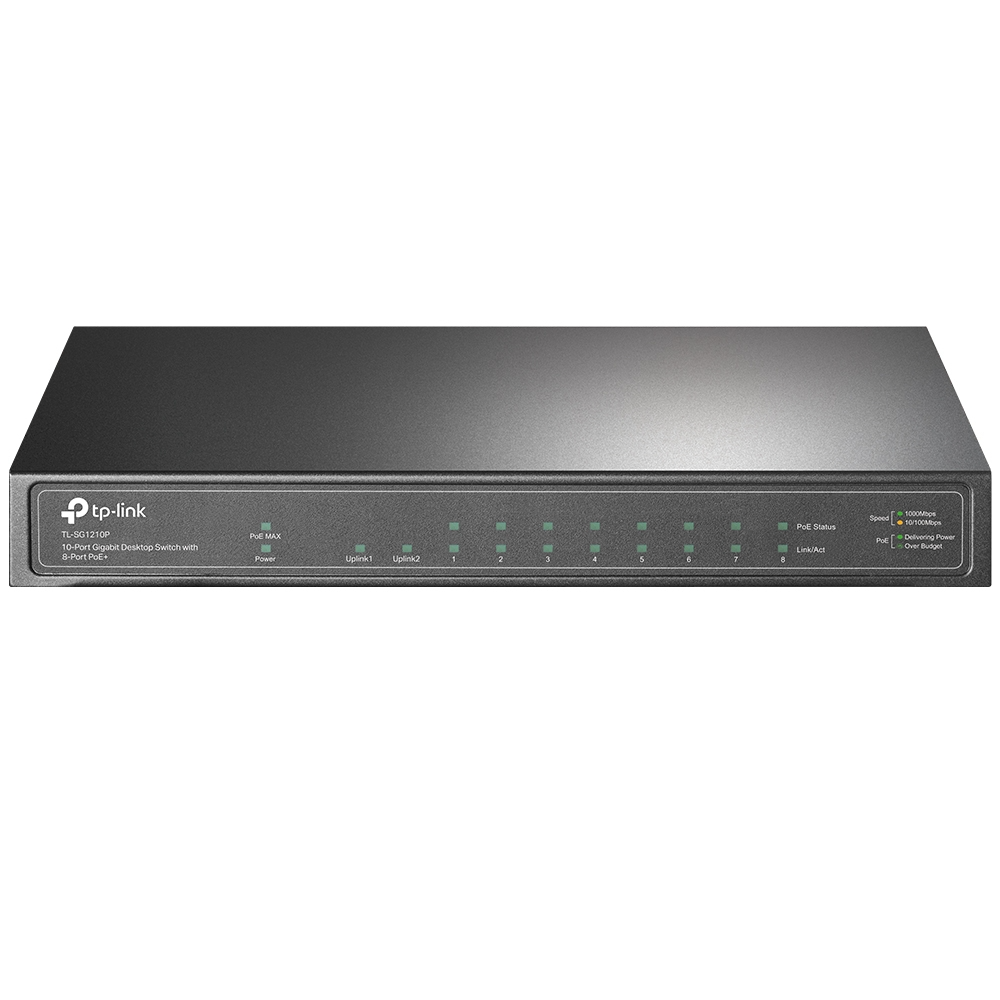

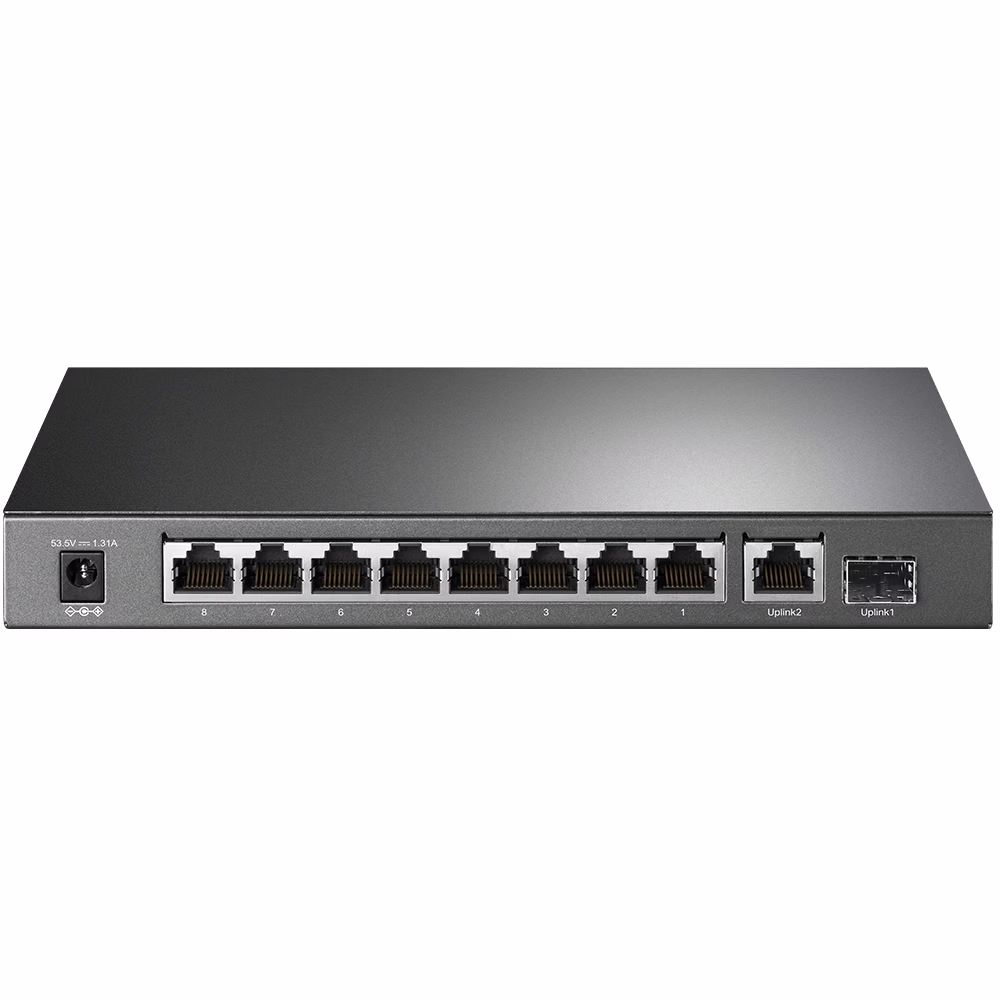

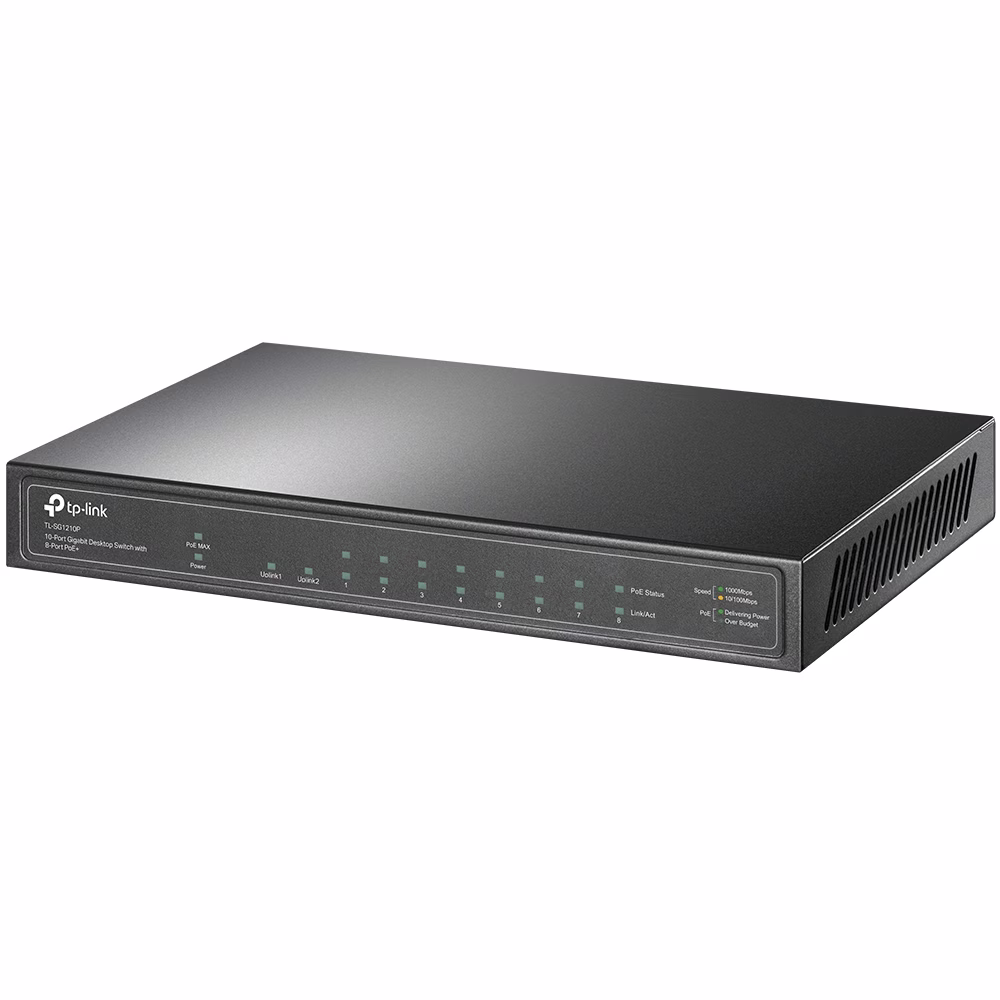

TP-Link 10-Port Gigabit Desktop Switch with 8 Port PoE+ Ethernet Switch | TL-SG1210P
Model :
SKU : NS-TPLINK TL-SG1210P
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
TP-Link TL-SG1210P Switch Specifications
| Hardware Features | |
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port 1 - Port 8 PoE Power Budget: 63W |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions (W x D x H) | 209 ?? 126 ?? 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz, no PD connected) 78.13 W (220/50Hz, with 63W PD connected) |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
| Software Features | |
| Advanced Features | Compatible with IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0??C~40??C (32??F~104??F) Storage Temperature: -40??C~70??C (-40??F~158??F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
Specification
TP-Link TL-SG1210P Switch Specifications
| Hardware Features | |
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port 1 - Port 8 PoE Power Budget: 63W |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions (W x D x H) | 209 ?? 126 ?? 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz, no PD connected) 78.13 W (220/50Hz, with 63W PD connected) |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
| Software Features | |
| Advanced Features | Compatible with IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0??C~40??C (32??F~104??F) Storage Temperature: -40??C~70??C (-40??F~158??F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
