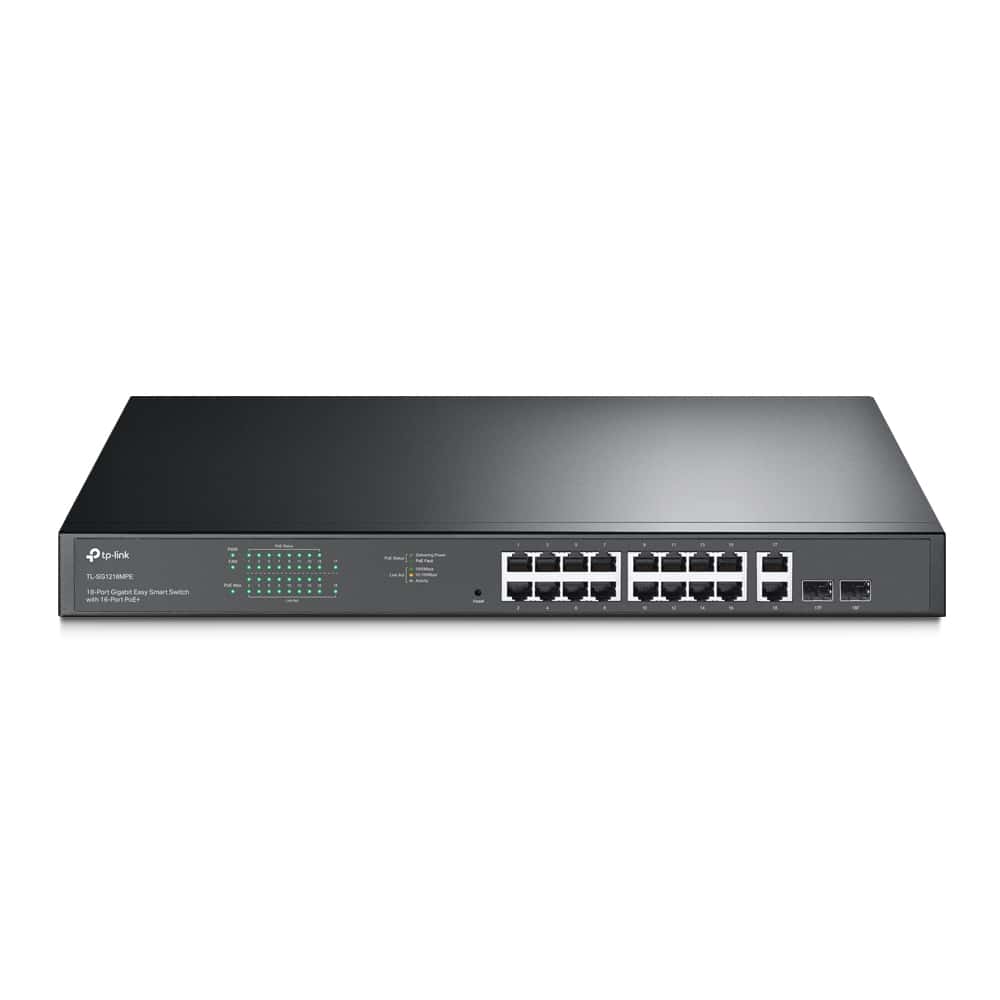

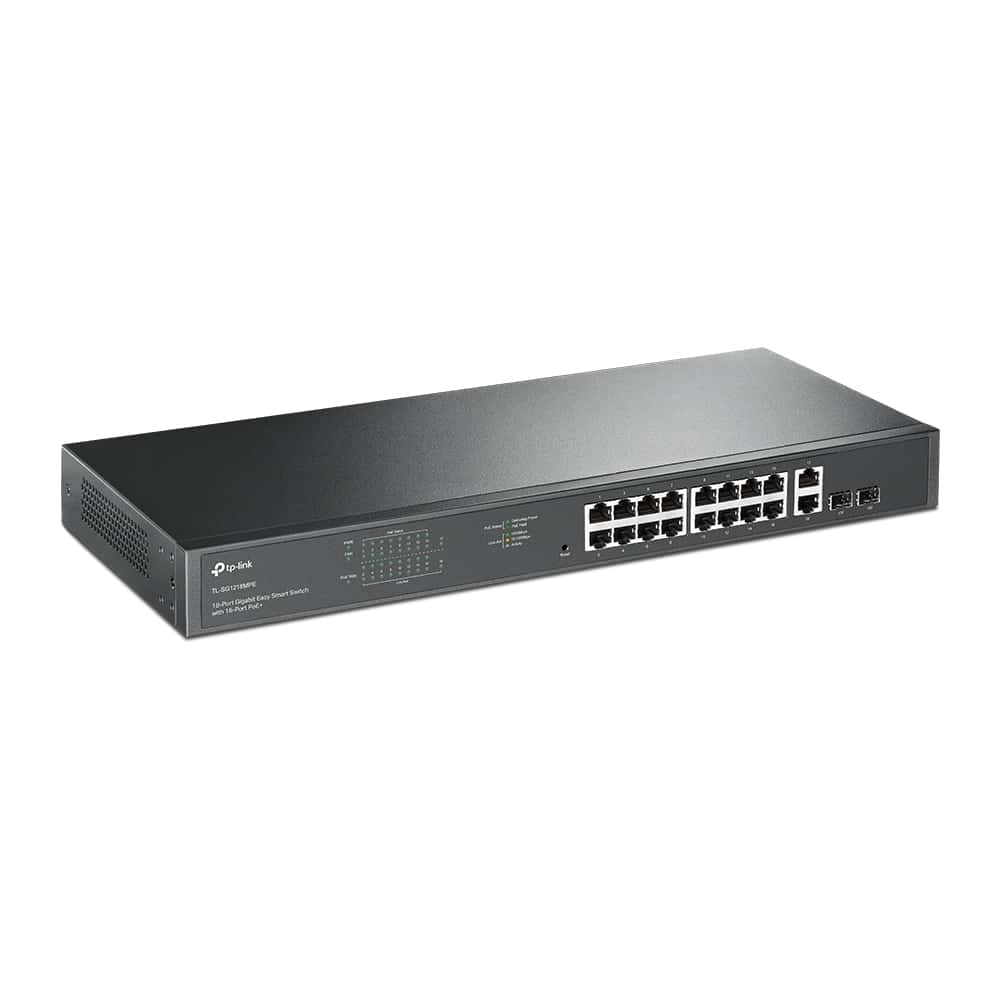

tp-link 18-Port Gigabit Easy Smart Switch with 16-Port PoE+, 18 10/100/1000Mbps RJ45 Ports, 2 Gigabit Combo SFP Slots, 100???240V AC, 50/60 Hz, 2 Fans, Rack Mountable | TL-SG1218MPE V5.0
Model :
SKU : NS-TP-LINK TL-SG1218MPE
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
tp-link 18-Port Gigabit Easy Smart Switch with 16-Port PoE+, 18 10/100/1000Mbps RJ45 Ports, 2 Gigabit Combo SFP Slots, 100???240V AC, 50/60 Hz, 2 Fans, Rack Mountable | TL-SG1218MPE V5.0
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface |
16?? 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2?? 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2?? Combo Gigabit SFP Ports |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100???240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant PoE+ Ports: Ports 1???16 Power Supply: 250 W |
| Dimensions (W x D x H) | 17.3 ?? 7.1 ?? 1.7 in (440 ?? 180 ?? 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 21.4 W (220/50Hz. no PD connected) 296.3 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | 72.97 BTU/h (no PD connected) 1010.38 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Quality of Service |
Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features |
IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
| VLAN |
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
TL-SG1218MPE Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Environment |
Operating Temperature: 0???50 ??C (32???122 ??F) Storage Temperature: -40???70 ??C (-40???158 ??F) Operating Humidity: 10???90% RH non-condensing Storage Humidity: 5???90% RH non-condensing |
Specification
tp-link 18-Port Gigabit Easy Smart Switch with 16-Port PoE+, 18 10/100/1000Mbps RJ45 Ports, 2 Gigabit Combo SFP Slots, 100???240V AC, 50/60 Hz, 2 Fans, Rack Mountable | TL-SG1218MPE V5.0
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface |
16?? 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2?? 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2?? Combo Gigabit SFP Ports |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100???240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant PoE+ Ports: Ports 1???16 Power Supply: 250 W |
| Dimensions (W x D x H) | 17.3 ?? 7.1 ?? 1.7 in (440 ?? 180 ?? 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 21.4 W (220/50Hz. no PD connected) 296.3 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | 72.97 BTU/h (no PD connected) 1010.38 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Quality of Service |
Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features |
IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
| VLAN |
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
TL-SG1218MPE Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Environment |
Operating Temperature: 0???50 ??C (32???122 ??F) Storage Temperature: -40???70 ??C (-40???158 ??F) Operating Humidity: 10???90% RH non-condensing Storage Humidity: 5???90% RH non-condensing |
