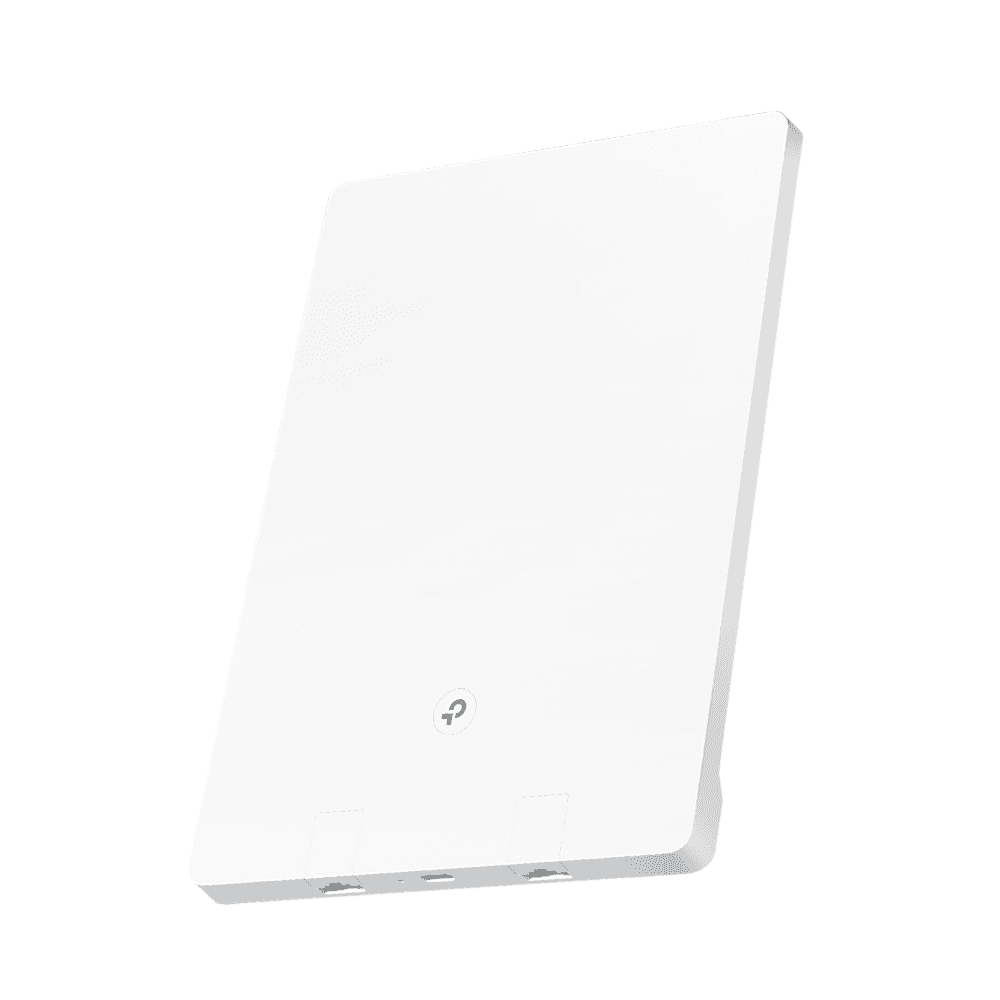

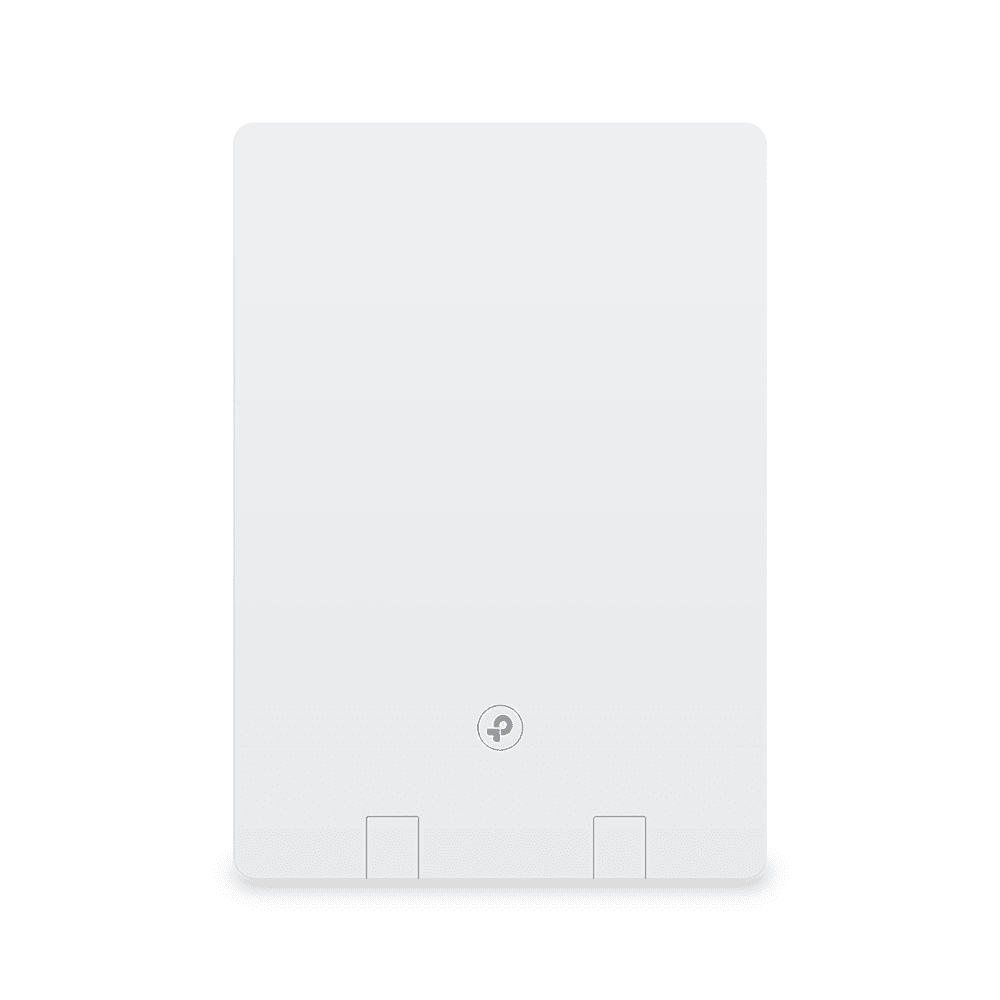

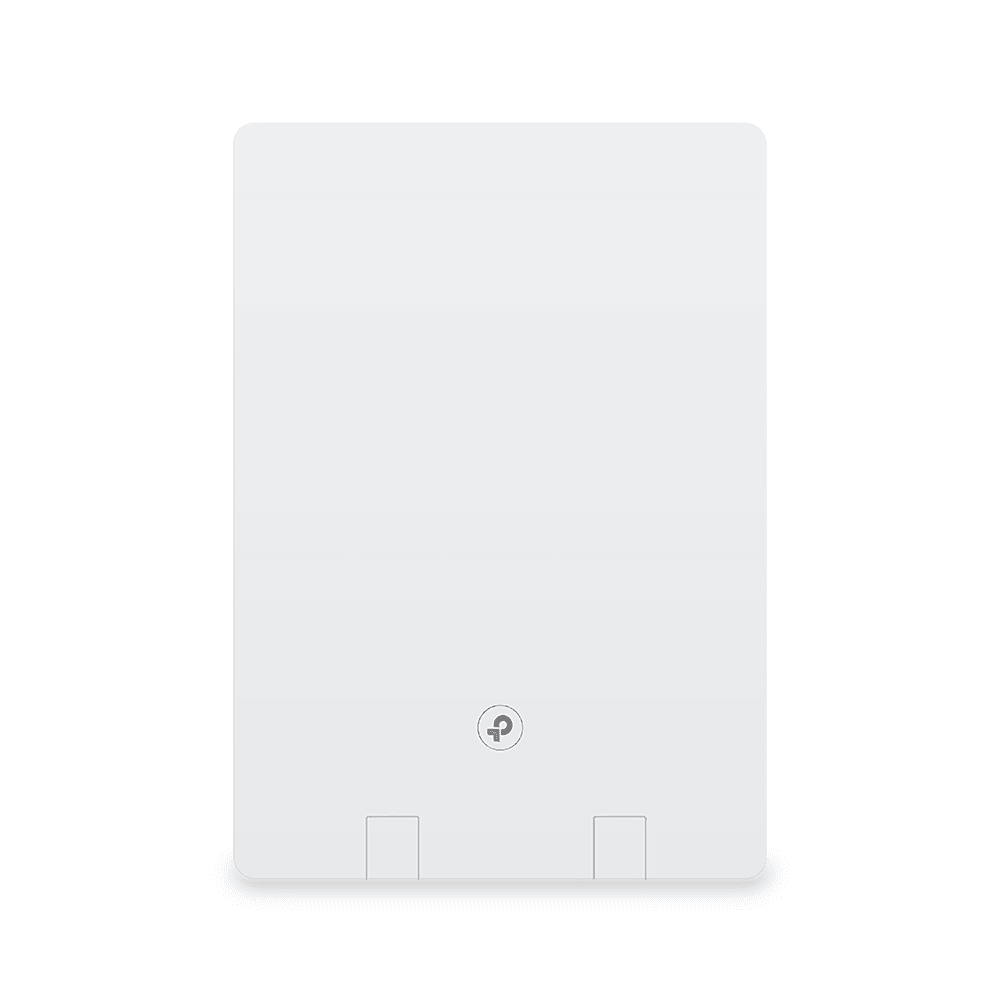

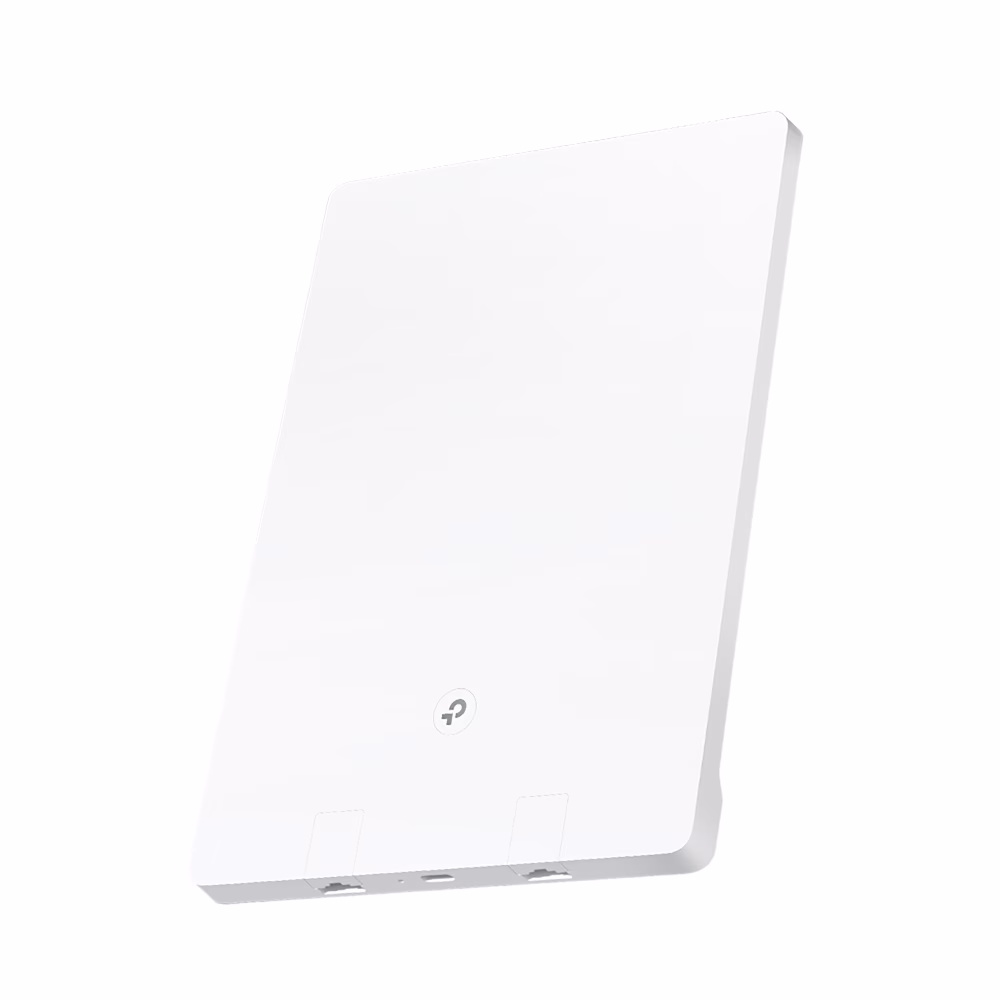

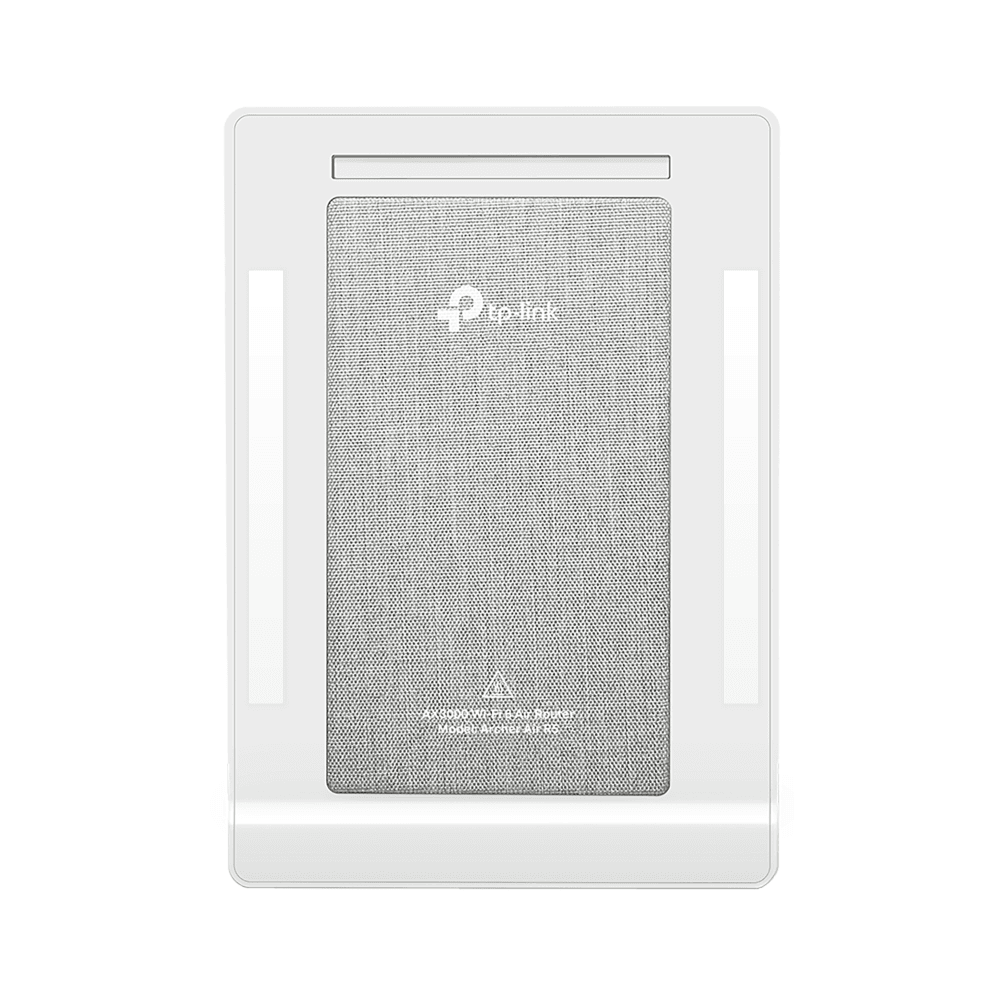

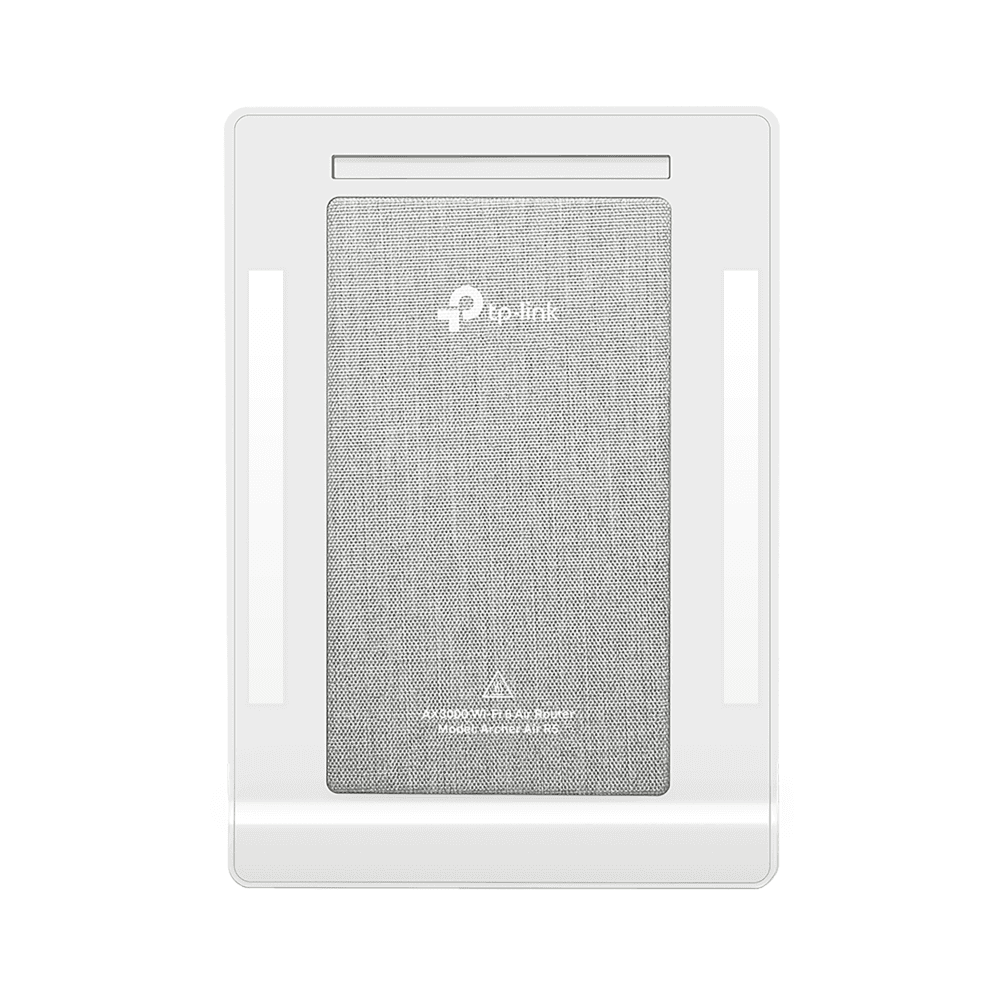

TP-Link Archer Air R5 AX3000 Dual-Band Wi-Fi 6 Air Router
Model :
SKU : WR-TPLINK ARCHER AIR R5
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Wi-Fi 6 Router Specifications
| Feature | Details |
|---|---|
| Wireless Standards |
??? Wi-Fi 6 ??? IEEE 802.11ax/ac/n/a (5 GHz) ??? IEEE 802.11ax/n/b/g (2.4 GHz) |
| Wi-Fi Speeds |
??? AX3000 ??? 5 GHz: 2402 Mbps (802.11ax, HE160) ??? 2.4 GHz: 574 Mbps (802.11ax) |
| Wi-Fi Range |
??? 3 Bedroom Houses ??? 4?? High-Performance Antennas for extended coverage ??? Beamforming for signal concentration ??? High-Power FEM for stronger transmission |
| Wi-Fi Capacity |
??? High Capacity ??? Dual-Band for optimized device allocation ??? OFDMA for multi-device communication ??? Airtime Fairness for efficiency ??? DFS for reduced congestion ??? 4 Streams for more bandwidth |
| Working Modes | Router Mode, Access Point Mode |
| Network Security |
??? SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway ??? HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner |
| Guest Network | 1?? 5 GHz Guest Network, 1?? 2.4 GHz Guest Network |
| VPN Server | OpenVPN Server, PPTP VPN Server |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
| Input Power | 12V/2A |

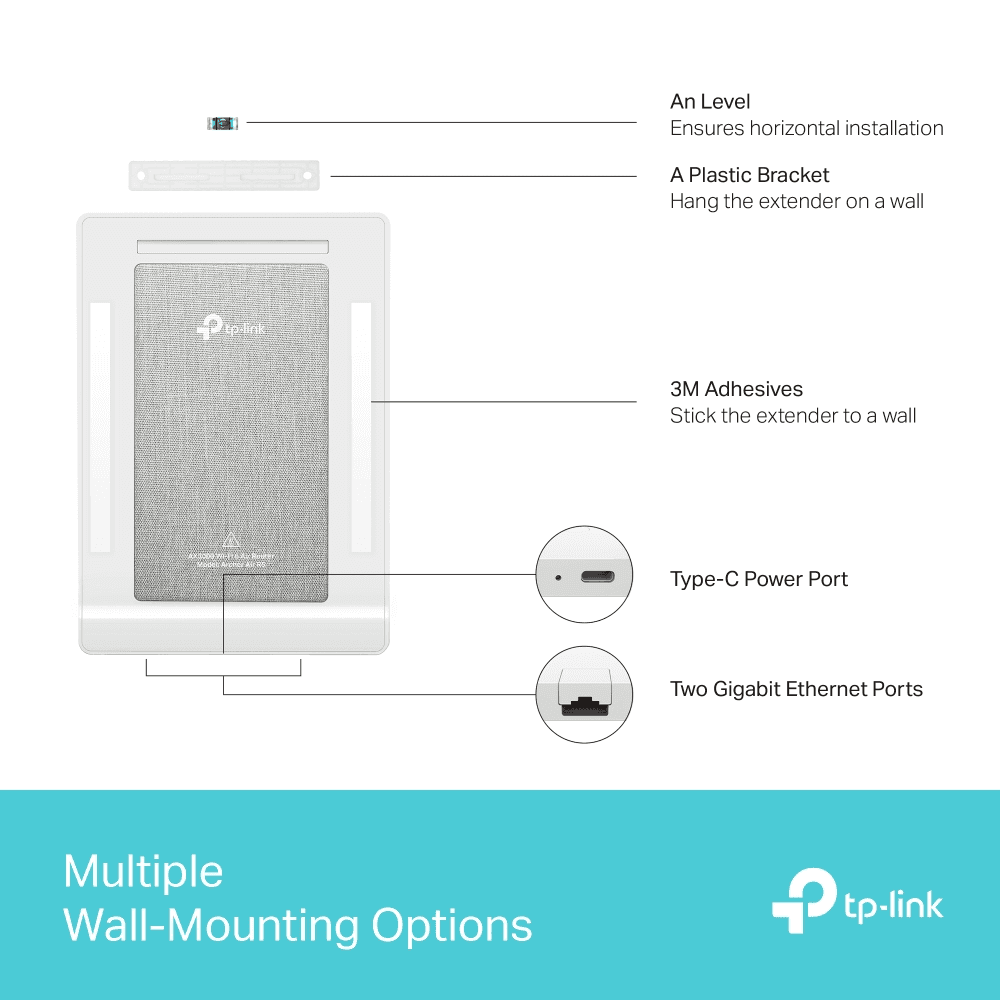

| Ethernet Ports | 1?? Gigabit WAN Port, 1?? Gigabit LAN Port |
| Buttons | WPS Button, Reset Button |
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield |
| EasyMesh | Supports Mesh Networking for seamless roaming and expanded coverage |
| Parental Controls |
??? HomeShield Parental Controls ??? Custom Profiles, Professional Content Filter, Family Time, Bedtime, Off Time, Time Rewards ??? Family Online Time Ranking, Pause the Internet, Weekly/Monthly Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service (QoS) | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV Support | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, DHCP Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
| System Requirements |
??? Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ ??? Cable or DSL Modem (if needed) ??? ISP Subscription for internet access |
| Certifications | FCC, CE, RoHS |
| Operating Environment |
??? Temperature: 0???~40??? (32??? ~104???) ??? Humidity: 10%~90% non-condensing |
| Wi-Fi Transmission Power |
??? CE: - <20dBm (2.4GHz) - <23dBm (5.15GHz~5.35GHz) - <30dBm (5.47GHz~5.725GHz) ??? FCC: - <30dBm (2.4GHz & 5.15GHz~5.825GHz) |
| Wi-Fi Reception Sensitivity |
??? 5GHz: - 11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS8: -75dBm - 11ac VHT40_MCS0: -94dBm, 11ac VHT40_MCS9: -70dBm - 11ac VHT80_MCS0: -91dBm, 11ac VHT80_MCS9: -67dBm - 11ac VHT160_MCS0: -88dBm, 11ac VHT160_MCS9: -63dBm - 11ax HE20_MCS0: -96dBm, 11ax HE20_MCS11: -66dBm - 11ax HE40_MCS0: -93dBm, 11ax HE40_MCS11: -63dBm - 11ax HE80_MCS0: -91dBm, 11ax HE80_MCS11: -61dBm - 11ax HE160_MCS0: -87dBm, 11ax HE160_MCS11: -58dBm ??? 2.4GHz: - 11ax HE20_MCS0: -96dBm, 11ax HE20_MCS11: -66dBm - 11ax HE40_MCS0: -93dBm, 11ax HE40_MCS11: -63dBm |
| Physical Dimensions | 8.3 ?? 5.5 ?? 0.4 in (210 ?? 140 ?? 10.8 mm) |
| Package Contents | Wireless Router, Power Adapter, Quick Installation Guide, Bracket, Network Cable, Installation Accessories |
Specification
