Model :
SKU : WAP-TPLINK EAP650 WALL

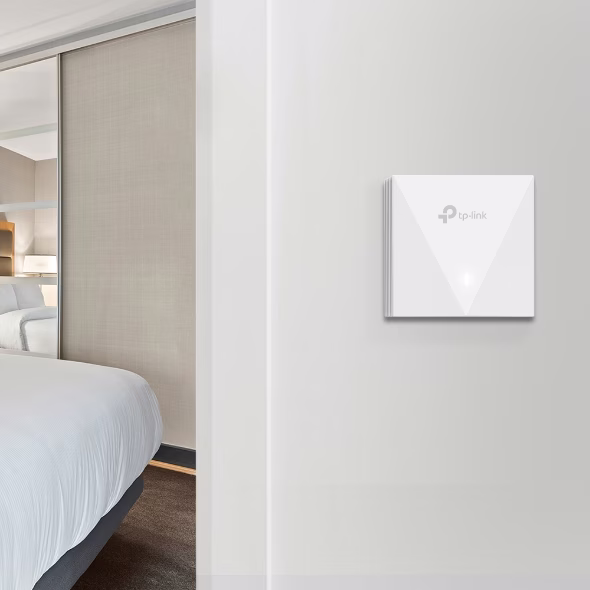

The EAP650-Wall is engineered to eliminate dead zones by bringing the Wi-Fi signal directly into the room. Because it mounts flush to the wall, it offers a clean, professional aesthetic that is perfect for guest-facing environments. By placing one unit in every room, you provide each guest or resident with their own dedicated high-speed Wi-Fi 6 connection, eliminating the common "shared hallway AP" problems like wall penetration issues and signal drop-offs.
Integrated Gigabit Switching

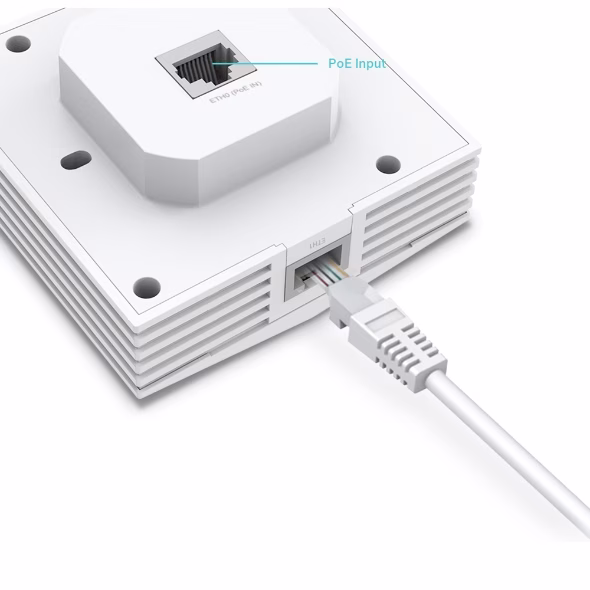

A standout feature of the wall-plate form factor is the inclusion of physical Gigabit LAN ports. This allows the EAP650-Wall to act as a mini-switch, enabling you to hardwire local devices—like PCs, gaming consoles, or smart home bridges—without needing extra long cables running across the floor. This provides the best of both worlds: robust wireless coverage for mobile devices and high-speed wired reliability for mission-critical hardware, all from a single wall-mount point.
Centralized Management via Omada
Integrated into the Omada SDN platform, the EAP650-Wall gives you complete control over your network infrastructure. You can manage every unit in every room through a single dashboard, enabling advanced features like "Seamless Roaming," which ensures that devices move between rooms without disconnecting. Whether you are managing a 50-room hotel or a multi-room smart home, the centralized management platform simplifies configuration, monitoring, and security updates, making it a highly scalable and manageable solution.
| Uplink Interface | 1 10/100/1000 Mbps Ethernet Port |
| Downlink Interface | 1 10/100/1000 Mbps Ethernet Port |
| Physical Security Lock | No |
| Button | LED/Wi-Fi Button, RESET |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 7 W |
| Dimensions (W x D x H) | 3.4 3.4 1.2 in (86.8 86.8 30.2 mm) |
| Antenna | 2 Dual-Band Antennas 2.4 GHz: 2 4 dBi 5 GHz: 2 3.6 dBi |
| Mounting | Wall Plate Mounting |
| Hardware Watch Dog | Yes |
| Coverage | 25(300 ft) |
| Wireless Client Capacity | 200+ |
| Concurrent Clients | 200+ |
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client MU-MIMO Band Steering Beamforming |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | CE: 20 dBm (2.4 GHz, EIRP) 23 dBm (5 GHz, EIRP) |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification | CE, RoHS |
| Package Contents | Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall Installation Guide Mounting Screw |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Operating Environment | Operating Temperature: 040 (32104 ) Storage Temperature: -4070 (-40158 ) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
