Tp-Link Gigabit Sfp To Rj45 Fiber Media Converter, Fiber To Ethernet Converter 10/100/1000Mbps Rj45 Port To 1000Base-Sx Multi-Mode Fiber (MC200CM) Black
Model :
SKU : MC-TP-LINK MC200CM M/M
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
What This Product Does

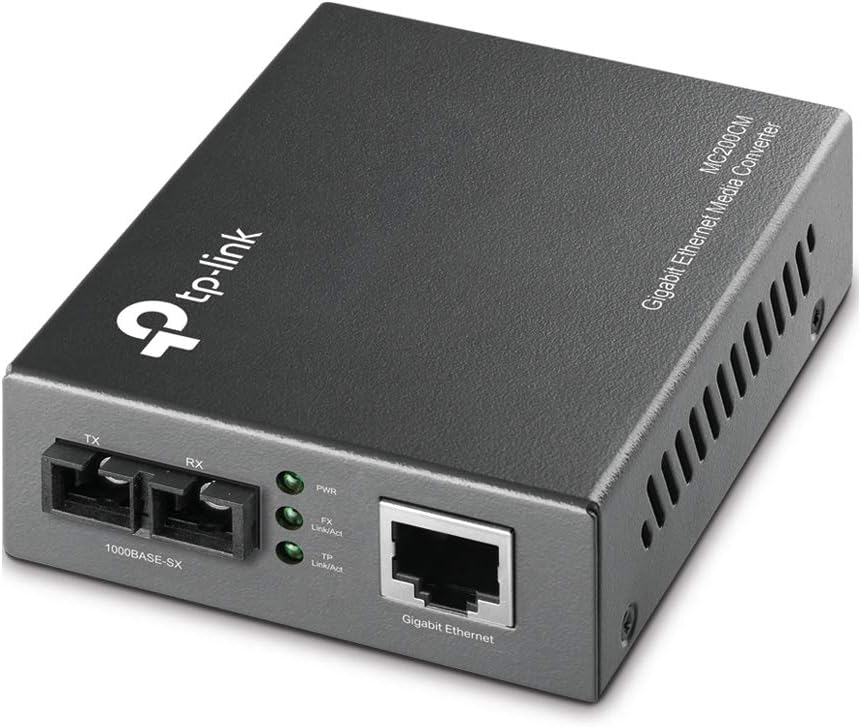

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Specification
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 0.55km using 50/125um fiber Extends fiber distance up to 0.22km using 62.5/125um fiber |

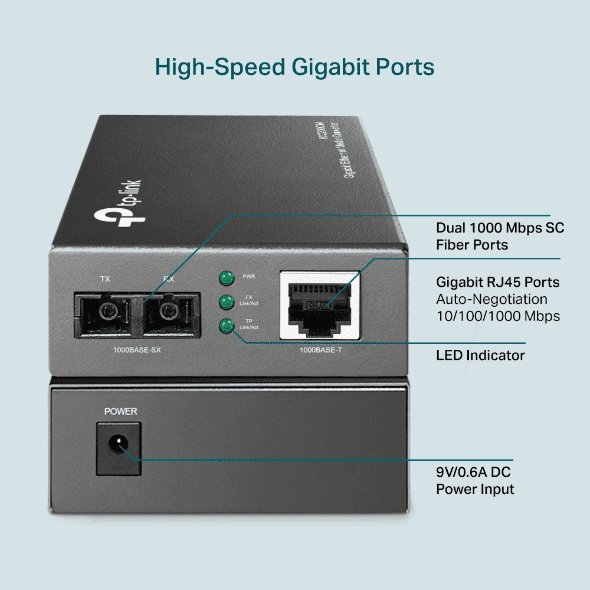

| Interface | 1 × 1000M SC/UPC port 1 × 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wavelength | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |

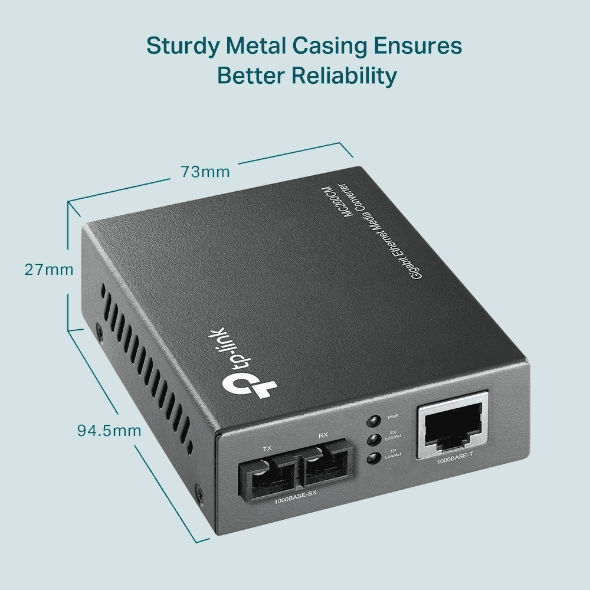

| Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.66W |
| LED Indicators | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Package Content | • Media Converter MC200CM • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
