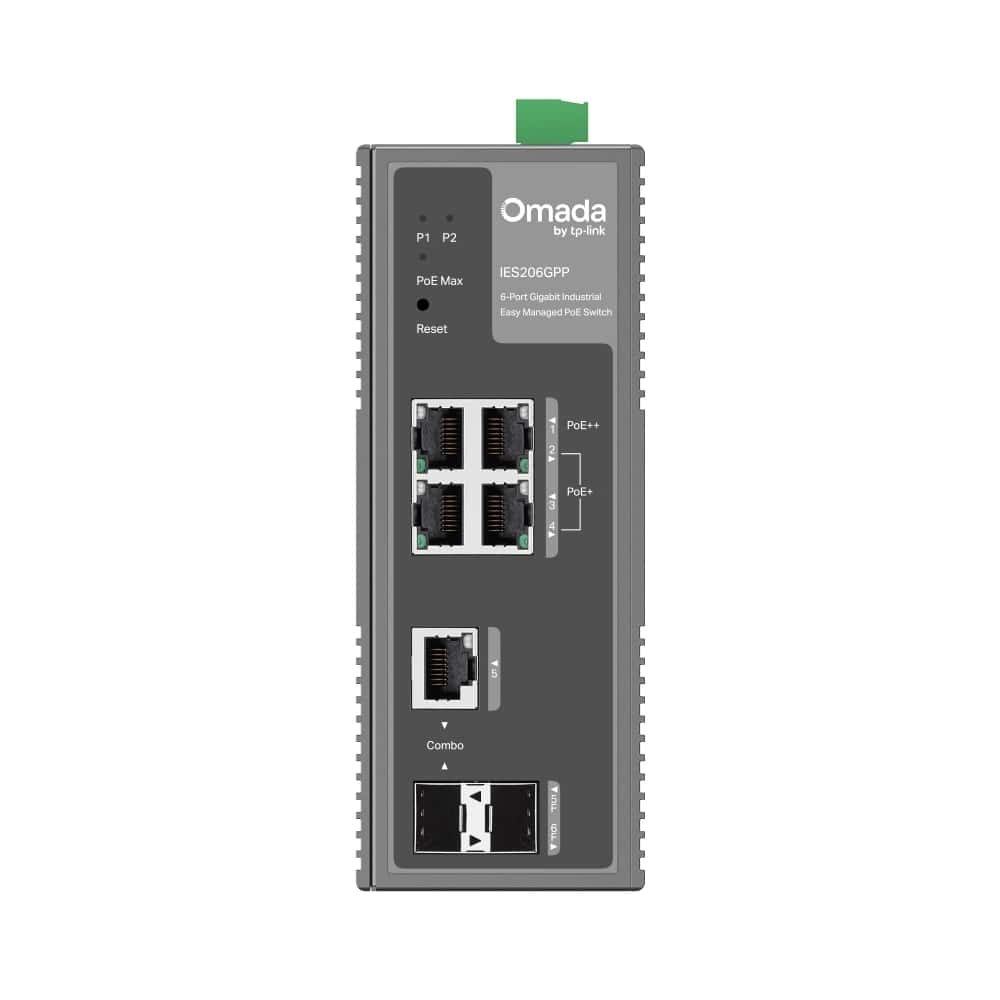

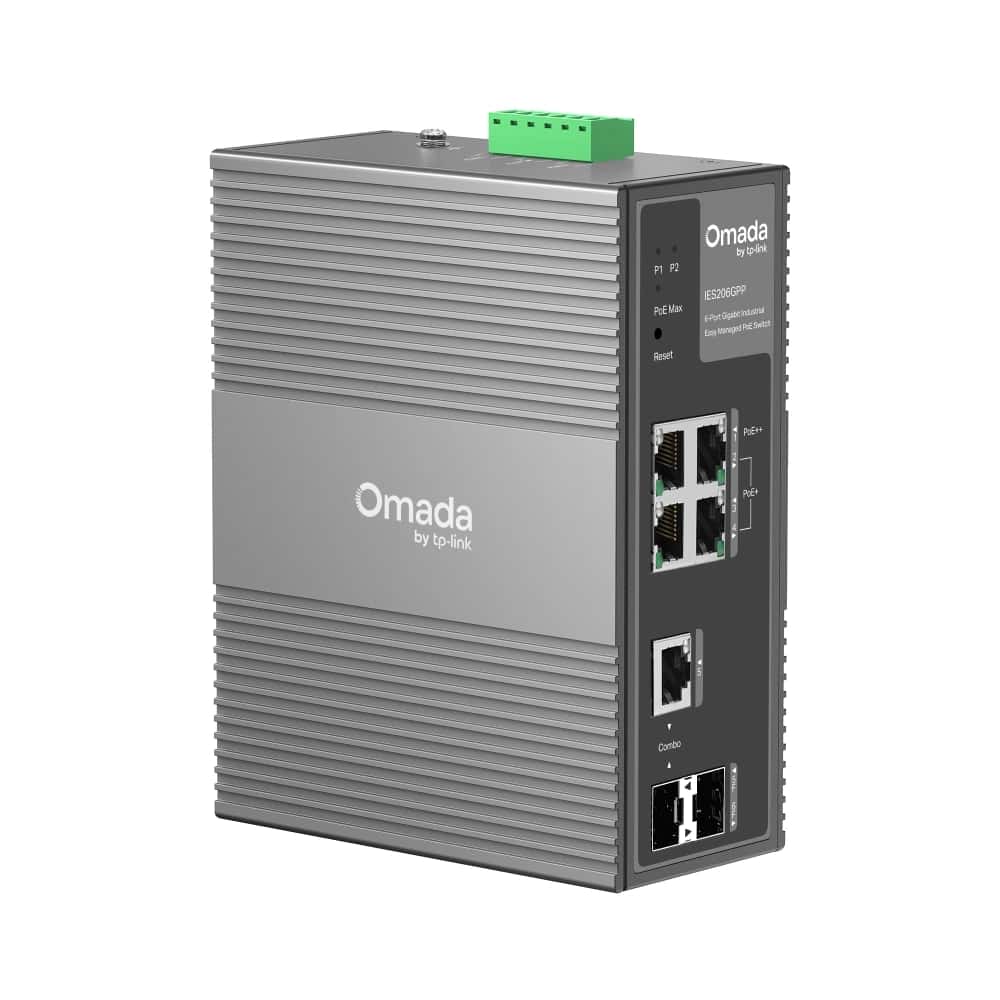

TP-Link Omada IES206GPP 6-Port Gigabit Industrial Easy Managed PoE++ Switch | IES206GPP

Model :

SKU : NS-TPLINK IES206PP

About this item

ES206GPP
Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
120W Power Budget* with up to 60W for PoE++ Port
Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
Centralized Cloud Management via the Web or Omada App†
Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

About this item

Description

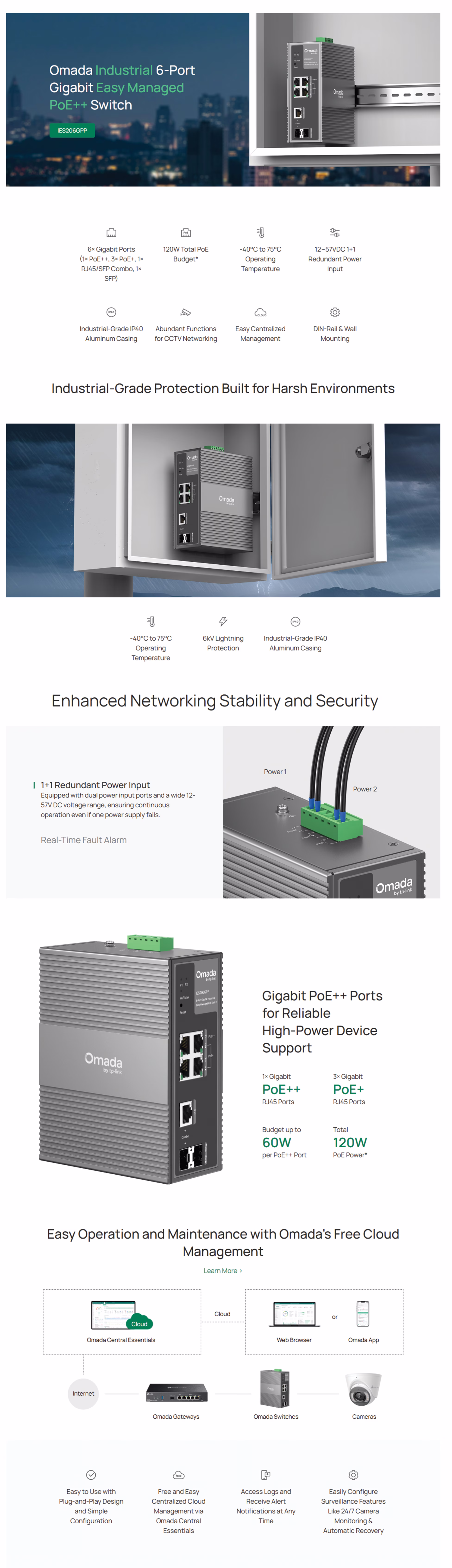

The IES206GPP mounted on a standard DIN-rail, highlighting its compact "ALPHA" industrial design.



The TP-Link Omada IES206GPP (1210002602051) is designed to maintain "ALPHA" network stability where standard hardware fails. As part of the Omada ecosystem, it offers a perfect balance between the simplicity of an unmanaged switch and the advanced capabilities of a fully managed device. Its industrial-grade design makes it ideal for outdoor surveillance cabinets, factory floors, and smart city infrastructure throughout the UAE, providing reliable connectivity and power over a single cable.



Key Features
Versatile 6-Port Configuration: Equipped with 4× Gigabit PoE ports (1× PoE++ at 60W, 3× PoE+ at 30W), 1× Gigabit Combo RJ45/SFP slot, and 1× dedicated Gigabit SFP slot for high-speed fiber backhaul.

Industrial-Grade Durability: Encased in a rugged IP40 aluminum shell, this fanless switch is built to withstand extreme heat and cold. It features 6kV lightning protection and ESD protection (8kV Air/6kV Contact) for maximum "ALPHA" resilience.

Flexible Power Options: Supports a wide 12-57V dual redundant DC power input, ensuring the system remains online even if one power source fails. Note that the external power adapter is sold separately to allow for site-specific requirements.

Omada SDN Integration: Enjoy centralized cloud management via the web or the Omada App. This allows for remote monitoring, batch configuration, and firmware updates, significantly reducing maintenance time for "ALPHA" network administrators.

Advanced L2 Management: Includes essential features such as 802.1Q VLAN for traffic separation, QoS for prioritizing critical data (like video surveillance), IGMP Snooping, and Loopback Detection.

Extended PoE Transmission: Supports Long-Range PoE up to 250 meters (at 10Mbps), making it a robust, high-performance tool for powering remote cameras in large industrial complexes.



Why This Industrial Switch Stands Out
The TP-Link IES206GPP stands out by offering 802.3bt PoE++ (60W) in a compact, DIN-rail mountable form factor. While standard industrial switches often lack management features, the 1210002602051 provides the "ALPHA" visibility and control needed for modern smart systems. It is a robust, high-performance tool that guarantees your critical network infrastructure remains operational in the most demanding conditions.

Specification

Feature

Industrial Gigabit Managed PoE++ Switch

Interfaces

1× 60W PoE++, 3× 30W PoE+, 1× SFP/RJ45 Combo, 1× SFP Slot

PoE Standards

802.3af/at/bt compliant

PoE Budget

Up to 120W (with 21V–57V Input) / 60W (with 12V–21V Input)

Switching Capacity

12 Gbps

Management

Omada Centralized Management (Cloud/Hardware/Software)

L2 Features

Static Link Aggregation, Loopback Detection, Port Mirroring

VLAN Support

MTU, Port-Based, and 802.1Q Tag VLAN (4K VID)

Durability

±6 kV Surge Protection (Ethernet), Fanless Industrial Design

Installation

DIN-Rail or Wall Mounting

Dimensions

155 × 120 × 60 mm (6.1 × 4.7 × 2.4 in)

Operating Temp

-40℃ to 75℃ (-40℉ to 167℉)
