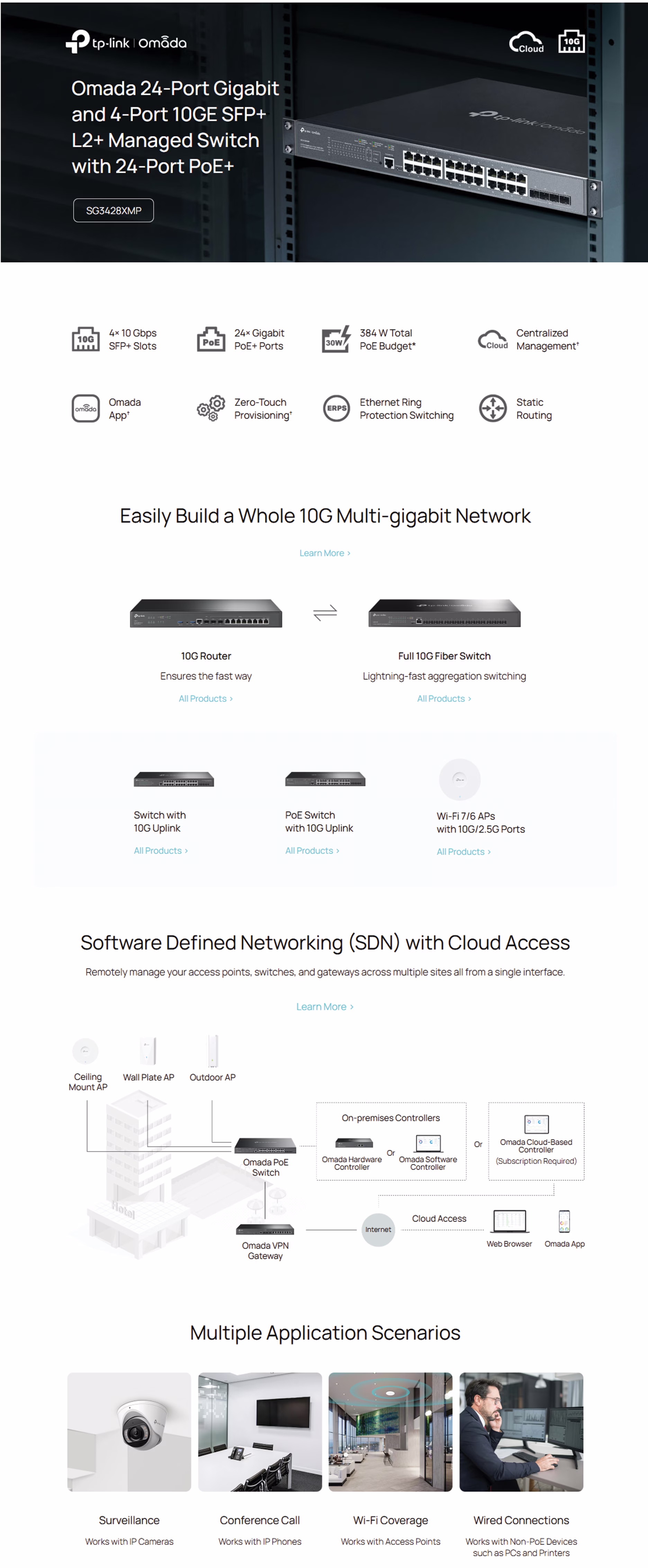

Model & Form Factor | TP-Link Omada SG3428XMP (TL-SG3428XMP) | 1U Rackmount |
Ports & Interfaces | 24x 10/100/1000 Mbps RJ45 PoE+ Ports 4x 10G SFP+ Slots 1x RJ45 Console Port | 1x Micro-USB Console Port |
PoE Specifications | Standard: 802.3af/at PoE+ (24 PoE Ports, up to 30W/port) | Total PoE Budget: 384 W |
Network Performance | Switching Capacity: 128 Gbps | Packet Forwarding Rate: 95.23 Mpps | MAC Address Table: 16K | Packet Buffer: 12 Mbit | Jumbo Frame: 9 KB |
Layer 2 & L2+ Features | Static Routing (48 IPv4/IPv6 Routes) | 128 IP Interfaces | Static/Proxy/Gratuitous ARP (512 Entries) | DHCP Server & Relay (Interface, VLAN, L2) | Link Aggregation | STP/RSTP/MSTP | Loopback Detection | Flow Control | Port Mirroring |
Multicast & ISP Features | 1000 IGMP Groups | IGMP Snooping/Authentication | MLD Snooping | Multicast VLAN Registration (MVR) | ISP Features: ERPS, QinQ (VLAN VPN), L2PT, DLDP, PPPoE ID Insertion, 802.3ah OAM, DDM, sFlow |
VLAN & QoS | Up to 4K VLAN Groups (802.1Q Tagged, MAC, Protocol, Private, Voice, GVRP) | 8 Priority Queues (SP, WRR, SP+WRR) | 802.1p CoS/DSCP Priority | Flow-based Rate Limiting & Storm Control |
Security & ACL | IP-MAC-Port Binding (512 entries) | DHCP Snooping | Dynamic ARP Inspection | IPv4/IPv6 Source Guard | DoS Defend | 802.1X, RADIUS, TACACS+ | Port Security & Isolation | Time-based, L2–L4, and IPv6 ACLs |
IPv6 Support | Dual IPv4/IPv6 Stack | MLD Snooping | IPv6 Static Routing | IPv6 Neighbor Discovery (ND) | Path MTU Discovery | IPv6 Applications (DHCPv6 Client, Ping6, Telnet, SSH, SSL, SNMP) |
Centralized & Standalone Management | Omada SDN Integration (Cloud, Hardware, or Software Controller) | Omada App Support | Zero-Touch Provisioning (ZTP) | Web GUI, CLI (Console, Telnet, SSHv1/v2), SNMPv1/v2c/v3, RMON, 802.1ab LLDP/LLDP-MED, Dual Image/Configuration, Cable Diagnostics |
Power & Electrical | Internal Power Supply: 100–240 V AC, 50/60 Hz | Max Consumption: 486.2 W (with 384 W PD connected) | Max Heat Dissipation: 1658.78 BTU/hr |
Physical Dimensions & Cooling | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) | 2 Active Fans | Rack Mountable | Physical Security Lock Slot |
Environment & Certifications | Operating Temp: 0°C to 45°C (32°F to 113°F) | Operating Humidity: 10% to 90% non-condensing | CE, FCC, RoHS |
Box Contents | SG3428XMP Switch, Power Cord, Rackmount Kit, Rubber Feet, Quick Installation Guide |
