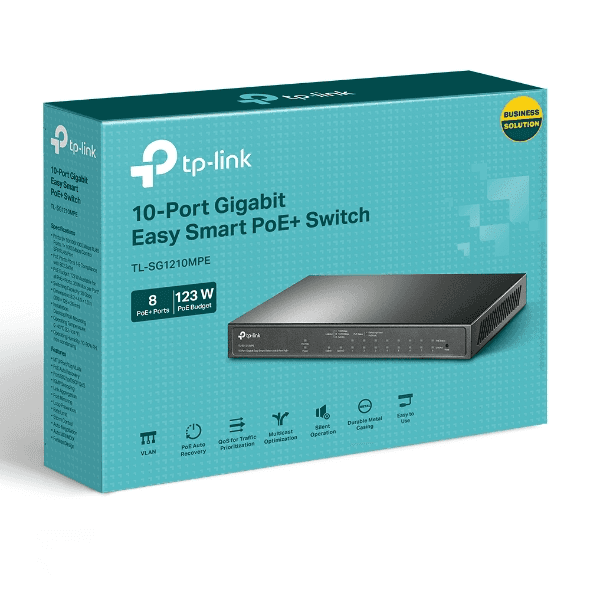

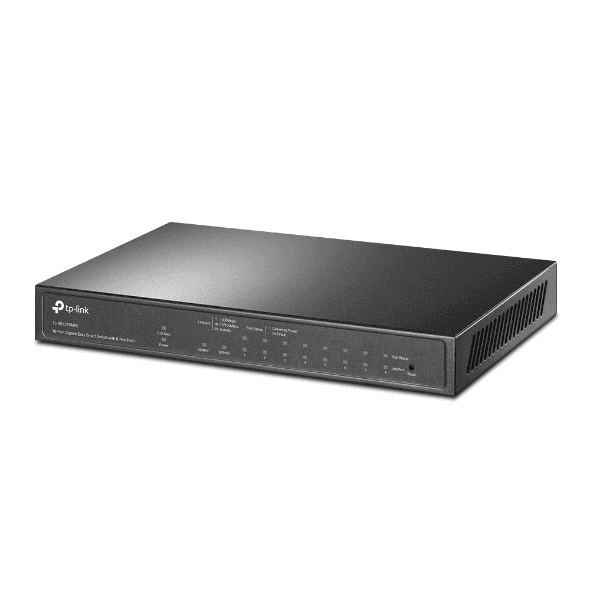

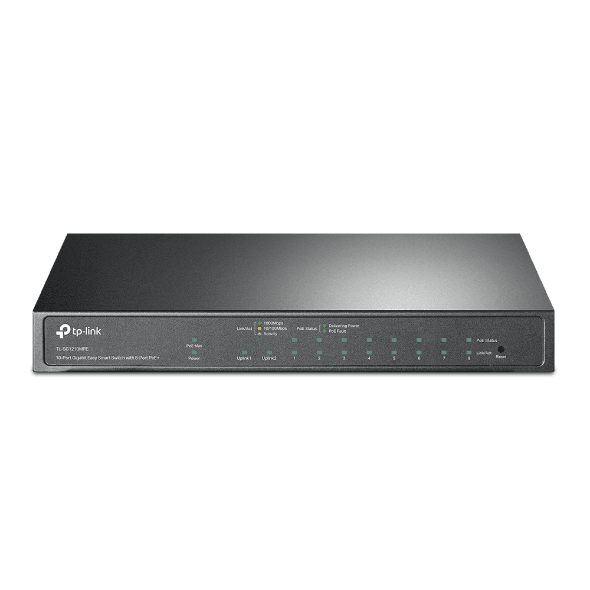

tp-link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Model :
SKU : NS-TPLINK TL-SG1210MPE
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
.png&w=3840&q=75)
.png&w=3840&q=75)
.png&w=3840&q=75)
.png&w=3840&q=75)
.png&w=3840&q=75)
.png&w=3840&q=75)
.png&w=3840&q=75)
.png&w=3840&q=75)
Professional 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
TL-SG1210MPE
-
123 W PoE Budget*
-
VLAN
-

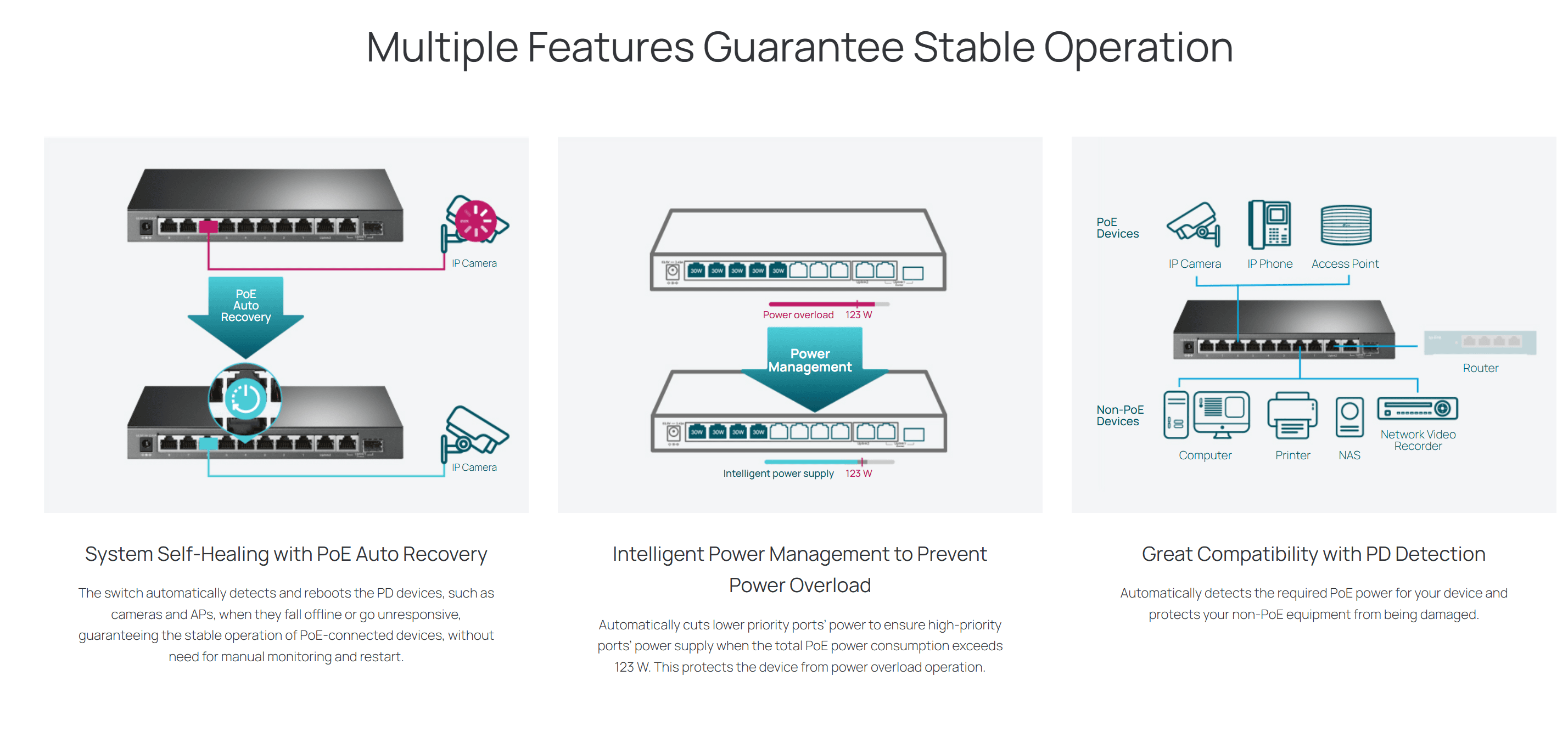

PoE Auto Recovery
-
QoS for Traffic Prioritization
-
Multicast Optimization
-
Silent Operation
-

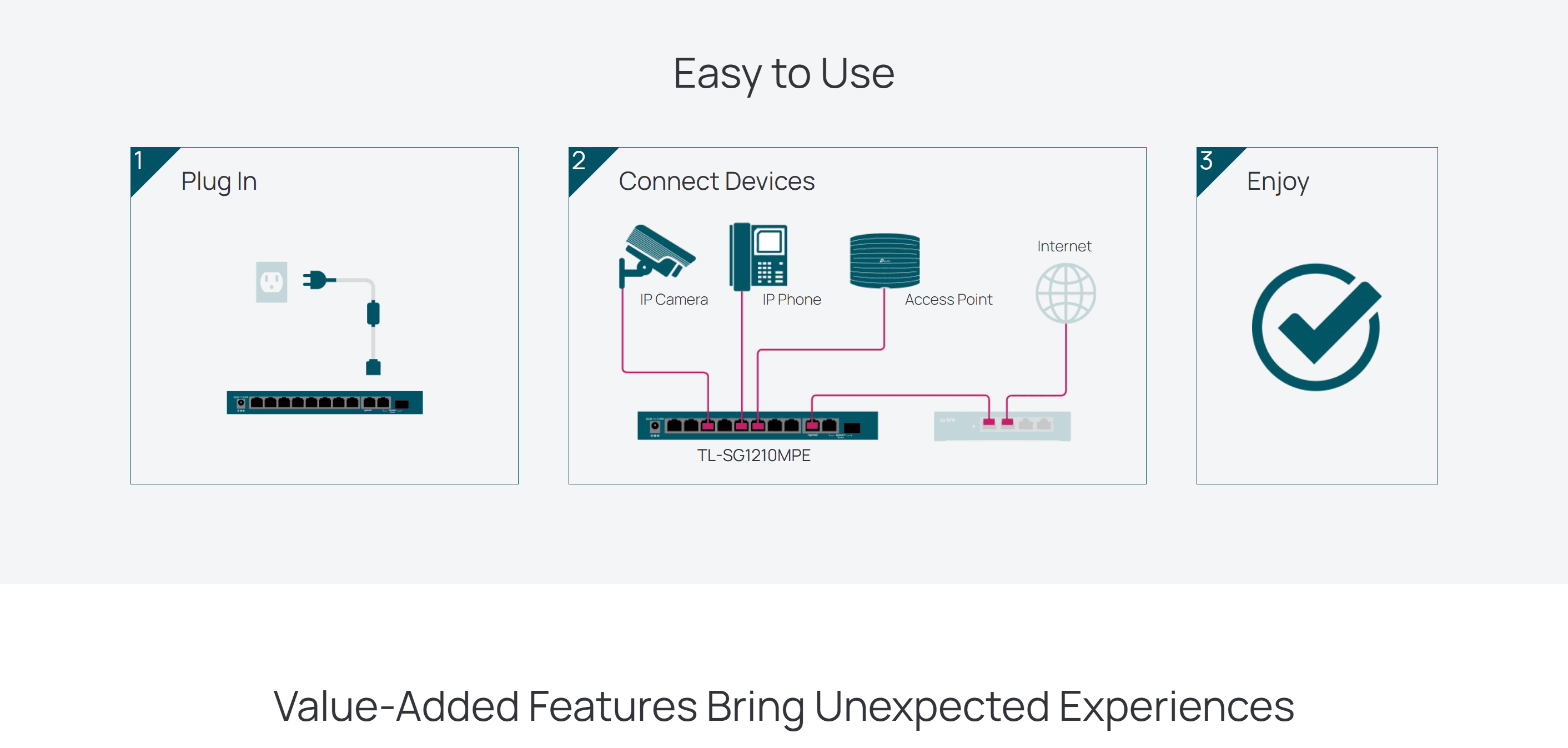

Easy to Use
Multiple Application Scenarios
The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Omada EAPs
Wired Connections
Works with PCs and Printers

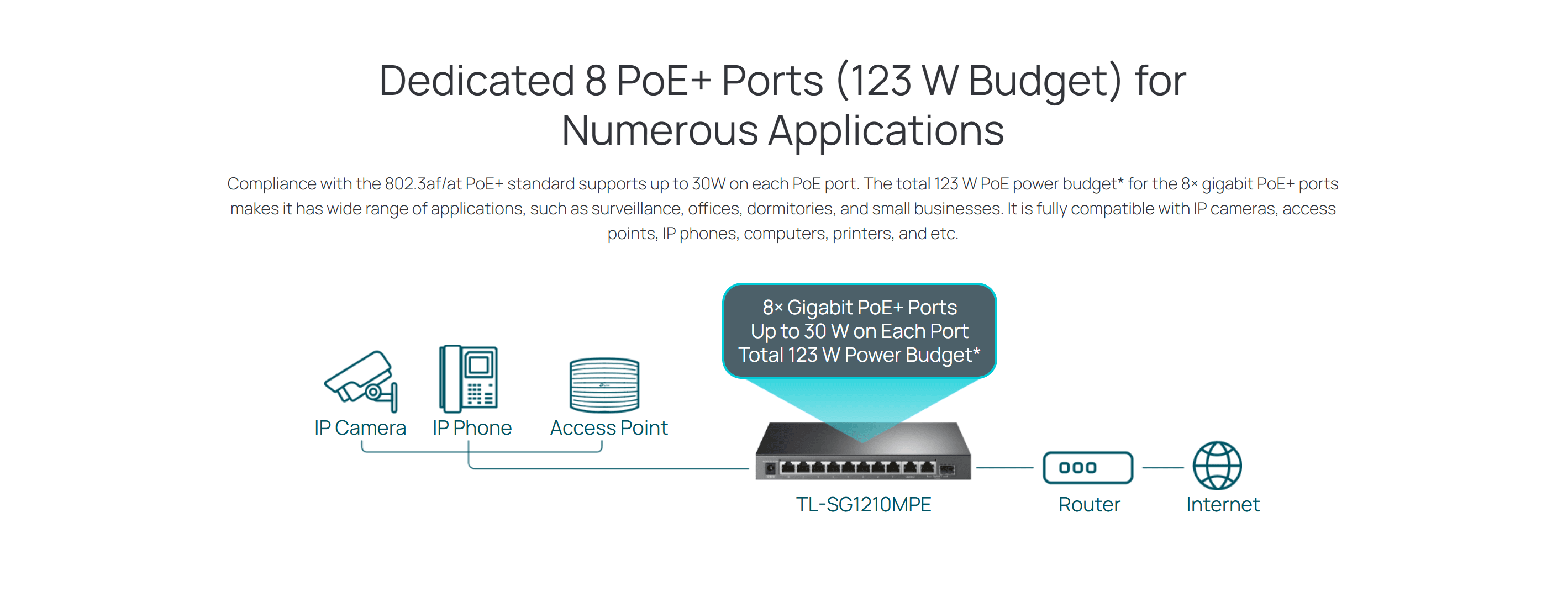

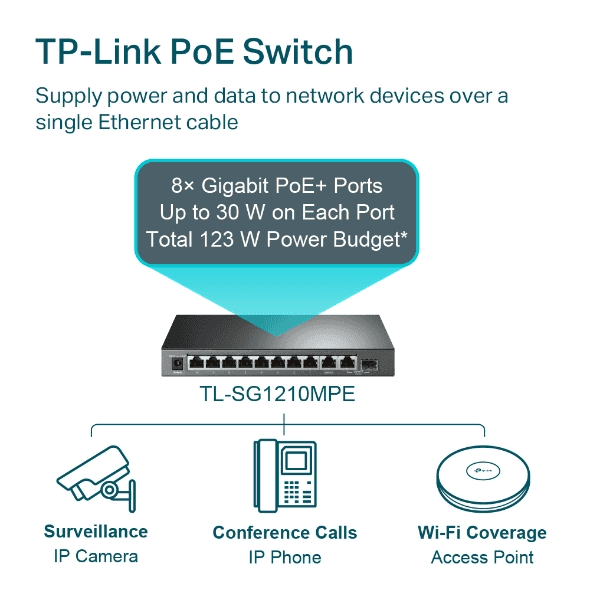

Dedicated 8 PoE+ Ports (123 W Budget) for
Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget* for the 8× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Specification
Hardware Features
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z |

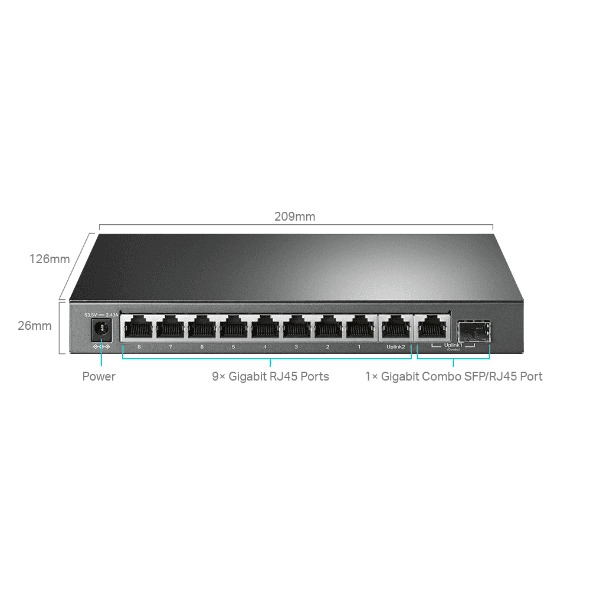

| Interface | 9 × 10/100/1000 Mbps RJ45 Ports 1 × 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation / AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP Cat 3, 4, 5 (max 100m), EIA/TIA-568 100Ω STP (max 100m) 100BASE-TX: UTP Cat 5, 5e (max 100m), EIA/TIA-568 100Ω STP (max 100m) 1000BASE-T: UTP Cat 5, 5e, 6+ (max 100m), EIA/TIA-568 100Ω STP (max 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| PoE Ports (RJ45) | Standard: 802.3af/at compliant Ports: 1–8 PoE Power Budget: 123 W |
| Dimensions (W × D × H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max. Power Consumption | 7.66 W (220V/50Hz, no PD connected) 141.54 W (220V/50Hz, 123W PD connected) |
| Max. Heat Dissipation | 26.12 BTU/h (220V/50Hz, no PD connected) 482.65 BTU/h (220V/50Hz, 123W PD connected) |
Performance
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
Software Features
| Quality of Service | Port-Based / 802.1p / DSCP priority, 4 priority queues, Rate Limit, Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
| VLAN | Supports up to 32 VLANs (out of 4K VLAN IDs), MTU / Port / Tag VLAN |
| PoE | Extend Mode, PoE Auto Recovery |

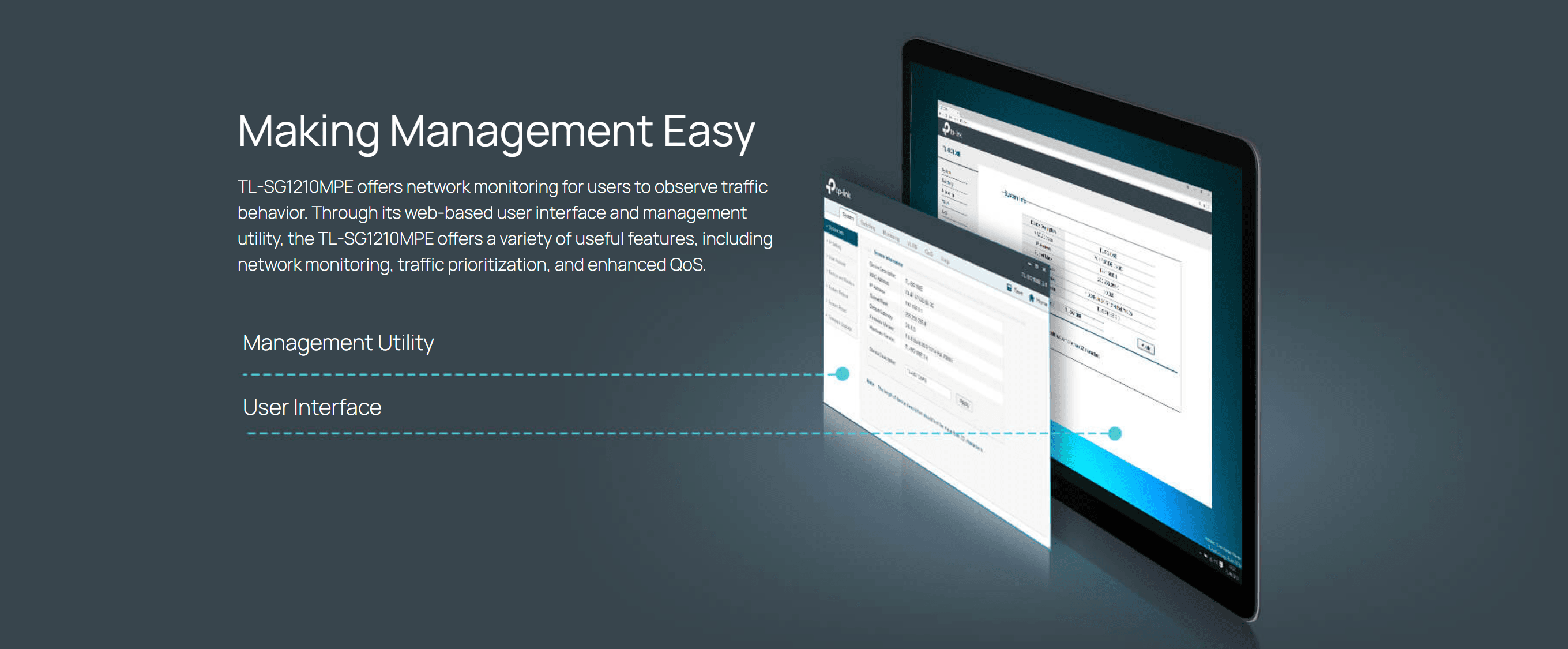

| Management Features | Web-based GUI, Easy Smart Configuration Utility |
| Transmission Method | Store-and-Forward |
Others
| Certification | FCC, CE, RoHS |
| Package Content | TL-SG1210MPE, Power Adapter, Installation Guide, Rubber Feet |
| System Requirements | Microsoft® Windows® (for running Utility) |
| Environment | Operating Temp: 0℃~40℃ (32℉~104℉) Storage Temp: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing |
TL-SG1210MPE Specifications
Hardware Features
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z |
| Interface | 9 × 10/100/1000 Mbps RJ45 Ports 1 × 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation / AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP Cat 3, 4, 5 (max 100m), EIA/TIA-568 100Ω STP (max 100m) 100BASE-TX: UTP Cat 5, 5e (max 100m), EIA/TIA-568 100Ω STP (max 100m) 1000BASE-T: UTP Cat 5, 5e, 6+ (max 100m), EIA/TIA-568 100Ω STP (max 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| PoE Ports (RJ45) | Standard: 802.3af/at compliant Ports: 1–8 PoE Power Budget: 123 W |
| Dimensions (W × D × H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max. Power Consumption | 7.66 W (220V/50Hz, no PD connected) 141.54 W (220V/50Hz, 123W PD connected) |
| Max. Heat Dissipation | 26.12 BTU/h (220V/50Hz, no PD connected) 482.65 BTU/h (220V/50Hz, 123W PD connected) |
Performance
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
Software Features
| Quality of Service | Port-Based / 802.1p / DSCP priority, 4 priority queues, Rate Limit, Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
| VLAN | Supports up to 32 VLANs (out of 4K VLAN IDs), MTU / Port / Tag VLAN |
| PoE | Extend Mode, PoE Auto Recovery |
| Management Features | Web-based GUI, Easy Smart Configuration Utility |
| Transmission Method | Store-and-Forward |
Others
| Certification | FCC, CE, RoHS |
| Package Content | TL-SG1210MPE, Power Adapter, Installation Guide, Rubber Feet |
| System Requirements | Microsoft® Windows® (for running Utility) |
| Environment | Operating Temp: 0℃~40℃ (32℉~104℉) Storage Temp: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing |
