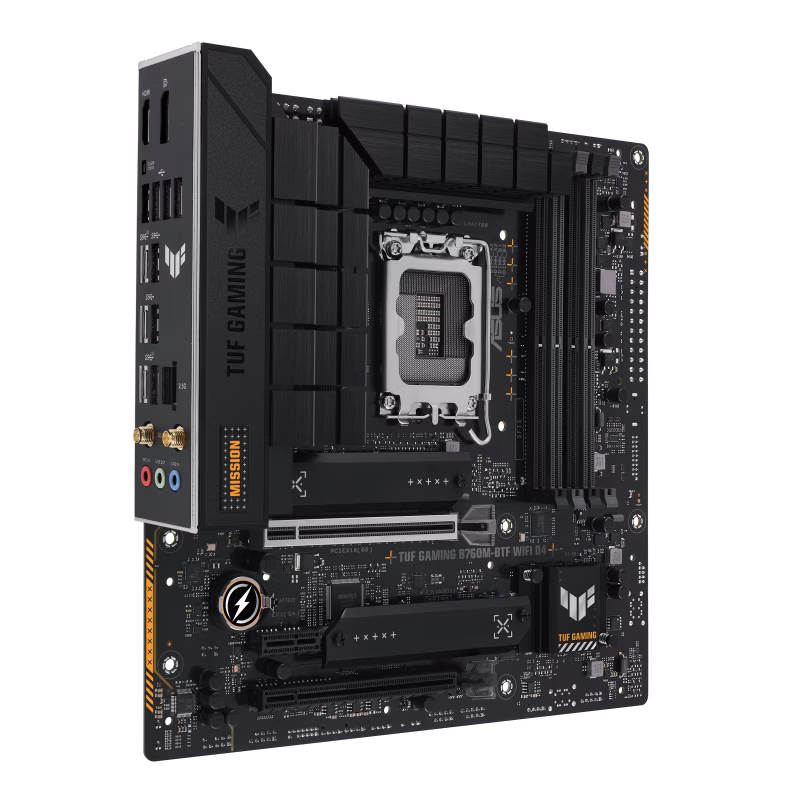

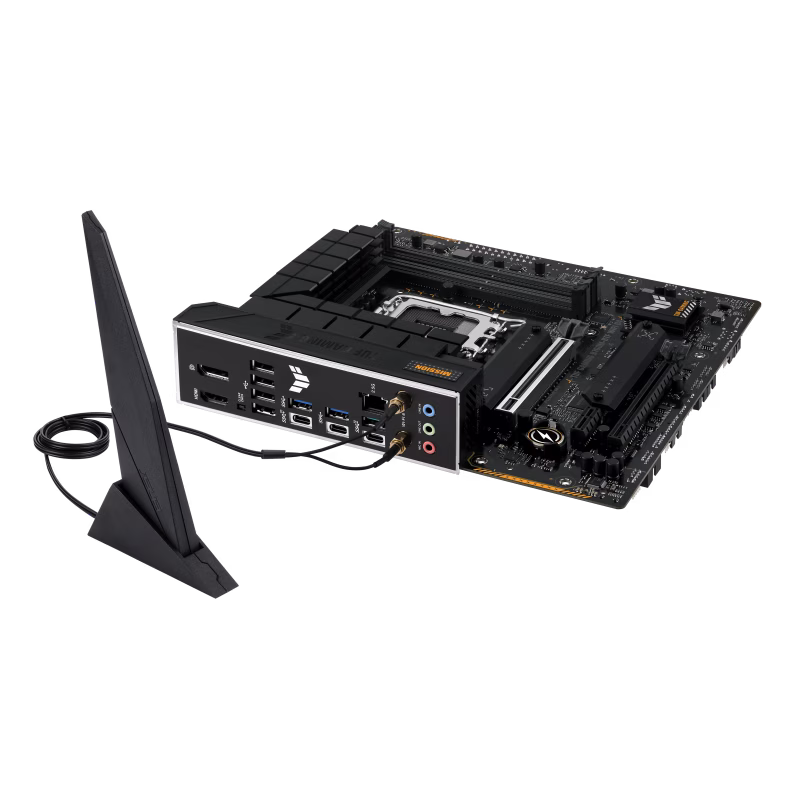

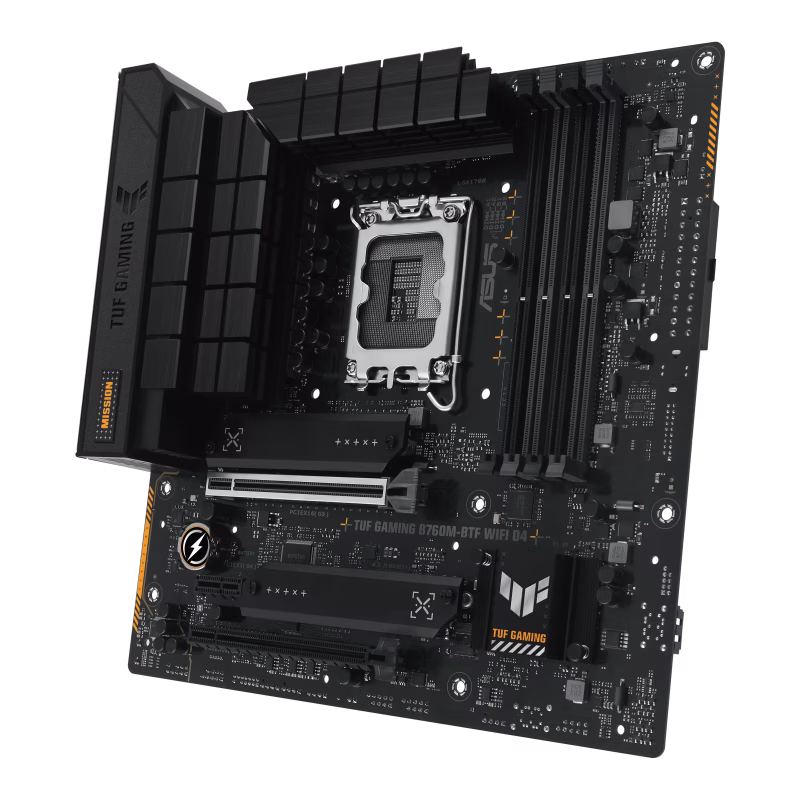

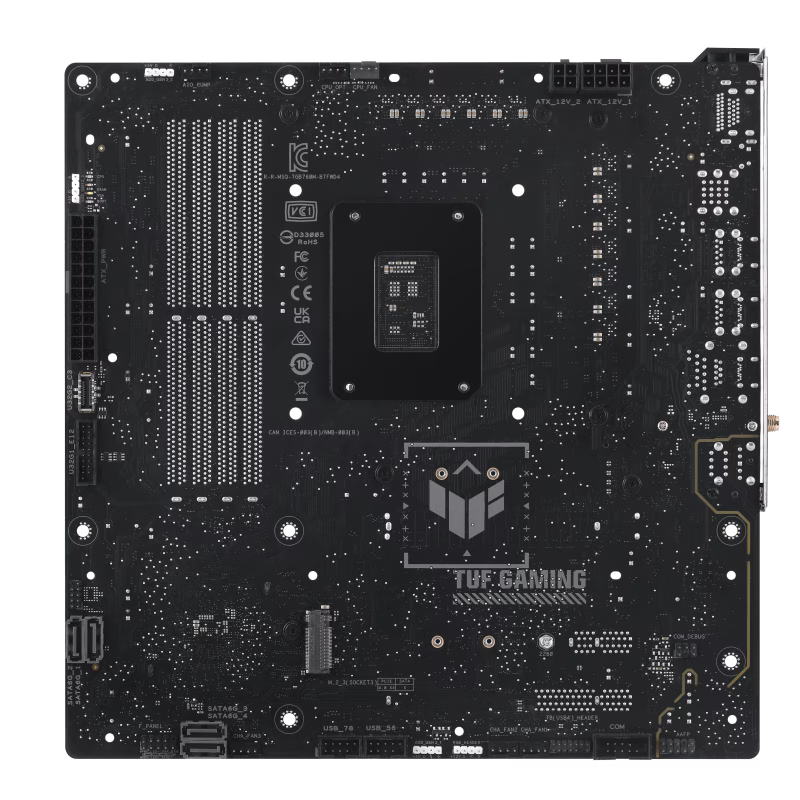

ASUS TUF GAMING B760M-BTF WIFI D4 DDR4 micro-ATX Motherboard, LGA1700, 4x DIMM, Max. 128GB, Max 5333(OC), 3x M.2 slots 4x SATA 6Gb/s, Wi-Fi 6 & BT v5.2 | 90RC00V0-M0UAY0

Model :

SKU : MB-AS TUF B760M-BTF WI D4

About this item



About this item

Description

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

ASUS TUF GAMING B760M-BTF WIFI D4 DDR4 micro-ATX Motherboard, LGA1700, 4x DIMM, Max. 128GB, Max 5333(OC), 3x M.2 slots 4x SATA 6Gb/s, Wi-Fi 6 & BT v5.2 Specifications

ModelTUF GAMING B760M-BTF WIFI D4
News & Updates2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit the support site for the latest BIOS updates.
CPU
  • Intel?? Socket LGA1700 for Intel?? Core??? 14th, 13th & 12th Gen Processors, Pentium?? Gold, and Celeron?? Processors*
  • Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0**
  • * Refer to ASUS for CPU support list.
  • ** Support depends on CPU type.
ChipsetIntel?? B760 Chipset
Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC) to 2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel?? Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types vary depending on CPU and memory configuration. See ASUS Support.
Graphics
  • 1 x DisplayPort**
  • 1 x HDMI??? port***
  • ** Supports max. 4K@60Hz (DisplayPort 1.4)
  • *** Supports 4K@60Hz (HDMI 2.1)
Expansion Slots
  • 1 x PCIe 5.0 x16 slot
  • 1 x PCIe 4.0 x16 slot (x4 mode)
  • 1 x PCIe 4.0 x1 slot
Storage
  • Total: 3 x M.2 slots, 4 x SATA 6Gb/s ports*
  • M.2_1 (PCIe 4.0 x4)
  • M.2_2 (PCIe 4.0 x4)
  • M.2_3 (PCIe 4.0 x4)**
  • * Intel?? Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • ** M.2_3 shares bandwidth with PCIEX16(G4).
Ethernet1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Bluetooth?? v5.2*
  • * Version may vary; refer to the Wi-Fi module manufacturer for updates.
USB
  • Rear: 10 ports (1 x USB 3.2 Gen 2x2 Type-C??, 2 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0)
  • Front: 7 ports (1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers)
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Audio Shielding, Dedicated PCB Layers
Special Features
  • ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, SafeSlot Core+, etc.)
  • Aura Sync (RGB headers, Gen 2 Addressable headers)
  • M.2 Q-Latch, Pre-mounted I/O shield
Form FactorMicro-ATX (24.4 cm x 24.4 cm)

Specification

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

ASUS TUF GAMING B760M-BTF WIFI D4 DDR4 micro-ATX Motherboard, LGA1700, 4x DIMM, Max. 128GB, Max 5333(OC), 3x M.2 slots 4x SATA 6Gb/s, Wi-Fi 6 & BT v5.2 Specifications

ModelTUF GAMING B760M-BTF WIFI D4
News & Updates2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit the support site for the latest BIOS updates.
CPU
  • Intel?? Socket LGA1700 for Intel?? Core??? 14th, 13th & 12th Gen Processors, Pentium?? Gold, and Celeron?? Processors*
  • Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0**
  • * Refer to ASUS for CPU support list.
  • ** Support depends on CPU type.
ChipsetIntel?? B760 Chipset
Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC) to 2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel?? Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types vary depending on CPU and memory configuration. See ASUS Support.
Graphics
  • 1 x DisplayPort**
  • 1 x HDMI??? port***
  • ** Supports max. 4K@60Hz (DisplayPort 1.4)
  • *** Supports 4K@60Hz (HDMI 2.1)
Expansion Slots
  • 1 x PCIe 5.0 x16 slot
  • 1 x PCIe 4.0 x16 slot (x4 mode)
  • 1 x PCIe 4.0 x1 slot
Storage
  • Total: 3 x M.2 slots, 4 x SATA 6Gb/s ports*
  • M.2_1 (PCIe 4.0 x4)
  • M.2_2 (PCIe 4.0 x4)
  • M.2_3 (PCIe 4.0 x4)**
  • * Intel?? Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • ** M.2_3 shares bandwidth with PCIEX16(G4).
Ethernet1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Bluetooth?? v5.2*
  • * Version may vary; refer to the Wi-Fi module manufacturer for updates.
USB
  • Rear: 10 ports (1 x USB 3.2 Gen 2x2 Type-C??, 2 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0)
  • Front: 7 ports (1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers)
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Audio Shielding, Dedicated PCB Layers
Special Features
  • ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, SafeSlot Core+, etc.)
  • Aura Sync (RGB headers, Gen 2 Addressable headers)
  • M.2 Q-Latch, Pre-mounted I/O shield
Form FactorMicro-ATX (24.4 cm x 24.4 cm)
