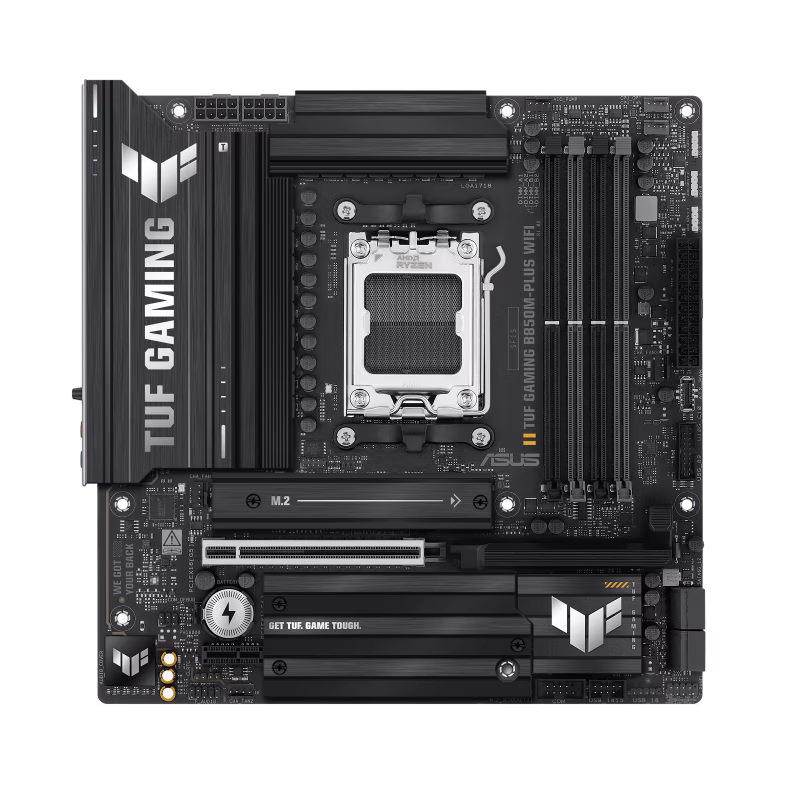

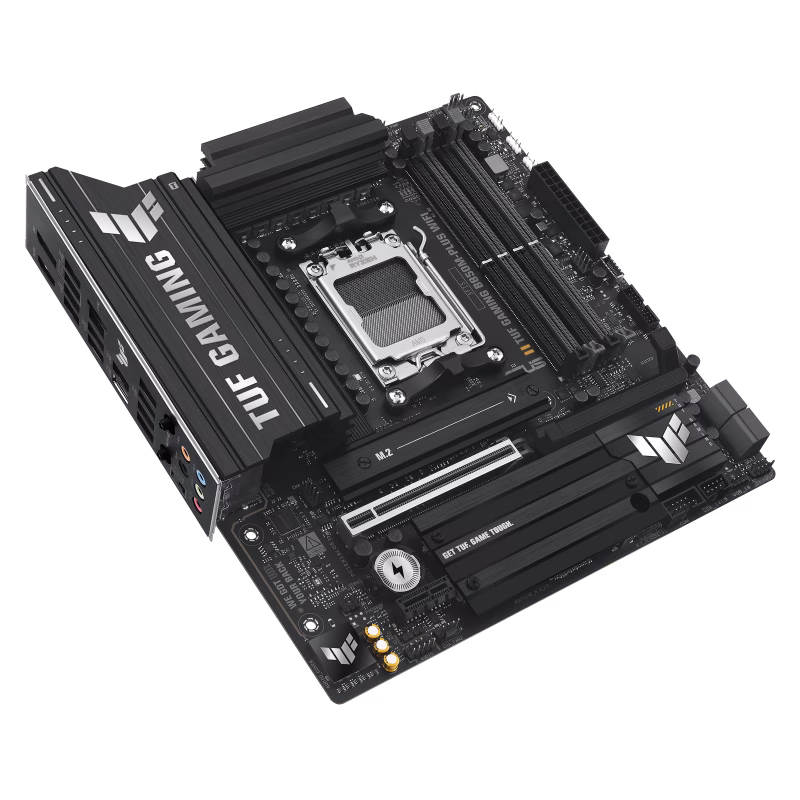

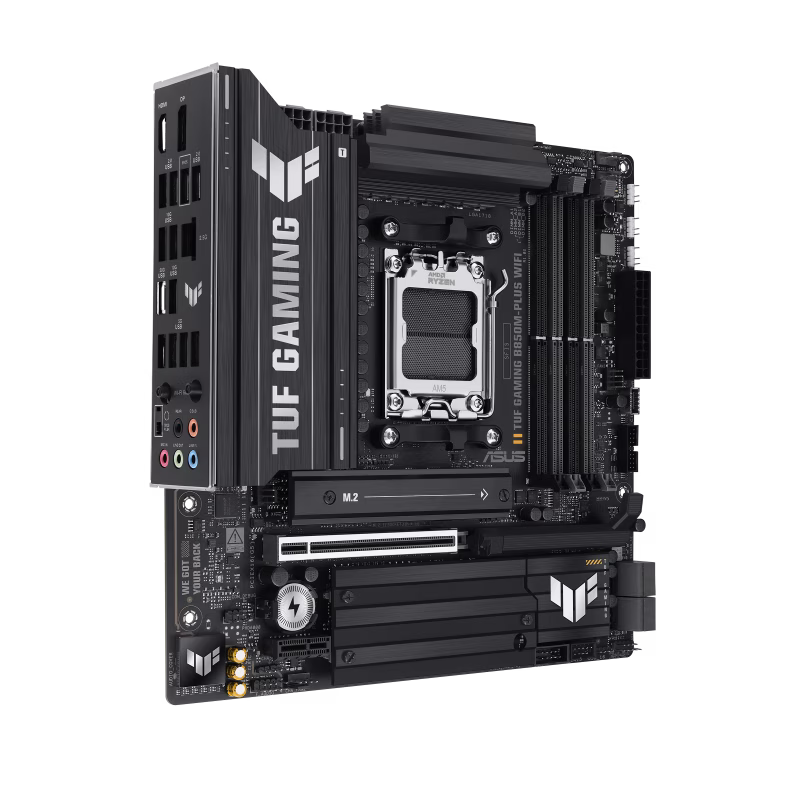

ASUS TUF Gaming B850M-PLUS WiFi AMD AM5 B850 mATX Motherboard, 14+2+1 80A DrMOS Stages, DDR5, PCIe 5.0, 3X M.2, Wi-Fi 6E, 2.5Gb LAN, DP, HDMI, USB 10Gbps & 20Gbps Type-C, BIOS Flashback, Aura Sync | 90MB1IY0-M0EAY0
Model :
SKU : MB-ASUS TUF B850M-PLUS WI
About this item
About this item
Description
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
Specification
| Model | TUF GAMING B850M-PLUS WIFI |
| CPU Socket | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| Memory Slots | 4 x DIMM, Max 256GB DDR5, Dual Channel, ECC & Non-ECC, Unbuffered |
| Memory Features | AMD EXPO™, ASUS Enhanced Memory Profile (AEMP), Supports up to 8000+ MT/s (OC) |
| Graphics Output | 1 x DisplayPort, 1 x HDMI™ |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000, x16 mode), 1 x PCIe 4.0 x16 (Ryzen 8000, x8/x4 mode), 1 x PCIe 4.0 x1 (B850 Chipset) |
| Storage | 3 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s ports, Supports AMD RAIDXpert2 RAID 0/1/5/10 depending on CPU series |
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 (802.11ax, 2.4/5/6GHz), Bluetooth® v5.3 |
| Rear USB Ports | 1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A |
| Front USB Ports | 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio, Impedance sense, Front/Rear Jack detection, Internal amplifier, 120 dB SNR playback, 113 dB SNR recording, up to 32-Bit/192 kHz playback |
| Audio Features | Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit |
| Back Panel I/O | 1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | 1 x 24-pin Main Power, 2 x 8-pin CPU Power, 3 x M.2 slots, 4 x SATA 6Gb/s 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header, 2 x USB 2.0 headers 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fan, 3 x Addressable Gen2 headers Clear CMOS, Chassis Intrusion, COM Port header, Front Panel Audio, System Panel header |
| Special Features | ASUS TUF Protection (DIGI+ VRM with DrMOS, ESD Guards, LANGuard, Overvoltage protection, SafeSlot, Stainless steel back I/O), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED), Thermal Solution (M.2 heatsink, VRM heatsink), EZ DIY (BIOS FlashBack™, LED, ProCool, Pre-mounted I/O shield, SafeDIMM), Aura Sync |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), ASUS DriverHub, ASUS GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud Trial, Norton 360 Trial, WinRAR Trial |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, ASUS Wi-Fi Q-Antenna, TUF GAMING sticker, 2 x M.2 rubber packages, Screw package for M.2 SSD, Quick start guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX, 9.6 in x 9.6 in (24.4 cm x 24.4 cm) |
