ASUS TUF GAMING B860M-PLUS WIFI (LGA 1851) mATX Motherboard, DDR5,PCIe 5.0, 3 x M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 7 , DisplayPort, HDMI, USB 20Gbps Type-C | 90MB1JV0-M0EAY0
Model :
SKU : MB-ASUS TUF B860M-PLUS WI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
TurboV Core
TurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer's potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.
Specification
| Model | TUF GAMING B860M-PLUS WIFI |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB DDR5 Supports up to 8800+ MT/s (OC), Non-ECC, Un-buffered DIMM Dual Channel Memory Architecture Supports Intel® XMP, ASUS Enhanced Memory Profile III (AEMPIII) |
| Graphics | 1 x DisplayPort (max. 4K@60Hz) 1 x HDMI™ port (max. 4K@60Hz) 1 x USB Type-C® with DisplayPort output |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU) 1 x PCIe 4.0 x4 slot (Chipset) |
| Storage | 3 x M.2 slots (PCIe 5.0 / 4.0) 4 x SATA 6Gb/s ports Supports RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 2.4/5/6GHz, up to 2.9Gbps) Bluetooth® v5.4 |
| USB (Rear) | 1 x USB 20Gbps (Type-C®) 2 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 1 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 10Gbps (Type-C®) 1 x USB 5Gbps header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC Optical S/PDIF out port, Premium capacitors, Audio shielding |

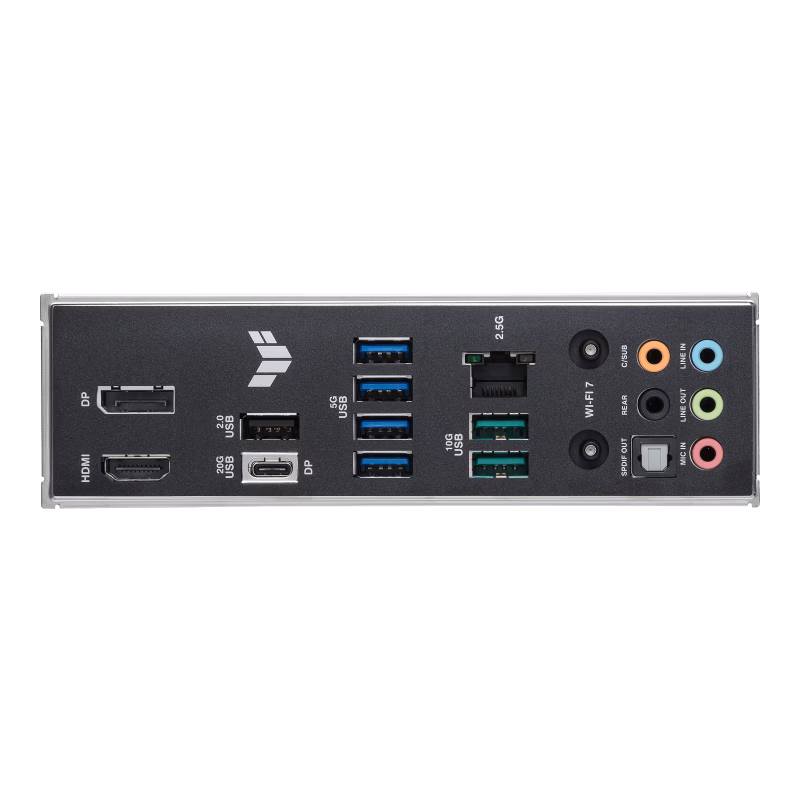

| Back Panel I/O | 1 x USB 20Gbps (Type-C® DP Alt mode) 2 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 1 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O | 1 x 24-pin Main Power 2 x 8-pin +12V Power connectors 3 x M.2 slots 4 x SATA ports Multiple fan, USB, and RGB headers |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, SafeSlot) Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-DIMM, Q-LED) ASUS Thermal Solution (M.2 & VRM heatsinks) ASUS EZ DIY (Pre-mounted I/O shield, SafeDIMM) AURA Sync RGB |
| Software Features | Armoury Crate, AURA Sync, Fan Xpert 2+, TurboV Core, TUF GAMING CPU-Z DTS Audio Processing, Norton 360 (60 Days), WinRAR (40 Days) |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 2 x M.2 Rubber Packages 1 x M.2 Screw package 1 x Quick start guide 1 x TUF Gaming sticker |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | mATX (24.4 cm x 24.4 cm) |
