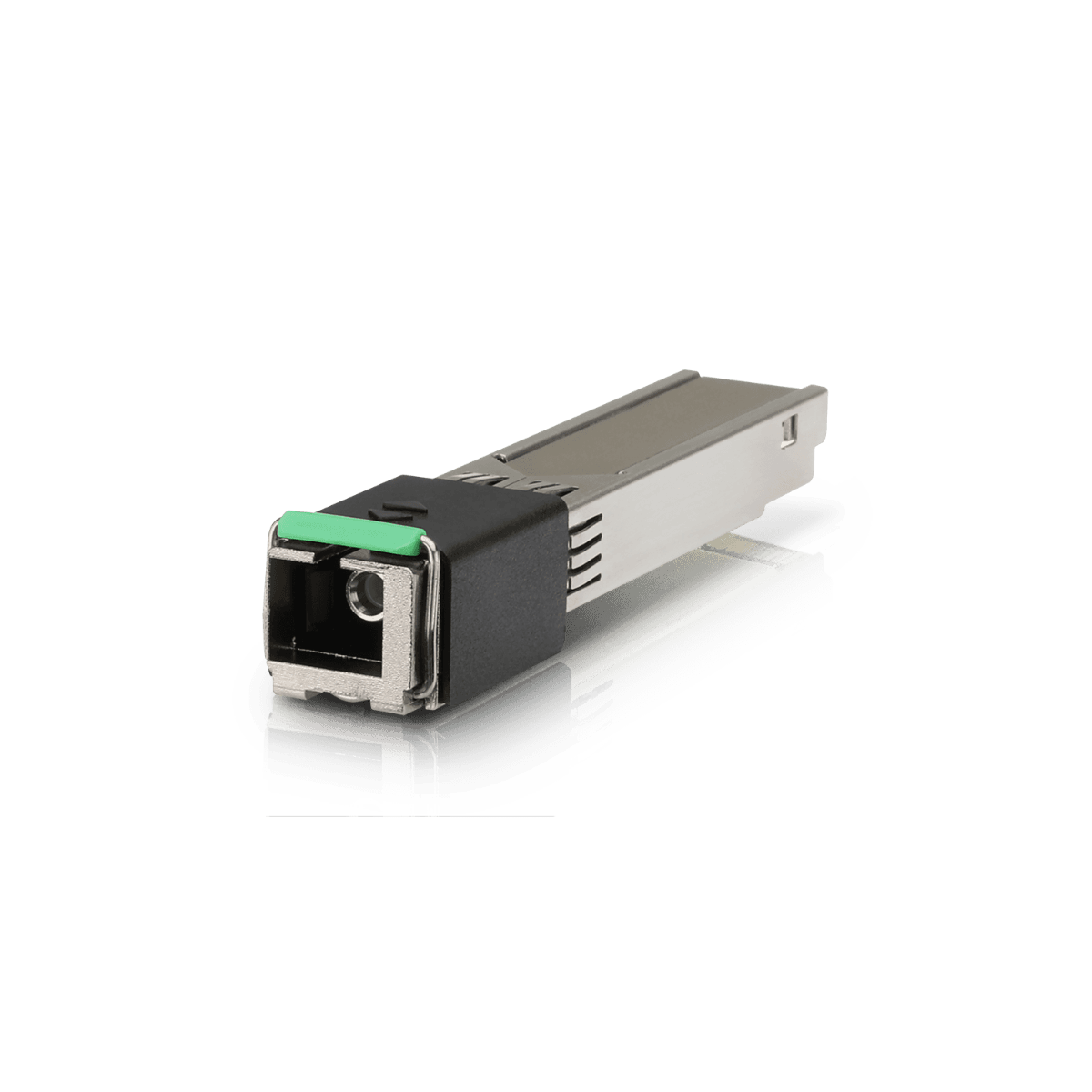

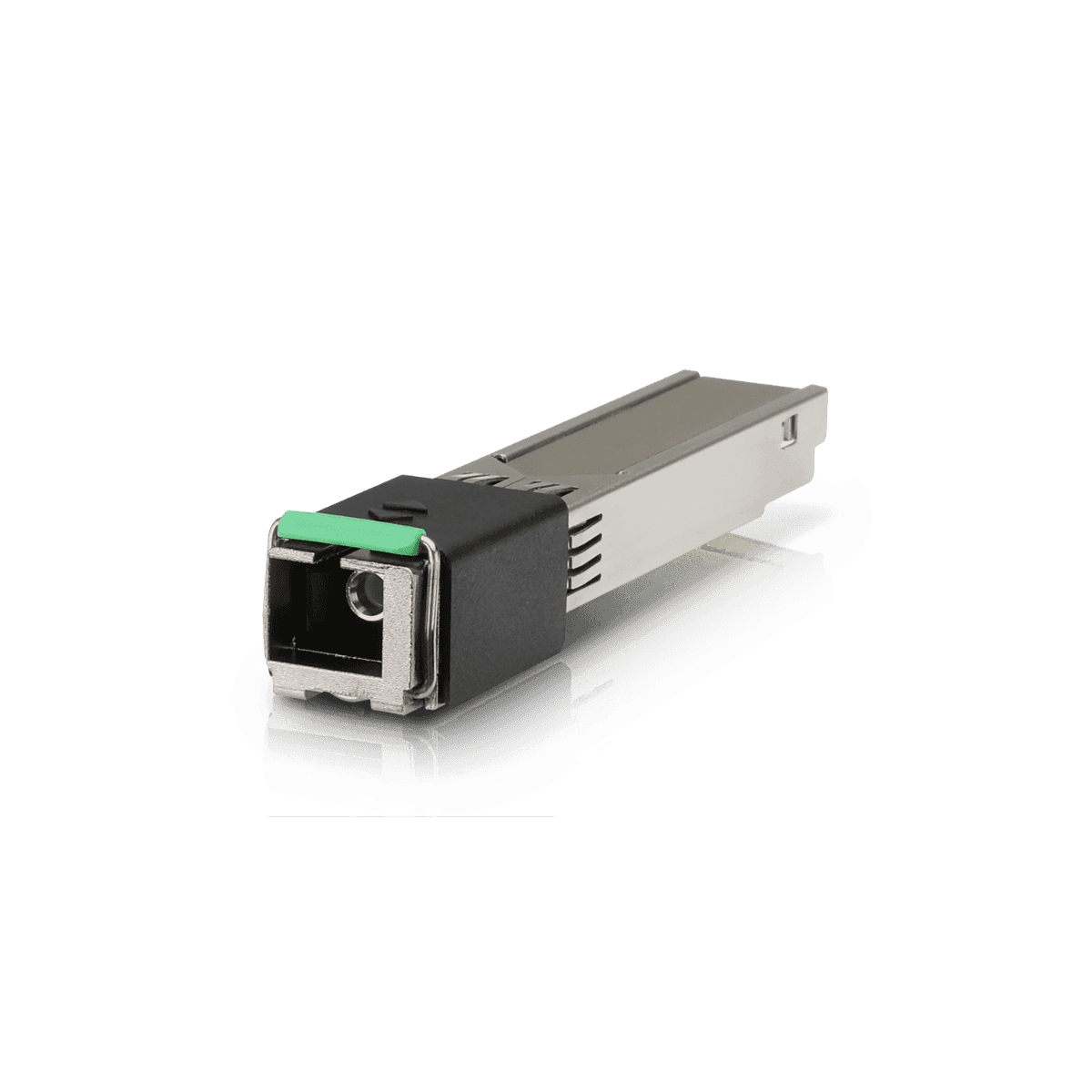

Ubiquiti UISP Optical Transceiver, MIPS 100 MHz, GPON Port, GbE SFP Connectivity, Downstream 2.488 Gbps, Upstream 1.244 Gbps | UF-Instant
Model :
SKU : UNIFI UF-INSTANT
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Ubiquiti UISP Optical Transceiver, MIPS 100 MHz, GPON Port, GbE SFP Connectivity, Downstream 2.488 Gbps, Upstream 1.244 Gbps | UF-Instant
| Dimensions | 69.5 x 13.7 x 11.3 mm (2.7 x 0.5 x 0.5") |
| Weight | 30 g (1 oz) |
| Enclosure materials | Zinc alloy, stainless steel |
Hardware
| Networking interface | (1) SC/APC, ITU-G.984 GPON WAN (1) SGMI, Ethernet LAN |
| Management interface | Ethernet In-Band |
| PON | |
| Power method | SFP |
| Supported voltage range | 3.3V |
| Max. power consumption | 2W |
| Total non-blocking line rate | |
| Downstream | 2.488 Gbps |
| Upstream | 1.244 Gbps |
Fiber
| Operating wavelength | |
| TX | 1310 nm |
| RX | 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate | |
| Downstream | 2488.32 Mbit/s |
| Upstream | 1244.16 Mbit/s |
| Physical reach | 20 km |
Operating Conditions
| Ambient operating temperature | ???10 to 45?? C (14 to 113?? F) |
| Operating Humidity | 10 to 90% noncondensing |
Certifications
| Certifications | CE, FCC, IC |
Specification
Ubiquiti UISP Optical Transceiver, MIPS 100 MHz, GPON Port, GbE SFP Connectivity, Downstream 2.488 Gbps, Upstream 1.244 Gbps | UF-Instant
| Dimensions | 69.5 x 13.7 x 11.3 mm (2.7 x 0.5 x 0.5") |
| Weight | 30 g (1 oz) |
| Enclosure materials | Zinc alloy, stainless steel |
Hardware
| Networking interface | (1) SC/APC, ITU-G.984 GPON WAN (1) SGMI, Ethernet LAN |
| Management interface | Ethernet In-Band |
| PON | |
| Power method | SFP |
| Supported voltage range | 3.3V |
| Max. power consumption | 2W |
| Total non-blocking line rate | |
| Downstream | 2.488 Gbps |
| Upstream | 1.244 Gbps |
Fiber
| Operating wavelength | |
| TX | 1310 nm |
| RX | 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate | |
| Downstream | 2488.32 Mbit/s |
| Upstream | 1244.16 Mbit/s |
| Physical reach | 20 km |
Operating Conditions
| Ambient operating temperature | ???10 to 45?? C (14 to 113?? F) |
| Operating Humidity | 10 to 90% noncondensing |
Certifications
| Certifications | CE, FCC, IC |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Networking/Accessories/Network Accessories/ Ubiquiti UISP Optical Transceiver, MIPS 100 MHz, ...
Similar Products
EZVIZ 4-Pack Proximity Card RFID (Key Tags), Anti-Copying, For EZVIZ Smart Locks & Doorphones | CS-DL-IC-CPU-R200
48.99

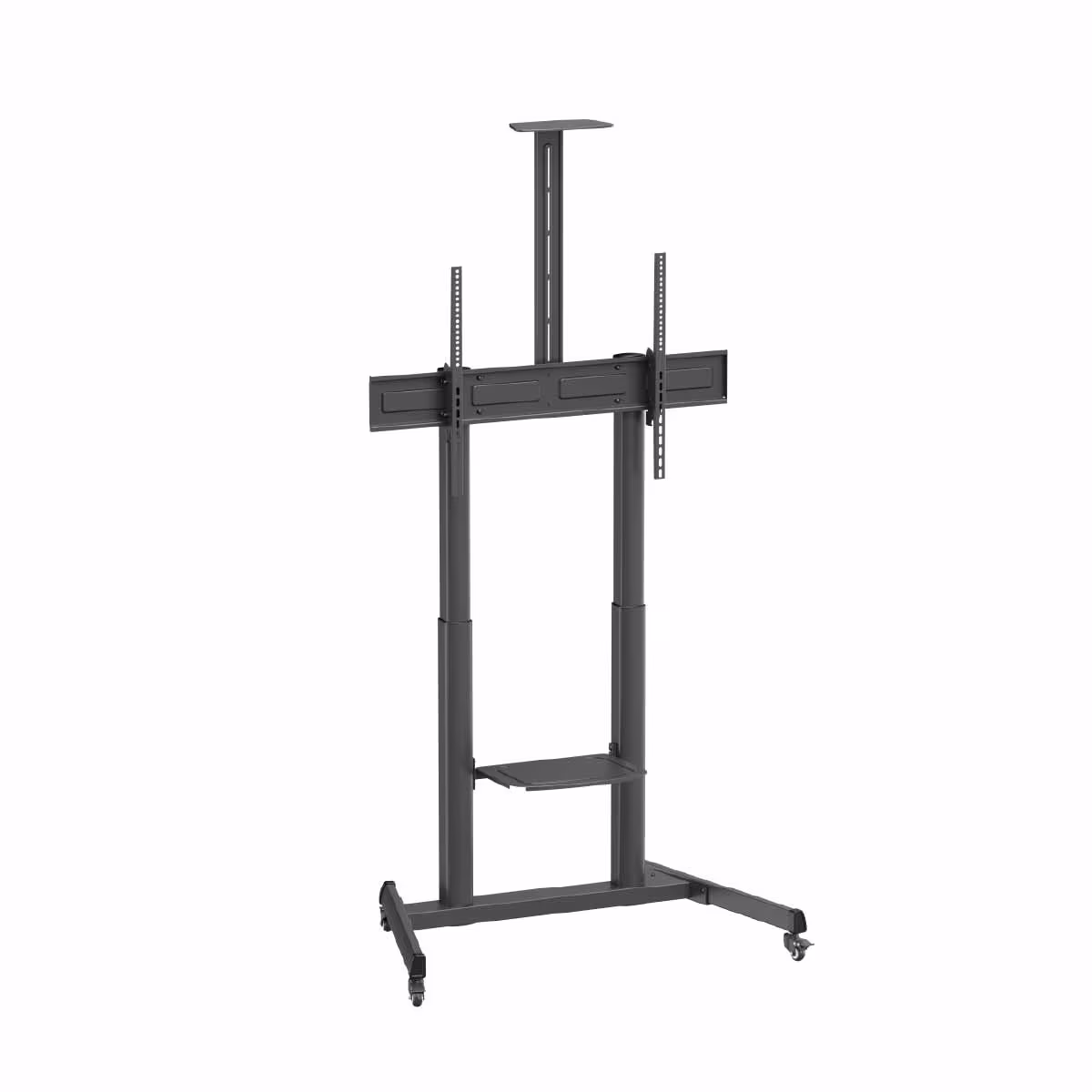

Skilltech SH 666TB Telescope Height-Adjustable Steel TV Cart With Quick-Release Spring Lock, Suitable for most 60''~ 100" Screen, 120kg (264lbs)
998.99
Tp-Link Gigabit Sfp To Rj45 Fiber Media Converter, Fiber To Ethernet Converter 10/100/1000Mbps Rj45 Port To 1000Base-Sx Multi-Mode Fiber (MC200CM) Black
129.99
Unifi airMAX PowerBeam 5AC 500 (2-Pack), 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate | PBE-5AC-500
1122.45

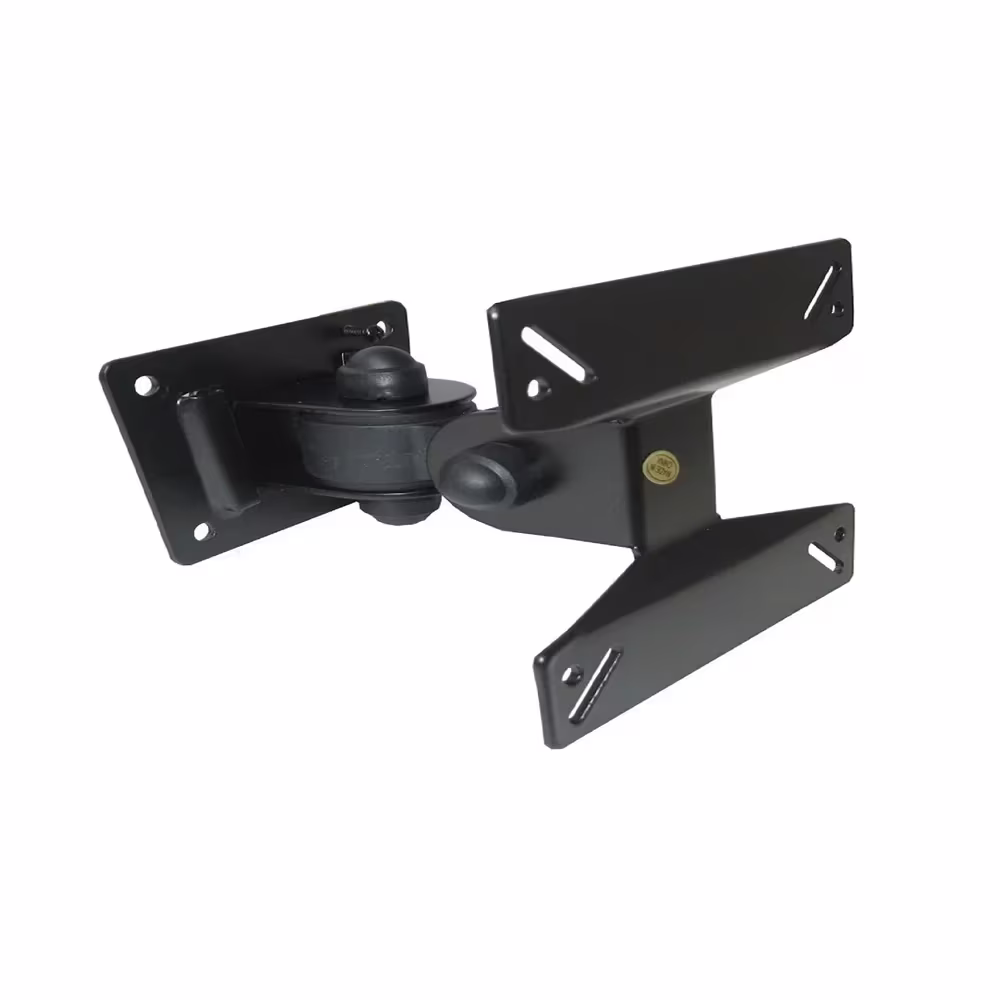

Skill Tech SH 10P Low Cost Full-Motion TV Wall Mount, Suitable For Most 10"~26" Screen
78.99

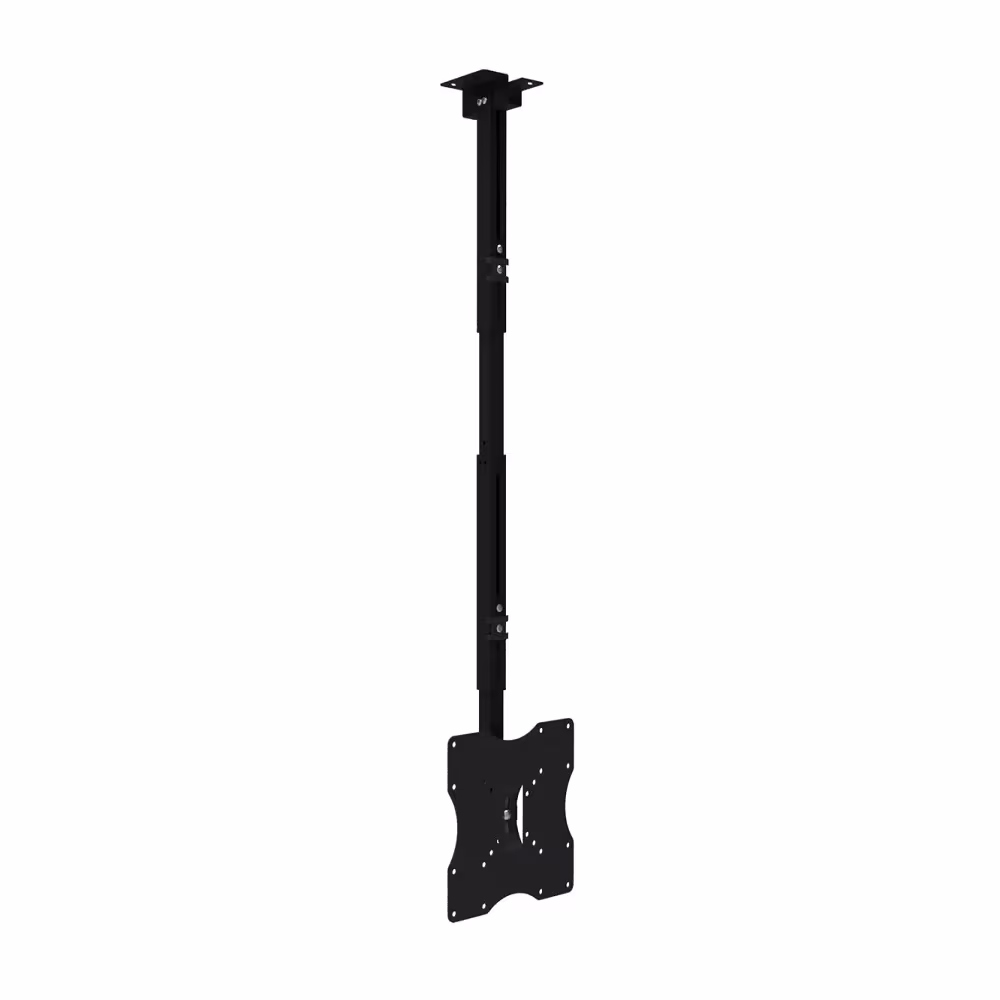

Skill Tech SH 22C Telescopic LCD TV Ceiling Mounts, Suitable For Most 17" ~ 43" Screen
