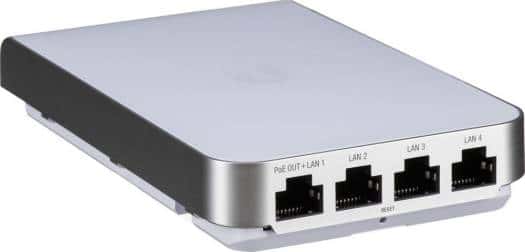

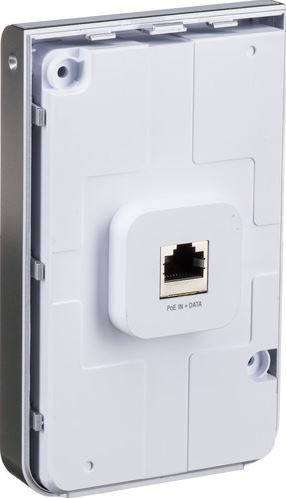

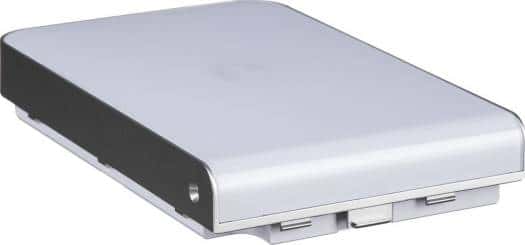

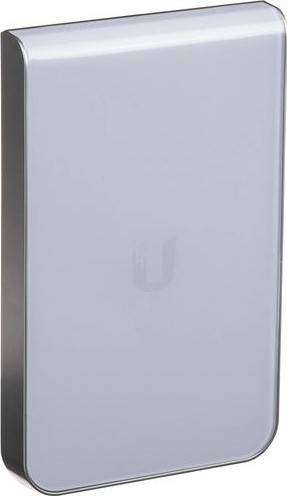

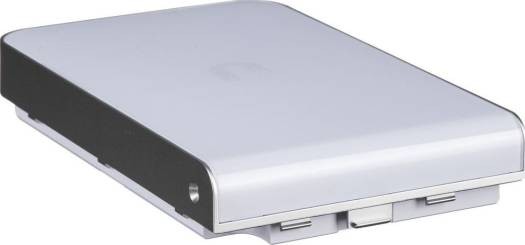

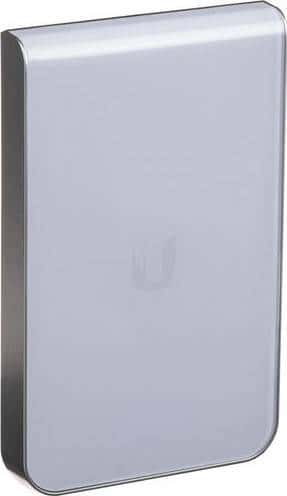

Ubiquiti UniFi IW HD - Wi-Fi 5 (802.11ac) Wave 2, Up to 2033 Mb/s, Multi-User MIMO, Dual Band | UAP-IW-HD
Model :
SKU : WAP-UNIFI UAP-IW-HD
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Ubiquiti UniFi IW HD - Wi-Fi 5 (802.11ac) Wave 2, Up to 2033 Mb/s, Multi-User MIMO, Dual Band | UAP-IW-HD
| Dimensions | 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1") |
| Weight | 210 g (7.4 oz) |
| Networking interface | (5) GbE RJ45 ports |
| Management interface | Ethernet |
| PoE interface | (1) PoE/PoE+ in (1) PoE out |
| Power method | PoE |
| PoE+* | *Required for PoE passthrough. |
| Power supply | UniFi PoE switch |
| PoE out | 48V pass-through (Pins 1, 2+; 3, 6-) |
| Supported voltage range | 44???57V DC |
| Max. power consumption | 11W (Excluding PoE output) |
| Max. PoE wattage per port by PSE | 23W* *Requires PoE switch. |
| Max. TX power | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| MIMO | 2.4 GHz: 2 x 2 5 GHz: 4 x 4 |
| Throughput rate | 2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps |
| Antenna gain | 2.4 GHz: 1.8 dBi 5 GHz: 6 dBi |
| Button | Factory reset |
| Mounting | 1-Gang electrical wall box (Optional) |
| Operating temperature | -10 to 60?? C (14 to 140?? F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, cULus |
| WiFi standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| Beam-forming | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 200+ |
| Supported Data Rates (Mbps) |
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40) 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
Specification
Ubiquiti UniFi IW HD - Wi-Fi 5 (802.11ac) Wave 2, Up to 2033 Mb/s, Multi-User MIMO, Dual Band | UAP-IW-HD
| Dimensions | 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1") |
| Weight | 210 g (7.4 oz) |
| Networking interface | (5) GbE RJ45 ports |
| Management interface | Ethernet |
| PoE interface | (1) PoE/PoE+ in (1) PoE out |
| Power method | PoE |
| PoE+* | *Required for PoE passthrough. |
| Power supply | UniFi PoE switch |
| PoE out | 48V pass-through (Pins 1, 2+; 3, 6-) |
| Supported voltage range | 44???57V DC |
| Max. power consumption | 11W (Excluding PoE output) |
| Max. PoE wattage per port by PSE | 23W* *Requires PoE switch. |
| Max. TX power | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| MIMO | 2.4 GHz: 2 x 2 5 GHz: 4 x 4 |
| Throughput rate | 2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps |
| Antenna gain | 2.4 GHz: 1.8 dBi 5 GHz: 6 dBi |
| Button | Factory reset |
| Mounting | 1-Gang electrical wall box (Optional) |
| Operating temperature | -10 to 60?? C (14 to 140?? F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, cULus |
| WiFi standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| Beam-forming | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 200+ |
| Supported Data Rates (Mbps) |
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40) 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
