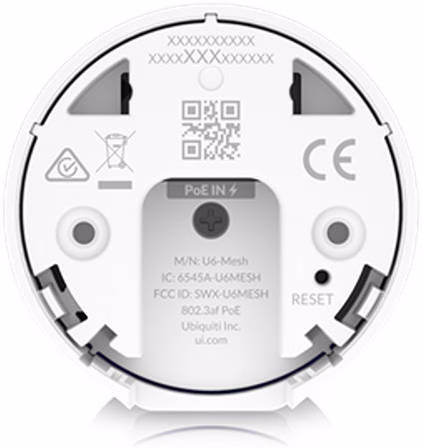

Ubiquiti UniFi U6-Mesh Networks Access Point, High Efficiency 4x4 MIMO with 160 MHz Bandwidth, Powered with 802.3af PoE, White | U6-MESH
Model :
SKU : WAP-UNIFI U6-Mesh
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Dimensions | ??48.5 x 159.5 mm (??1.9 x 6.3") |
| Weight | 400 g (14.1 oz) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Polycarbonate |
| Weatherproofing | IPX5 |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Bluetooth | |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.32A PoE adapter (Included) |
| Supported voltage range | 44???57V DC |
| Max. power consumption | 11.4W |
| Max. TX power | 2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: - |
| MIMO | 2.4 GHz: 2 x 2 (UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz: - |
| Throughput rate | 2.4 GHz: 573.5 Mbps 5 GHz: 4.8 Gbps 6 GHz: - |
| Antenna gain | 2.4 GHz: 3 dBi 5 GHz: 5 dBi 6 GHz: - |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, desktop, pole (Included) Ceiling (Optional) |
| Operating temperature | -30 to 60?? C (-22 to 140?? F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero wait DFS | Yes* *Supported with upcoming firmware versions |
| Supported Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | UniFi Network Version 6.2.51 and later |
