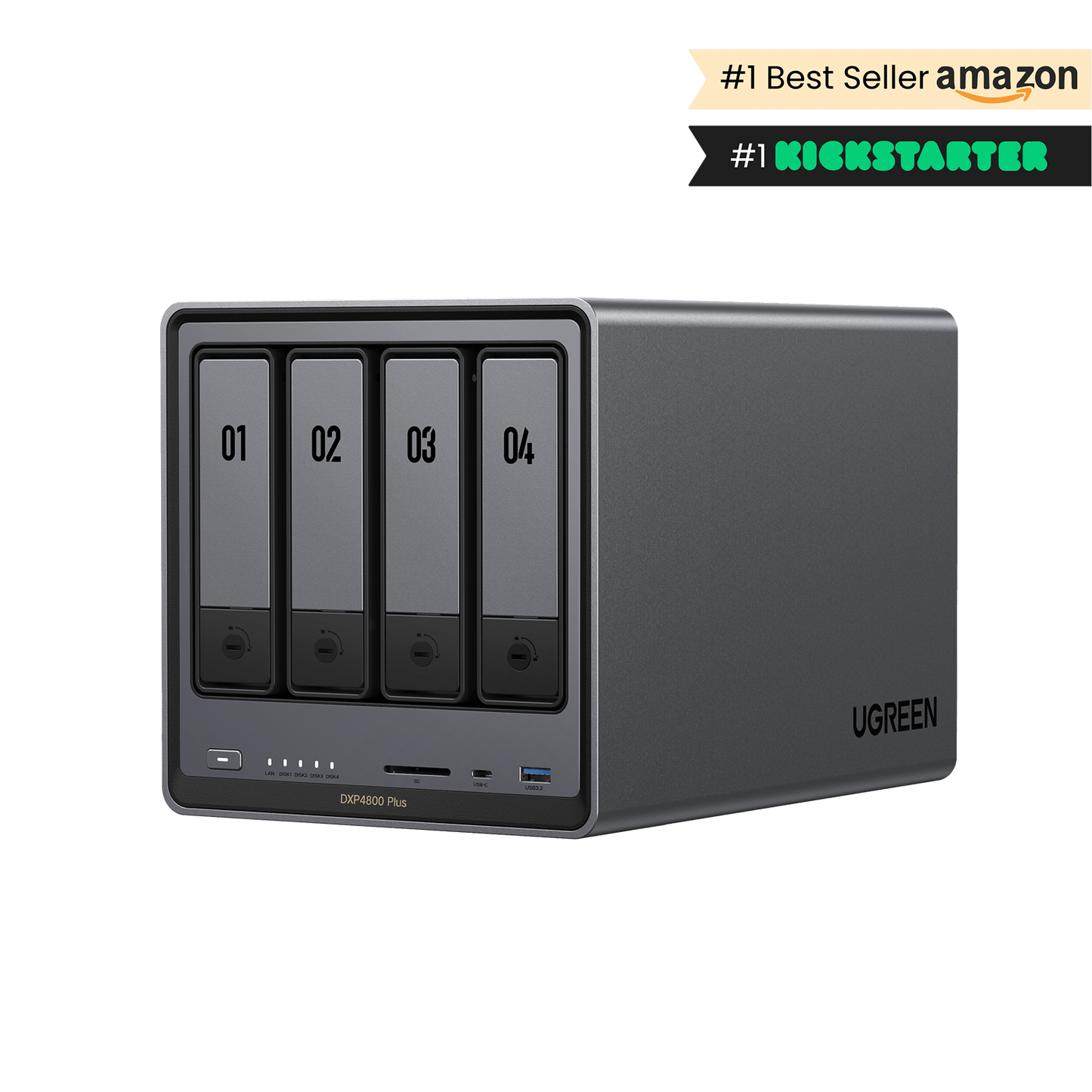

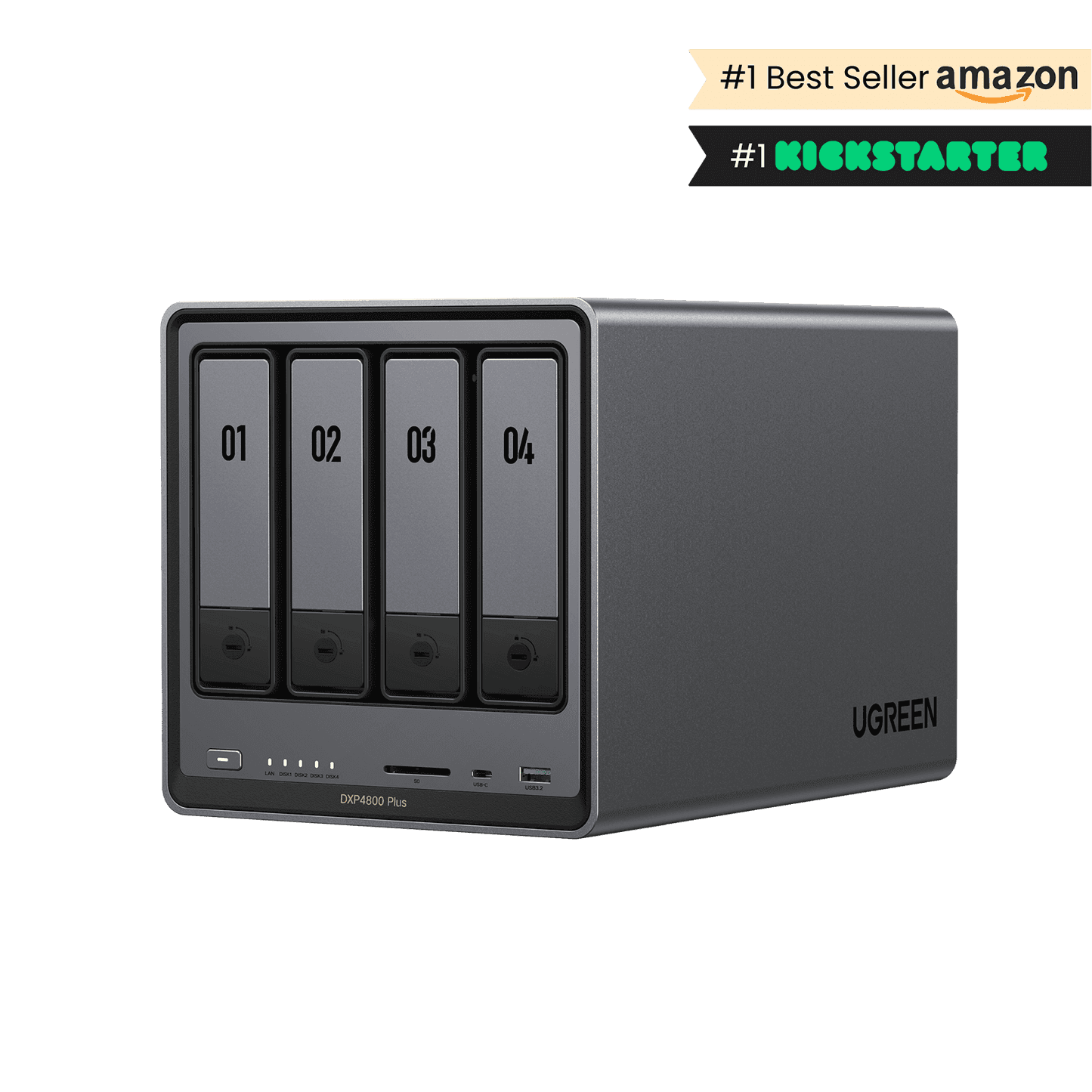

UGREEN NASync DXP4800 Plus 4-Bay NAS, Intel Pentium Gold 8505 5-Core, 8GB DDR5 RAM, 10GbE + 2.5GbE LAN, 4K HDMI, Diskless Personal Cloud Storage (NO HARDISK INSIDE)
Model :
SKU : NAS-UGREEN DXP4800+ 4 BAY
The UGREEN NASync DXP4800 Plus is a professional-grade 4-bay NAS designed for power users and small businesses seeking elite data speeds and versatility. Powered by the 5-core Intel Pentium Gold 8505 processor and 8GB of DDR5 memory, it features a massive 10GbE port alongside a 2.5GbE port for lightning-fast networking. With dual M.2 NVMe slots, 4K HDMI output, and an integrated SD 3.0 card reader, it is the ultimate hub for high-resolution media management and secure, multi-user collaboration.
Description
Step up to enterprise-level performance with the UGREEN NASync DXP4800 Plus. This 4-bay Network Attached Storage (NAS) solution is engineered to be the heart of your digital workspace. Driven by the 12th Generation Intel Pentium Gold 8505 (5 cores, 6 threads), the DXP4800 Plus offers a significant performance jump, allowing for complex virtualization, rapid file indexing, and high-bitrate 4K transcoding.
Key Features
- Advanced 5-Core Processor: The Intel 8505 CPU provides the raw power needed for modern NAS tasks, ensuring a snappy responsive experience through the UGOS Pro interface even under heavy multi-user loads.

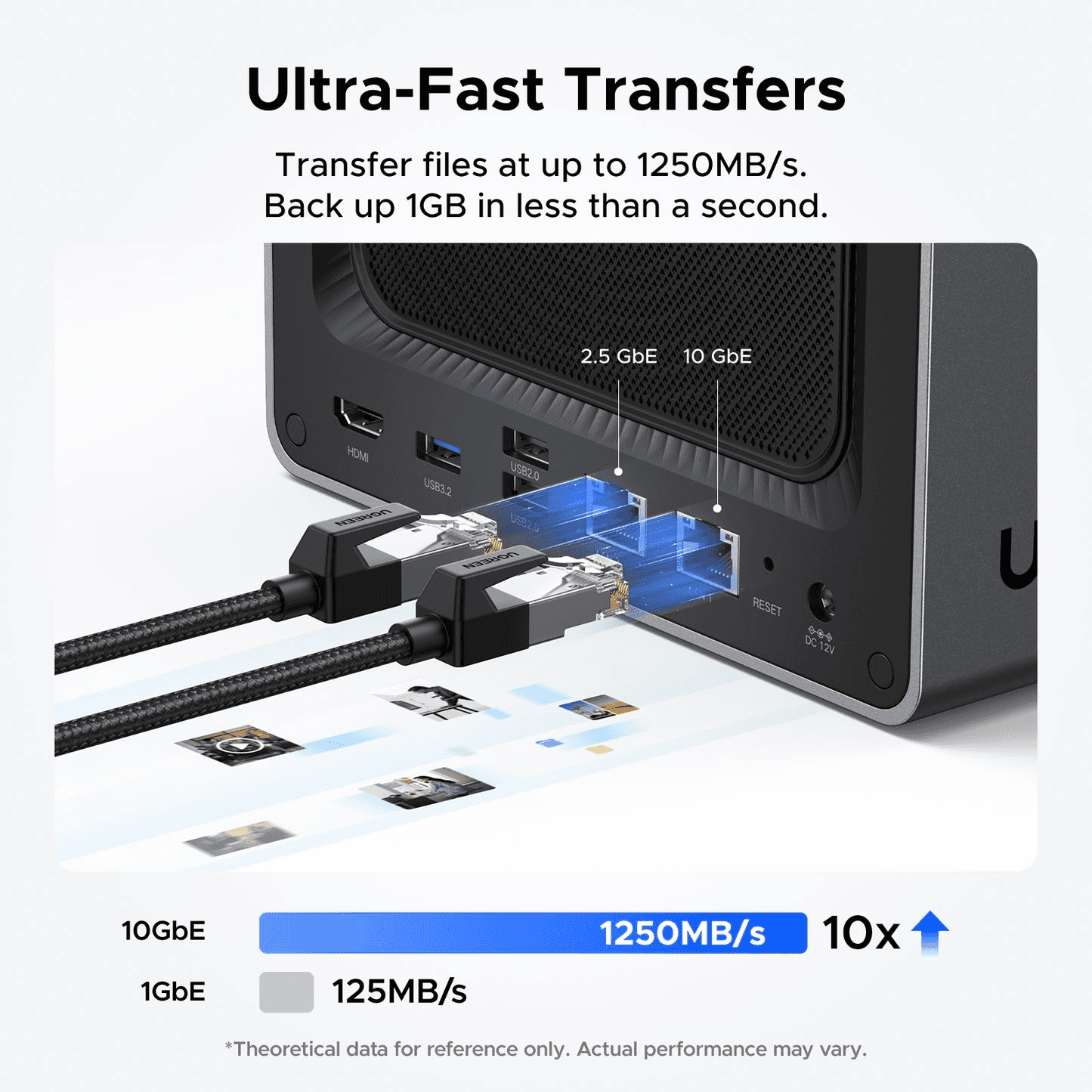

- 10GbE Networking Excellence: Eliminate all bandwidth bottlenecks with the built-in 10Gbps LAN port. Perfect for creative professionals working directly off the NAS for 4K video editing or large-scale database management.
- Next-Gen DDR5 & Expansion: Equipped with 8GB of DDR5 RAM, expandable up to a massive 64GB. This ensures your NAS can grow with your needs, from simple storage to a robust virtual machine host.

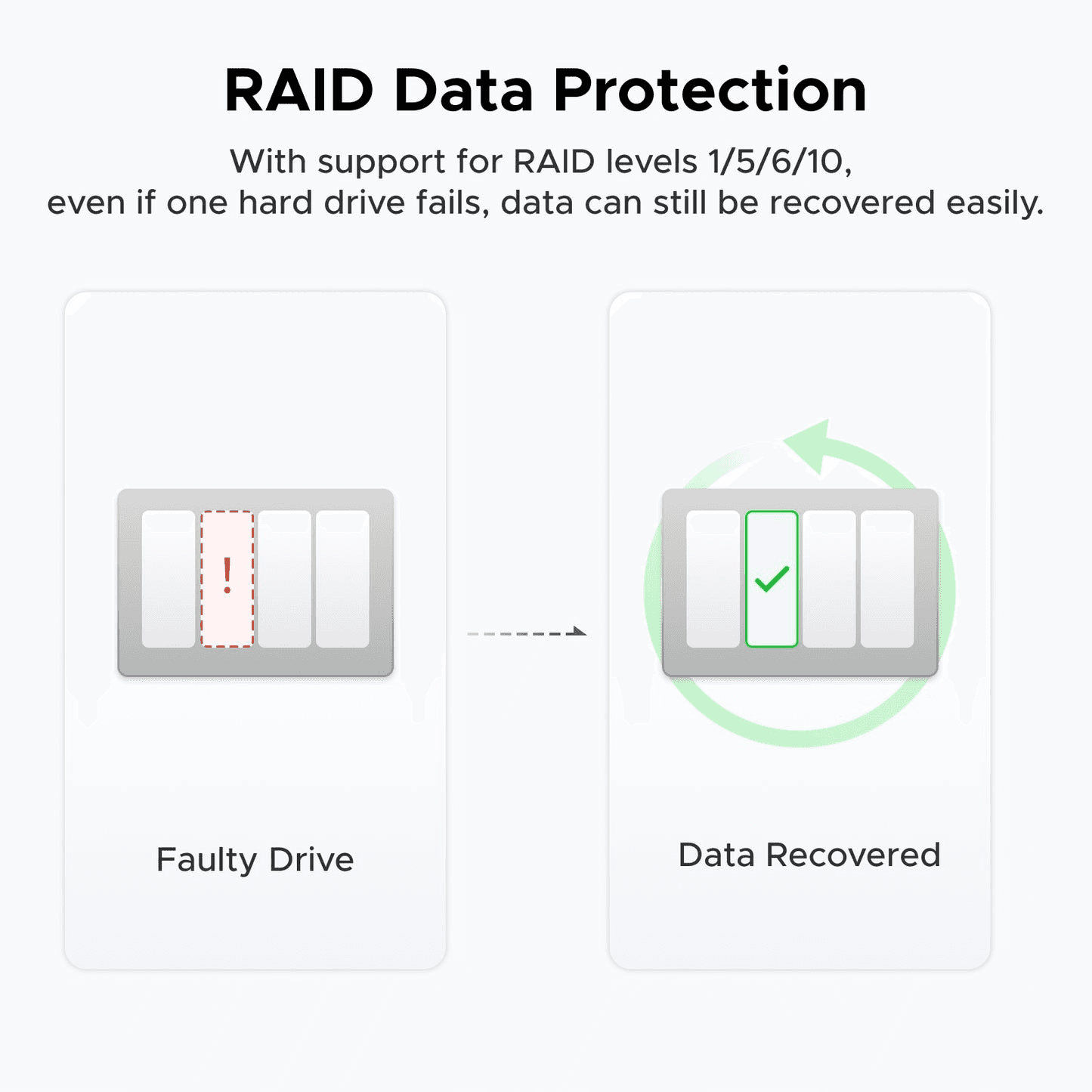

- Hybrid Storage & RAID Versatility: With 4 SATA bays and 2 M.2 NVMe slots, you can reach a staggering 136TB of total capacity. Support for RAID 0/1/5/6/10 gives you the perfect balance of data redundancy and performance.
Performance / Technology The DXP4800 Plus is a dream for photographers and videographers. The integrated SD 3.0 card reader allows for quick media ingest, while the 4K HDMI port enables direct playback to any display. For system stability, UGREEN has included a dedicated 128GB SSD system disk, ensuring that the operating system remains lightning-fast and independent of your storage pool’s health.

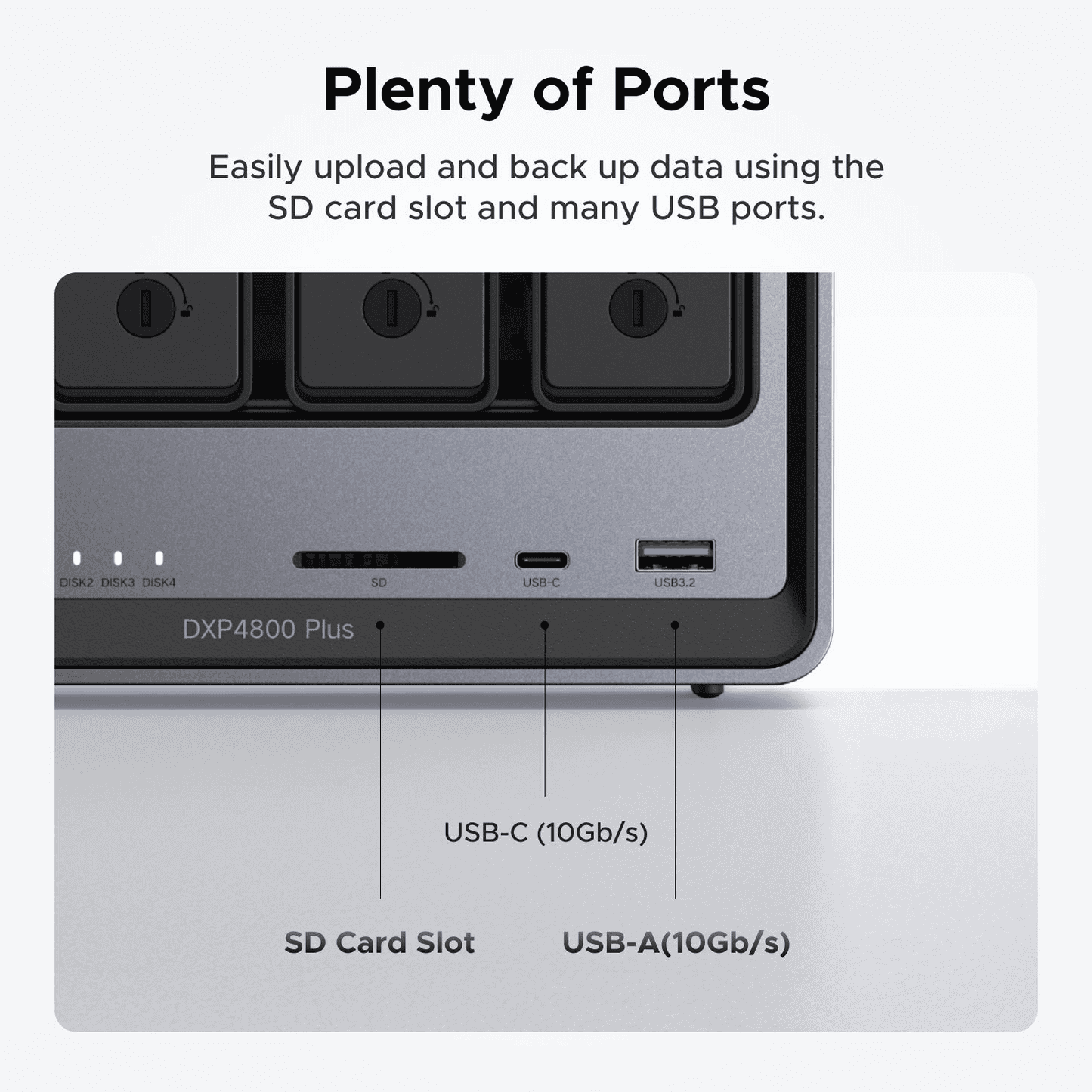

Design & Connectivity Constructed with a premium professional aesthetic (10.1" × 7.0" × 7.0"), the DXP4800 Plus features a front-facing 10Gb/s USB-C and USB-A array for high-speed external backups. The dual-LAN setup (10GbE + 2.5GbE) allows for network failover or load balancing, ensuring your data is always accessible when you need it most.
Specification
DXP4800 Plus Specifications
| SKU | 35260 |
| Model | DXP4800 Plus |
| Supported Languages | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 4-Bay (SATA) |
| Operating System | UGOS Pro |
| CPU Model | 8505 |
| CPU Brand & Architecture | Intel x86 12th Generation Intel® Pentium® Gold, 5 Cores / 6 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (Max) | 64GB |
| Flash Memory (System Disk) | 128GB SSD |
| SATA Drive Bays | 4 |
| M.2 SSD Drive Slots | 2 |
| RAID Support | JBOD / Basic / RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 |
| Maximum Storage | 136TB (4 × 30TB + 2 × 8TB) |
| LAN Ports (RJ45) | 1 × 2.5GbE, 1 × 10GbE |
| PCIe Expansion | Not Supported |
| Thunderbolt™ 4 Ports | Not Supported |
| High-Speed USB Ports (Front) | 1 × USB-C (10Gb/s) 1 × USB-A (10Gb/s) |
| High-Speed USB Ports (Rear) | 1 × USB-A (5Gb/s) |
| USB 2.0 Ports (Rear) | 2 × USB-A (480Mb/s) |
| SD Card Reader | SD 3.0 |
| HDMI | 4K Output |
| Wi-Fi | Not Supported |
| Product Dimensions | 10.1 × 7.0 × 7.0 inches |
| Power Consumption | 42.36W (Drive Access) 18.12W (Drive Hibernation) |
