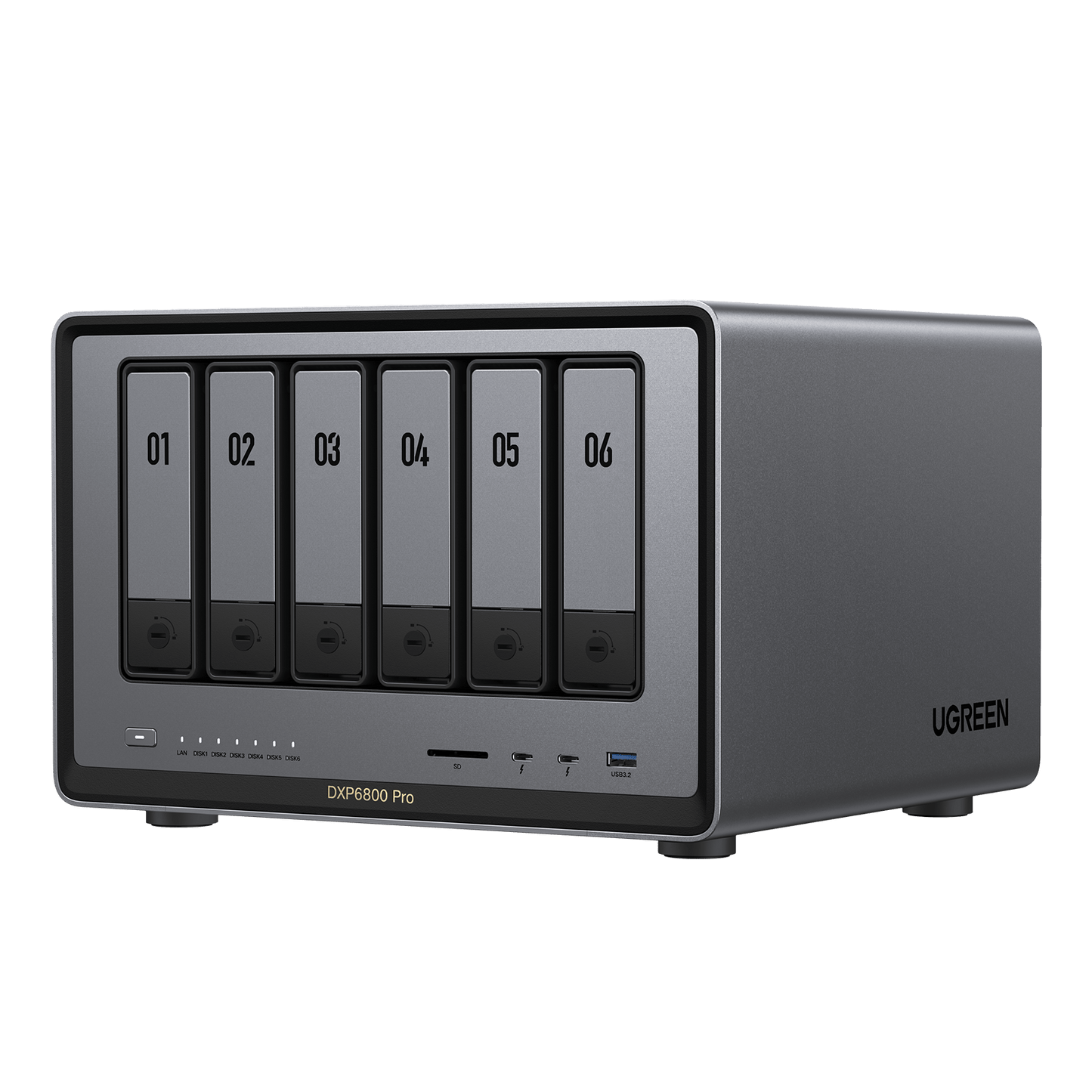

UGREEN NASync DXP6800 Pro 6-Bay NAS, Intel Core i5-1235U 10-Core, Dual 10GbE, 2x Thunderbolt 4, 8GB DDR5, 8K HDMI, AI-Powered Storage, (No Hardisk Inside )
Model :
SKU : NAS-UGREEN DXP6800 PRO 6B
The UGREEN NASync DXP6800 Pro is a high-performance 6-bay NAS solution powered by a 12th Gen Intel® Core™ i5 10-core processor, designed for elite creators and power users. Featuring dual 10GbE ports for up to 20G aggregated bandwidth and dual Thunderbolt 4 ports, it delivers blistering data transfer speeds and seamless 8K video output. With a massive 196TB storage capacity and an AI-driven management system, this NAS redefines efficiency for professional media libraries and secure data backups.
Description
Step into the next generation of data management with the UGREEN NASync DXP6800 Pro. This 6-bay flagship NAS is engineered to handle the most demanding creative and professional workflows of 2026. Combining the raw power of an Intel Core i5-1235U 10-core processor with cutting-edge connectivity, the DXP6800 Pro serves as a centralized powerhouse for high-speed file editing, 8K media streaming, and secure multi-user collaboration.
Key Features
- 12th Gen Intel i5 Performance: Experience a "leaps and bounds" improvement in multitasking. The 10-core, 12-thread architecture ensures that heavy indexing, containerized apps, and multiple 4K/8K streams run smoothly without system bottlenecks.
- Dual 10GbE & Thunderbolt 4 Connectivity: Speed is at the core of the DXP6800 Pro. The dual 10GbE ports can be aggregated to achieve speeds up to 2500MB/s, while the two Thunderbolt 4 ports (40Gb/s) allow for lightning-fast direct connections to your workstation, making it ideal for real-time video editing directly off the NAS.

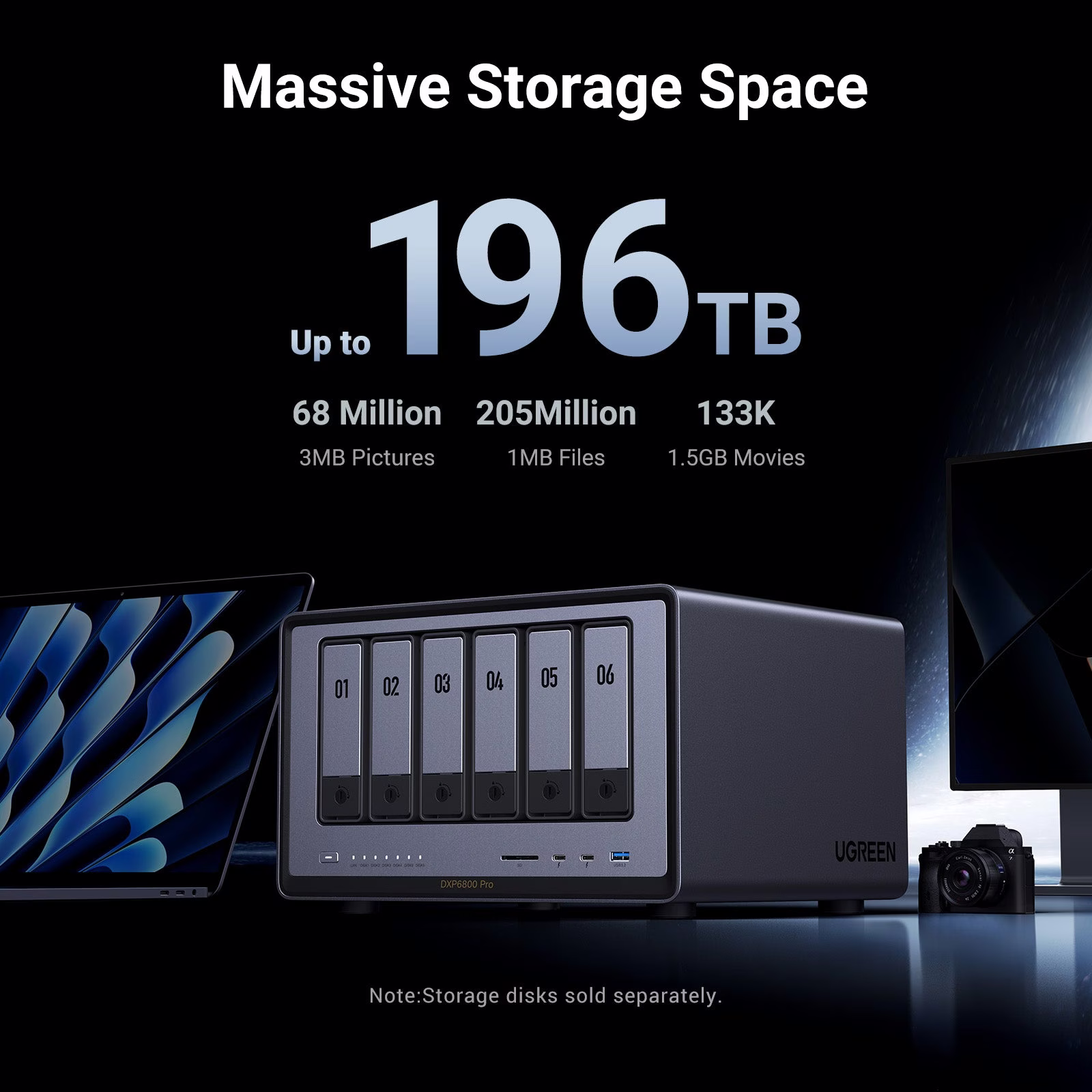

- Massive 196TB Capacity: With six SATA bays and two M.2 NVMe slots, you can scale your storage up to an incredible 196TB. Whether you need the redundancy of RAID 6/10 or the raw speed of RAID 0, the UGOS Pro operating system provides flexible management for your ever-growing digital library.
- AI-Powered Photo Management: The integrated AI Photo Album intelligently organizes your life. Using advanced recognition, it categorizes photos by faces, scenes, and objects, while a smart duplicate-removal feature ensures you never waste space on redundant files.
- 8K Multimedia Experience: Equipped with an 8K HDMI port, this NAS doubles as a high-end media center. Stream ultra-high-definition content directly to your display, supported by the latest hardware transcoding capabilities of the Intel i5 chip.
Expandability & Security The DXP6800 Pro is built for the future. It comes with 8GB of DDR5 4800MHz RAM, which can be expanded up to 64GB for intensive virtualization tasks. Hardware-level security is bolstered by an internal 128GB SSD system disk, ensuring the UGOS Pro operating system remains fast and responsive while your data is protected across multiple RAID levels
Specification
DXP6800 Pro NAS
| SKU | 25898 |
| Model | DXP6800 Pro |
| Supported Languages | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| System | |
| Operating System | UGOS Pro |
| CPU Model | Intel® Core™ i5-1235U |
| CPU Architecture | Intel x86, 12th Gen, 10 Cores / 12 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC Support | Supported |
| Maximum Expandable RAM | Up to 64GB |
| System Disk | 128GB SSD |
| Storage | |
| Drive Bays | 6-Bay SATA |
| M.2 SSD Slots | 2 |
| RAID Support | JBOD, Basic, RAID 0 / 1 / 5 / 6 / 10 |
| Maximum Storage Capacity | 196TB (6 × 30TB + 2 × 8TB) |
| Networking | |
| LAN Ports | 2 × 10GbE RJ45 |
| Wi-Fi | — |
| Expansion & Connectivity | |
| PCIe Expansion | 1 × PCIe x4 |
| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB (Front) | 2 × Thunderbolt 4 (40Gb/s) |
| High-Speed USB (Rear) | 1 × USB-A 3.2, 2 × USB-A 2.0 |
| USB 2.0 (Rear) | 2 × USB-A (480Mb/s) |
| SD Card Reader | SD 4.0 |
| HDMI Output | 8K |
| Power | |
| Power Consumption (Drive Access) | 43.07 W |
| Power Consumption (Drive Hibernation) | 24.91 W |
| Physical | |
| Product Dimensions (L × W × H) | 11.54 × 10.16 × 7.87 inches |
