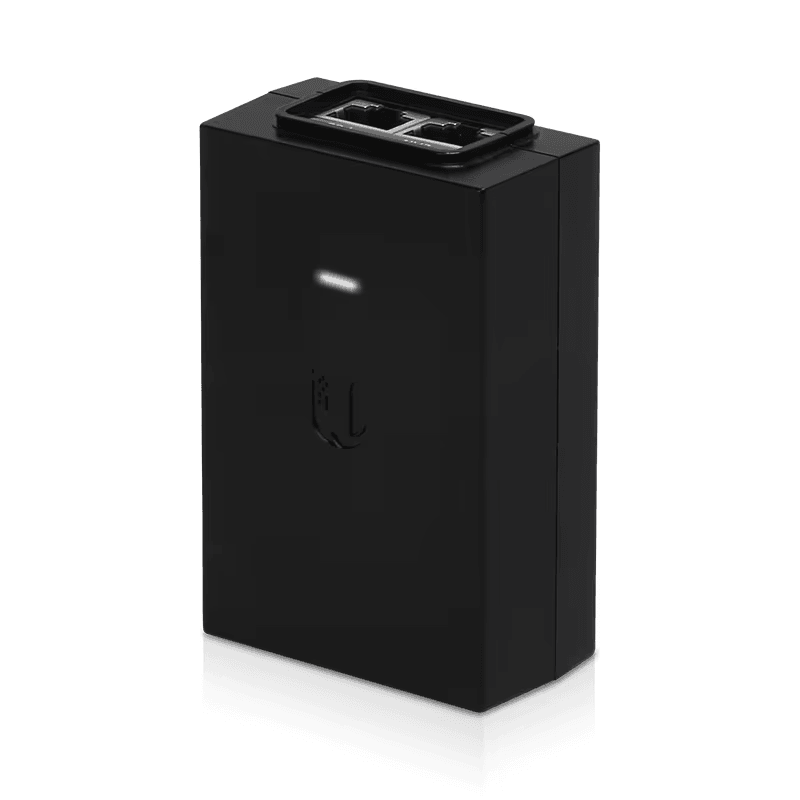

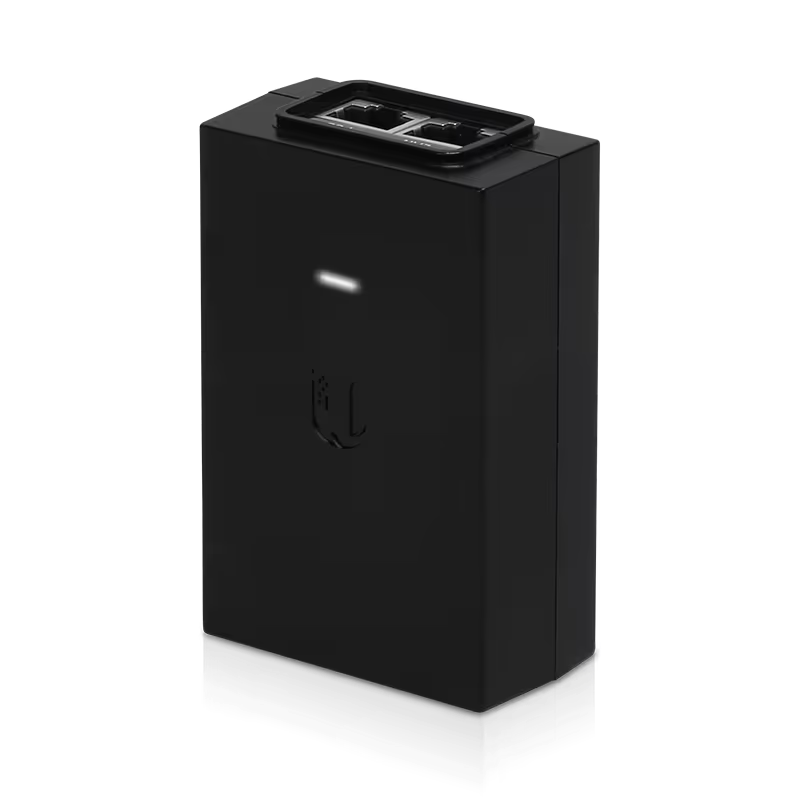

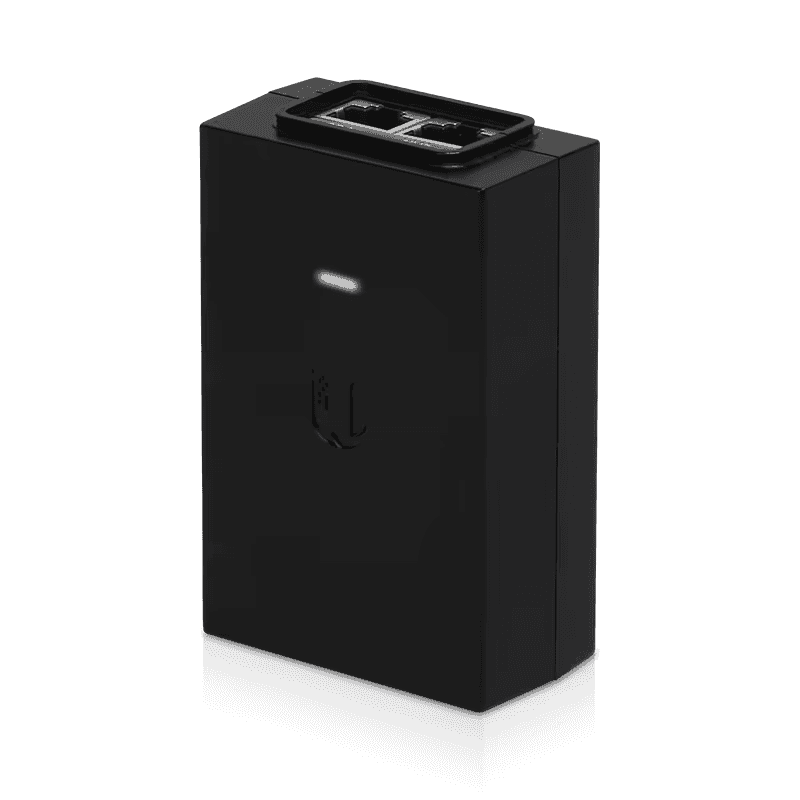

Unifi 48V PoE Adapter, Surge and clamping protection, Peak pulse current, AC cable with earth ground | POE-48-24W-G
Model :
SKU : UNIFI 48V(0.5A) POE ADAPT
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Unifi 48V PoE Adapter, Surge and clamping protection, Peak pulse current, AC cable with earth ground | POE-48-24W-G Specifications
| Dimensions | 92 x 60 x 33 mm (3.6 x 2.4 x 1.3") |
| Weight | 159 g (5.6 oz) |
| Output Voltage | 48V DC @ 0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240V AC @ 50/60Hz |
| Input Current | 0.6A @ 120V AC, 0.4A @ 240V AC |
| Inrush Current | <65A Peak @ 120V AC, <130A peak @ 230V AC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ??? 3% |
| Load Regulation | ??? 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | ??? |
| Storage Temperature | -30 to 70??C (-22 to 158??F) |
| Ambient Operating Temperature | 0 to 40??C (32 to 104??F) |
| Ambient Operating Humidity | 35 to 95% noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 ??s) power |
| Peak Pulse Current | 36A (10/1000 ??s) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
Specification
Unifi 48V PoE Adapter, Surge and clamping protection, Peak pulse current, AC cable with earth ground | POE-48-24W-G Specifications
| Dimensions | 92 x 60 x 33 mm (3.6 x 2.4 x 1.3") |
| Weight | 159 g (5.6 oz) |
| Output Voltage | 48V DC @ 0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240V AC @ 50/60Hz |
| Input Current | 0.6A @ 120V AC, 0.4A @ 240V AC |
| Inrush Current | <65A Peak @ 120V AC, <130A peak @ 230V AC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ??? 3% |
| Load Regulation | ??? 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | ??? |
| Storage Temperature | -30 to 70??C (-22 to 158??F) |
| Ambient Operating Temperature | 0 to 40??C (32 to 104??F) |
| Ambient Operating Humidity | 35 to 95% noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 ??s) power |
| Peak Pulse Current | 36A (10/1000 ??s) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
