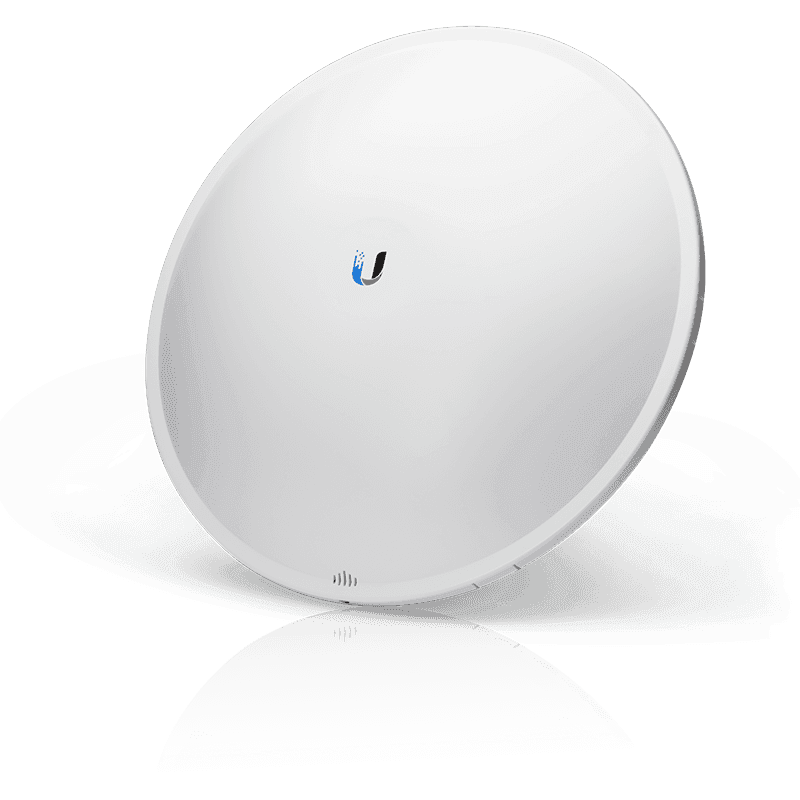

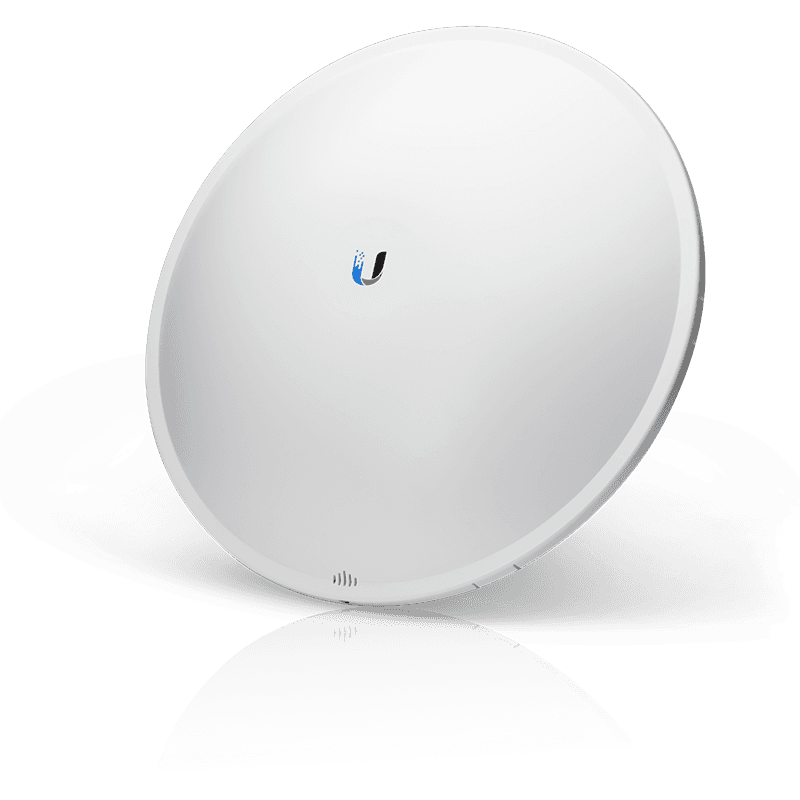

Unifi airMAX PowerBeam 5AC 500, 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate

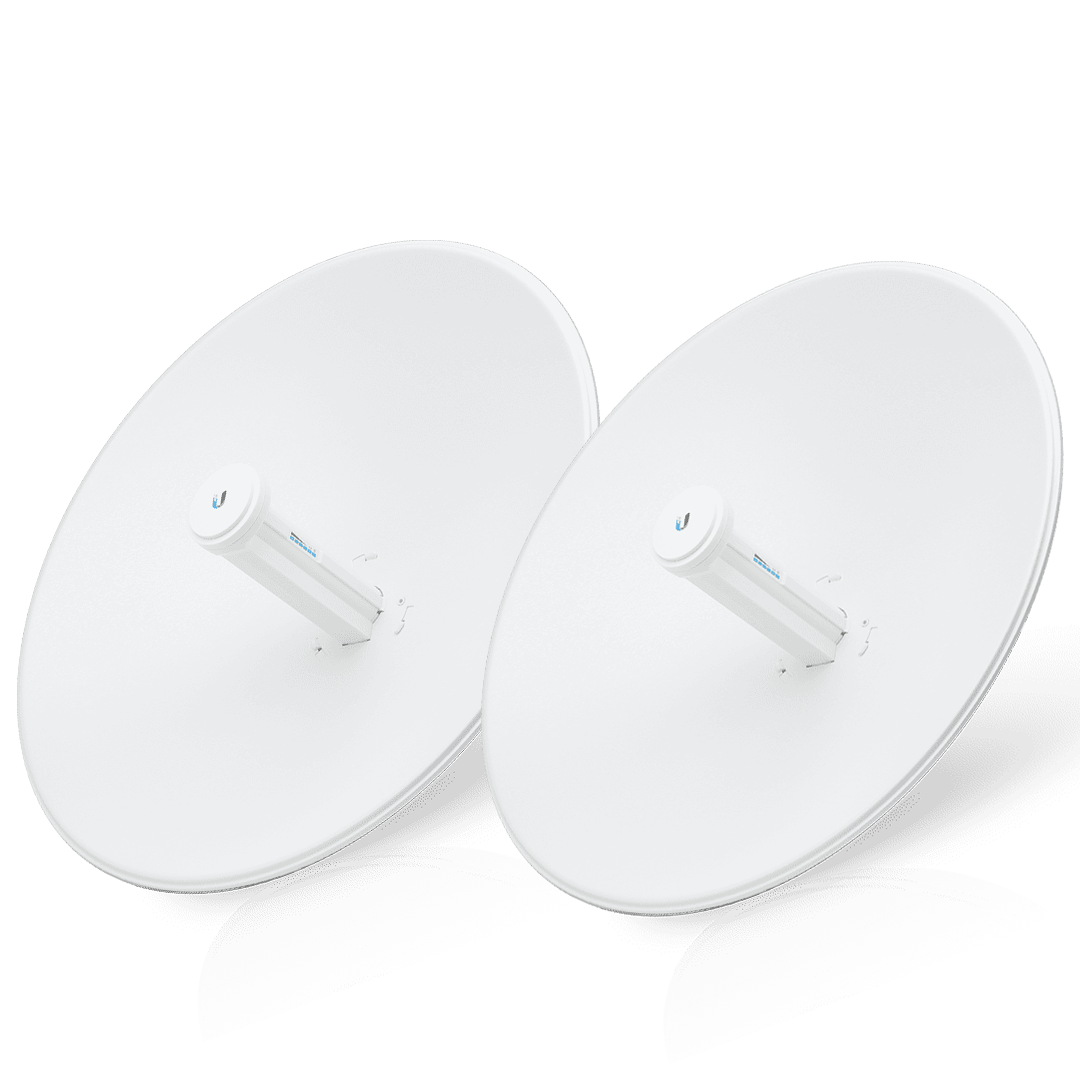

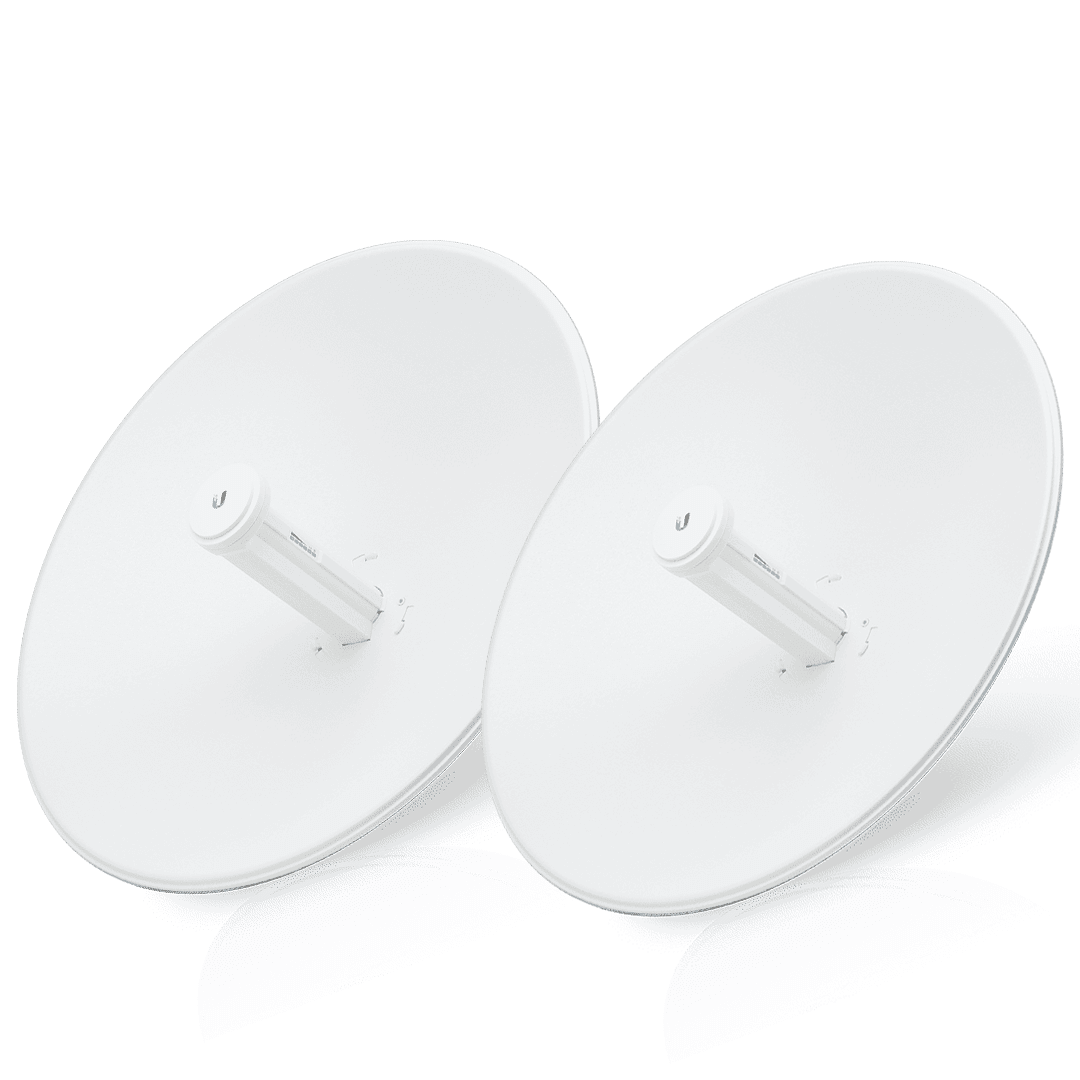

Ubiquiti Unifi airMAX PowerBeam 5AC 500 (2-Pack), 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate | PBE-5AC-500 - product view 1 of 8

Free Delivery

View Shipping Policy

Safe Payment

View Payment Options

24/7 Help Center

Hassle-Free Returns

Return Policy Details

Friendly Services

About Us

Adarc Computer established in the year 2007, has emerged as a major constituent of the IT Re-distribution industry in every part of UAE. Currently, Adarc Computer is the authorized dealer of global leading brands.

Customer Service	Quick Links
Contact Us	My Account
Warranty & Repairs Policy	Cart
Shipping Policy	Wishlist
Online Returns Policy	View All Categories
Payment Terms

Connect us:

🇦🇪 +97126763999

Abu Dhabi - Hamdan Bin

Terms And Conditions

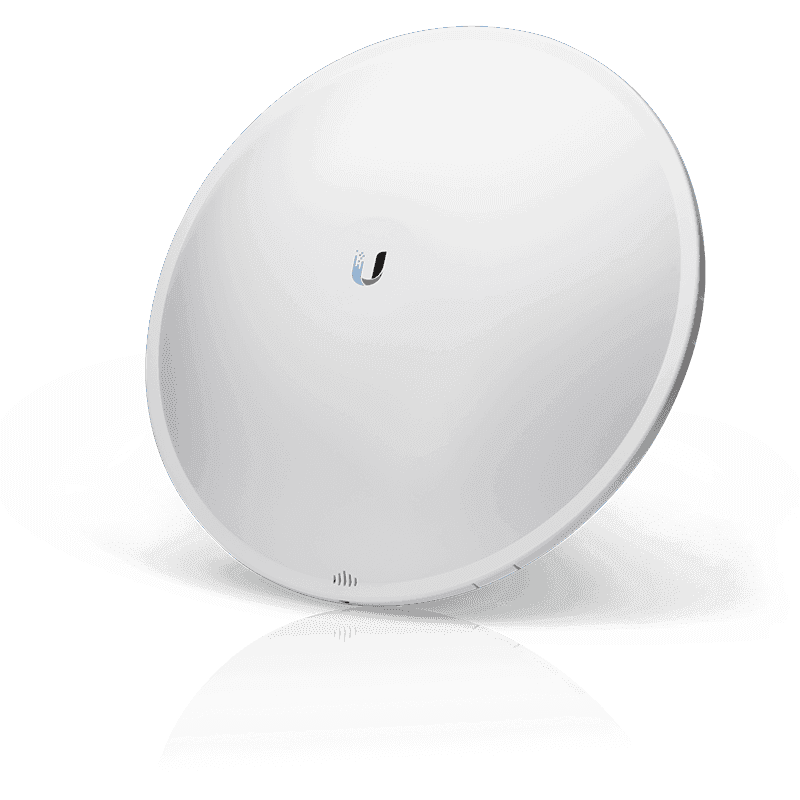

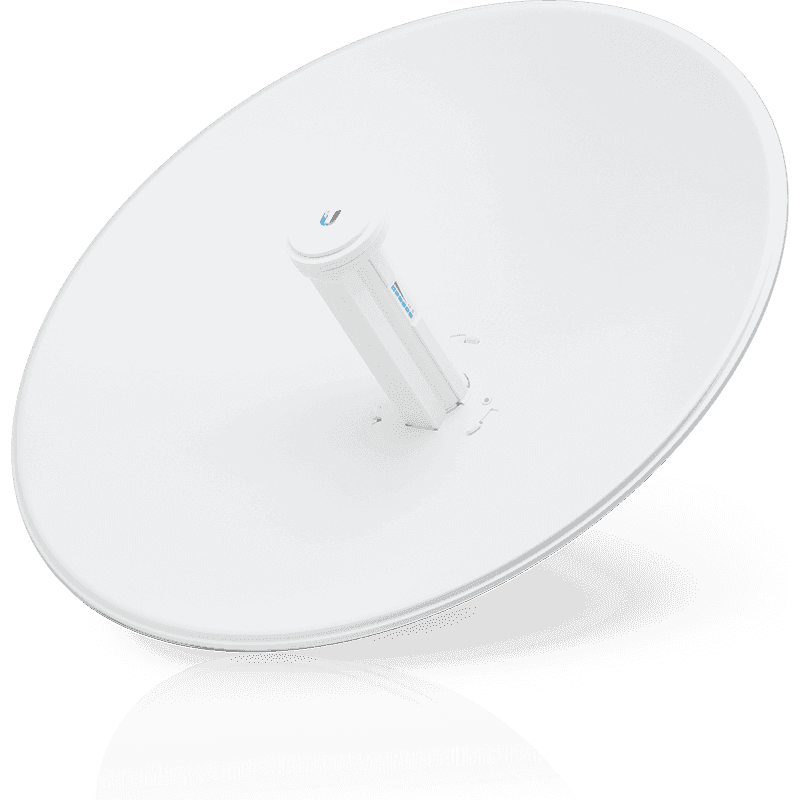

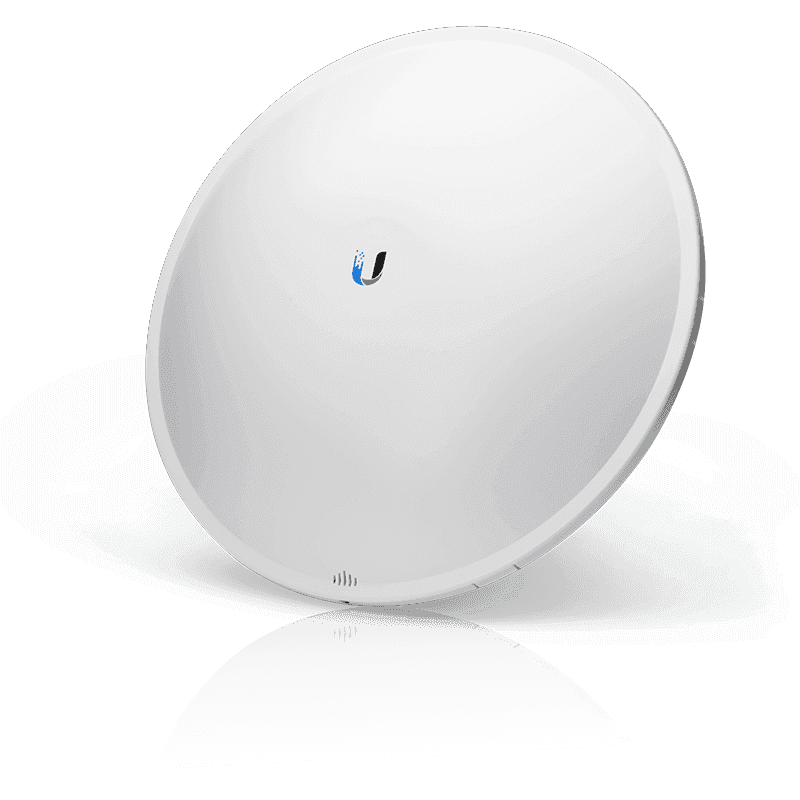

The Ubiquiti airMAX PowerBeam 5AC 500 (2-Pack) is a high-performance wireless bridge solution designed for long-range point-to-point connectivity. Operating on the 5 GHz frequency, it delivers reliable wireless performance with real TCP/IP throughput speeds exceeding 450 Mbps.

Engineered with advanced airMAX AC technology, the PowerBeam ensures stable connections and efficient spectrum utilization for demanding outdoor wireless deployments. Its directional antenna design enhances signal focus and long-distance transmission performance.

Ideal for internet distribution, building-to-building connectivity, and outdoor networking applications, the PBE-5AC-500 offers dependable wireless communication in enterprise, ISP, and commercial environments.

This 2-pack solution provides a complete setup for high-speed wireless bridge deployment.

Mechanical

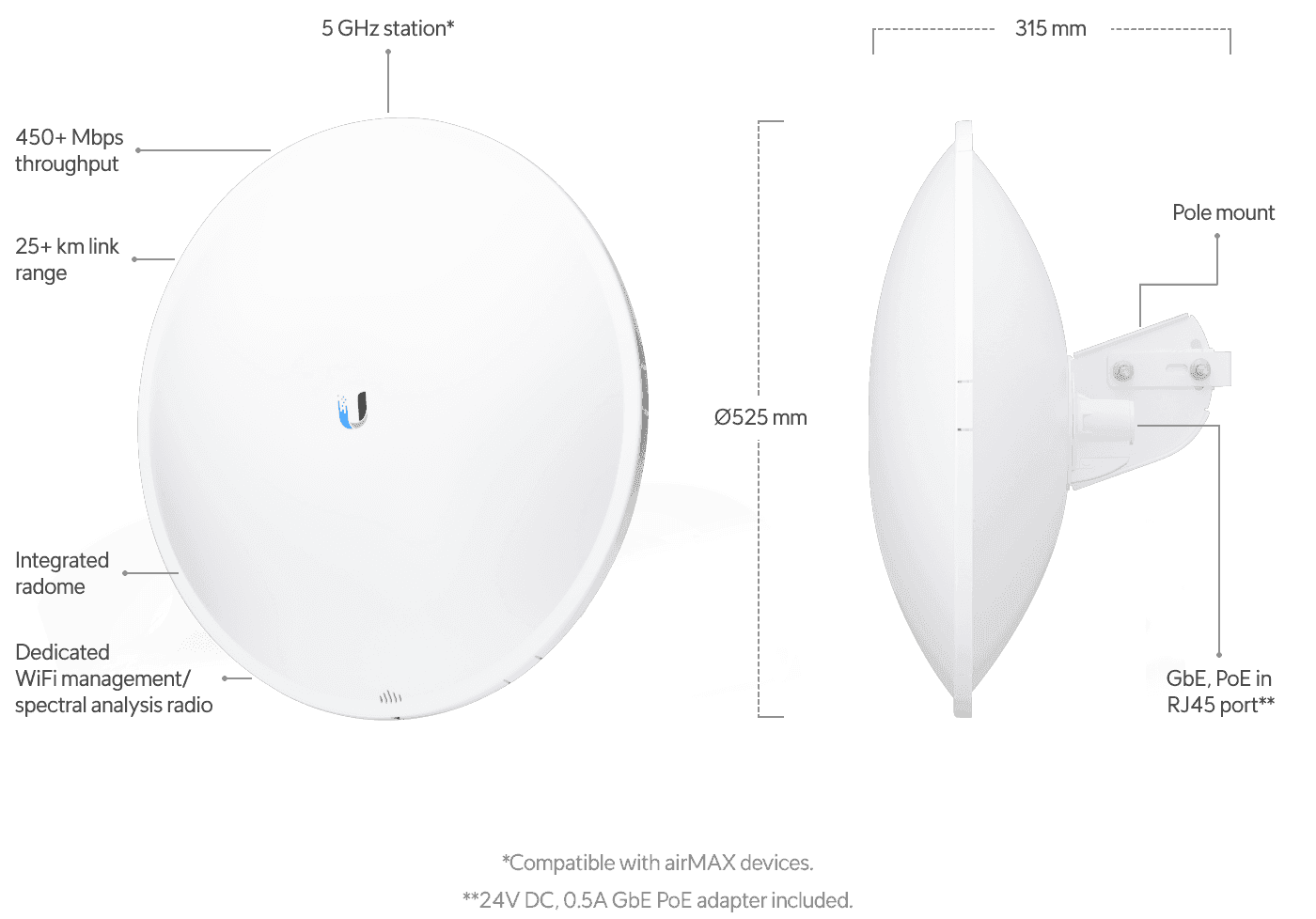

Dimensions	Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1") With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4")
Weight	Without radome: 2.35 kg (5.2 lb) With radome: 3.2 kg (7 lb)
Enclosure Material	UV-stabilized plastic

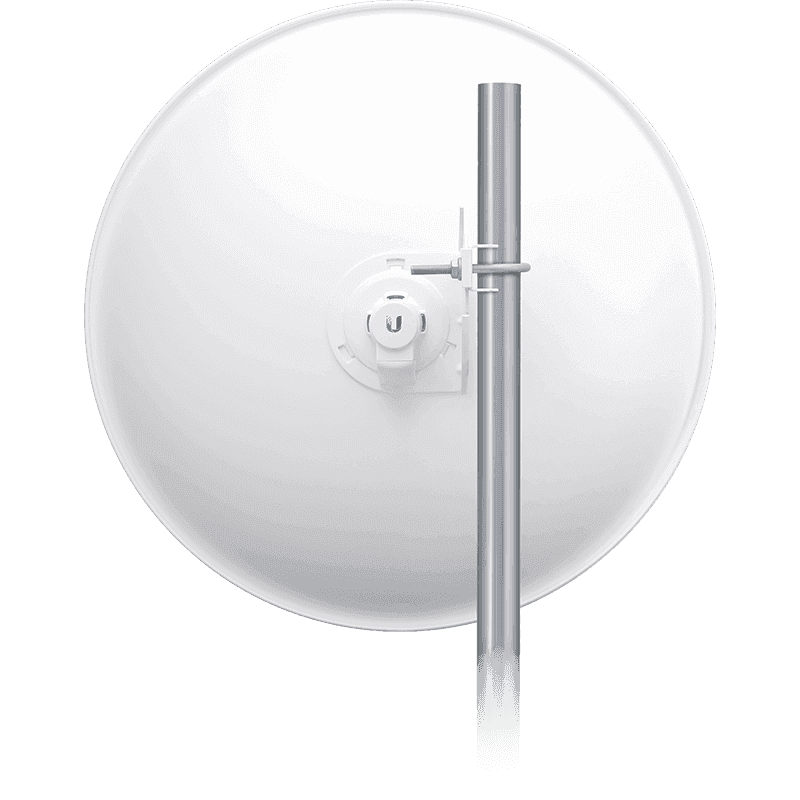

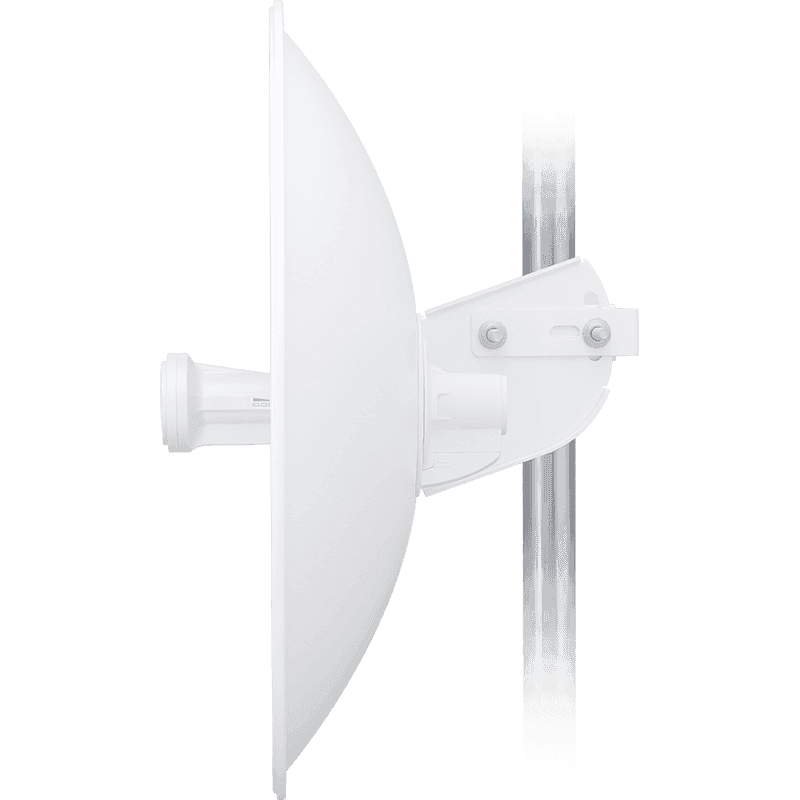

Mounting	Pole mount kit (Included)
Wind Loading	264.6 N at 96 km/h (60 lbf at 60 mph)
Wind Survivability	96 km/h (60 mph)
Hardware

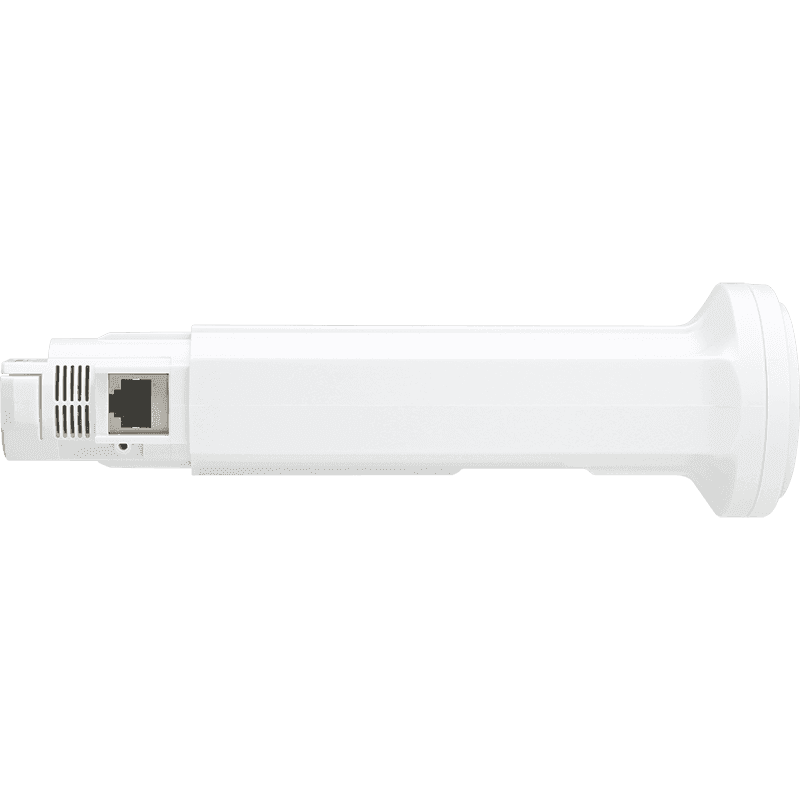

Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	20–27V DC
Max. Power Consumption	8.5W
ESD/EMP Protection	Air/contact: ± 24 kV
LEDs	(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs	Software-adjustable to correspond to custom RSSI levels
Salt Fog Test	IEC 68-2-11 (ASTM B117) — Equivalent: MIL-STD-810 G method 509.5
Vibration Test	IEC 68-2-6
Temperature Shock Test	IEC 68-2-14
UV Test	IEC 68-2-5 at 40° C (104° F) — Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test	ETS 300 019-1-4 — Equivalent: MIL-STD-810 G method 506.5
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE, RoHS
System
Gain	27 dBi
Max. VSWR	1.5:1
Channel Sizes	PtP Mode: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz PtMP Mode: 10 / 20 / 30 / 40 MHz
Polarization	Dual linear
Operating Frequency (MHz)	Worldwide: 5150 – 5875 MHz USA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz
NDAA Compliant	Yes

Description

This 2-pack solution provides a complete setup for high-speed wireless bridge deployment.

Specification

Mechanical
Dimensions	Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1") With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4")
Weight	Without radome: 2.35 kg (5.2 lb) With radome: 3.2 kg (7 lb)
Enclosure Material	UV-stabilized plastic
Mounting	Pole mount kit (Included)
Wind Loading	264.6 N at 96 km/h (60 lbf at 60 mph)
Wind Survivability	96 km/h (60 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	20–27V DC
Max. Power Consumption	8.5W
ESD/EMP Protection	Air/contact: ± 24 kV
LEDs	(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs	Software-adjustable to correspond to custom RSSI levels
Salt Fog Test	IEC 68-2-11 (ASTM B117) — Equivalent: MIL-STD-810 G method 509.5
Vibration Test	IEC 68-2-6
Temperature Shock Test	IEC 68-2-14
UV Test	IEC 68-2-5 at 40° C (104° F) — Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test	ETS 300 019-1-4 — Equivalent: MIL-STD-810 G method 506.5
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE, RoHS
System
Gain	27 dBi
Max. VSWR	1.5:1
Channel Sizes	PtP Mode: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz PtMP Mode: 10 / 20 / 30 / 40 MHz
Polarization	Dual linear
Operating Frequency (MHz)	Worldwide: 5150 – 5875 MHz USA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz
NDAA Compliant	Yes

Similar products

TP-Link Omada TL-PoE160S Gigabit PoE+ Injector, 30W Power Over Ethernet, 10/100/1000Mbps Speed Connectivity, Black | TL-POE160S

UGREEN Revodok Pro 210 USB-C Hub (10-in-1), 8K@30Hz HDMI, Dual 4K Monitor Support, 100W PD, Gigabit Ethernet, SD/TF, 5Gbps USB-C & USB-A, | CM639-15534

Hikvision DS-K1T344MBWX-QRE1 Face Recognition Access Control Terminal, 4.5″ Touchscreen, Face/Card/PIN/QR Authentication, 3000 Users, PoE Powered, Built-in M1 Reader

EZVIZ 4-Pack Proximity Card RFID (Key Tags), Anti-Copying, For EZVIZ Smart Locks & Doorphones | CS-DL-IC-CPU-R200

Tp-Link Gigabit Sfp To Rj45 Fiber Media Converter, Fiber To Ethernet Converter 10/100/1000Mbps Rj45 Port To 1000Base-Sx Multi-Mode Fiber (MC200CM) Black

Hikvision DS-K1T807MBFWX-E1 Pro Fingerprint Access Control Terminal, With Touch Buttons, 2.4-inch LCD screen, Supports Bluetooth, Card

ZKTECO FR1200 Waterproof Fingerprint Reader with RS485 Communication Interface, IP65 Rated Rugged Structure

Logitech G29 2.3Nm Racing System Wheel & Pedals, dual-motor force feedback, Stainless Steel Paddle Shifters, Hand Stitched Leather Wheel, Adjustable Floor Pedals Accelerate | 941-000113

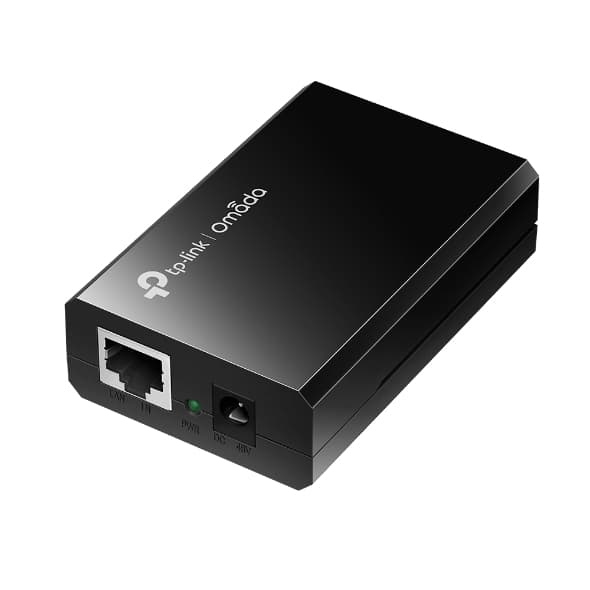

tp-link POE150S (TL-POE150S) Omada PoE Injector, Gigabit speed support, Plug-and-Play, no configuration required

tp-link 48V Passive PoE Adapter, Convenient wall-mounting design | TL-POE4818G

tp-link TX401 10 Gigabit PCI Express Network Adapter, 1?? PCI Express 3.0 x4, 1?? RJ45 Gigabit/Megabit Port

tp-link Omada 1000Base-LX SMF Mini GBIC Module, Up to 20 km transmission distance in 9/125 ??m SMF (Single-Mode Fiber) | SM311LS

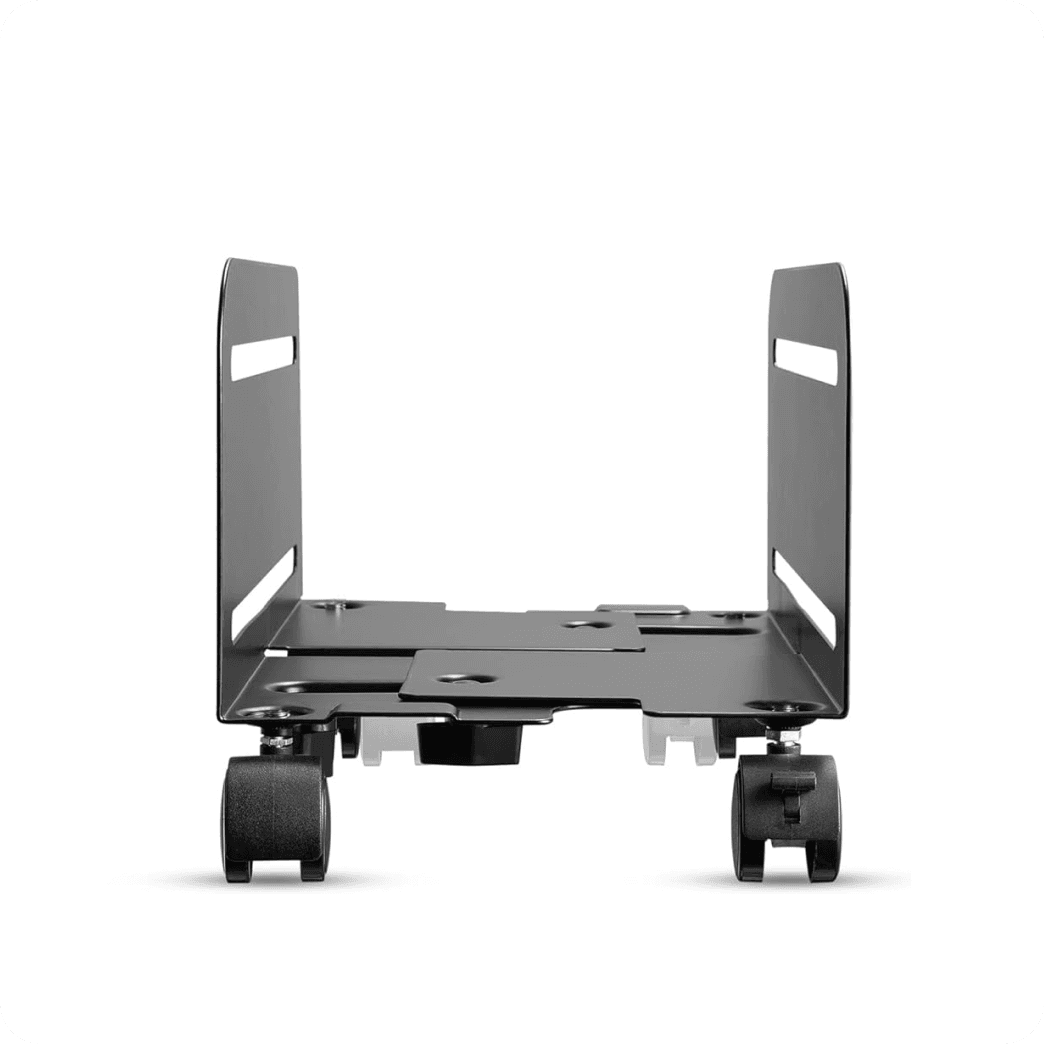

NAVO MOBILE CPU STAND, Durable & Adjustable Mobile CPU Stand, Caster wheels, Extendable Width from 4.7???-8.2??? inches

tp-link MC112CS 10/100Mbps WDM Media Converter, Extends fiber distance up to 20km

Hikvision HK-SFP-1.25G-20-1310 SFP Module

HK-SFP-1.25G Series SFP Module, Support 1.25G Ethernet

Hikvision DS-KABH6320-T Video Intercom Table Bracket, for KH6320/8520 series indoor station

TP-Link OC200 Omada Hardware Controller, Upto 100 Omada access points, 20 JetStream switches, and 10 Omada routers, USB 2.0 port for auto backup, and two Fast Ethernet ports | OC200

Hikvision access control DS-K4T100 Electric Bolt Lock Thrust 800kg Stainless Steel Hikvision

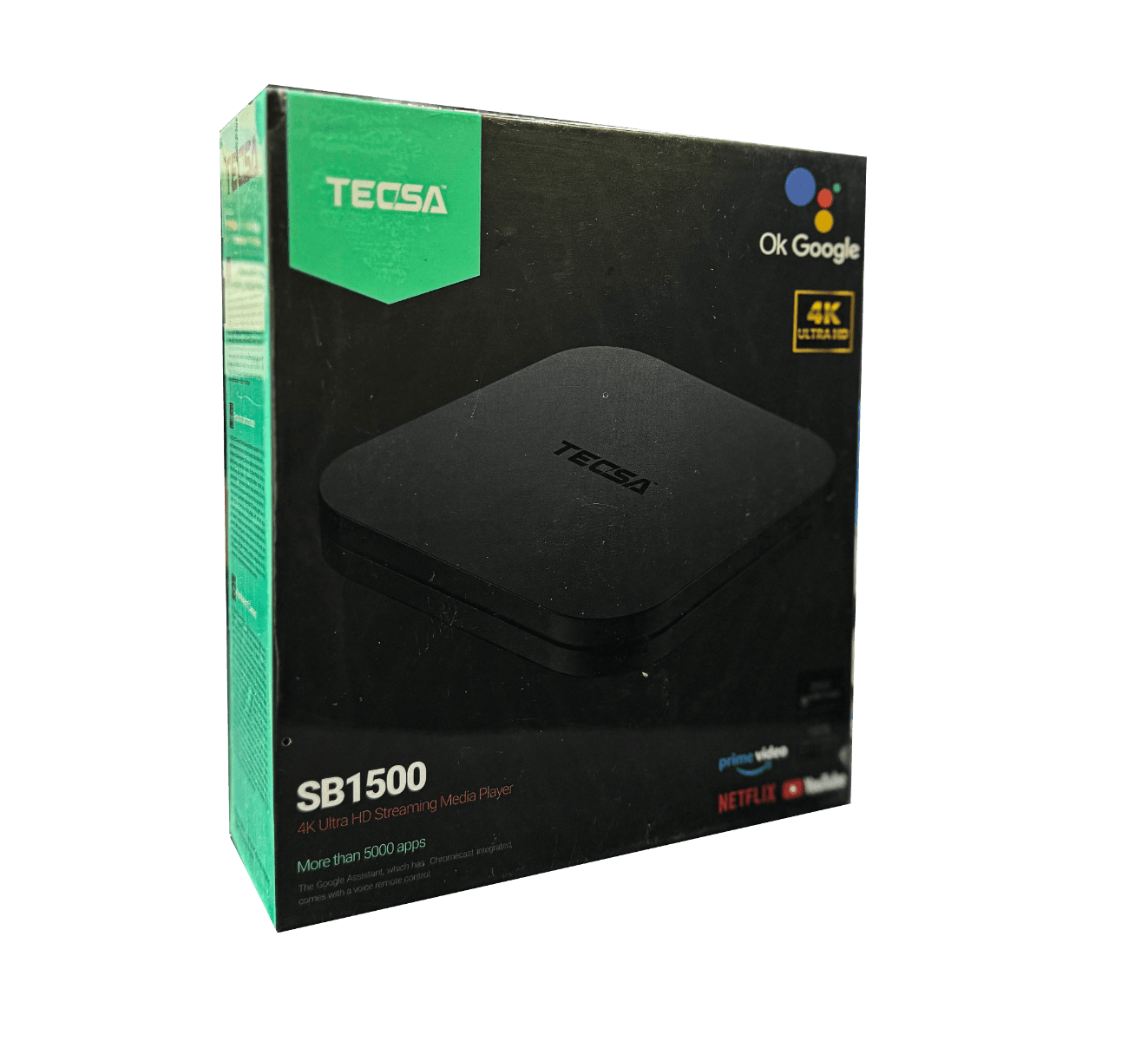

Tesca SB1500 Android TV BOX 4K Ultra HD Streaming Media Player

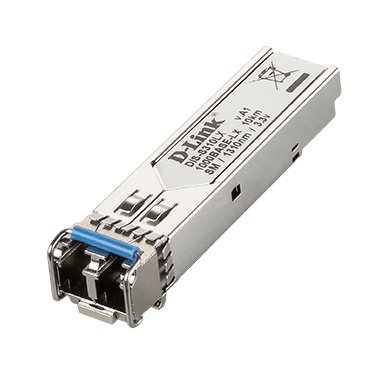

D Link 1-port Mini-GBIC SFP to 1000BaseLX Single-Mode 10km Fibre Transceiver, up to 10 km | DIS-S310LX
