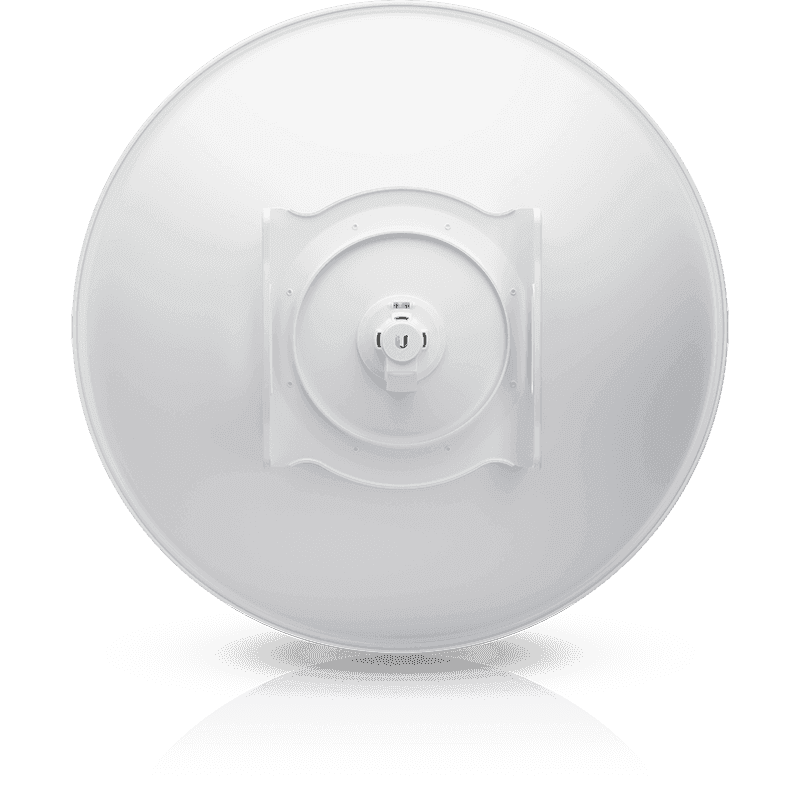

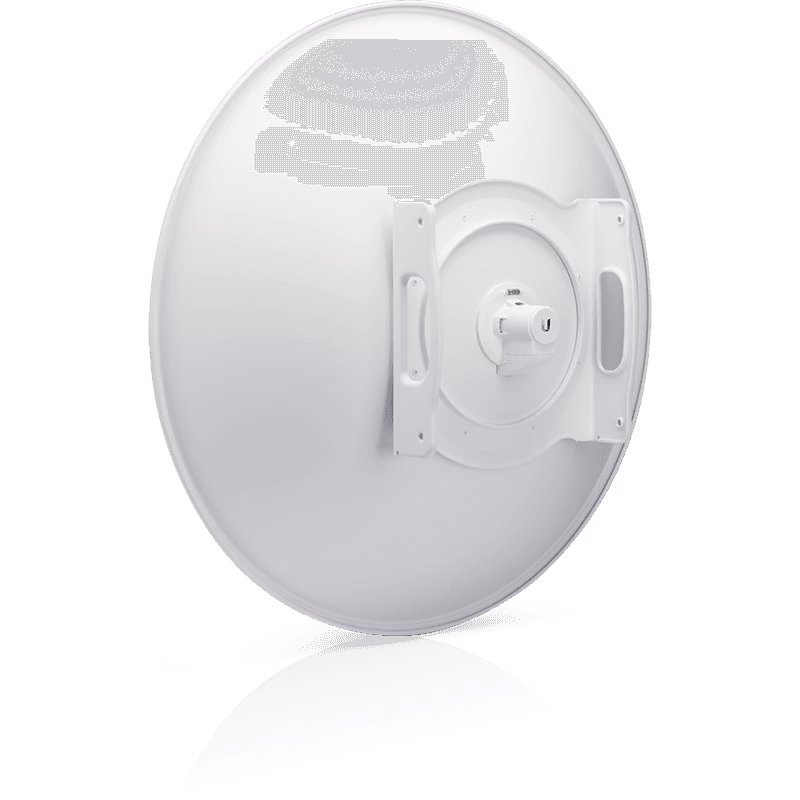

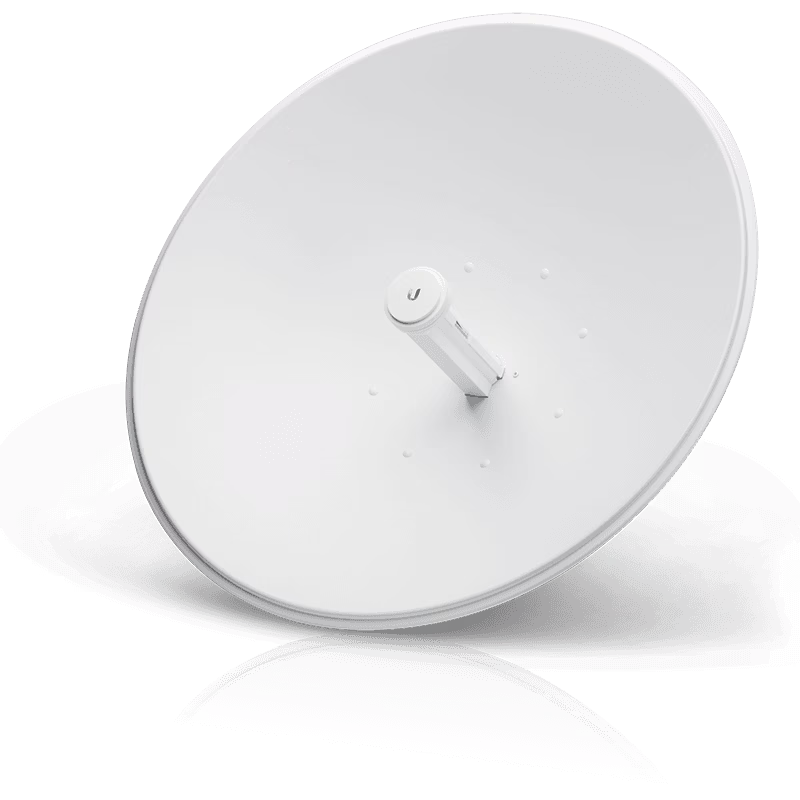

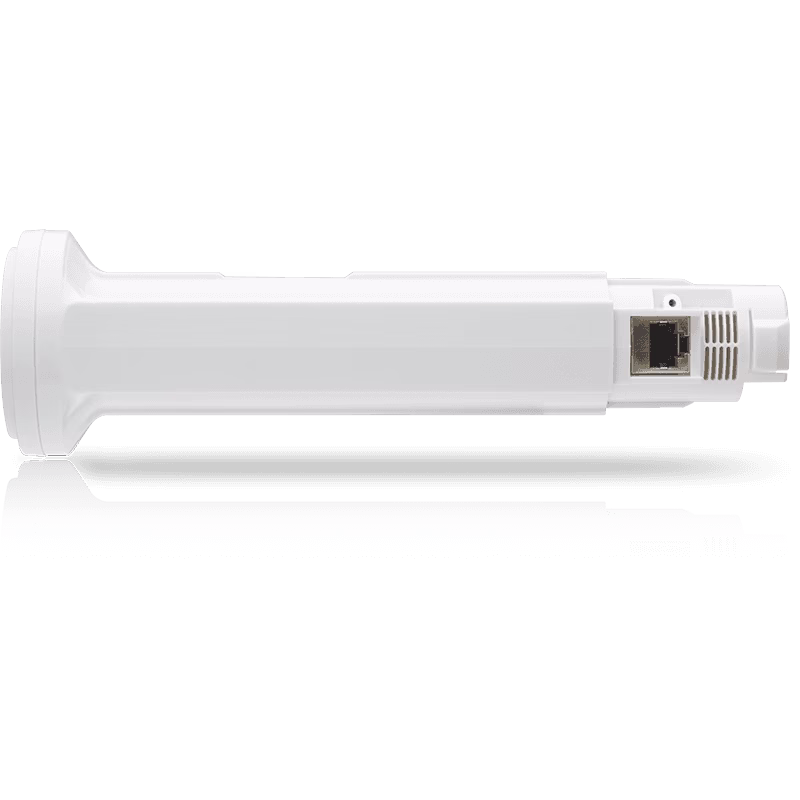

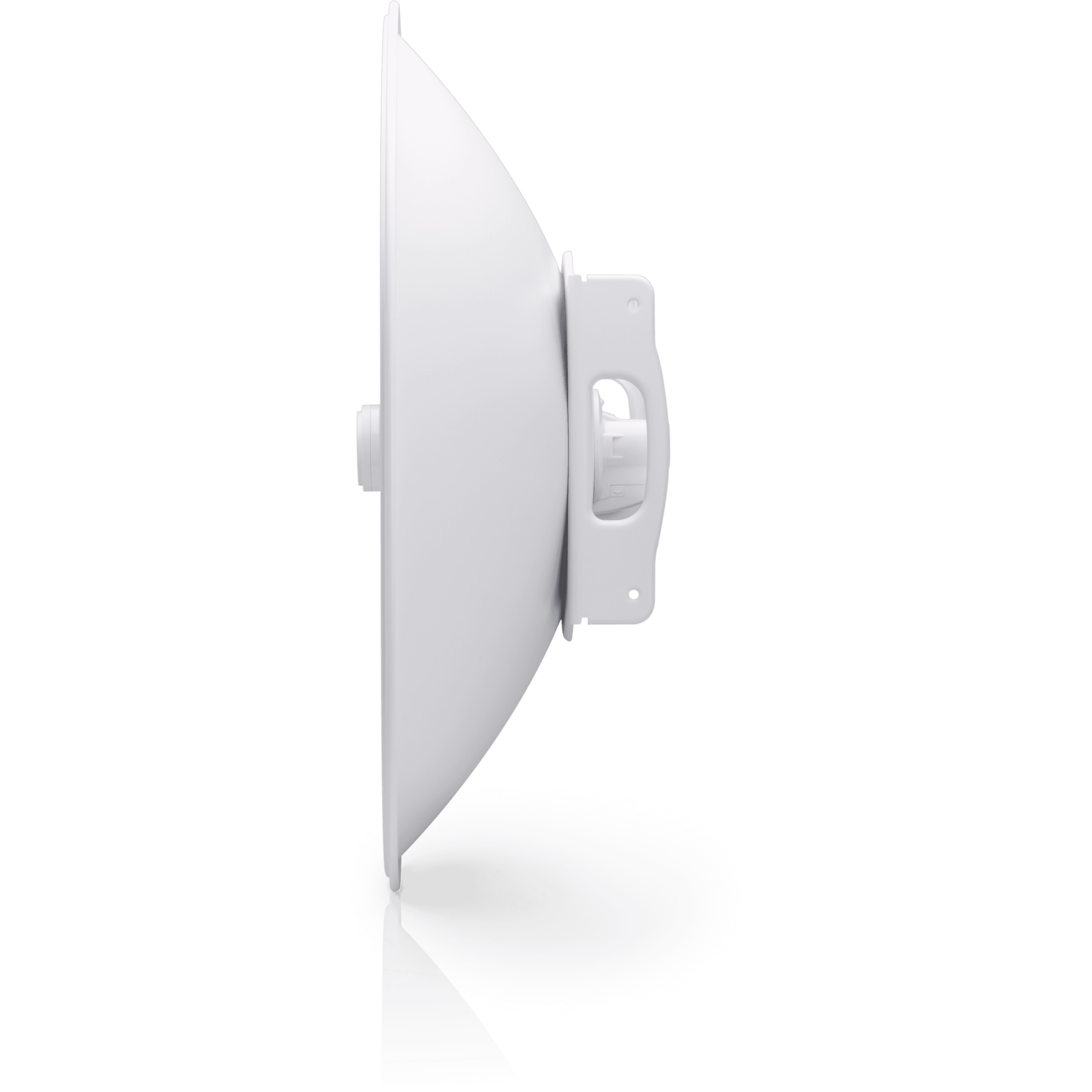

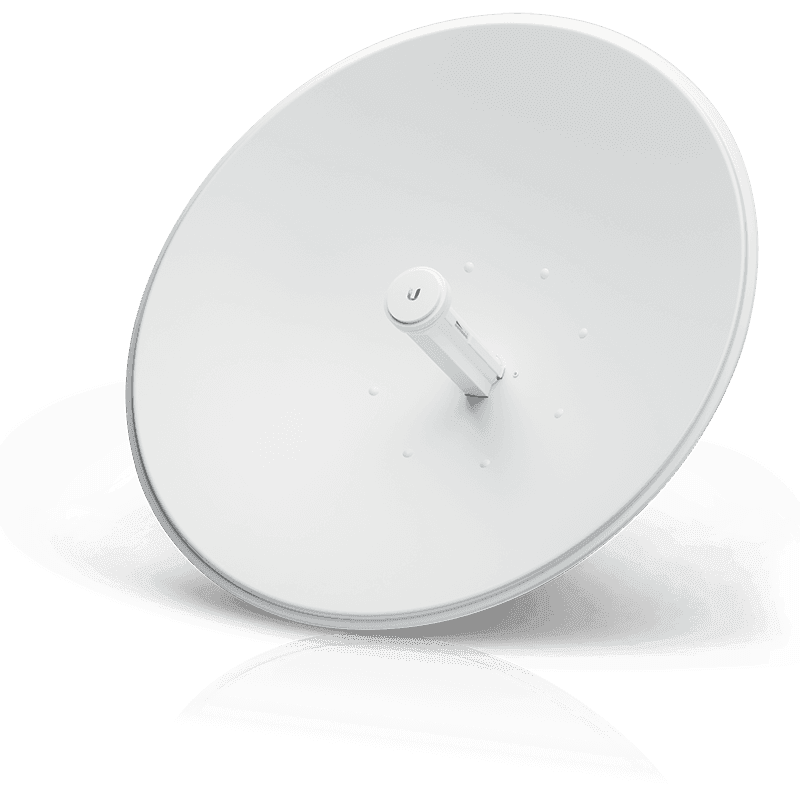

Unifi airMAX PowerBeam 5AC 620 PBE-5AC-620 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate | PBE-5AC-620
Model :
SKU : WAP-UNIFI PBE-5AC-620
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
Mechanical

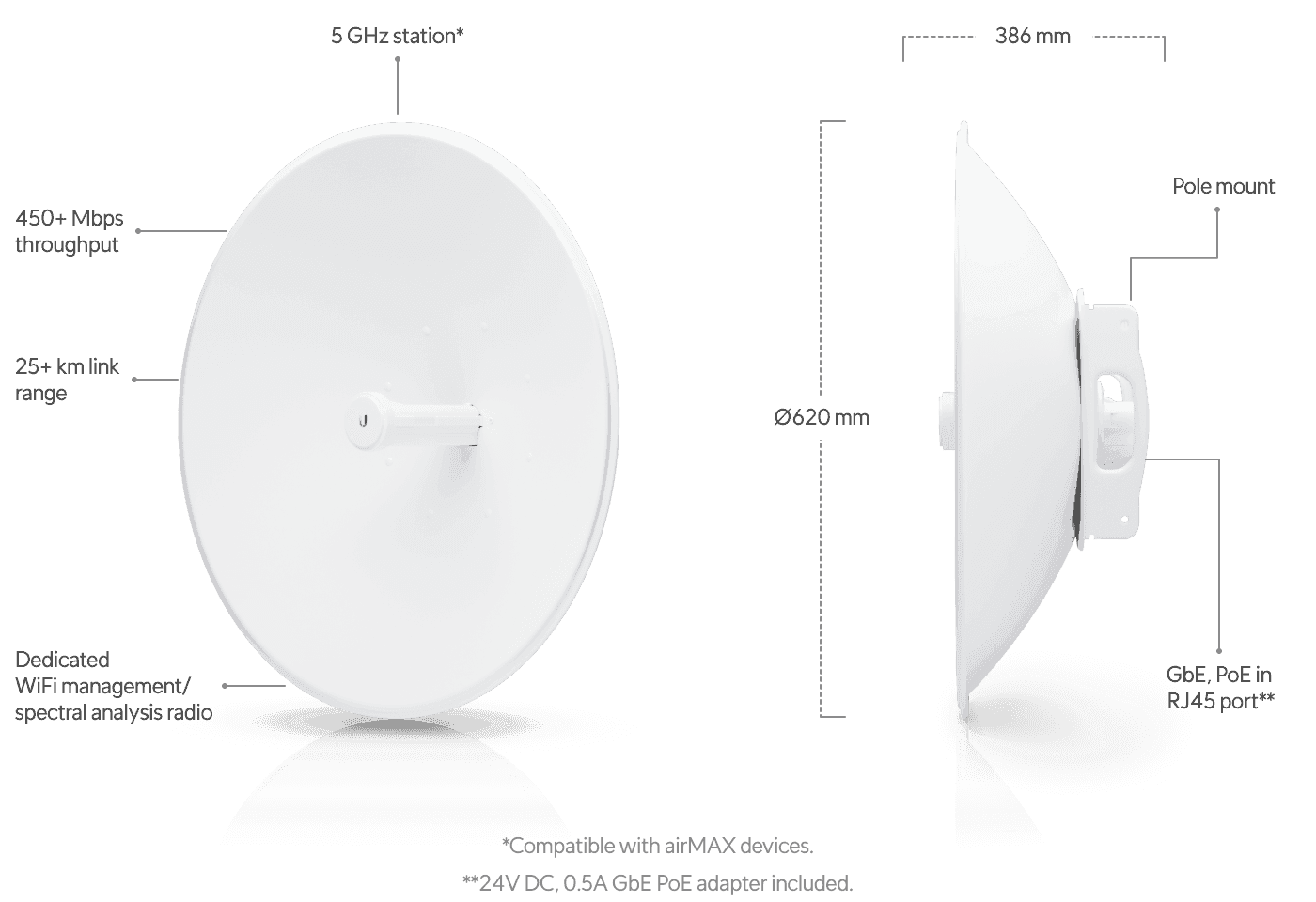

| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure Material | Outdoor UV-stabilized plastic |

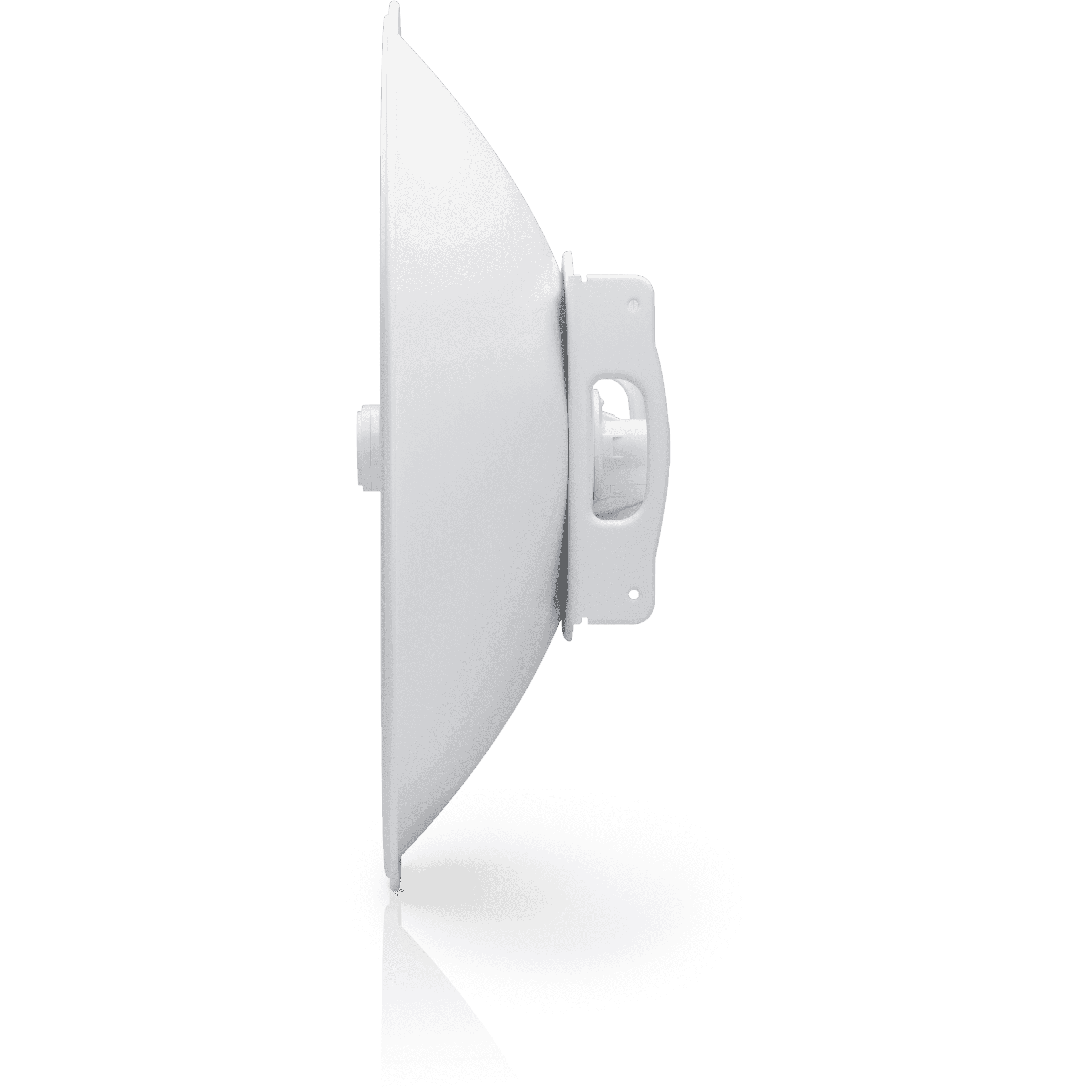

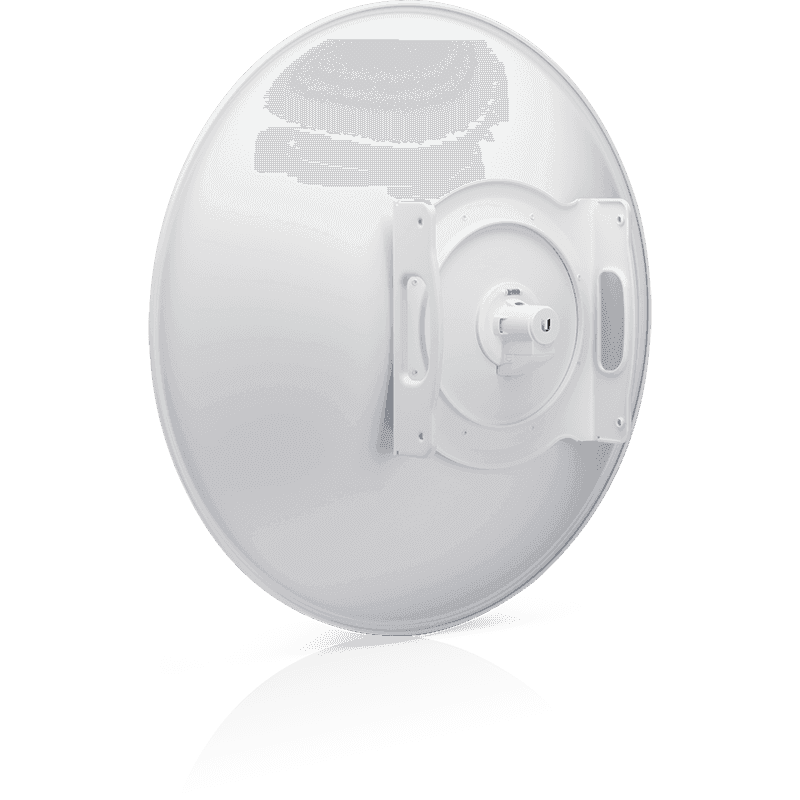

| Mounting | Pole mount kit (Included) |
| Wind Loading | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
Hardware

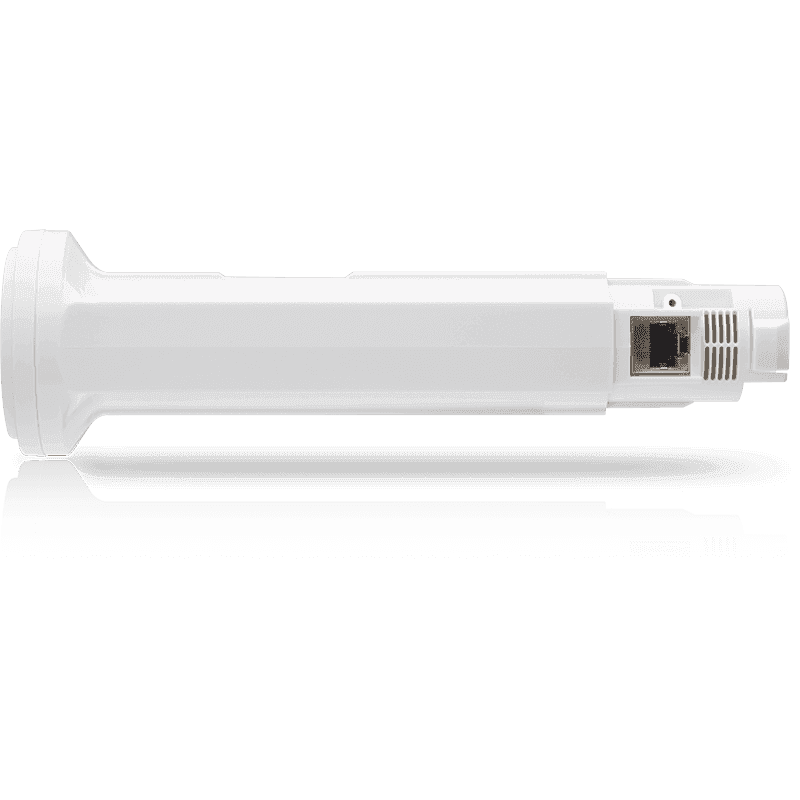

| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20-27V DC |
| Max. Power Consumption | 8.5W |
| ESD/EMP Protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5 |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
System
| Gain | 29 dBi |
| Max. VSWR | 1.6:1 |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating Frequency (MHz) | Worldwide: 5150 - 5875 MHz USA: • U-NII-1: 5150 – 5250 MHz • U-NII-2A: 5250 – 5350 MHz • U-NII-2C: 5470 – 5725 MHz • U-NII-3: 5725 – 5850 MHz |
| NDAA Compliant | Yes |
