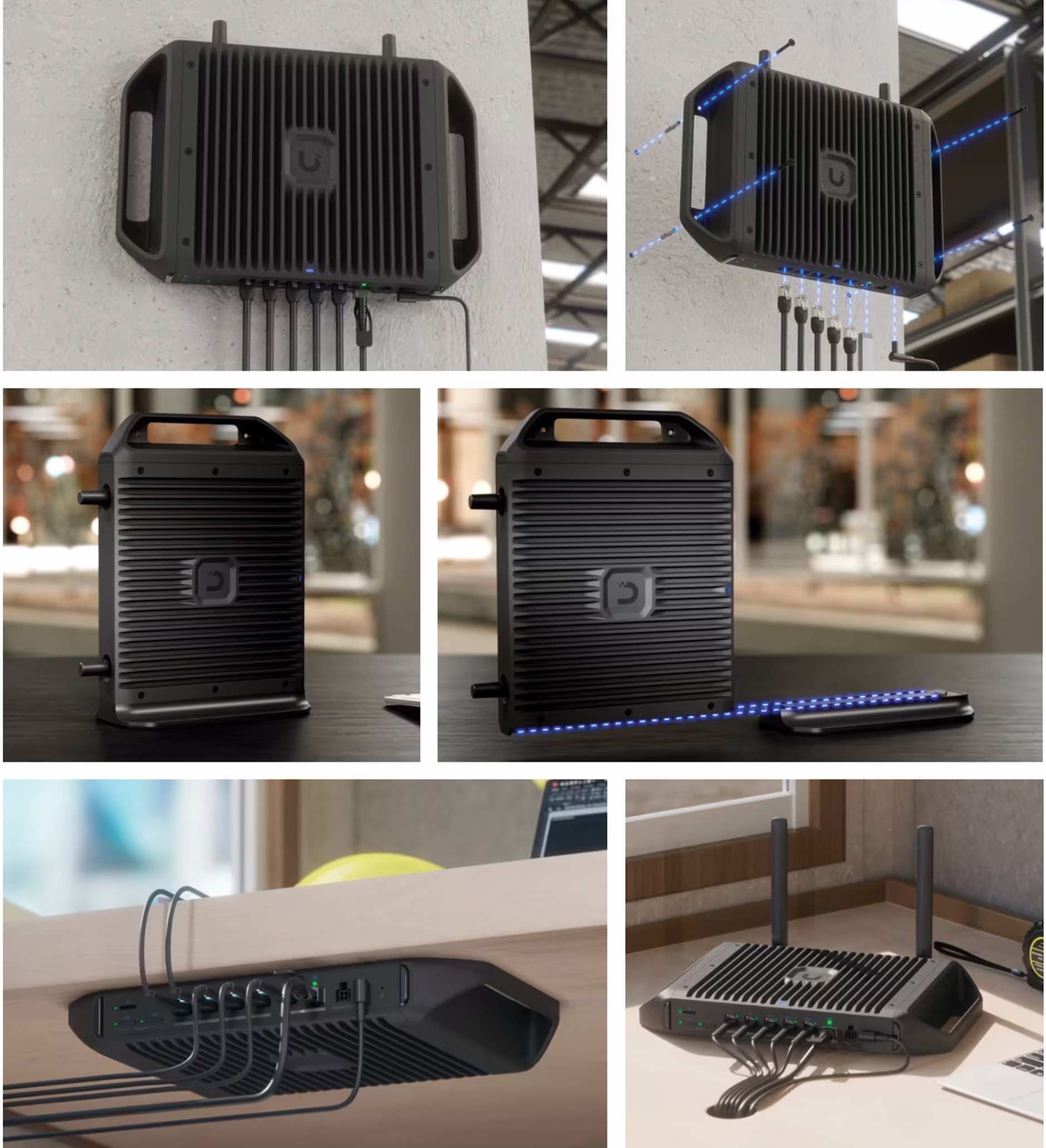

UNIFI Cloud Gateway Industrial UCG-Industrial, 10GbE, WiFi 7, 350W PoE, Enterprise SD-WAN | UCG-Industrial

Dimensions

Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7")

Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9")

UniFi Application Suite

Network: ✓

Protect: ✓

Access: ✓

Talk: ✓

Connect: ✓

Managed UniFi Devices

50+

Managed Cameras

(15) HD, (8) 2K, (5) 4K

Managed Access Hubs

50

Simultaneous Users Connected

500+

Max. WAN Port Count

5

Default WAN Ports

(1) 10G SFP+, (1) 10 GbE RJ45, (1) 2.5 GbE RJ45

Port Layout

2.5 GbE RJ45: 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M)

10 GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M)

10G SFP+: 1 (10G/1G)

IDS/IPS Throughput

5 Gbps

Form Factor

Wall-mounted, Compact desktop (Table stand included), Rack mount (Accessory sold separately)

Coverage Area

115 m² (1,250 ft²)

Security

Stateful Firewall: ✓

Application-Aware Layer 7 Firewall: ✓

DPI & Traffic Identification: ✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓

Content Filtering: ✓

Intrusion Prevention (IPS/IDS): ✓

Ad Blocking: ✓

IDS/IPS Signatures: 55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation: ✓

VPN & SD-WAN

License-Free SD-WAN: ✓

Site-to-Site VPN: Site Magic (✓), IPsec (✓), OpenVPN (✓)

VPN Server: Identity Endpoint One-Click VPN (✓), Teleport Zero-Configuration VPN (✓), WireGuard (✓), OpenVPN (✓), L2TP (✓)

VPN Client: OpenVPN (✓), WireGuard (✓)

Networking

Multi-WAN Load Balancing: ✓

Dynamic Routing: OSPF (✓)

Advanced QoS: ✓

Multicast DNS (mDNS): ✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓

Integrated RADIUS Server: ✓

RADIUS over TLS (RadSec): ✓

Additional Internet Failover with UniFi LTE Backup: ✓

Internet Quality and Outage Reporting: ✓

MAC Address Table Size: 4,000

Virtual Network Override: ✓

All Traffic Flows: —

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Throughput

5 GHz: 4.3 Gbps

2.4 GHz: 688 Mbps

MIMO

5 GHz: 2 x 2 (DL/UL MU-MIMO)

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

5 GHz: Stub antenna: 5 dBi, Terminal (Omni) antenna: 6 dBi

2.4 GHz: Stub antenna: 3 dBi, Terminal (Omni) antenna: 6 dBi

Max. TX Power

5 GHz: 26 dBm

2.4 GHz: 23 dBm

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

NVR Storage

Pre-installed 128 GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

DC input: 270W

ATX power: 75W

Max. PoE Wattage per Port by PSE

PoE+: 30W

PoE+++: 90W

Voltage Range PoE Mode

50-57V

Max. Power Consumption

28W (Excluding PoE output)

Power Method

(1) DC Input (350W PSU)

(1) ATX power (48V)

Power Supply

54V DC, 350W (Adapter included)

ATX power (48V)

Supported Voltage Range

100–240V AC

Heat Dissipation

95 BTU/hr (Excluding PoE output)

Processor

Quad-core ARM® Cortex®-A73 at 2.2 GHz

System Memory

3 GB

Weight

Device: 2.4 kg (5.3 lb)

Table stand: 321 g (11.3 oz)

Enclosure Material

Device: Polycarbonate, aluminium alloy

Table stand: Polycarbonate, galvanized steel, silicone rubber

Management

Ethernet, Bluetooth

LEDs

Ethernet: ✓, SFP+: ✓, System: ✓, MicroSD: ✓, SIM: ✓

Button

(1) Factory reset, (2) Handle release buttons

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC

Application Requirements

Mobile App: UniFi iOS™ (Version 10.32.0 and later), UniFi Android™ (Version 10.35.0 and later)
