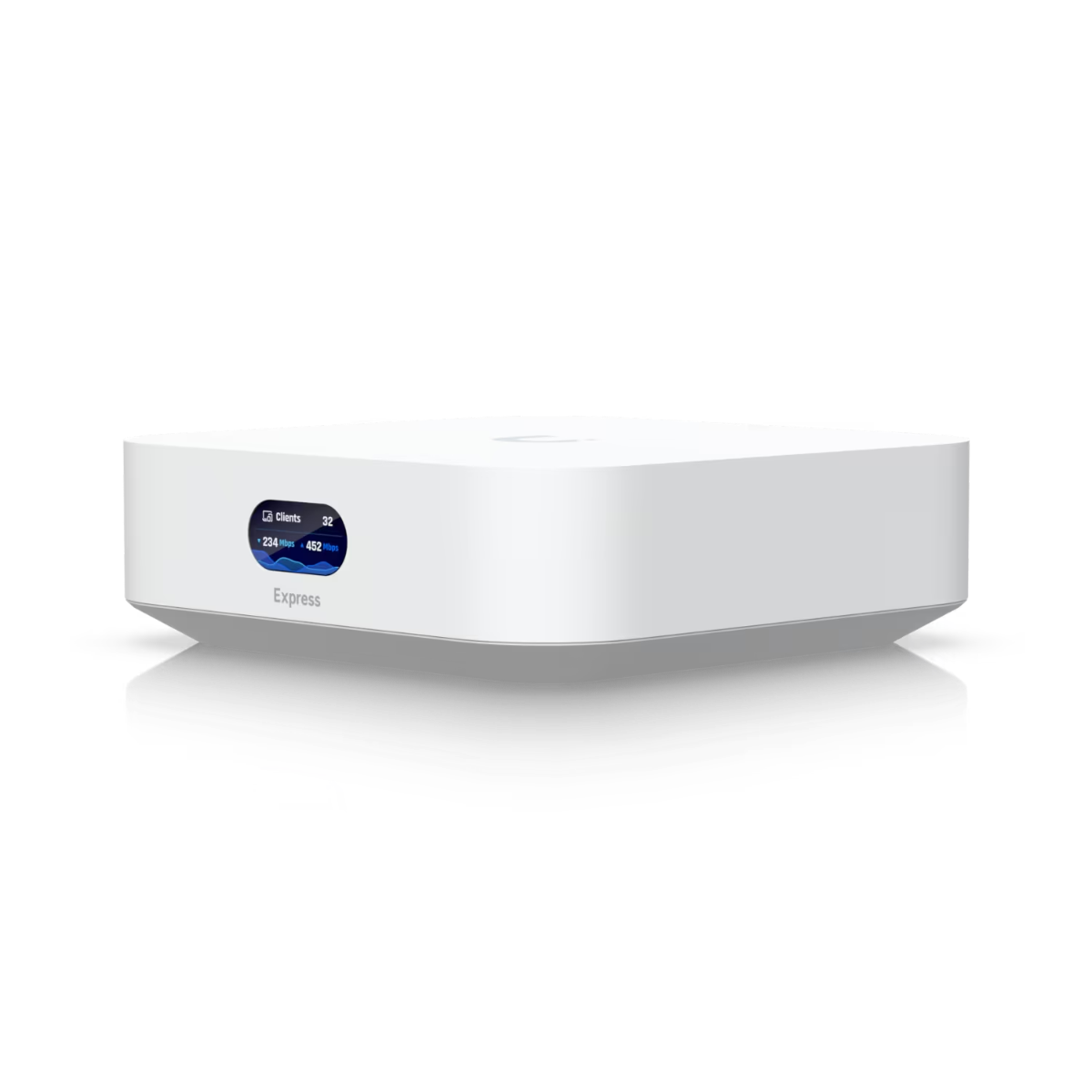

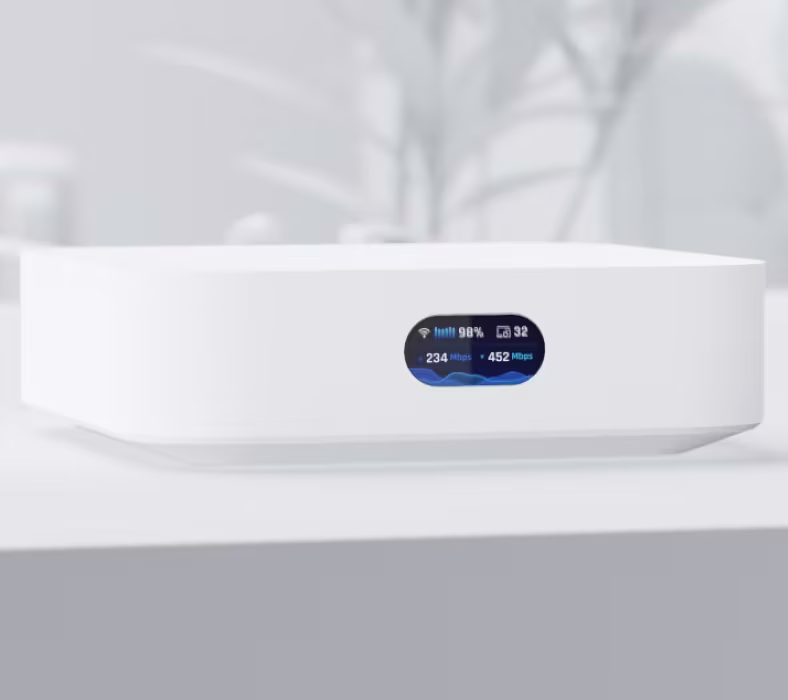

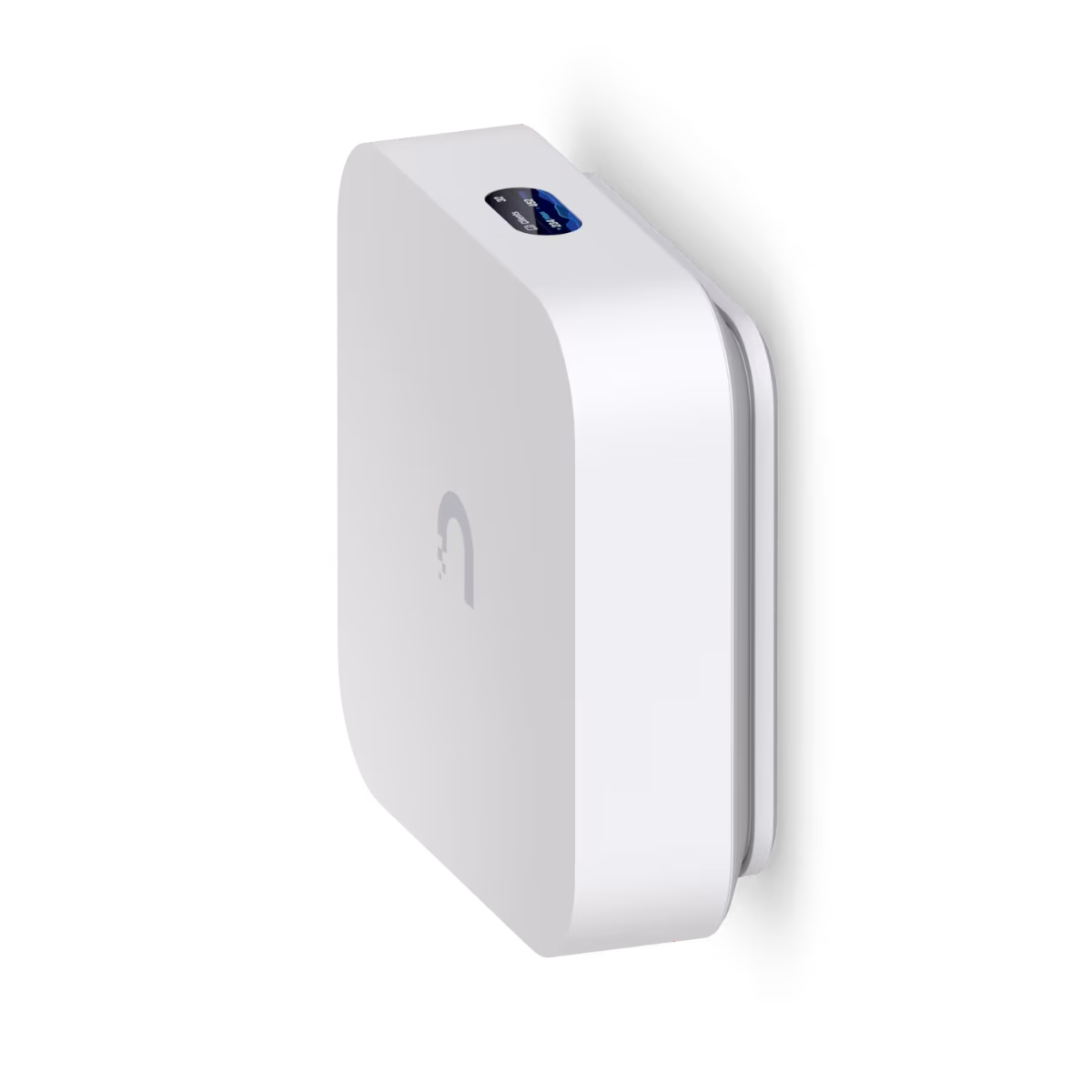

UniFi Express t Cloud Gateway & WiFi 6 Accesspoint, Built-in WiFi 6 AP, 140 m?? (1,500 ft??) single-unit coverage, 50+ connected WiFi devices | UX
Model :
SKU : UNIFI UX EXPRESS
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
UniFi Express t Cloud Gateway & WiFi 6 Accesspoint, Built-in WiFi 6 AP, 140 m?? (1,500 ft??) single-unit coverage, 50+ connected WiFi devices | UX Specifications
Mechanical
| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
| Weight | 302 g (10.7 oz) |
| Enclosure Material | Polycarbonate |
Hardware
| Management Interface | Ethernet, Bluetooth |
| Networking Interface |
LAN: (1) GbE RJ45 port WAN: (1) GbE RJ45 port |
| Power Method | USB Type C (5V DC/3A) |
| Max. Power Consumption | 10W |
| Max. TX Power |
2.4 GHz: 22 dBm 5 GHz: 25 dBm |
| MIMO |
2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Throughput Rate |
2.4 GHz: 573.5 Mbps 5 GHz: 2.4 Gbps |
| Antenna Gain |
2.4 GHz: 4 dBi 5 GHz: 5.15 dBi |
| Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna |
| LCM Display | 0.96" status display |
| Button | Factory reset |
| Ambient Operating Temperature | -10 to 45?? C (14 to 113?? F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Gateway Features
| Performance | Internet quality and outage reporting |
| Next-generation Security | Application-aware firewall rules, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall |
| Advanced Networking | License-free SD-WAN, WireGuard, L2TP, and OpenVPN server/client, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IGMP proxy, IPv6 ISP support |
Software
| WiFi Standards | 802.11a/b/g/n/ac/ax |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | Console mode: 3 per band, Standard AP: 8 per band |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 50+* |
Supported Data Rates
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
Application Requirements
| UniFi Network | Version 8.0.7 and later |
Specification
UniFi Express t Cloud Gateway & WiFi 6 Accesspoint, Built-in WiFi 6 AP, 140 m?? (1,500 ft??) single-unit coverage, 50+ connected WiFi devices | UX Specifications
Mechanical
| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
| Weight | 302 g (10.7 oz) |
| Enclosure Material | Polycarbonate |
Hardware
| Management Interface | Ethernet, Bluetooth |
| Networking Interface |
LAN: (1) GbE RJ45 port WAN: (1) GbE RJ45 port |
| Power Method | USB Type C (5V DC/3A) |
| Max. Power Consumption | 10W |
| Max. TX Power |
2.4 GHz: 22 dBm 5 GHz: 25 dBm |
| MIMO |
2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Throughput Rate |
2.4 GHz: 573.5 Mbps 5 GHz: 2.4 Gbps |
| Antenna Gain |
2.4 GHz: 4 dBi 5 GHz: 5.15 dBi |
| Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna |
| LCM Display | 0.96" status display |
| Button | Factory reset |
| Ambient Operating Temperature | -10 to 45?? C (14 to 113?? F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Gateway Features
| Performance | Internet quality and outage reporting |
| Next-generation Security | Application-aware firewall rules, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall |
| Advanced Networking | License-free SD-WAN, WireGuard, L2TP, and OpenVPN server/client, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IGMP proxy, IPv6 ISP support |
Software
| WiFi Standards | 802.11a/b/g/n/ac/ax |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | Console mode: 3 per band, Standard AP: 8 per band |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 50+* |
Supported Data Rates
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
Application Requirements
| UniFi Network | Version 8.0.7 and later |
