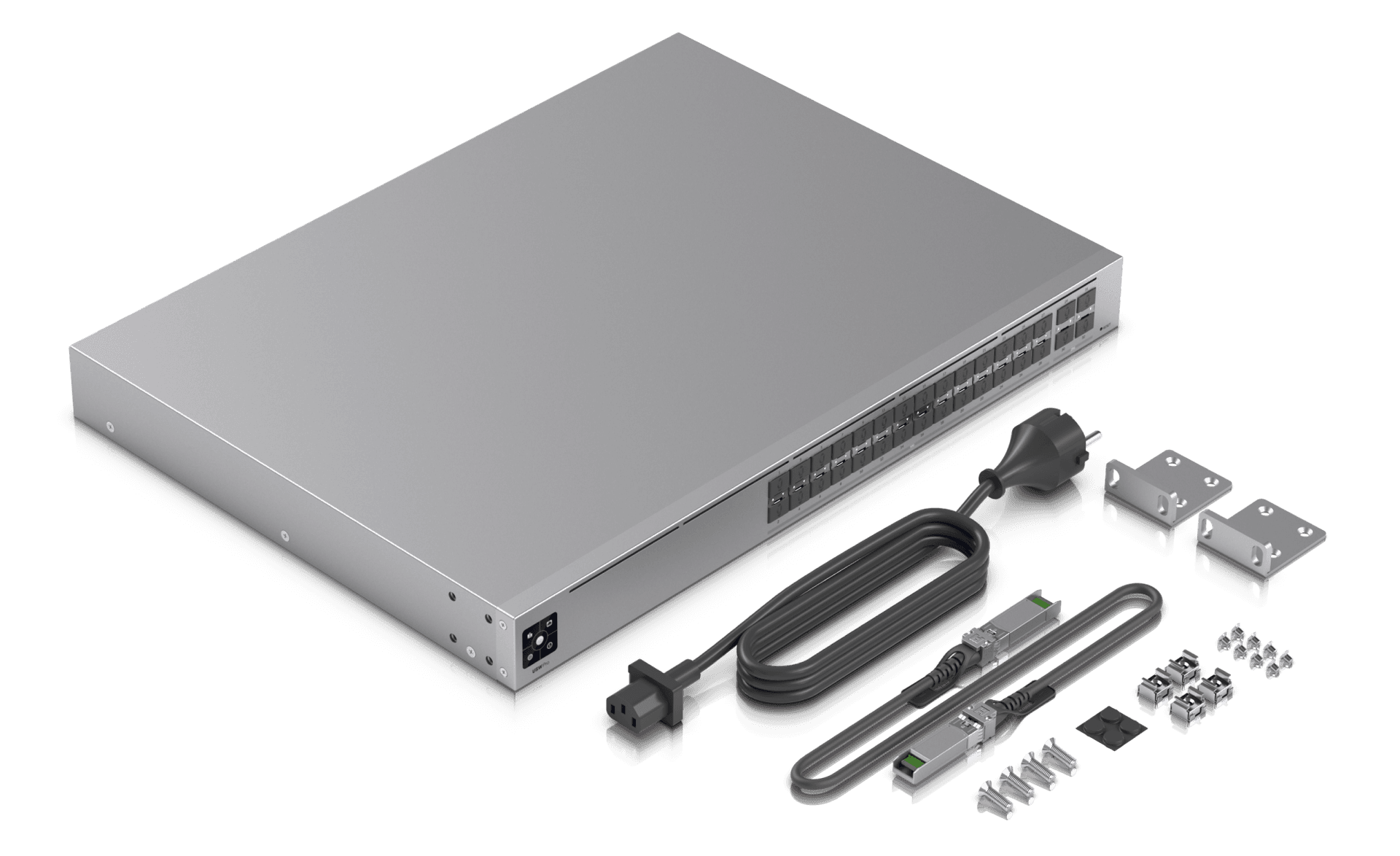

Unifi Hi-Capacity Aggregation USW-Pro-Aggregation 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
Model :
SKU : NS-UNIFI USW-PRO-Aggregat
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Unifi Hi-Capacity Aggregation USW-Pro-Aggregation 32-port, Layer 3 switch WiFi Access Point Specifications
Overview
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m?? (1,500 ft??) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE |
Performance
| MIMO | 5 GHz: 2 x 2 (DL MU-MIMO), 2.4 GHz: 2 x 2 (DL MU-MIMO) |
|---|---|
| Max. Data Rate | 5 GHz: 867 Mbps (BW80), 2.4 GHz: 300 Mbps (BW40) |
| Antenna Gain | 5 GHz: 4 dBi, 2.4 GHz: 3 dBi |
| Max. TX Power | 20 dBm (both bands) |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11ac: 6.5???867 Mbps, 802.11n: 6.5???300 Mbps |
Features
| Wireless Meshing, Band Steering, 802.11v/r/k, Advanced Radio Management, Passpoint (Hotspot 2.0) | |
| Captive Portal, Custom Branding, Voucher & Payment Authentication, PPSK, Client Isolation | |
| WiFi Speed Limiting, Schedules, RADIUS over TLS (RadSec), Dynamic VLANs |
Hardware
| Max. Power Consumption | 8.5W |
|---|---|
| Includes PoE Adapter | Yes |
| Voltage Range | 44???57V DC |
| Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Mount Diameter | 1???3" (25???76 mm) |
| Management | Ethernet, Bluetooth |
| Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 |
| NDAA Compliant | ??? |
| Certifications | CE, FCC, IC, UKCA |
| Frequency | US/CA: 2400???2472 MHz, 5150???5850 MHz; Worldwide: 2400???2483.5 MHz, 5150???5725 MHz |
| Temperature | -30 to 70??C (-22 to 158??F) |
| Humidity | 5 to 95% noncondensing |
Software
| UniFi Version Requirement | Version 6.0.45 and later |
|---|
Network Switch Specifications
Overview
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
|---|---|
| Port Layout | 28x 10G SFP+, 4x 25G SFP28 |
| Redundancy | DC Power Backup |
| Layer 3 | ??? |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 760 Gbps |
|---|---|
| Non-Blocking Throughput | 380 Gbps |
| Forwarding Rate | 565 Mpps |
| VLANs | 1,000 |
| MAC Table | 32,000 |
| ARP Entries | 16,000 |
| IPv4 Routes | 16,000 |
| Buffer Size | 4 MB |
Layer 3 Features
| DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing |
Layer 2 Features
| LACP, STP/RSTP, QoS (DSCP), Pro AV Profiles, IGMP, 802.1X, ACLs, Rate Limiting, Port Features, Jumbo Frames, Loop Protection |
Hardware
| Max. Power Consumption | 100W |
|---|---|
| Power Method | Universal AC, USP RPS DC |
| Power Input | 100???240V AC |
| Power Supply | Internal AC/DC, 100W |
| Heat Dissipation | 341.2 BTU/hr |
| Weight | 4.6 kg (10.1 lb) without brackets, 4.7 kg (10.4 lb) with |
| Material | SGCC steel |
| Rack Depth | 400???1200 mm (15.7???47.2") |
| LCM Display | 1.3" touchscreen |
| ESD/EMP Protection | Air: ??16kV, Contact: ??12kV |
| Temperature | -5 to 40??C (23 to 104??F) |
| Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ??? |
| Certifications | CE, FCC, IC |
Specification
Unifi Hi-Capacity Aggregation USW-Pro-Aggregation 32-port, Layer 3 switch WiFi Access Point Specifications
Overview
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m?? (1,500 ft??) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE |
Performance
| MIMO | 5 GHz: 2 x 2 (DL MU-MIMO), 2.4 GHz: 2 x 2 (DL MU-MIMO) |
|---|---|
| Max. Data Rate | 5 GHz: 867 Mbps (BW80), 2.4 GHz: 300 Mbps (BW40) |
| Antenna Gain | 5 GHz: 4 dBi, 2.4 GHz: 3 dBi |
| Max. TX Power | 20 dBm (both bands) |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11ac: 6.5???867 Mbps, 802.11n: 6.5???300 Mbps |
Features
| Wireless Meshing, Band Steering, 802.11v/r/k, Advanced Radio Management, Passpoint (Hotspot 2.0) | |
| Captive Portal, Custom Branding, Voucher & Payment Authentication, PPSK, Client Isolation | |
| WiFi Speed Limiting, Schedules, RADIUS over TLS (RadSec), Dynamic VLANs |
Hardware
| Max. Power Consumption | 8.5W |
|---|---|
| Includes PoE Adapter | Yes |
| Voltage Range | 44???57V DC |
| Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Mount Diameter | 1???3" (25???76 mm) |
| Management | Ethernet, Bluetooth |
| Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 |
| NDAA Compliant | ??? |
| Certifications | CE, FCC, IC, UKCA |
| Frequency | US/CA: 2400???2472 MHz, 5150???5850 MHz; Worldwide: 2400???2483.5 MHz, 5150???5725 MHz |
| Temperature | -30 to 70??C (-22 to 158??F) |
| Humidity | 5 to 95% noncondensing |
Software
| UniFi Version Requirement | Version 6.0.45 and later |
|---|
Network Switch Specifications
Overview
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
|---|---|
| Port Layout | 28x 10G SFP+, 4x 25G SFP28 |
| Redundancy | DC Power Backup |
| Layer 3 | ??? |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 760 Gbps |
|---|---|
| Non-Blocking Throughput | 380 Gbps |
| Forwarding Rate | 565 Mpps |
| VLANs | 1,000 |
| MAC Table | 32,000 |
| ARP Entries | 16,000 |
| IPv4 Routes | 16,000 |
| Buffer Size | 4 MB |
Layer 3 Features
| DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing |
Layer 2 Features
| LACP, STP/RSTP, QoS (DSCP), Pro AV Profiles, IGMP, 802.1X, ACLs, Rate Limiting, Port Features, Jumbo Frames, Loop Protection |
Hardware
| Max. Power Consumption | 100W |
|---|---|
| Power Method | Universal AC, USP RPS DC |
| Power Input | 100???240V AC |
| Power Supply | Internal AC/DC, 100W |
| Heat Dissipation | 341.2 BTU/hr |
| Weight | 4.6 kg (10.1 lb) without brackets, 4.7 kg (10.4 lb) with |
| Material | SGCC steel |
| Rack Depth | 400???1200 mm (15.7???47.2") |
| LCM Display | 1.3" touchscreen |
| ESD/EMP Protection | Air: ??16kV, Contact: ??12kV |
| Temperature | -5 to 40??C (23 to 104??F) |
| Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ??? |
| Certifications | CE, FCC, IC |
