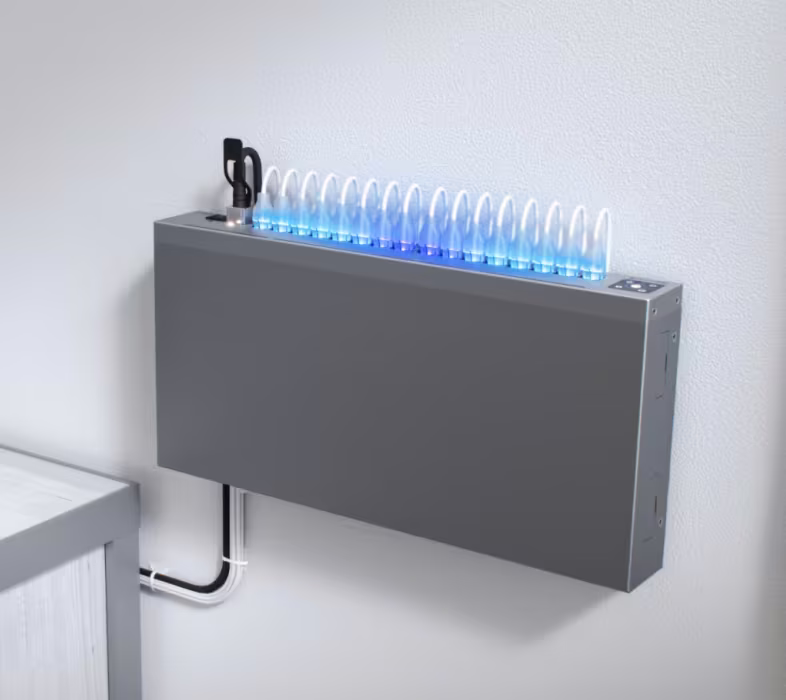

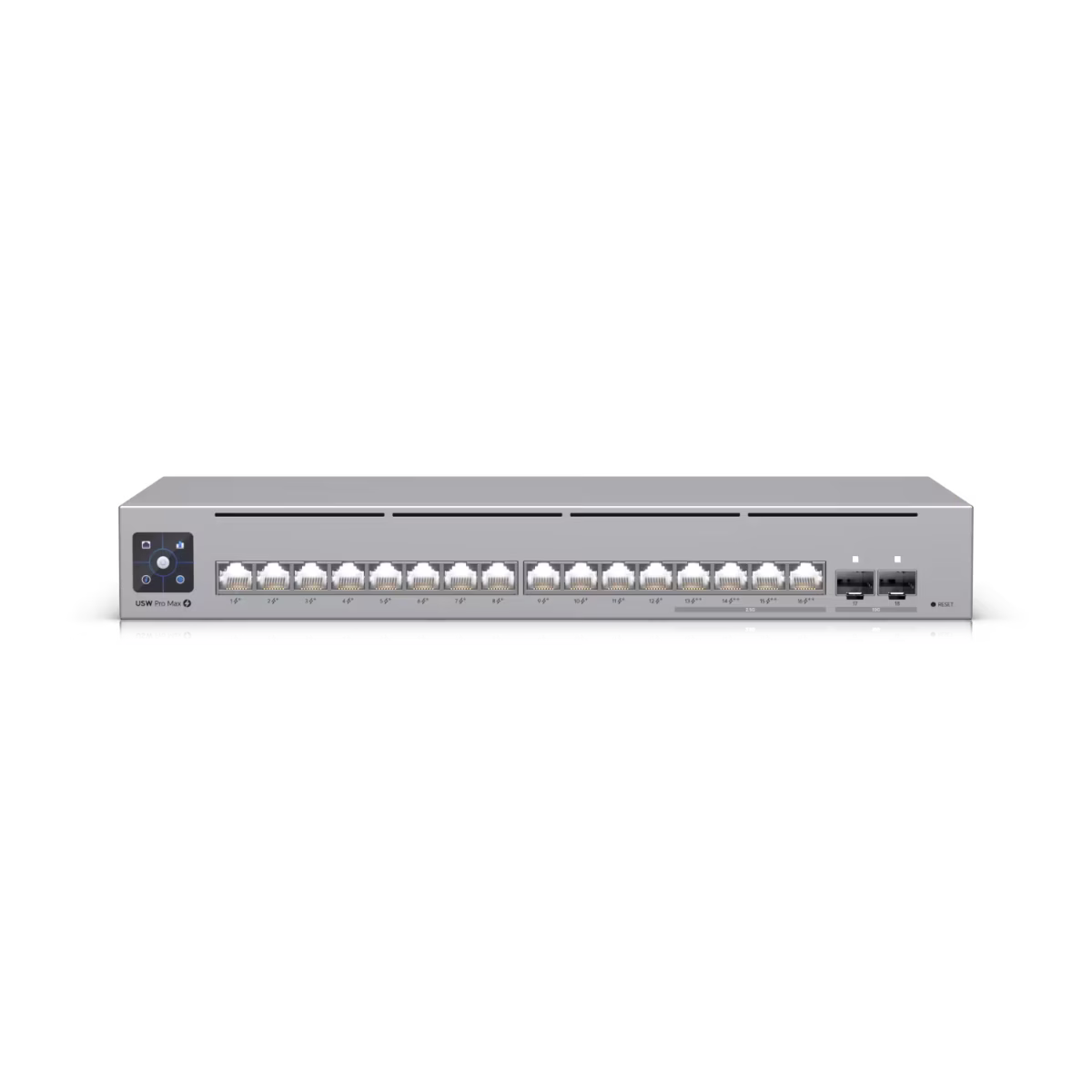

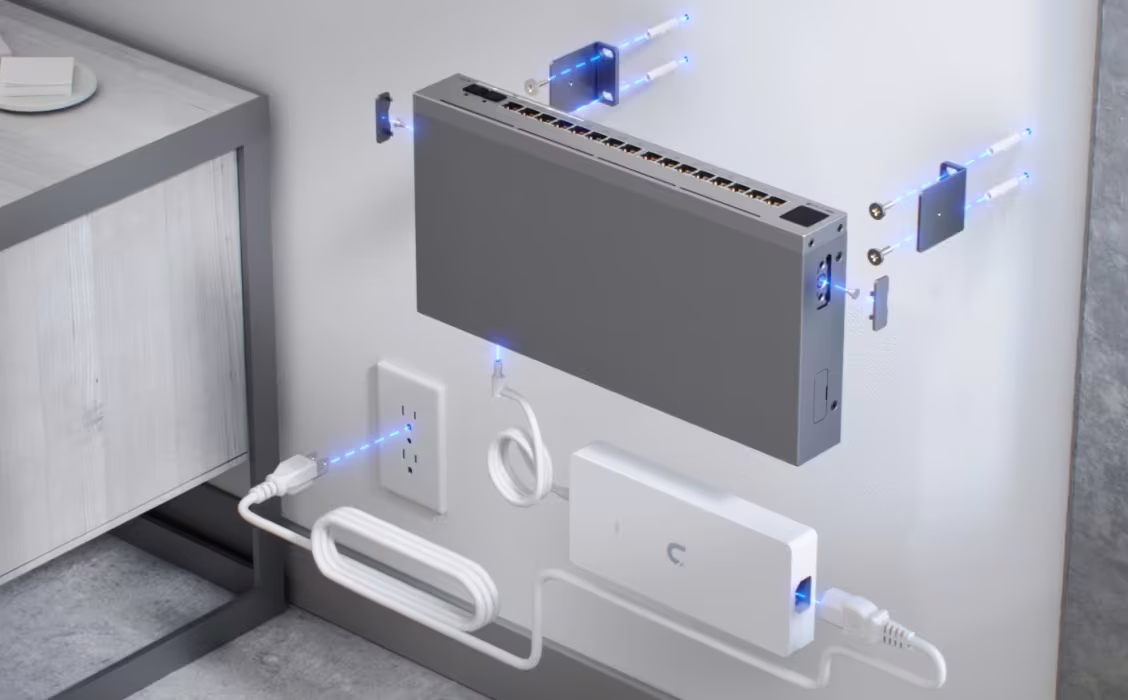

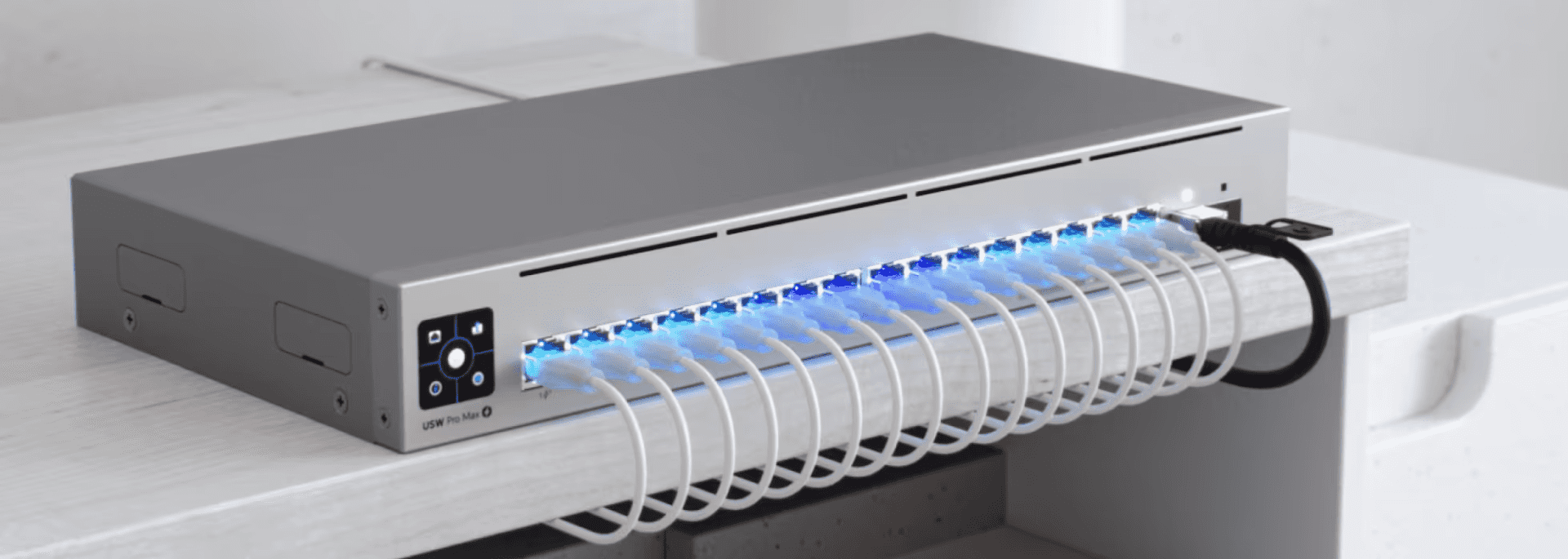

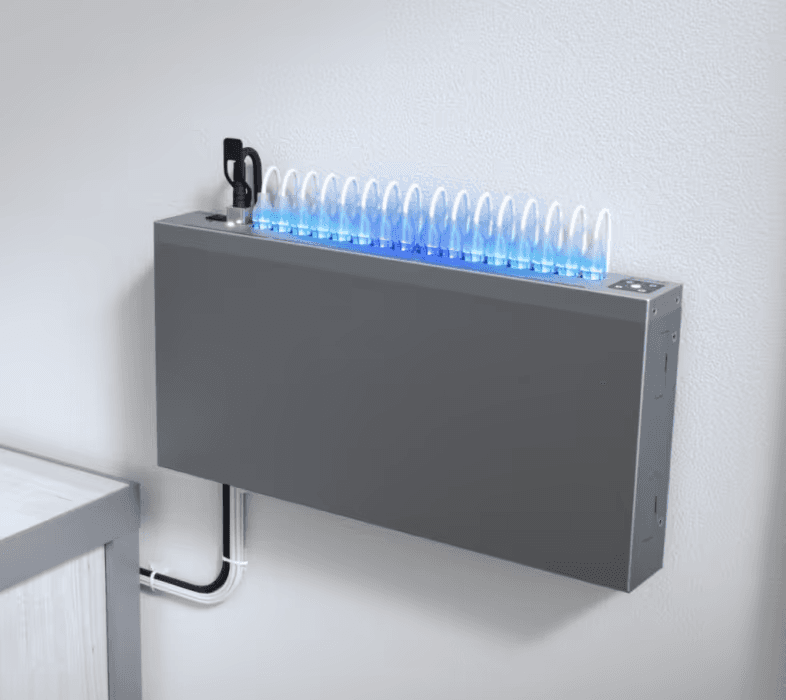

Unifi Pro Max 16 PoE 16-port, Layer 3 Etherlighting switch, 2.5 GbE, PoE++ output, Versatile Mounting options | USW-Pro-Max-16-PoE (180W)
Model :
SKU : NS-UNIFI USW-Pro-Max-16-P
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Unifi Pro Max 16 PoE 16-port, Layer 3 Etherlighting switch, 2.5 GbE, PoE++ output, Versatile Mounting options | USW-Pro-Max-16-PoE (180W) Specifications
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Management Interface | Ethernet In-Band |
| Networking Interface | (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE Interface | (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total Non-Blocking Throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62.496 Mpps |
| Power Method | DC adapter |
| Power Supply | 54V, 210W |
| Max. Power Consumption | 30W (Excluding PoE output) |
| Total Available PoE | 180W |
| Max. PoE Wattage per Port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage Range PoE Mode | PoE: 44???57V PoE+/PoE++: 50???57V |
| LCM Display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 40?? C (23 to 104?? F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 Features | IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs |
| Layer 3 Features | DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on the same switch, Static routing between local networks, Network isolation with ACLs |
| Etherlighting??? | |
| Ethernet | Locating, Speed/link, Native VLAN/network |
| SFP+ | Locating, Speed/link, Native VLAN/network |
| Application Requirements | |
| UniFi Network | Version 8.1.127 and later |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Unifi Pro Max 16 PoE 16-port, Layer 3 Etherlighting switch, 2.5 GbE, PoE++ output, Versatile Mounting options | USW-Pro-Max-16-PoE (180W) Specifications
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Management Interface | Ethernet In-Band |
| Networking Interface | (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE Interface | (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total Non-Blocking Throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62.496 Mpps |
| Power Method | DC adapter |
| Power Supply | 54V, 210W |
| Max. Power Consumption | 30W (Excluding PoE output) |
| Total Available PoE | 180W |
| Max. PoE Wattage per Port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage Range PoE Mode | PoE: 44???57V PoE+/PoE++: 50???57V |
| LCM Display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 40?? C (23 to 104?? F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 Features | IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs |
| Layer 3 Features | DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on the same switch, Static routing between local networks, Network isolation with ACLs |
| Etherlighting??? | |
| Ethernet | Locating, Speed/link, Native VLAN/network |
| SFP+ | Locating, Speed/link, Native VLAN/network |
| Application Requirements | |
| UniFi Network | Version 8.1.127 and later |
