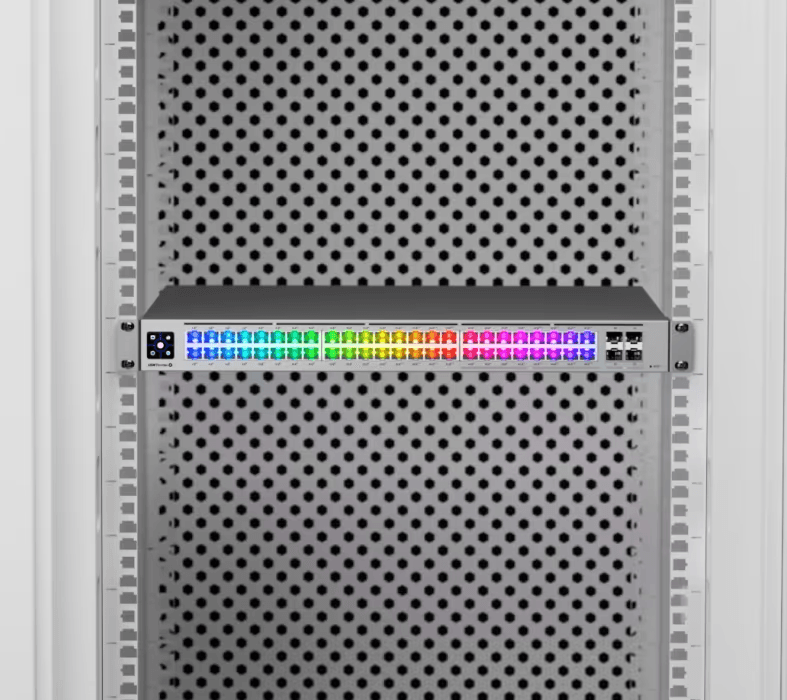

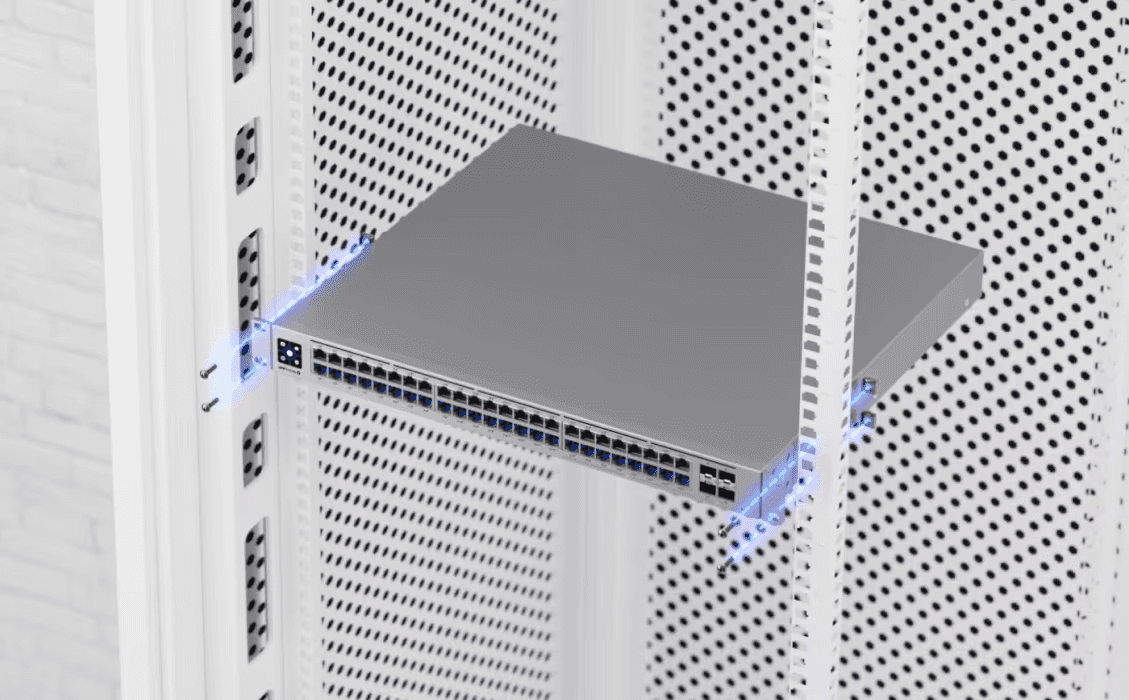

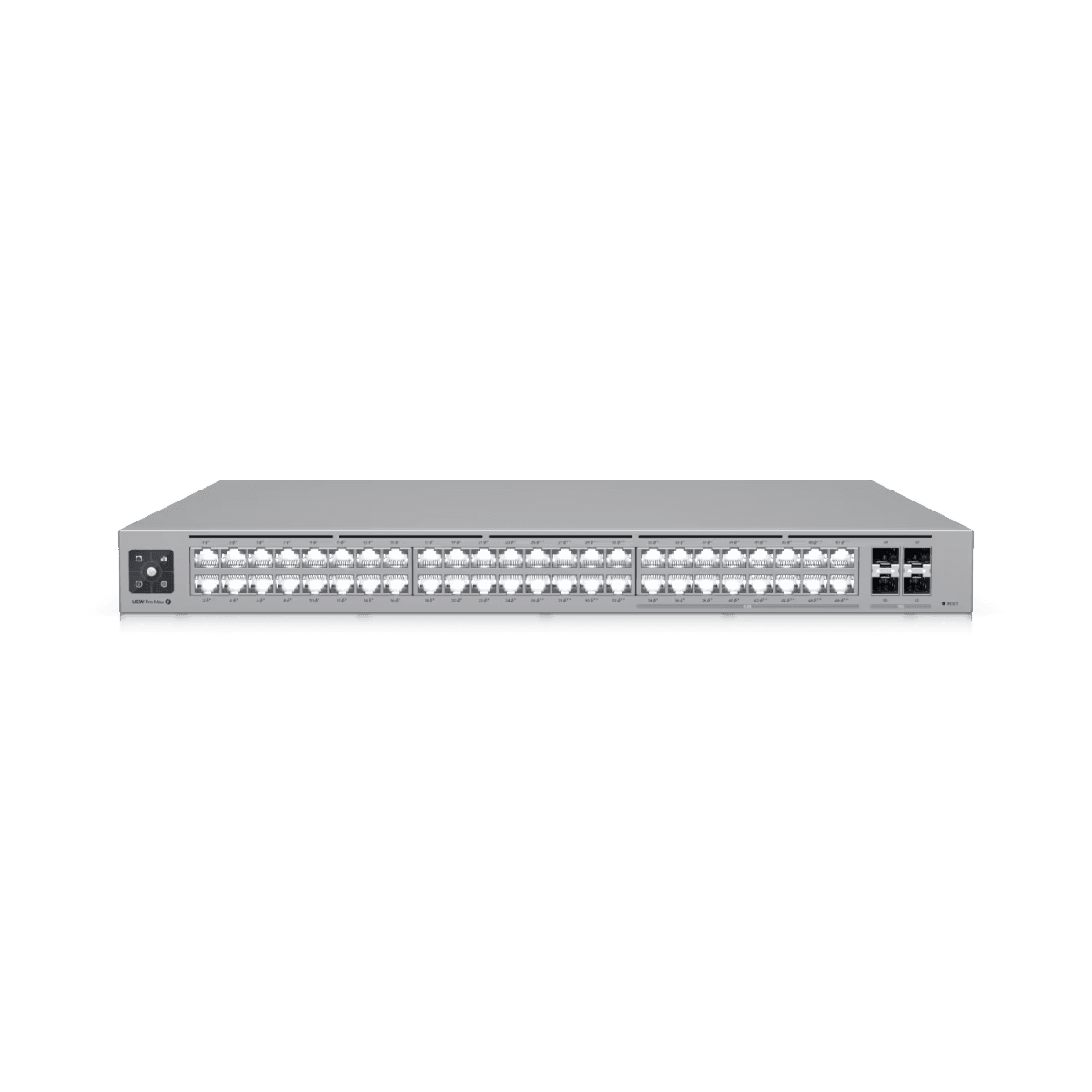

Unifi Pro Max 48 PoE 48-port Switch, Layer 3 Etherlighting switch with 2.5 GbE and PoE++ output | USW-Pro-Max-48-PoE (720W)
Model :
SKU : NS-UNIFI USW-Pro-Max-48-P
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Dimensions | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Management Interface | Ethernet In-Band |
| Networking Interface | (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports |
| PoE Interface | (32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total Non-blocking Throughput | 112 Gbps |
| Switching Capacity | 224 Gbps |
| Power Method | (1) Universal input, 100???240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power Supply | AC/DC, internal, 820W |
| Supported Voltage Range | 100???240V AC |
| Max. Power Consumption | 100W (Excluding PoE output) |
| Total Available PoE | 720W |
| Max. PoE Wattage Per Port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage Range PoE Mode | PoE: 44???57V PoE+: 50???57V |
| LCM Display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 40?? C (23 to 104?? F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Switching Features
| Layer 2 Features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 Features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
Etherlighting???
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
LEDs
| System | Status |
| RPS | Status |
Application Requirements
| UniFi Network | Version 8.0.24 and later |
