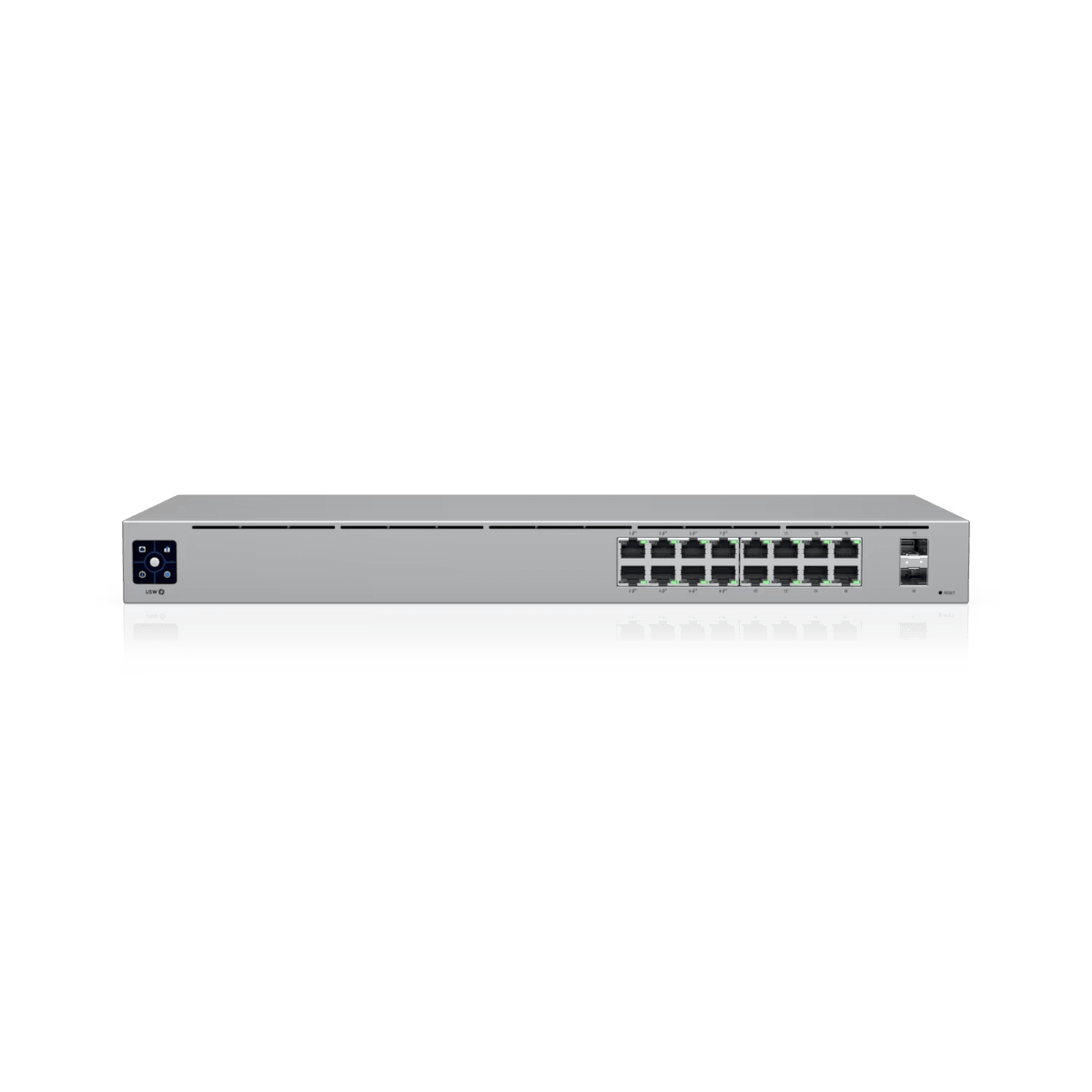

Unifi Standard 16 PoE 16-port, Layer 2 PoE Switch, Silent, Fanless Cooling System, 42W total PoE Availability| USW-16-POE (42W)
Model :
SKU : NS-UNIFI USW-16-POE-EU
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight | Without mounting brackets: 2.8 kg (6.2 lb) With mounting brackets: 2.9 kg (6.4 lb) |
| Enclosure material | SGCC steel |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 18 Gbps |
| Switching capacity | 36 Gbps |
| Forwarding rate | 26.78 Mpps |
| Power method | Universal input, 100???240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100???240V AC |
| Max. power consumption | 18W (Excluding PoE output) |
| Total available PoE | 42W |
| Max. PoE wattage per port by PSE | PoE+: 32W |
| Voltage range PoE mode | PoE: 44???57V PoE+: 50???57V |
| ESD/EMP protection | Air: ?? 16kV, contact: ?? 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40?? C (23 to 104?? F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Switching Features
| Layer 2 features |
|
| Layer 3 features | ??? |
LED Indicators
| System | Status |
| Ethernet | PoE |
| Speed/link/activity | |
| SFP | Link/activity |
Application Requirements
| UniFi Network | Version 7.2.94 and later |
