| Overview |

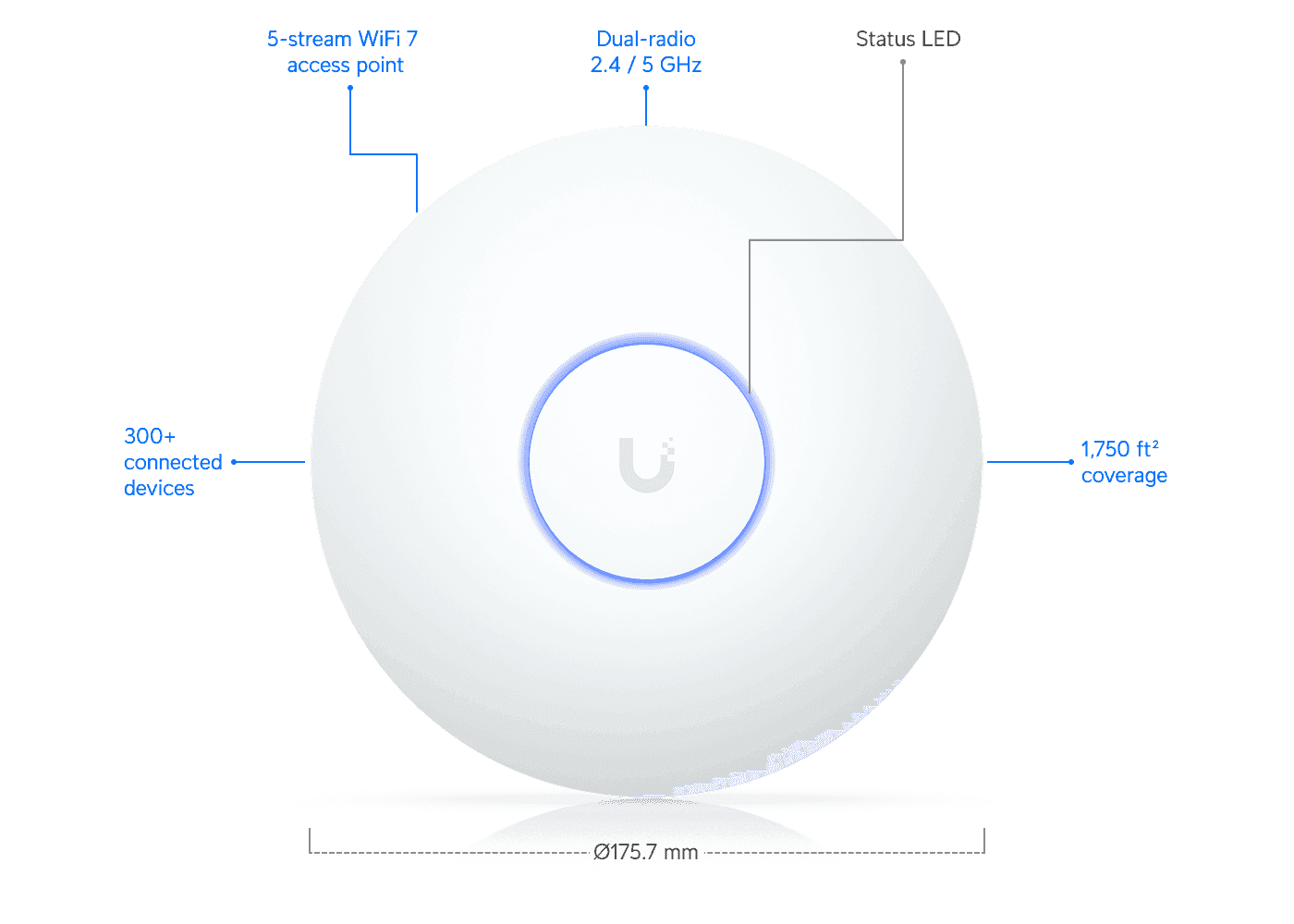

| Dimensions | Ø175.7 × 43 mm (Ø6.9 × 1.7") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance |
| MIMO | 5 GHz: 3 × 3 (DL/UL MU-MIMO)
2.4 GHz: 2 × 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW160)
2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 6 dBi
2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 27 dBm
2.4 GHz: 26 dBm |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps – 4.3 Gbps (MCS0–MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps – 3.6 Gbps (MCS0–MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps – 2.6 Gbps (MCS0–MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps – 450 Mbps (MCS0–MCS23, HT 20/40) |
| Features |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v / r / k Support | BSS Transition (v), Fast Roaming (r), RRM (k) |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page, Voucher & Payment Authentication, External Portal Server, Password Authentication |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware |
| Max. Power Consumption | 14W |
| Includes PoE Adapter | — |
| Supported Voltage Range | 42.5–57V DC |

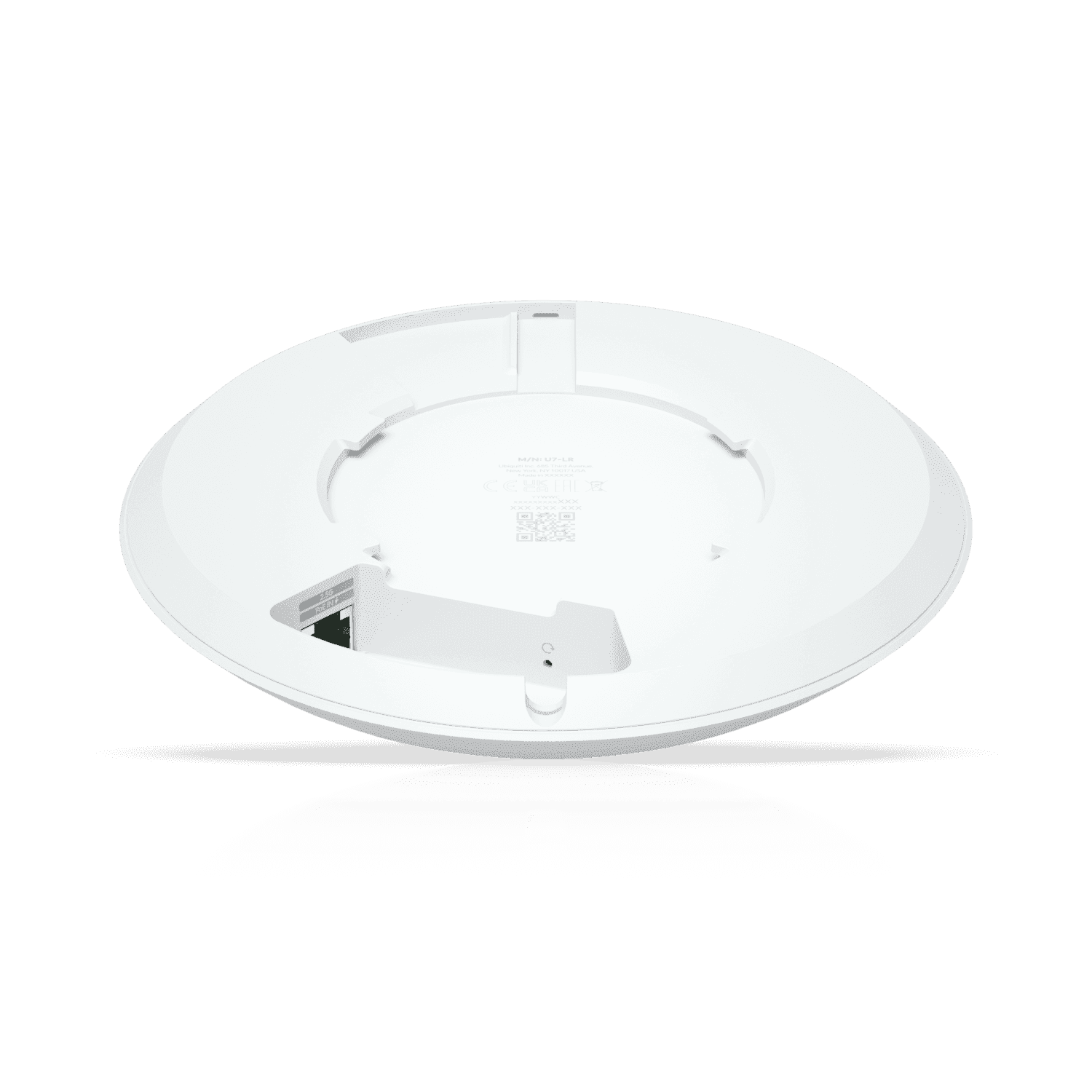

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, Aluminum Alloy |
| Mount Material | Polycarbonate, Galvanized Steel (SGCC) |
| LEDs | System: White / Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software |
| Application Requirements | UniFi Network Version 9.1.120 and later |
| Mobile App | iOS™ Version 10.20.2 and later
Android™ Version 10.21.7 and later |
