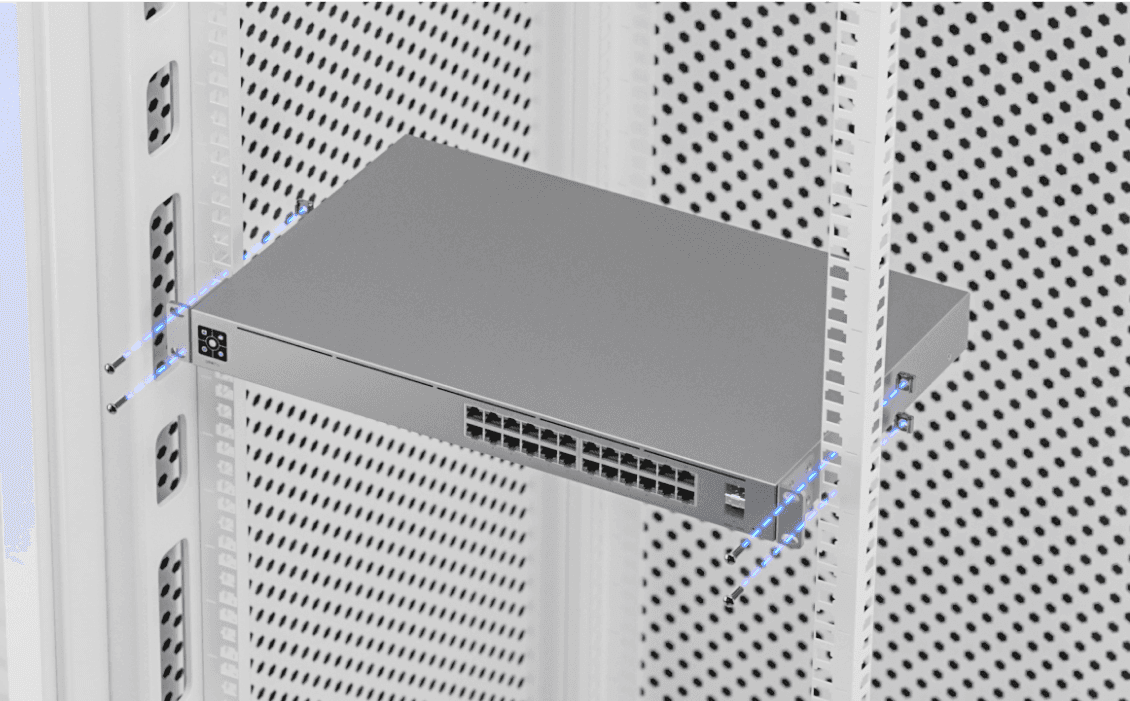

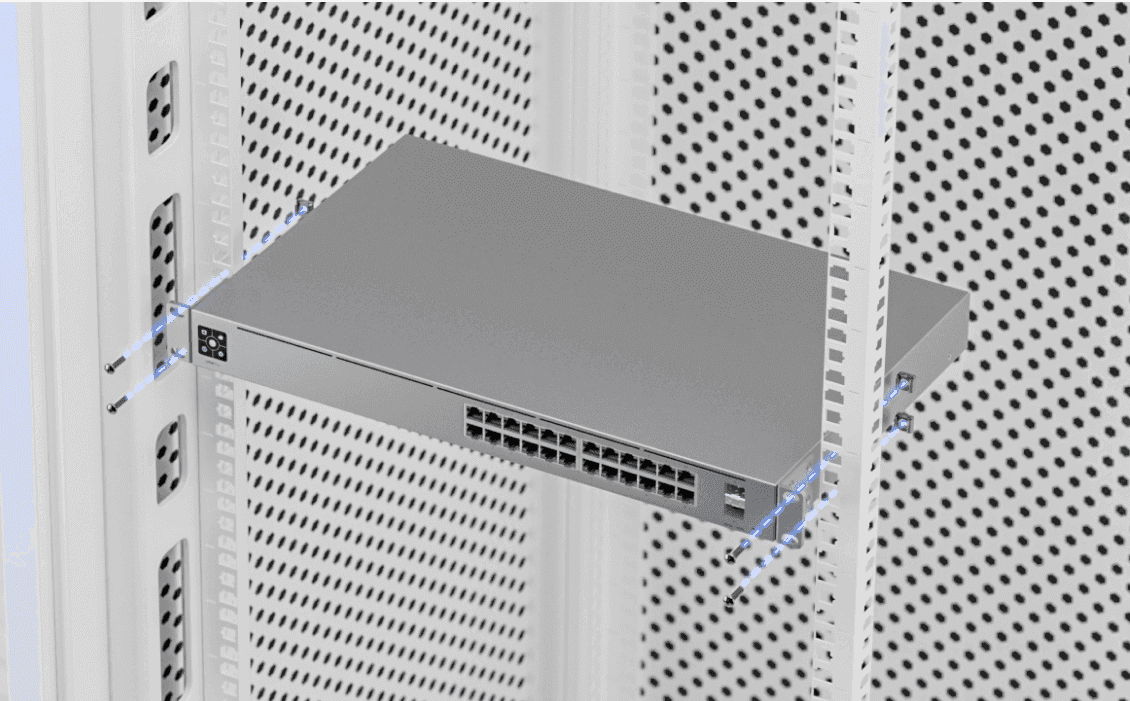

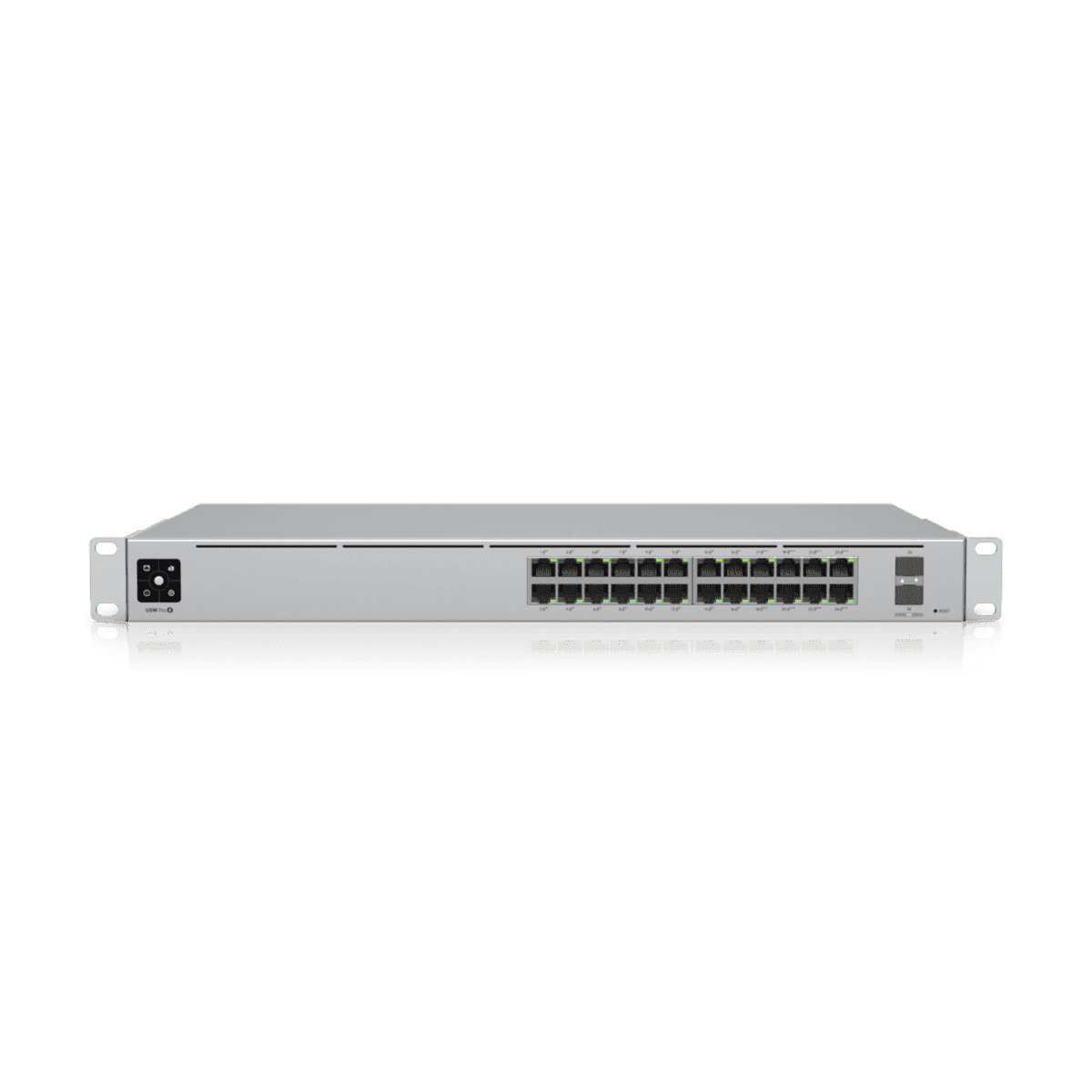

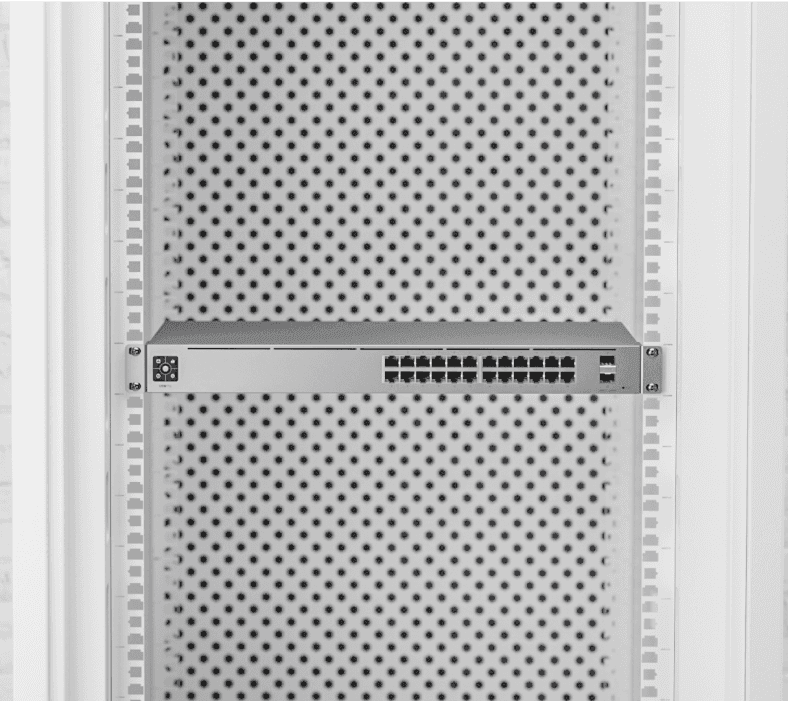

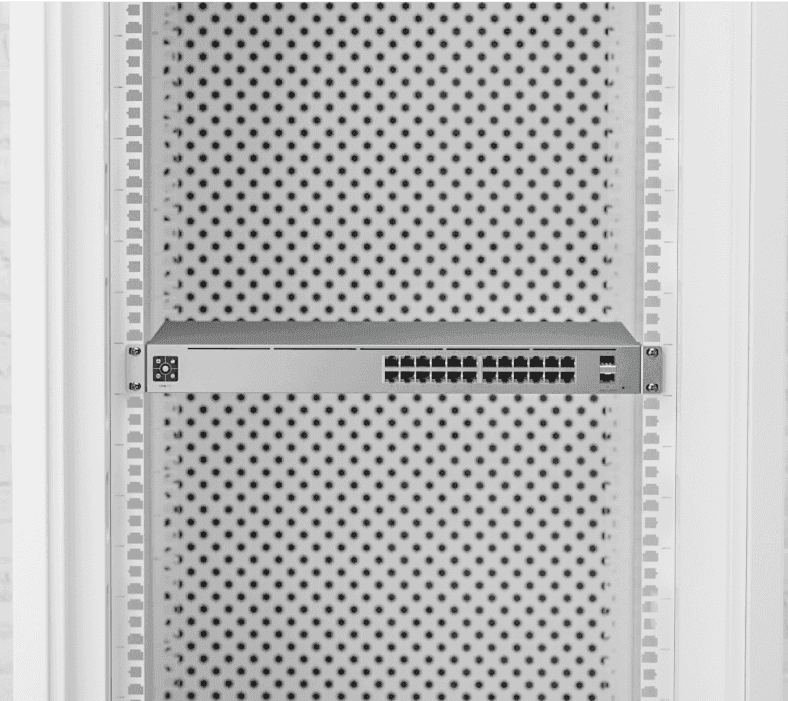

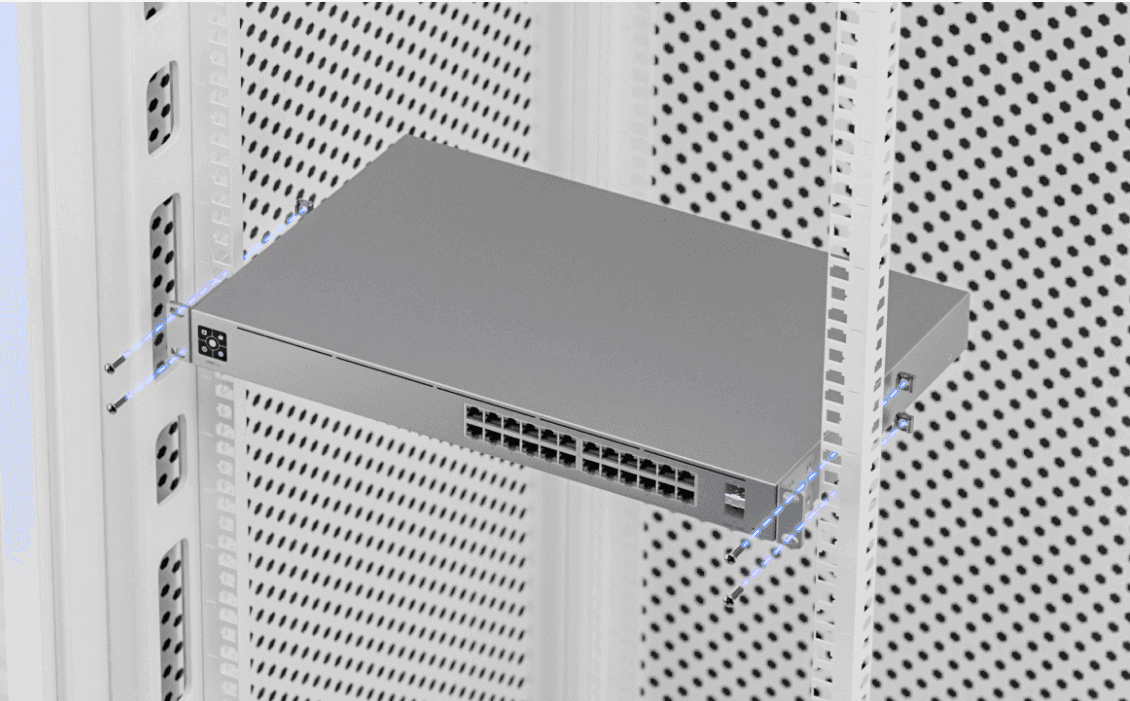

Unifi USW-Pro-24-PoE A 24-port, Layer 3 switch capable of high-power PoE++ output, (16) GbE PoE+, (8) GbE PoE++ ports, (2) 10G SFP+ ports, 400W total PoE availability, DC power backup-ready, Layer 3 switching, Near-silent cooling

Model :

SKU : NS-UNIFI USW-Pro-24-PoE

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

Unifi USW-Pro-24-PoE A 24-port, Layer 3 switch capable of high-power PoE++ output, (16) GbE PoE+, (8) GbE PoE++ ports, (2) 10G SFP+ ports, 400W total PoE availability, DC power backup-ready, Layer 3 switching, Near-silent cooling

Mechanical
  • Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
  • Weight:
    • Without mounting brackets: 4.3 kg (9.5 lb)
    • With mounting brackets: 4.4 kg (9.7 lb)
  • Enclosure material: SGCC steel
Hardware
  • Management interface: Ethernet In-Band
  • Networking interface:
    • (24) GbE RJ45 ports
    • (2) 1/10G SFP+ ports
  • PoE interface:
    • (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
    • (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
  • Total non-blocking throughput: 44 Gbps
  • Switching capacity: 88 Gbps
  • Forwarding rate: 65.472 Mpps
  • Power method:
    • (1) Universal input, 100???240V AC, 50/60 Hz
    • (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
  • Power supply: AC/DC, internal, 450W
  • Supported voltage range: 100???240V AC
  • Max. power consumption: 50W (Excluding PoE output)
  • Total available PoE: 400W
  • Max. PoE wattage per port by PSE:
    • PoE+: 32W
    • PoE++: 64W
  • Voltage range PoE mode:
    • PoE: 44???57V
    • PoE+: 50???57V
  • ESD/EMP protection: Air: ?? 16kV, contact: ?? 12kV
  • LCM display: (1) 1.3" touchscreen
  • Button: Factory reset
  • Shock and vibration: ETSI300-019-1.4 Standard
  • Ambient operating temperature: -5 to 40?? C (23 to 104?? F)
  • Ambient operating humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
Switching Features
  • Layer 2 features:
    • IGMP snooping
    • STP / RSTP with priorities and port-level disable
    • Port isolation
    • Storm control
    • Voice VLAN
    • Port mirroring
    • LACP port aggregation
    • Multicast / broadcast rate limiting
    • MAC address blocking
    • Flow control
    • 802.1X control
    • Jumbo frames
    • Proprietary loop protection
    • DHCP snooping / guarding
    • Egress rate limit
    • LLDP-MED
    • Port restricted by MAC
    • Device isolation with ACLs
  • Layer 3 features:
    • DHCP for locally-managed networks
    • DHCP relay
    • Inter-VLAN routing between networks on same switch
    • Static routing between local networks
    • Network isolation with ACLs
LEDs
  • System: Status
  • Ethernet: PoE, Speed/link/activity
  • SFP+: Link/activity
  • RPS: Status
Application Requirements UniFi Network Version 5.10.5 and later

Specification

Unifi USW-Pro-24-PoE A 24-port, Layer 3 switch capable of high-power PoE++ output, (16) GbE PoE+, (8) GbE PoE++ ports, (2) 10G SFP+ ports, 400W total PoE availability, DC power backup-ready, Layer 3 switching, Near-silent cooling

Mechanical
  • Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
  • Weight:
    • Without mounting brackets: 4.3 kg (9.5 lb)
    • With mounting brackets: 4.4 kg (9.7 lb)
  • Enclosure material: SGCC steel
Hardware
  • Management interface: Ethernet In-Band
  • Networking interface:
    • (24) GbE RJ45 ports
    • (2) 1/10G SFP+ ports
  • PoE interface:
    • (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
    • (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
  • Total non-blocking throughput: 44 Gbps
  • Switching capacity: 88 Gbps
  • Forwarding rate: 65.472 Mpps
  • Power method:
    • (1) Universal input, 100???240V AC, 50/60 Hz
    • (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
  • Power supply: AC/DC, internal, 450W
  • Supported voltage range: 100???240V AC
  • Max. power consumption: 50W (Excluding PoE output)
  • Total available PoE: 400W
  • Max. PoE wattage per port by PSE:
    • PoE+: 32W
    • PoE++: 64W
  • Voltage range PoE mode:
    • PoE: 44???57V
    • PoE+: 50???57V
  • ESD/EMP protection: Air: ?? 16kV, contact: ?? 12kV
  • LCM display: (1) 1.3" touchscreen
  • Button: Factory reset
  • Shock and vibration: ETSI300-019-1.4 Standard
  • Ambient operating temperature: -5 to 40?? C (23 to 104?? F)
  • Ambient operating humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
Switching Features
  • Layer 2 features:
    • IGMP snooping
    • STP / RSTP with priorities and port-level disable
    • Port isolation
    • Storm control
    • Voice VLAN
    • Port mirroring
    • LACP port aggregation
    • Multicast / broadcast rate limiting
    • MAC address blocking
    • Flow control
    • 802.1X control
    • Jumbo frames
    • Proprietary loop protection
    • DHCP snooping / guarding
    • Egress rate limit
    • LLDP-MED
    • Port restricted by MAC
    • Device isolation with ACLs
  • Layer 3 features:
    • DHCP for locally-managed networks
    • DHCP relay
    • Inter-VLAN routing between networks on same switch
    • Static routing between local networks
    • Network isolation with ACLs
LEDs
  • System: Status
  • Ethernet: PoE, Speed/link/activity
  • SFP+: Link/activity
  • RPS: Status
Application Requirements UniFi Network Version 5.10.5 and later
