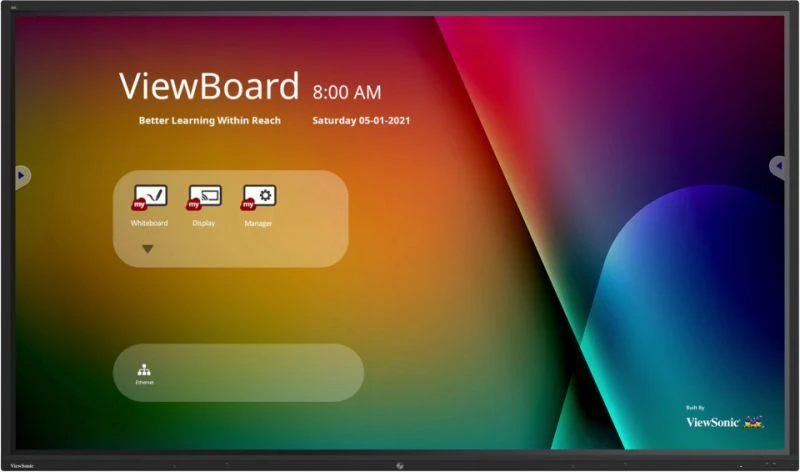

ViewSonic ViewBoard Interactive Display, 98" 4K TFT LCD Screen, 60Hz Refresh Rate, 8ms Response Time, Ultra Fine Touch Technology, 20-P Touch & 10-P Write, Free VESA Mount, Black | IFP9850-4
Model :
SKU : IFP9850-4-MAX17524
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ViewSonic ViewBoard Interactive Display, 98" 4K TFT LCD Screen, 60Hz Refresh Rate, 8ms Response Time, Ultra Fine Touch Technology, 20-P Touch & 10-P Write, Free VESA Mount, Black | IFP9850-4
| Panel Size | 98" |
| Panel Type | TFT LCD Module with DLED Backlight |
| Display Area (mm) | 2171.85(H) x 1232.35(V) (97.52???diagonal) |
| Aspect Ratio | 16:9 |
| Resolution | UHD 3840x2160(Pixels) |
| Colors | 1.07B colors (10bit) |
| Brightness | 400 nits (typ.) |
| Contrast Ratio | DCR: 5000:1 |
| Response Time | 8ms(TYP.) |
| Viewing Angles | H = 178, V = 178typ. |
| Backlight Life | 50,000 Hours (Min) |
| Surface Treatment | Anti-glare, 9H |
Platform
| Processor | ARM Cortex A73*4 |
| RAM | 4GB DDR4 |
| Storage | 32GB |
Touch
| Type/ Tech | Ultra fine touch technology |
| Touch Resolution | 32768 ??32768 |
| Touch Point | 20 points touch, 10 points writing |
Input
| HDMI | HDMI 2.0 x3 (3840x2160 @60Hz) |
| RGB / VGA | x 1 |
| Audio | x 1 |
| RS232 | x 1 |
| OPS | X1 PC Slot |
| WiFi | x 1 WiFi Slot |
Output
| HDMI | HDMI out 2.0 x1 (3840x2160 @60Hz) |
| Audio | 3.5mm * 1 |
| SPDIF | x1 |
Lan
| RJ45 | x2 |
USB
| Type A | USB2.0 x 1USB3.0 x 4 |
| Type B | x2, for touch |
| Type C | x1 |
Speakers
| Speaker Output | 16Wx2 |
Top Camera Plate
| Presence | Yes |
Compatibility
| RGB PC/HDMI PC | 1920x1080 |
| HDMI | 4K 60Hz/30Hz/1080p |
Embedded OS
Android 9
Bundle Software
- Basic Annotation Software: myViewBoard for android
- Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
- Wireless Presentation: Viewboard Cast
Special Features
- All-in-one USB port: Front ???SmartPort USB??? to all channels.
- Simple LAN sharing between IFP and slot-in device: Yes
- Light Sensor: Yes
Power
| Voltage | 100-240VAC +/- 10% Wide Range |
| Consumption | On mode: 192.5W, Off mode< 0.5W |
Ergonomics
| Wall Mount (VESA?? ) | 800*600 |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ViewSonic ViewBoard Interactive Display, 98" 4K TFT LCD Screen, 60Hz Refresh Rate, 8ms Response Time, Ultra Fine Touch Technology, 20-P Touch & 10-P Write, Free VESA Mount, Black | IFP9850-4
| Panel Size | 98" |
| Panel Type | TFT LCD Module with DLED Backlight |
| Display Area (mm) | 2171.85(H) x 1232.35(V) (97.52???diagonal) |
| Aspect Ratio | 16:9 |
| Resolution | UHD 3840x2160(Pixels) |
| Colors | 1.07B colors (10bit) |
| Brightness | 400 nits (typ.) |
| Contrast Ratio | DCR: 5000:1 |
| Response Time | 8ms(TYP.) |
| Viewing Angles | H = 178, V = 178typ. |
| Backlight Life | 50,000 Hours (Min) |
| Surface Treatment | Anti-glare, 9H |
Platform
| Processor | ARM Cortex A73*4 |
| RAM | 4GB DDR4 |
| Storage | 32GB |
Touch
| Type/ Tech | Ultra fine touch technology |
| Touch Resolution | 32768 ??32768 |
| Touch Point | 20 points touch, 10 points writing |
Input
| HDMI | HDMI 2.0 x3 (3840x2160 @60Hz) |
| RGB / VGA | x 1 |
| Audio | x 1 |
| RS232 | x 1 |
| OPS | X1 PC Slot |
| WiFi | x 1 WiFi Slot |
Output
| HDMI | HDMI out 2.0 x1 (3840x2160 @60Hz) |
| Audio | 3.5mm * 1 |
| SPDIF | x1 |
Lan
| RJ45 | x2 |
USB
| Type A | USB2.0 x 1USB3.0 x 4 |
| Type B | x2, for touch |
| Type C | x1 |
Speakers
| Speaker Output | 16Wx2 |
Top Camera Plate
| Presence | Yes |
Compatibility
| RGB PC/HDMI PC | 1920x1080 |
| HDMI | 4K 60Hz/30Hz/1080p |
Embedded OS
Android 9
Bundle Software
- Basic Annotation Software: myViewBoard for android
- Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
- Wireless Presentation: Viewboard Cast
Special Features
- All-in-one USB port: Front ???SmartPort USB??? to all channels.
- Simple LAN sharing between IFP and slot-in device: Yes
- Light Sensor: Yes
Power
| Voltage | 100-240VAC +/- 10% Wide Range |
| Consumption | On mode: 192.5W, Off mode< 0.5W |
Ergonomics
| Wall Mount (VESA?? ) | 800*600 |
