ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC Graphic card, 8GB GDDR7, 128-bit 28 Gbps, 2602 MHz Engine Clock, SFF-Ready, NVIDIA Blackwell architecture and DLSS 4 | ZT-B50610H-10M
Model :
SKU : GC-ZOTA 5060TI TWIN ED 8G
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC Graphic card, 8GB GDDR7, 128-bit 28 Gbps, 2602 MHz Engine Clock, SFF-Ready, NVIDIA Blackwell architecture and DLSS 4 | ZT-B50610H-10M Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2602 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |

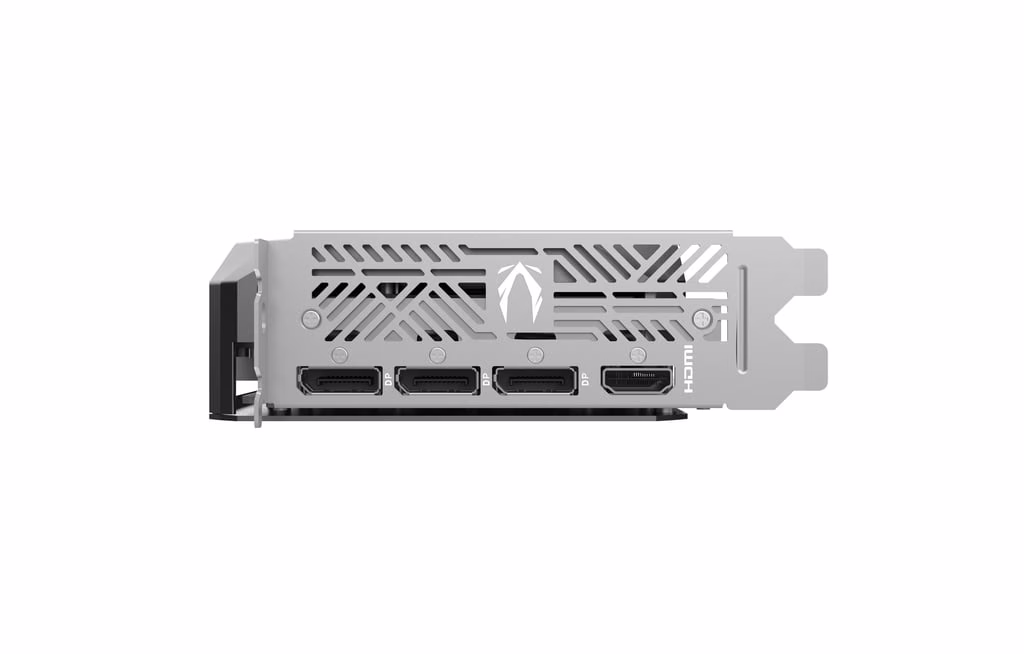

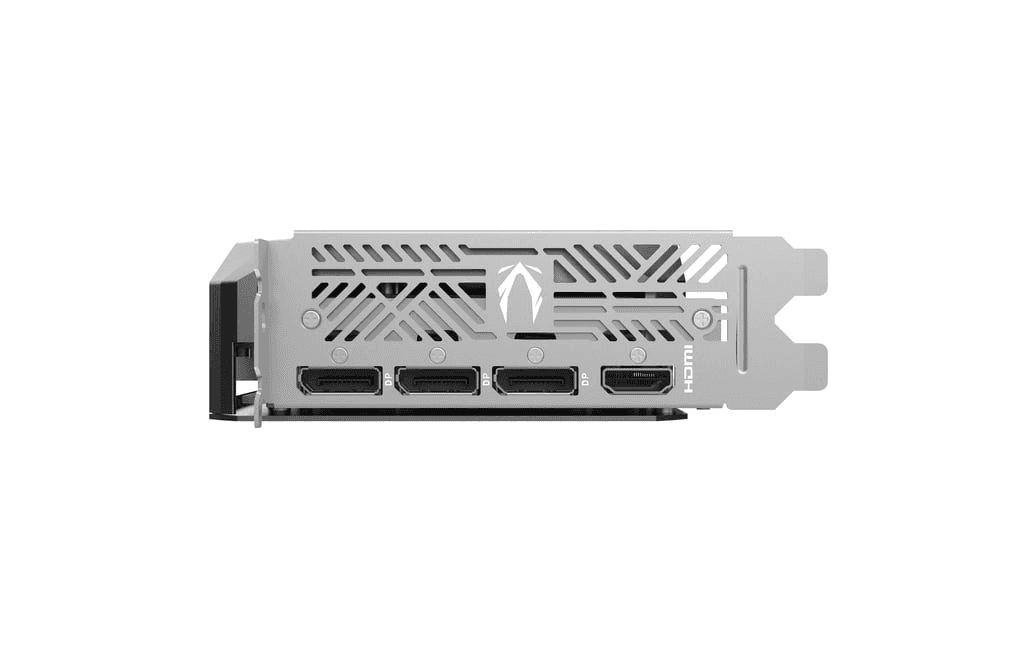

| Display Outputs | 3 ?? DisplayPort 2.1b with UHBR20 (Up to 4K 480Hz or 8K 165Hz with DSC) 1 ?? HDMI?? Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and VRR per HDMI 2.1b spec) |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 600W |
| Power Consumption | 180W |
| Power Input | 1 ?? 8-pin |
| DirectX | Microsoft DirectX?? 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | IceStorm 2.0 |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 or later) |
| Card Length | 220.5mm ?? 120.25mm ?? 41.6mm 8.7" ?? 4.7" ?? 1.6" |
| Accessories | User Manual |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC Graphic card, 8GB GDDR7, 128-bit 28 Gbps, 2602 MHz Engine Clock, SFF-Ready, NVIDIA Blackwell architecture and DLSS 4 | ZT-B50610H-10M Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2602 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |
| Display Outputs | 3 ?? DisplayPort 2.1b with UHBR20 (Up to 4K 480Hz or 8K 165Hz with DSC) 1 ?? HDMI?? Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and VRR per HDMI 2.1b spec) |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 600W |
| Power Consumption | 180W |
| Power Input | 1 ?? 8-pin |
| DirectX | Microsoft DirectX?? 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | IceStorm 2.0 |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 or later) |
| Card Length | 220.5mm ?? 120.25mm ?? 41.6mm 8.7" ?? 4.7" ?? 1.6" |
| Accessories | User Manual |
