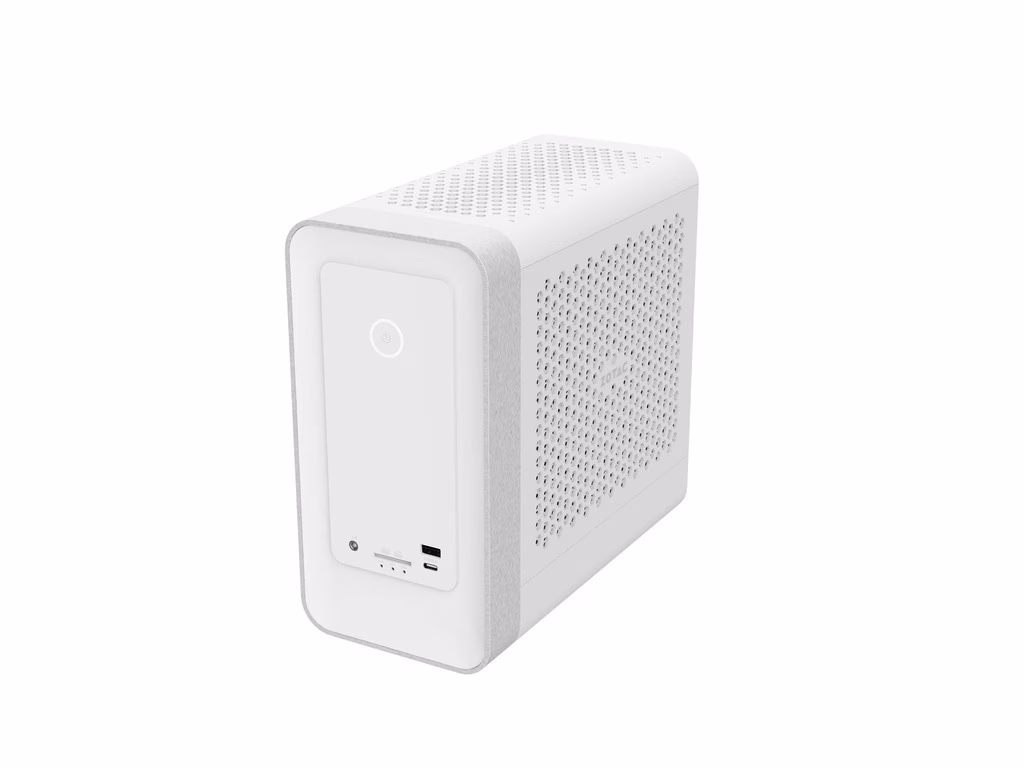

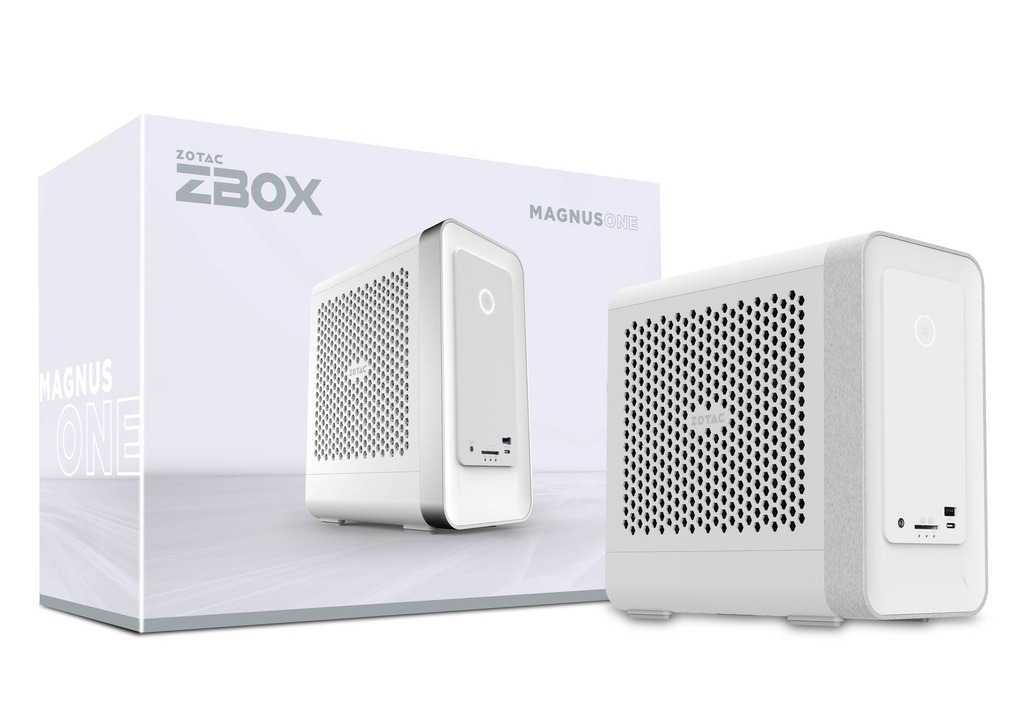

ZOTAC ZBOX,SFF, WHITE, i7-13700, RTX4070, 2 DDR5 SODIMM SLOT, M.2 SSD SLOT, 2.5" SATAIII BAY, WIFI, BT, 2.5G LAN, GLAN, 3x DP, HDMI, EU+UK PLUG

Processor

Intel Core i7-13700 (16-core 2.1 GHz, up to 5.2 GHz)

Chipset

Intel, NVIDIA

System Memory

16GB DDR5 (up to 64GB)

Graphics Engine

ZOTAC GAMING GeForce RTX 4070 12GB GDDR6X 192-bit

Video Output

1 x HDMI 1.4 (up to 3840x2160@30Hz) (integrated)
3 x DisplayPort 1.4a (up to 7680x4320@60Hz)
1 x HDMI?? Connector*
*Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification
Up to 4 Displays

Hard Drive

1 x 2.5-inch SATAIII HDD/SSD bay

Storage

N/A

Optical Drive

N/A

mSATA

N/A

M.2

1TB M.2 SSD, 1 x M.2 PCIe 4.0 x4 NVMe SSD slot (2242/2280/22110)

Card Reader

3-in-1 (UHS-II SD/SDHC/SDXC)

Audio

Microphone, Headphone, 8ch via HDMI

USB Port

4 x USB 3.1
4 x USB 3.0 (1 Type-C)

LAN

Dual LAN (Gigabit Ethernet, 2.5Gbps Ethernet)

Antenna

Dual WiFI SMA connetor

Wifi

WiFi 6 AX1650

Bluetooth

Bluetooth 5.2

Legacy I/O

N/A

CIR Infrared Port

N/A

Thunderbolt

1 x Thunderbolt 4

IDE

N/A

Kensington Lock

Yes

LED Indicators

Power, HDD, WiFi

Power Supply

500W 80+ Platinum

Cooling system

Fan + Heatsink

ZBOX Dimensions

265.5mm x 126mm x 249mm (10.45in x 4.96in x 9.8in)

Case Mounting

None

Supported OS

Windows 11 Home pre-installed

Accessories

2 x WiFi antenna
Power Cord (bundled cable type dependent on region)
Warranty Card
Quick Install Guide
USB drive with O/S Recovery

Available SKU

ZBOX-ERP74070W-BE1-W4B
ZBOX-ERP74070W-J-W4B
ZBOX-ERP74070W-U-W4B
ZBOX-ERP74070W-K-W4B
ZBOX-ERP74070W-AUS-W4B
ZBOX-ERP74070W-BE-W5B
