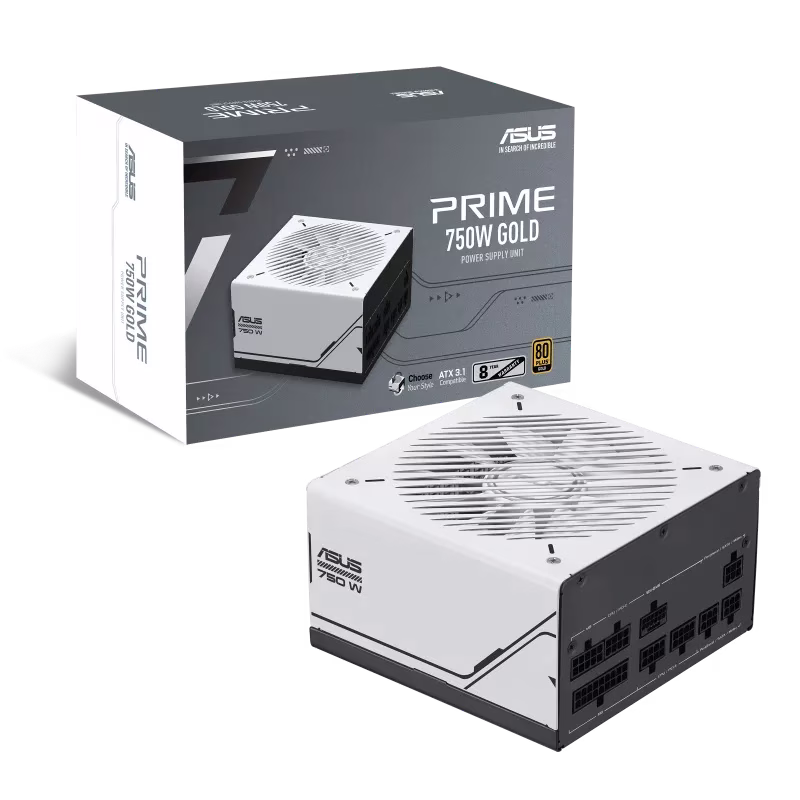

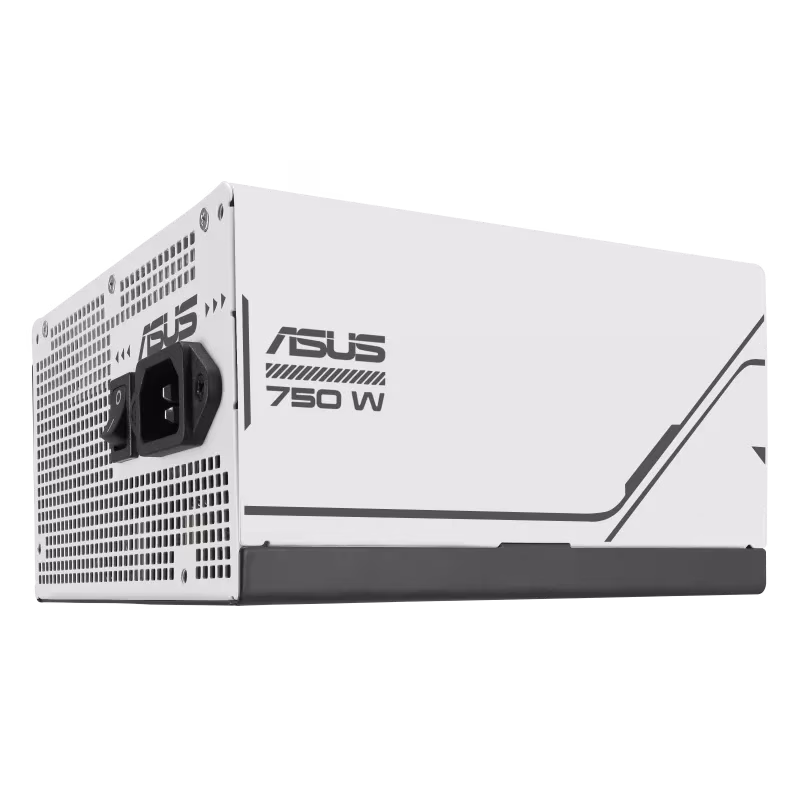

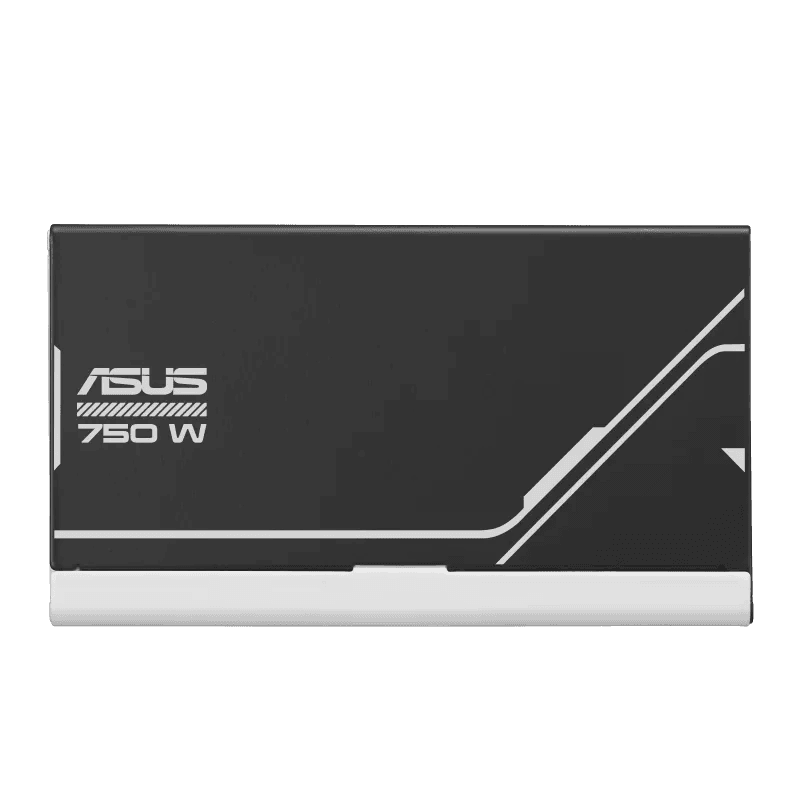

ASUS Prime 750W Gold Power Supply PSU, ATX 3.1 compatible, 80 Plus gold certification, Dual ball fan bearings | 90YE00U1-B0NA00
Model :
SKU : PS-ASUS PRIM AP-750G WH
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Prime Performance
With 80+ Gold certification, dual ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Specification
AP-750G Specifications
| Model | AP-750G |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 20A / 20A / 62A / 0.3A / 2.5A |
| Combined Load | 110W / 110W / 744W / 3.6W / 12.5W |
| Total Output | 750W |

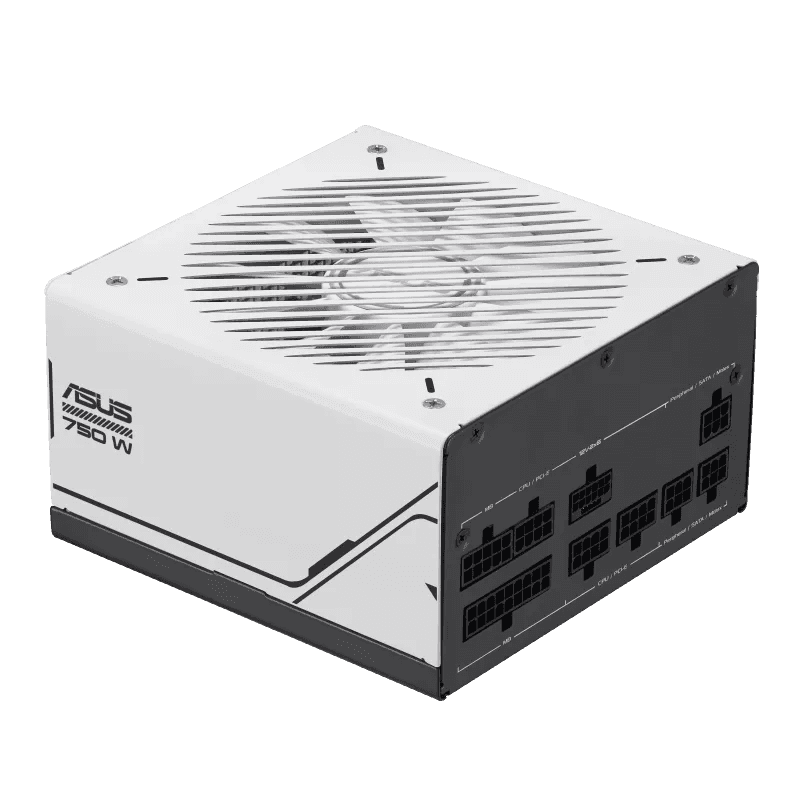

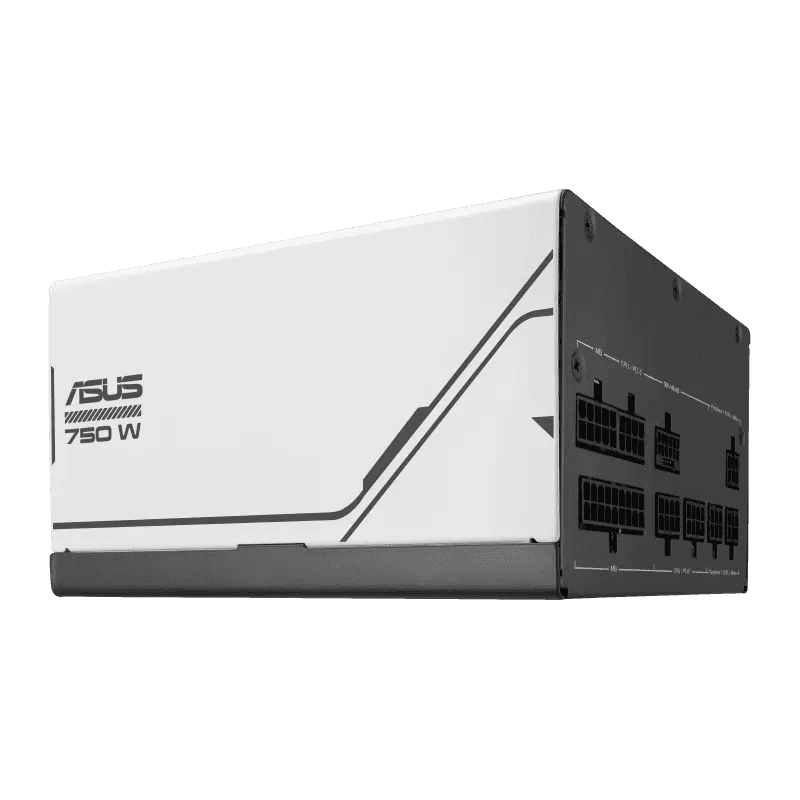

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & connector side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 3 |

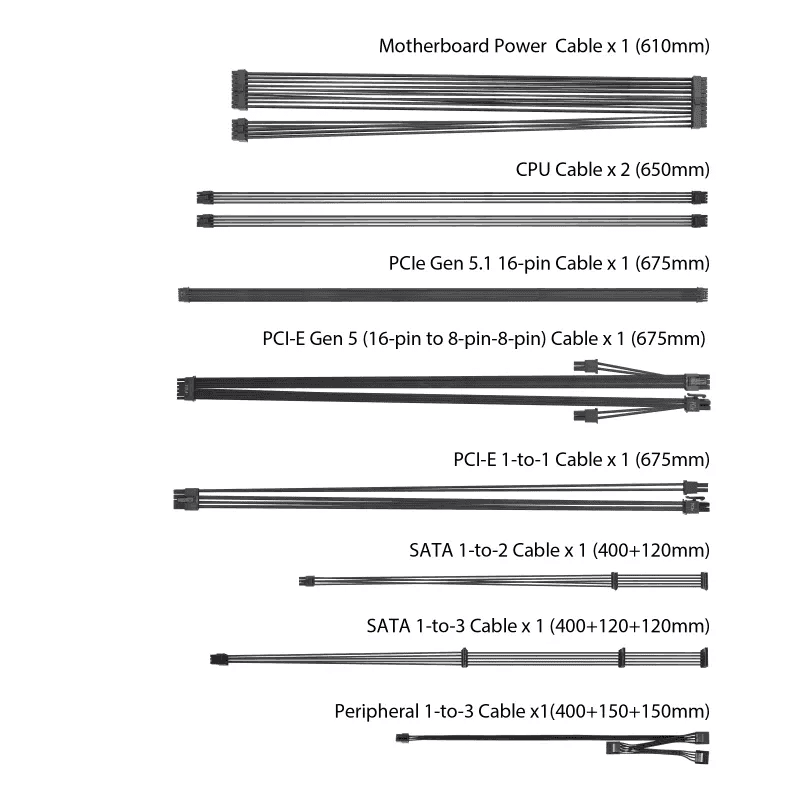

| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) User Manual x 1 |
| Weight | 1.466 kg (single PSU) |
| 0dB Technology | No |
